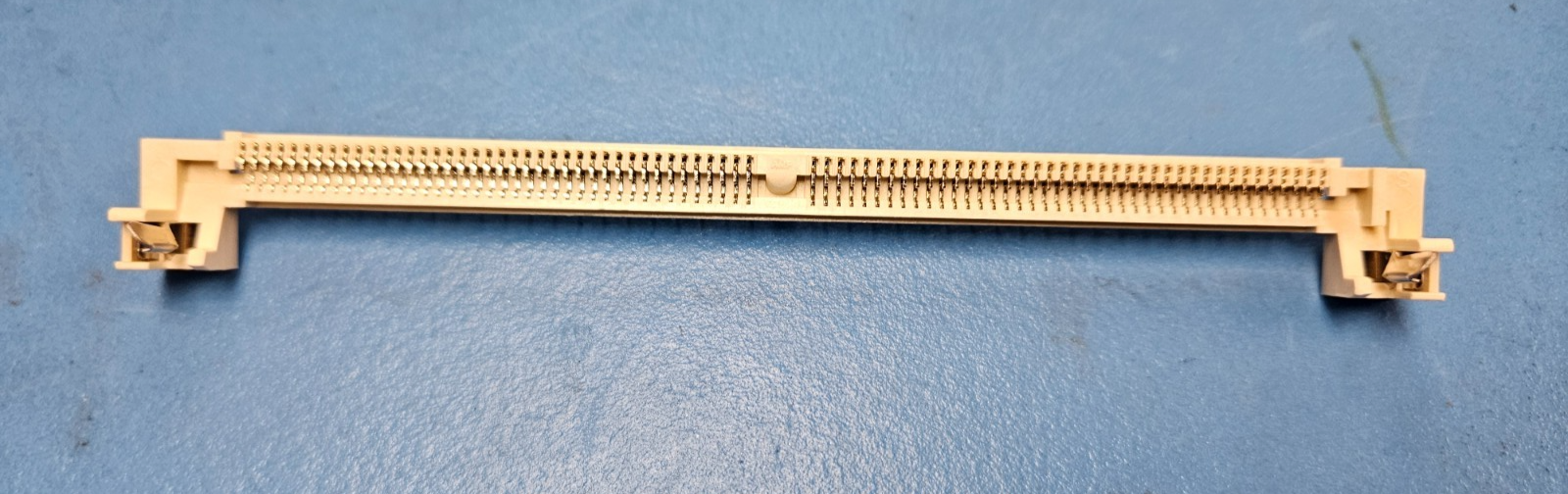

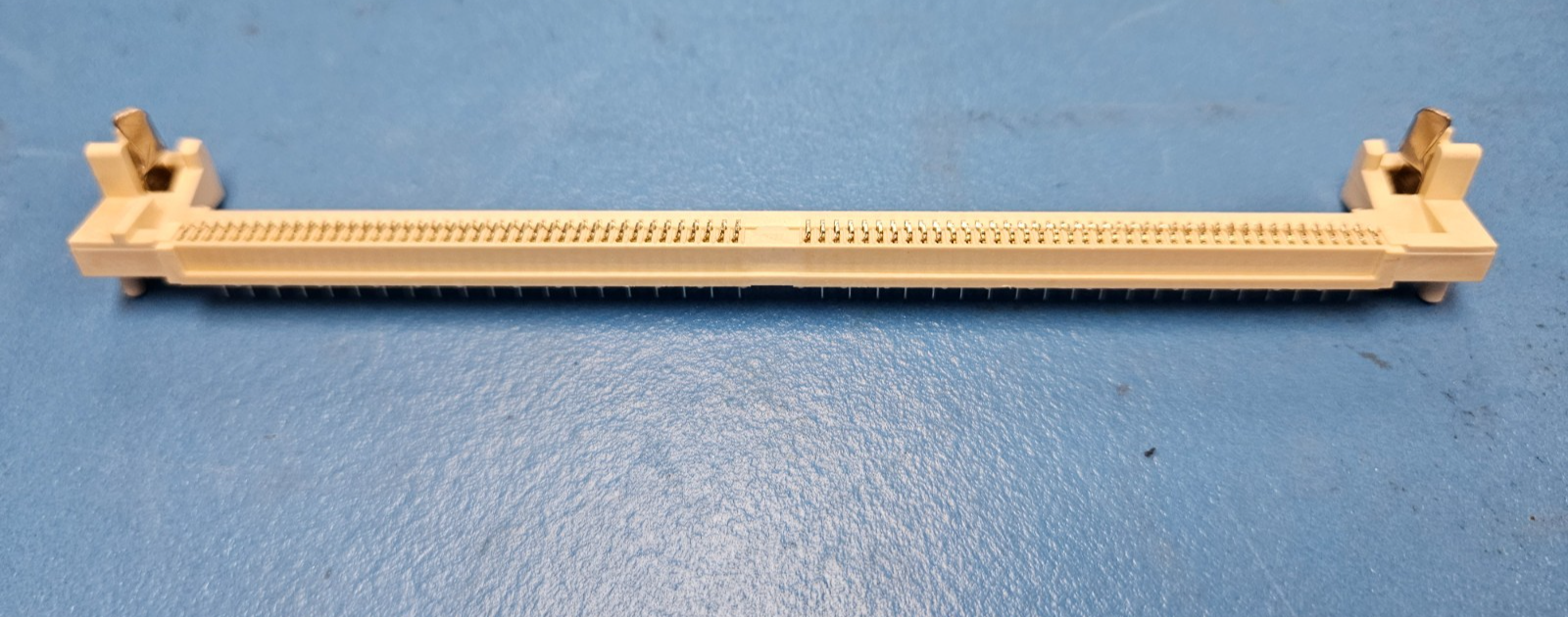

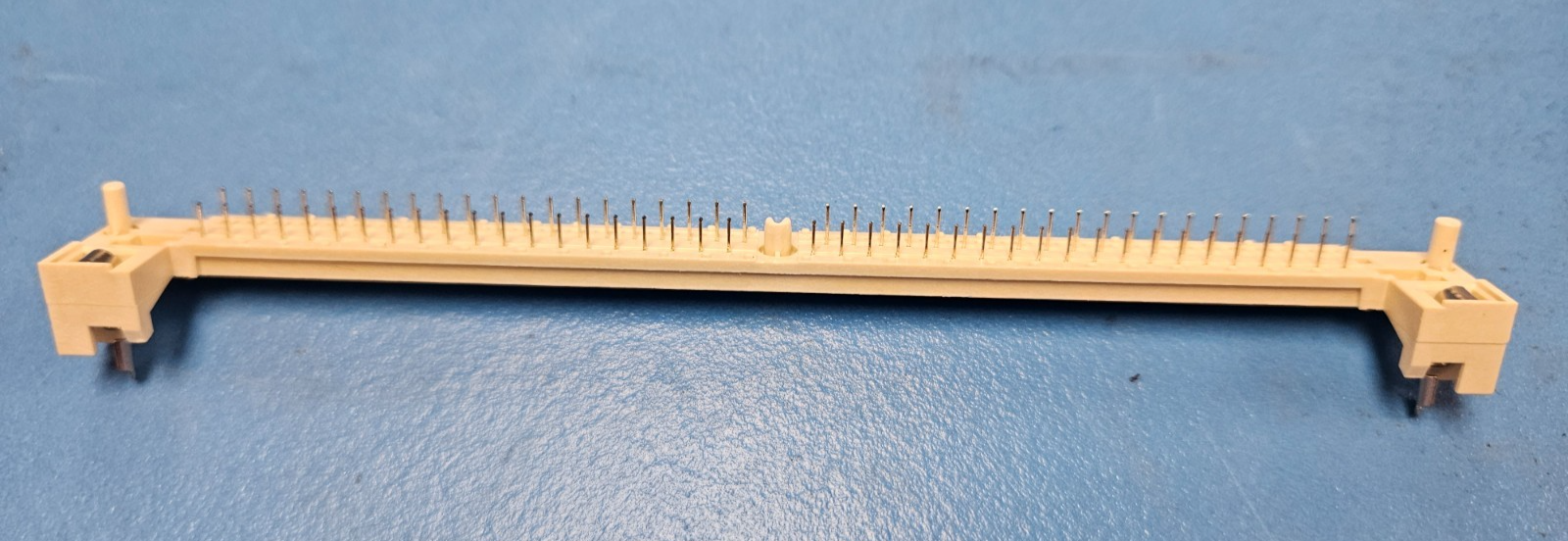

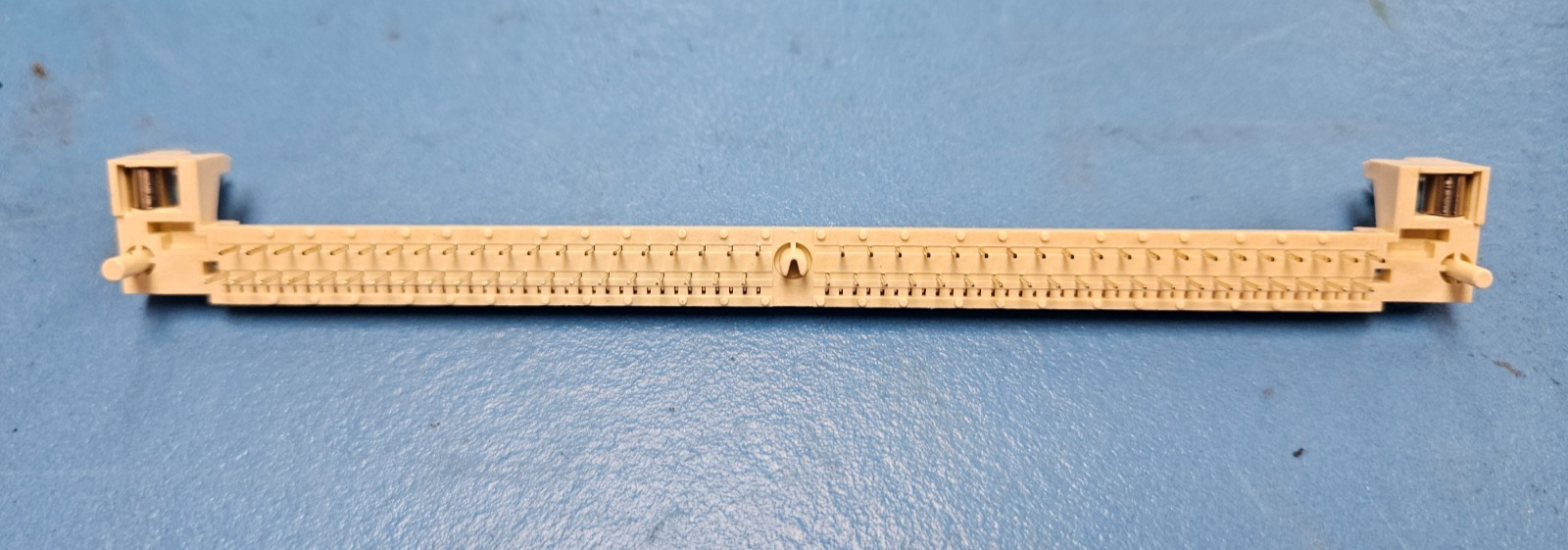

(1PC) 822110-4 AMP Card Edge Connector, 80 Contact, 2 Row, Female
Tax included.

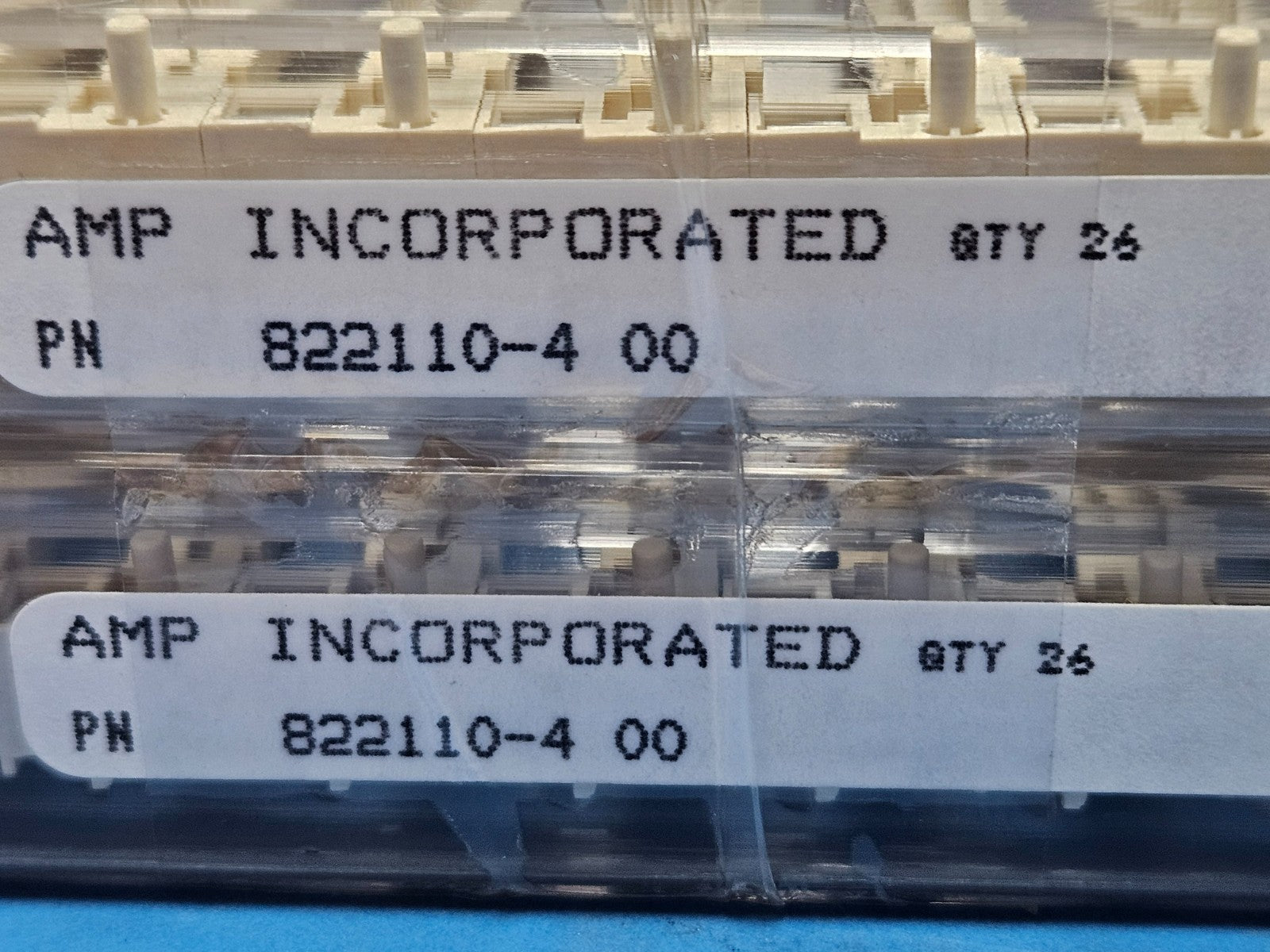

This listing is for (1PC) of 822110-4 by AMP
Status Discontinued
Additional Feature LATCED
Body/Shell Style SOCKET
Connector Type CARD EDGE CONNECTOR
Contact Finish - Mating TIN
Contact Finish - Termination TIN LEAD OVER NICKEL
Contact Gender FEMALE
Contact Material PHOSPHOR BRONZE
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
J-STD-609 Code e0
MIL Conformance NO
Mixed Contacts NO
Mounting Style 22 DEGREE
Mounting Type BOARD
Number of Connectors ONE
Number of Rows Loaded 1
Option GENERAL PURPOSE
Terminal Pitch (mm) 1.27
Termination Type SOLDER
Number of Contacts 72
UL Flammability Code 94V-0
