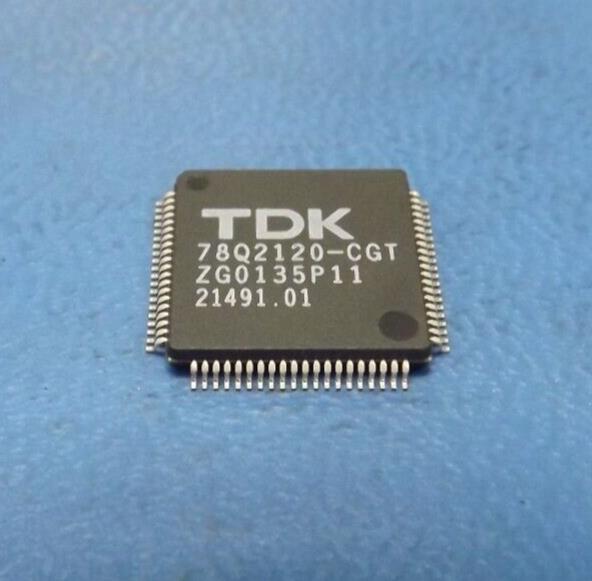

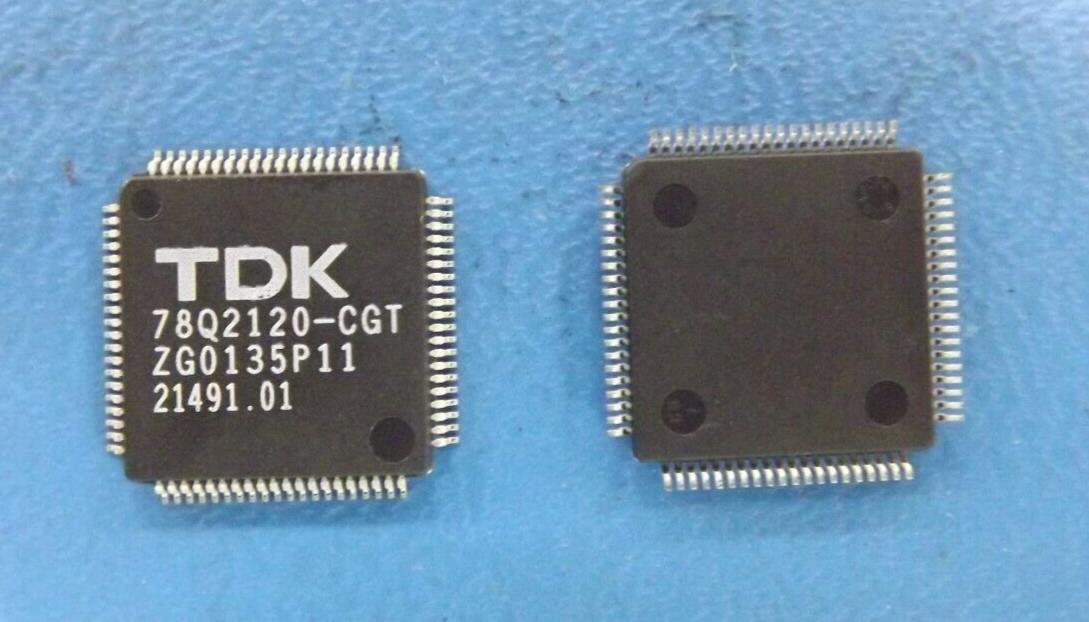

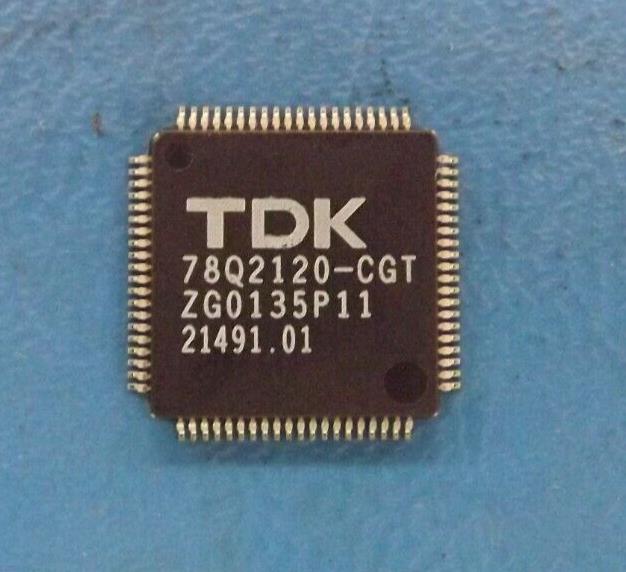

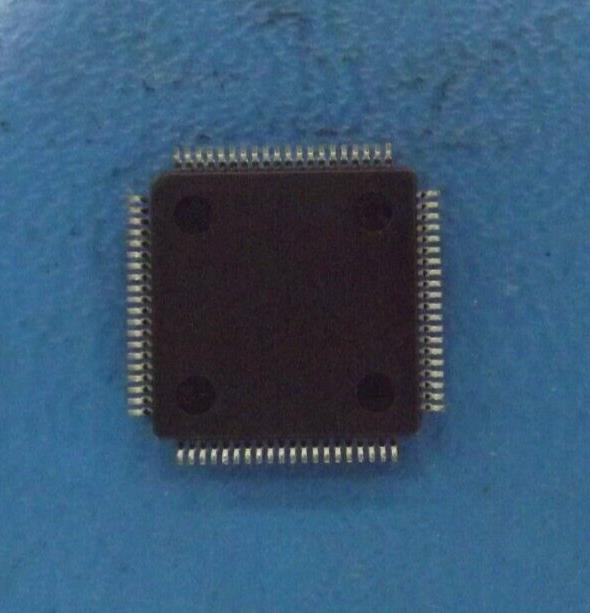

(1PC) 78Q2120-CGT TDK Ethernet Transceiver, 1-Trnsvr, BICMOS, PQFP80
Tax included.
THIS LISTING IS FOR (1PC) OF 78Q2120-CGT BY TDK
Mfr Package Description PLASTIC, TQFP-80
Status Discontinued
Telecom IC Type ETHERNET TRANSCEIVER
Data Rate 100000.0
JESD-30 Code S-PQFP-G80
Number of Functions 1
Number of Terminals 80
Number of Transceivers 1
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP80,.55SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Qualification Status Not Qualified
Seated Height-Max 1.6 mm
Sub Category Network Interfaces
Supply Current-Max 0.135 mA
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology BICMOS
Temperature Grade COMMERCIAL
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Length 12.0 mm
Width 12.0 mm
