(1PC) 74FCT166245ATPV IDT Bus Transceiver, 2-Func, 8-Bit, CMOS, SSOP48
Tax included.

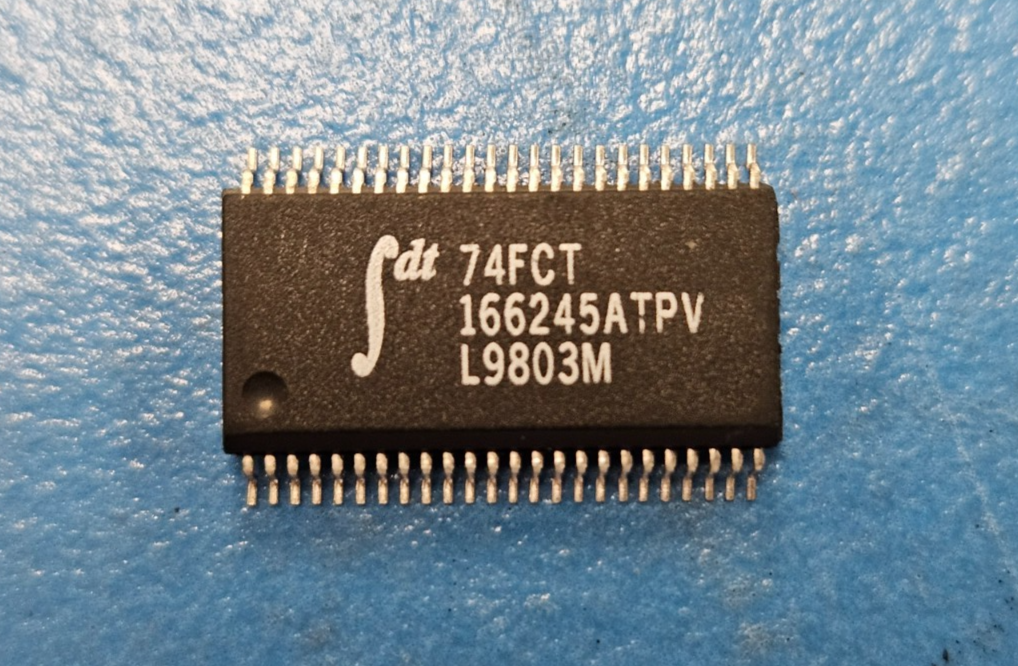

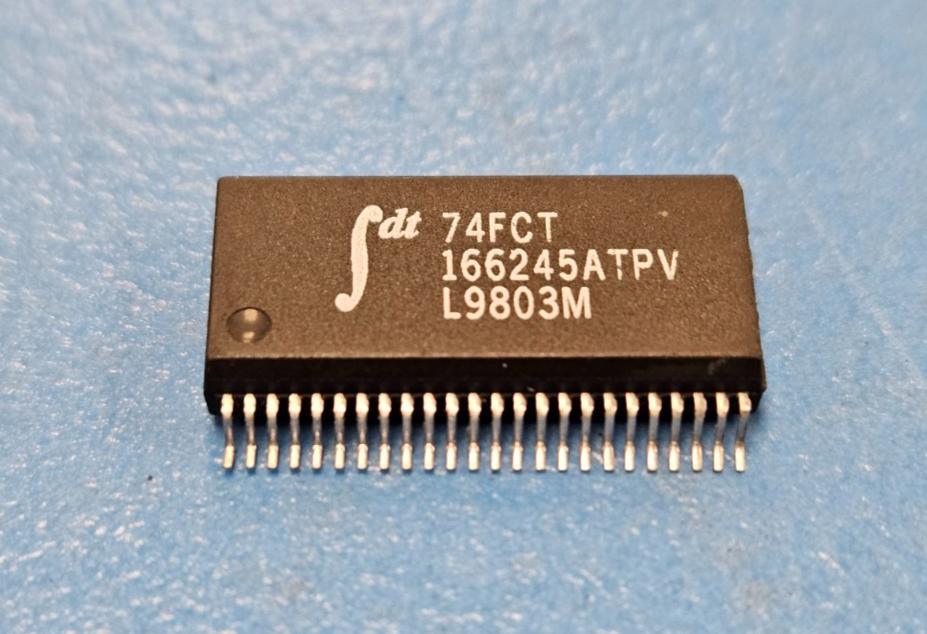

This listing is for (1PC) of 74FCT166245ATPV by IDT
Status Discontinued
Additional Feature DIRECTION CONTROL
Control Type COMMON CONTROL
Direction BIDIRECTIONAL
Family FCT
JESD-30 Code R-PDSO-G48
J-STD-609 Code e0
Length (mm) 15.8750
Load Capacitance (pF) 50.0000
Logic IC Type BUS TRANSCEIVER
Output Low Current-Max (mA) 8.000000000000000
Moisture Sensitivity Level 1
Number of Bits 8
Number of Functions 2
Number of Ports 2
Number of Terminals 48
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -40
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP48,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Packing Method TR
Peak Reflow Temperature (Cel) 225
Propagation Delay-Max@Nom-Sup (ns) 4.600000000000000000
Propagation Delay (ns) 4.6000
DLA Qualification Not Qualified
Seated Height-Max (mm) 2.7940
Supply Voltage-Max (V) 5.5000
Supply Voltage-Min (V) 4.5000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch (mm) 0.635
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 20
Width (mm) 7.4930
