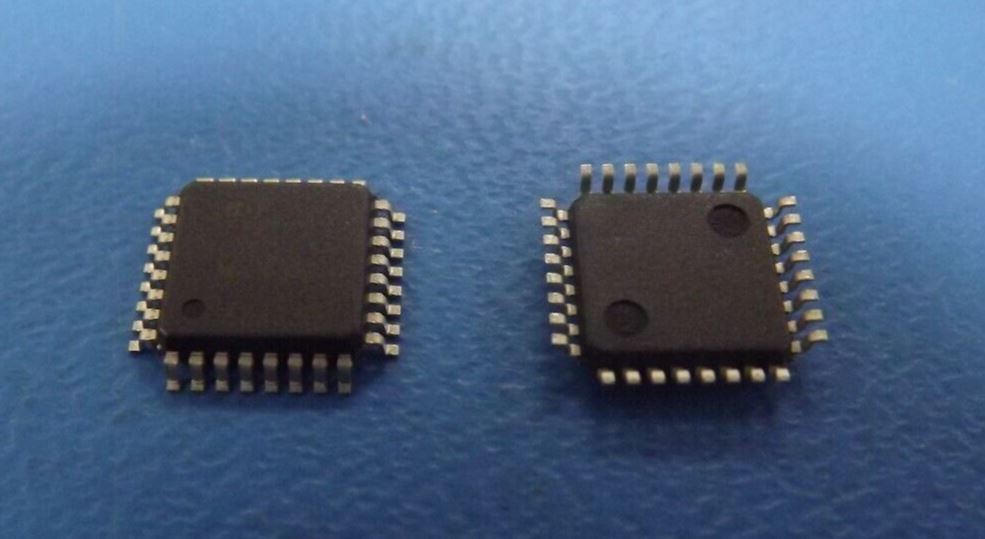

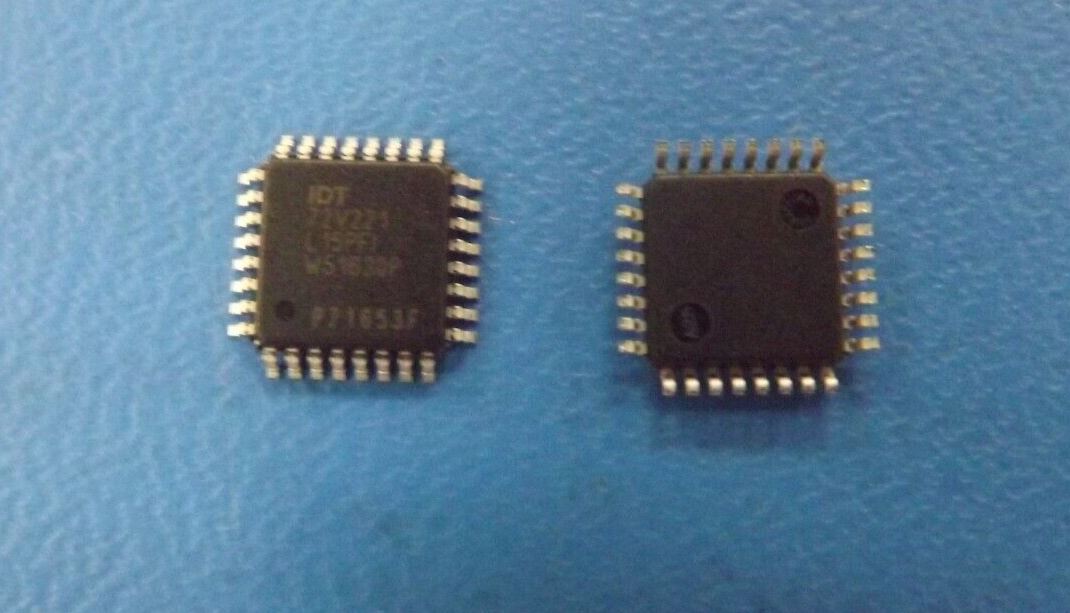

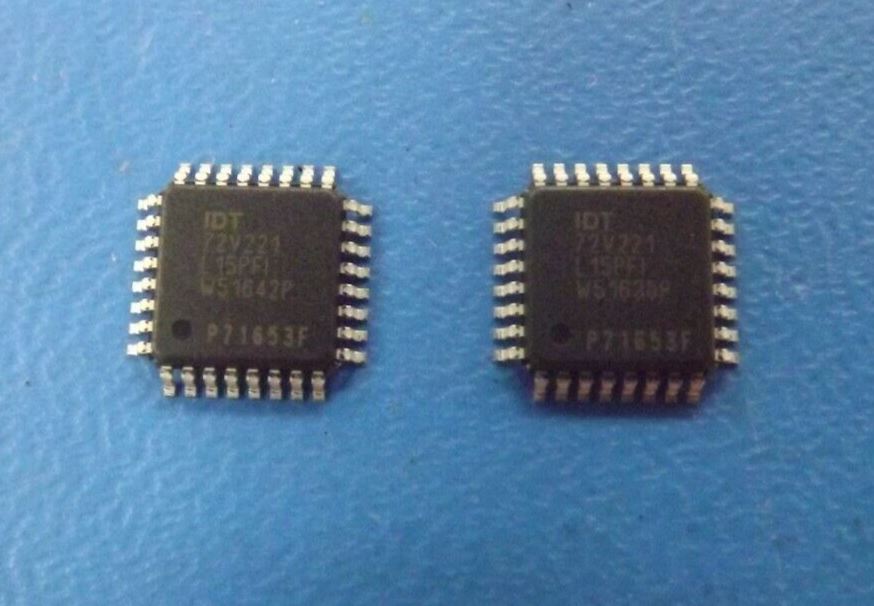

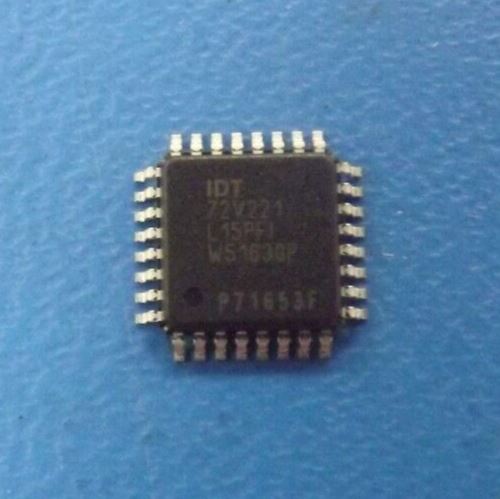

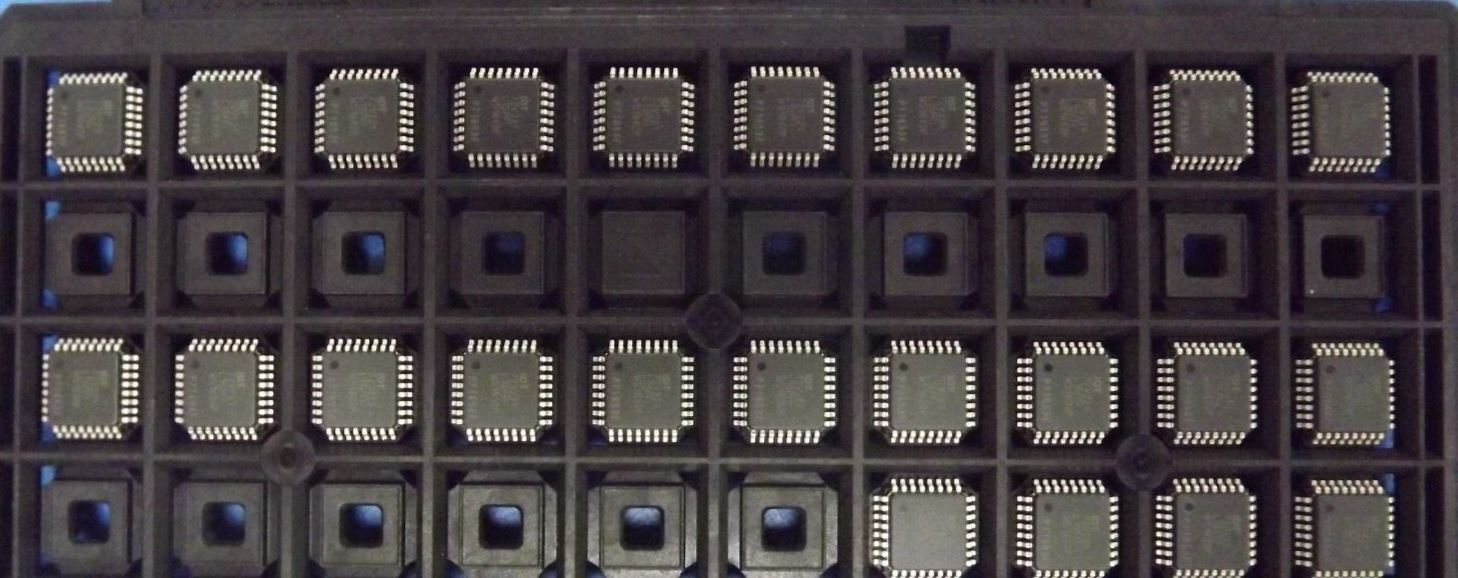

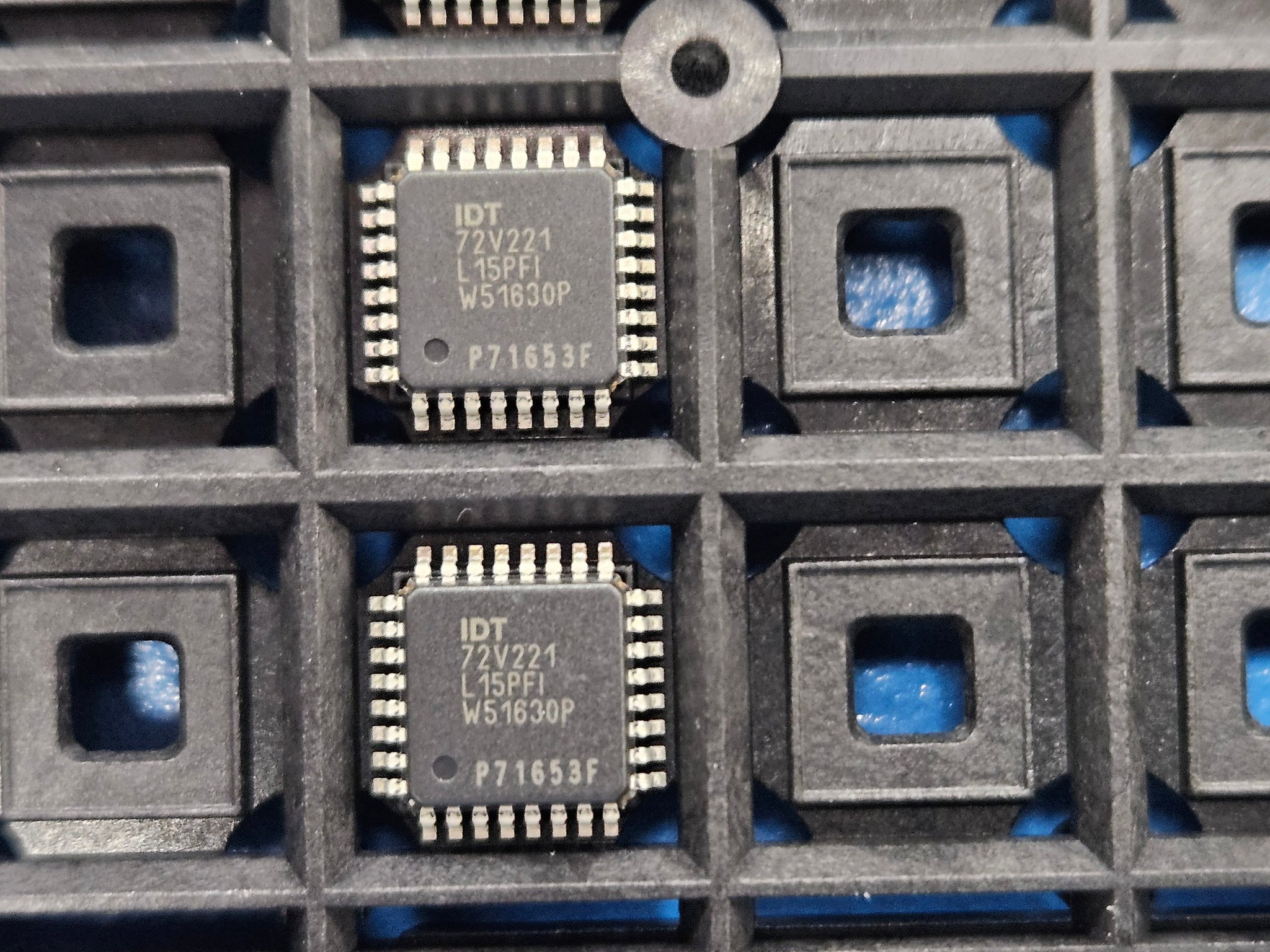

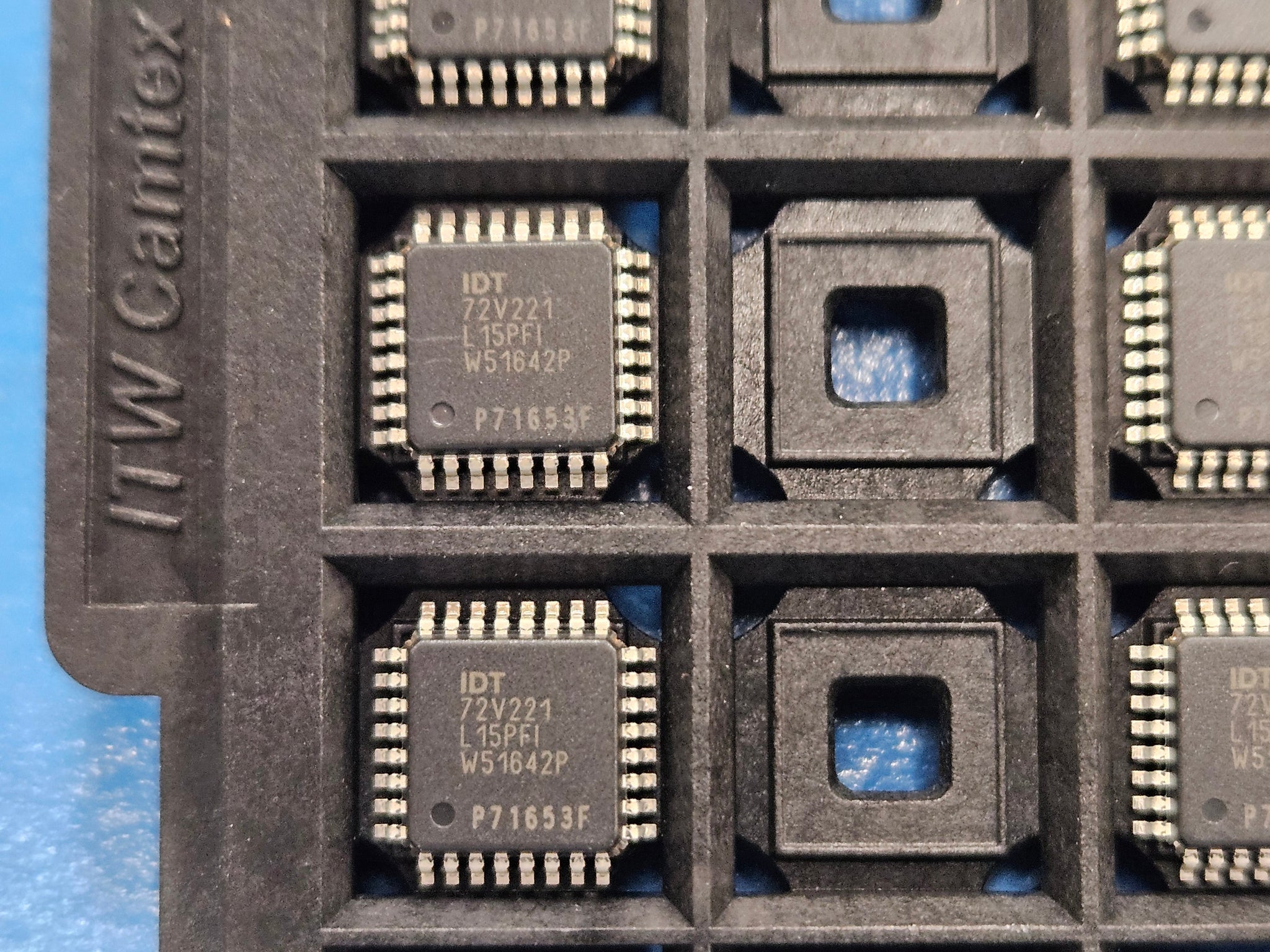

(1PC) 72V221L15PFI IDT Uni-Directional 66.7MHz 10ns 32-TQFP
Tax included.
THIS LISTING IS FOR (1PC) OF 72V221L15PFI BY IDT
Mfr Package Description PLASTIC, TQFP-32
REACH Compliant Yes
Status Discontinued
Sub Category FIFOs
Access Time-Max 10.0 ns
Clock Frequency-Max (fCLK) 66.7 MHz
Cycle Time 15.0 ns
JESD-30 Code S-PQFP-G32
JESD-609 Code e0
Memory Density 9216.0 bit
Memory IC Type OTHER FIFO
Memory Width 9
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 32
Number of Words 1024.0 words
Number of Words Code 1K
Operating Mode SYNCHRONOUS
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Organization 1KX9
Output Enable YES
Package Body Material PLASTIC/EPOXY
Package Code LQFP
Package Equivalence Code QFP32,.35SQ,32
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 225
Qualification Status Not Qualified
Seated Height-Max 1.6 mm
Standby Current-Max 0.005 Amp
Supply Current-Max 0.02 Amp
Supply Voltage-Nom (Vsup) 3.3 V
Supply Voltage-Min (Vsup) 3.0 V
Supply Voltage-Max (Vsup) 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 20
Length 7.0 mm
Width 7.0 mm
