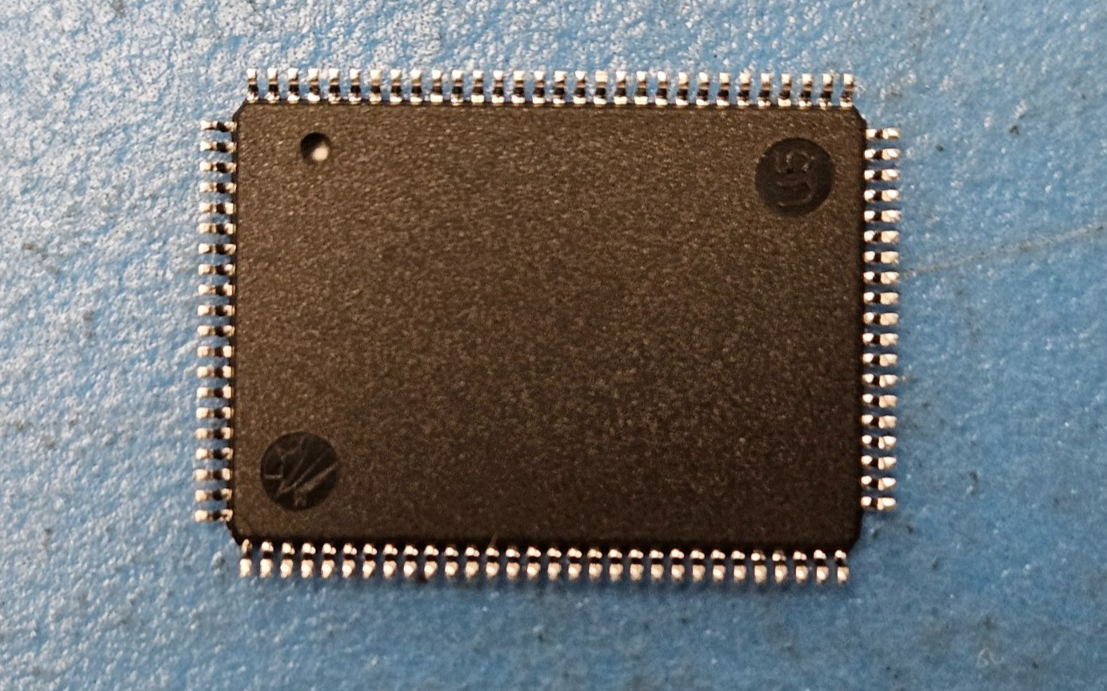

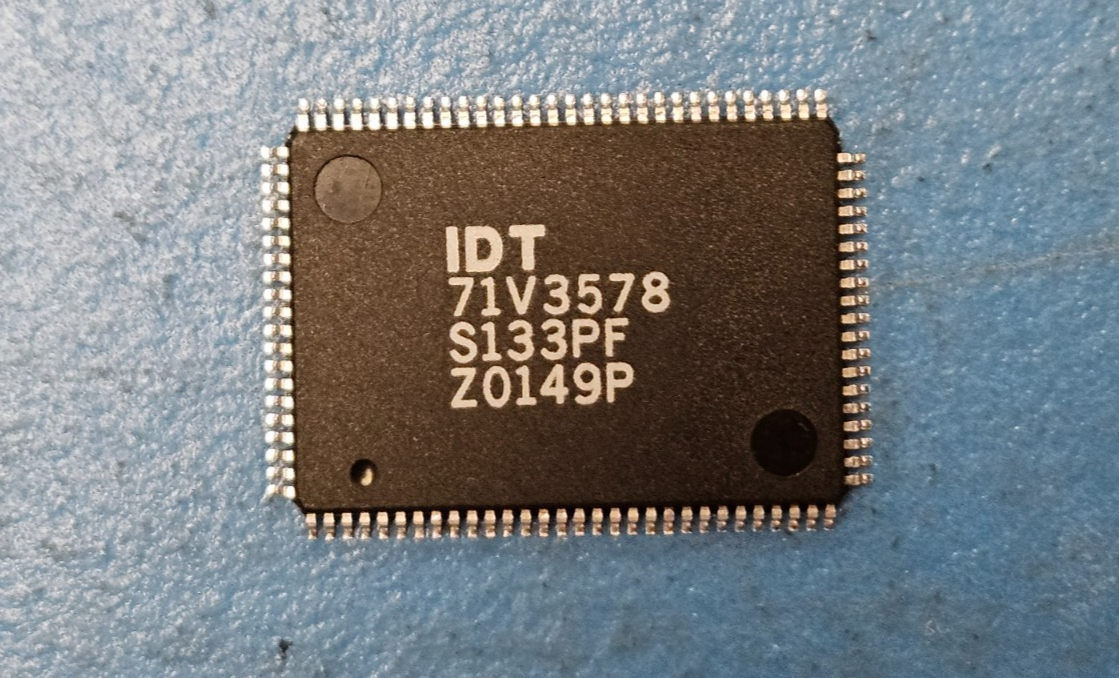

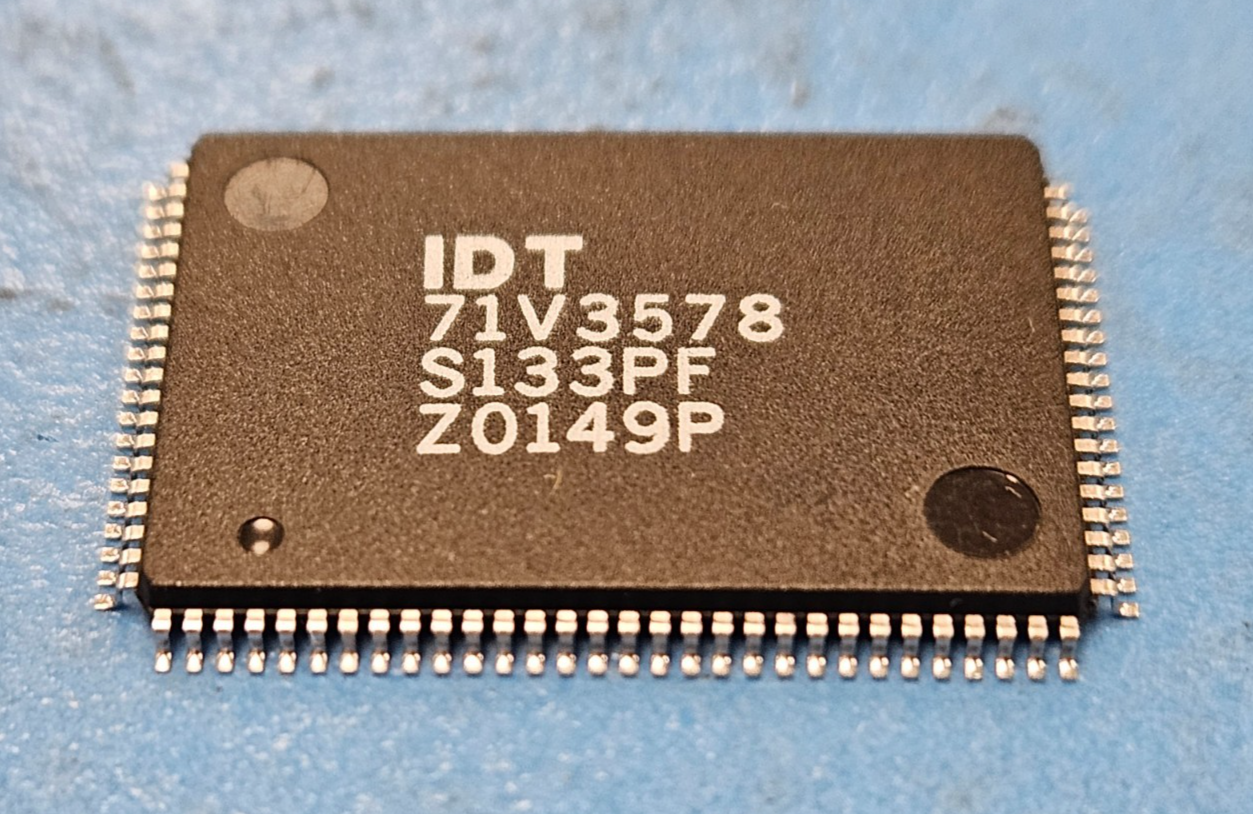

(1PC) 71V3578S133PF IDT Cache SRAM, 256KX18, 4.2ns, CMOS, PQFP100
Tax included.
This listing is for (1PC) of 71V3578S133PF by IDT
Status Discontinued
Access Time-Max (ns) 4.2000000000000000
Additional Feature PIPELINED ARCHITECTURE
Clock Frequency-Max (MHz) 133.00000
I/O Type COMMON
JESD-30 Code R-PQFP-G100
J-STD-609 Code e0
Length (mm) 20.0000
Memory Density (bits) 4718592.0000000000000000
Memory IC Type CACHE SRAM
Memory Width 18
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 100
Number of Words (words) 262144.0000000000000000
Number of Words Code 256K
Operating Mode SYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 256KX18
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code LQFP
Package Equivalence Code QFP100,.63X.87
Package Shape RECTANGULAR
Package Style FLATPACK, LOW PROFILE
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 225
DLA Qualification Not Qualified
Seated Height-Max (mm) 1.6000
Standby Current-Max (A) 0.030000000000000
Standby Voltage-Min (V) 3.140000
Supply Current-Max (mA) 250.000000000000000
Supply Voltage-Max (V) 3.46500
Supply Voltage-Min (V) 3.13500
Supply Voltage-Nom (V) 3.3
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form GULL WING
Terminal Pitch (mm) 0.650
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 20
Width (mm) 14.0000
