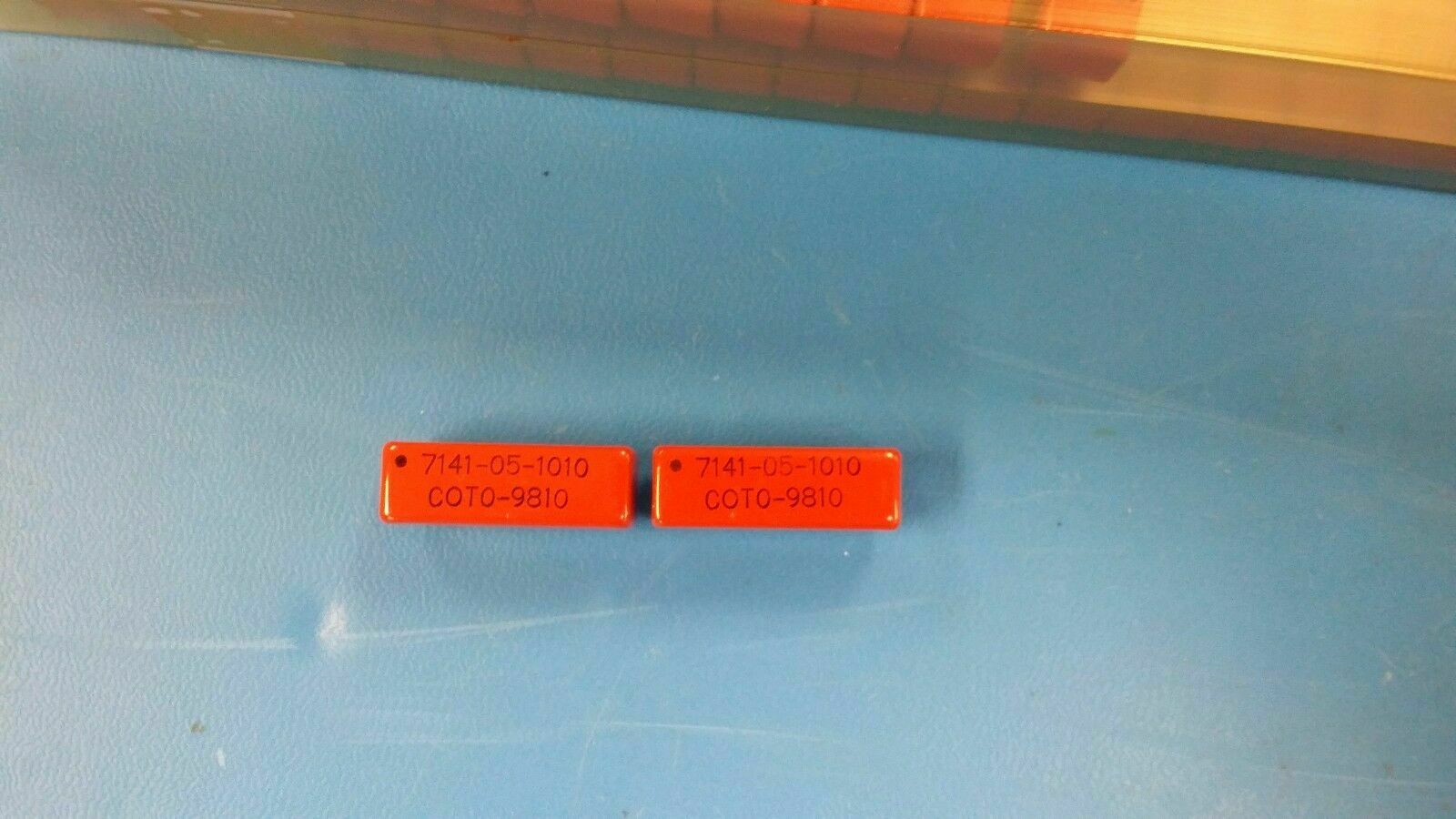

(1PC) 7141-05-1010 Reed Relays SPDT 0.25A 5VDC 175Ohm Thru-Hole
Tax included.
THIS LISTING IS FOR (1PC) OF 7141-05-1010
SPECIFICATIONS
| Status | Contact Mfr |
| Relay Type | DRY REED RELAY |
| Body Breadth | 10.41 mm |
| Body Height | 9.52 mm |
| Body Length or Diameter | 30.23 mm |
| Coil Current(DC)-Max | 0.0290 A |
| Coil/Input Supply Type | DC |
| Coil Operate Voltage(DC) | 3.75 V |
| Coil Power (mW) | 145 |
| Coil Release Voltage(DC) | 0.4000 V |
| Coil Resistance | 175 ohm |
| Coil Voltage(DC)-Max | 5 V |
| Contact AC Max Rating R Load | .25A@150VAC |
| Contact Current(AC)-Max | 0.2500 A |
| Contact Current(DC)-Max | 0.2500 A |
| Contact DC Max Rating R Load | .25A@150VDC |
| Contact/Output Supply Type | AC/DC |
| Contact Voltage(AC)-Max | 150 V |
| Contact Voltage(DC)-Max | 150 V |
| Electrical Life | 1.00E8 Cycle(s) |
| Manufacturer Series | 7000 |
| Mounting Feature | THROUGH HOLE-STRAIGHT MOUNT |
| Operate Time | 2 ms |
| Operating Temperature-Min | -20 Cel |
| Operating Temperature-Max | 85 Cel |
| Physical Dimension | 30.23mm X 10.41mm X 9.52mm |
| Relay Action | MOMENTARY |
| Relay Function | SPDT |
| Release Time | 2.5 ms |
| Sealing | HERMETICALLY SEALED |
| Termination Type | SOLDER |
| Additional Feature | SHIELDED |
