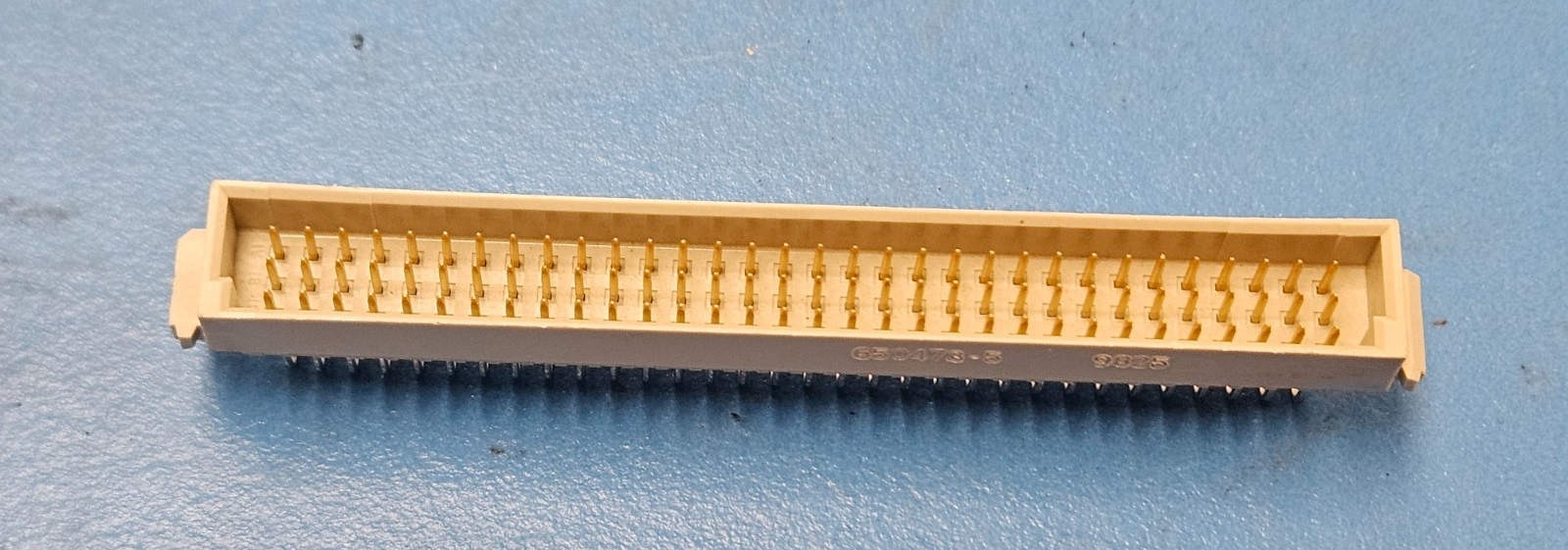

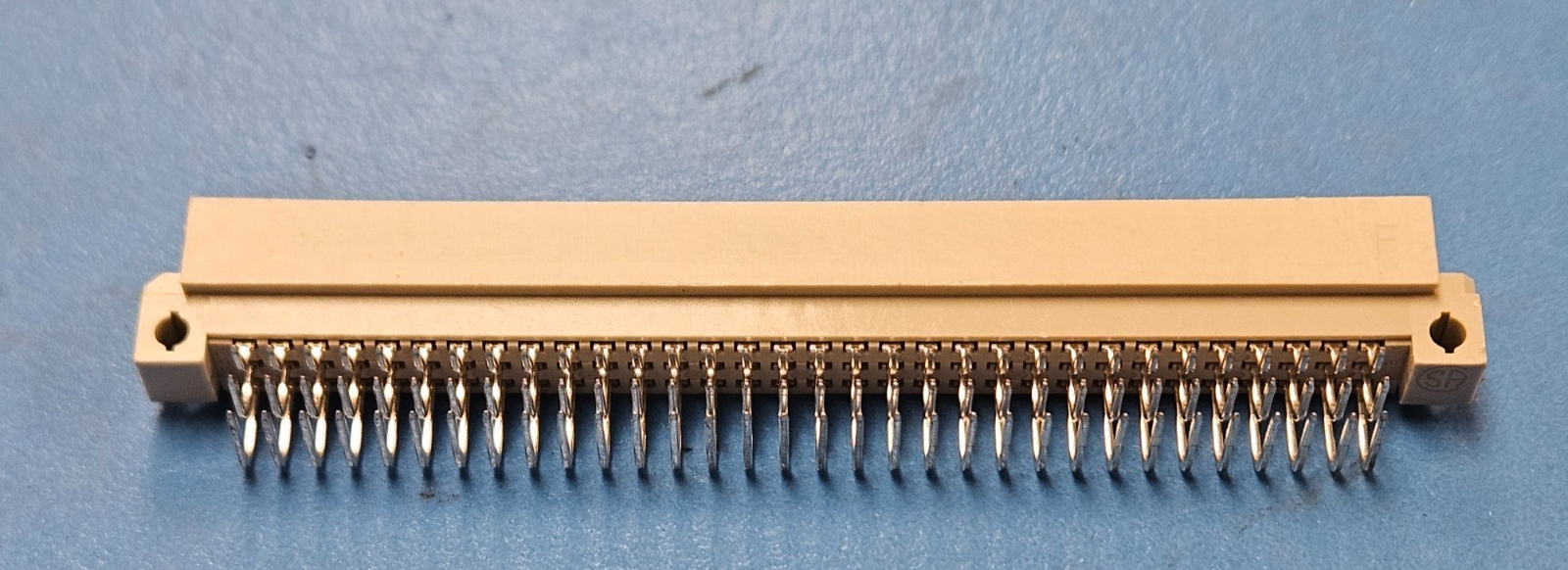

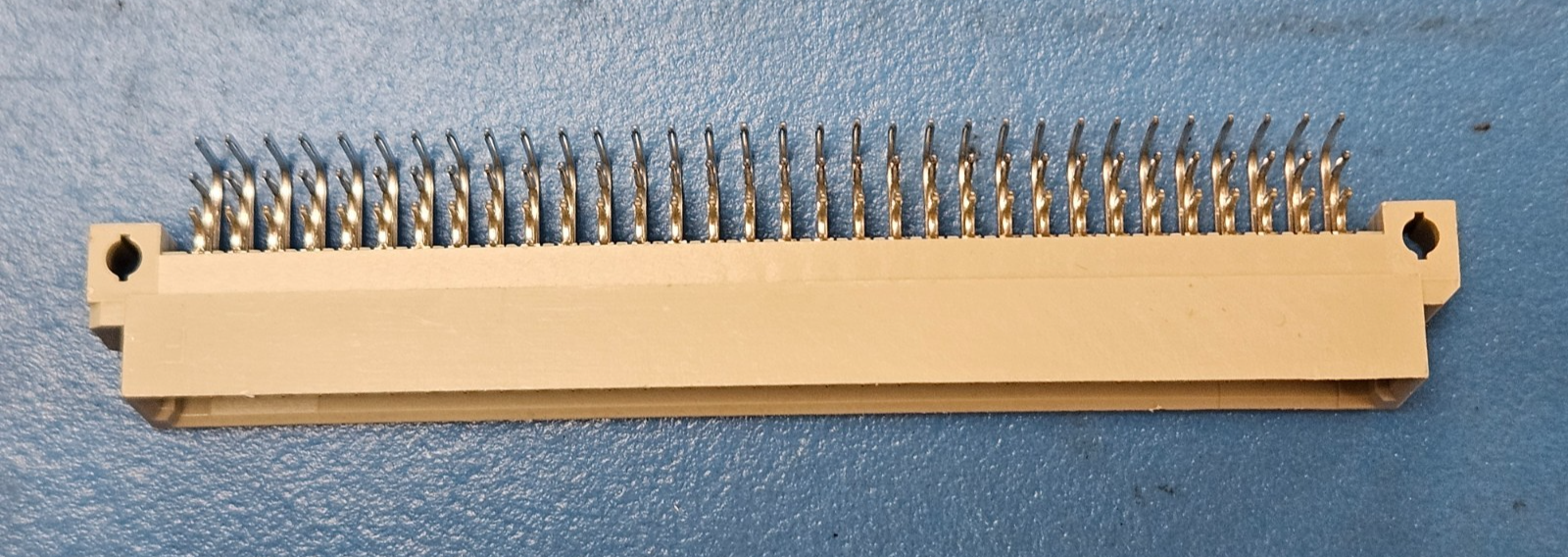

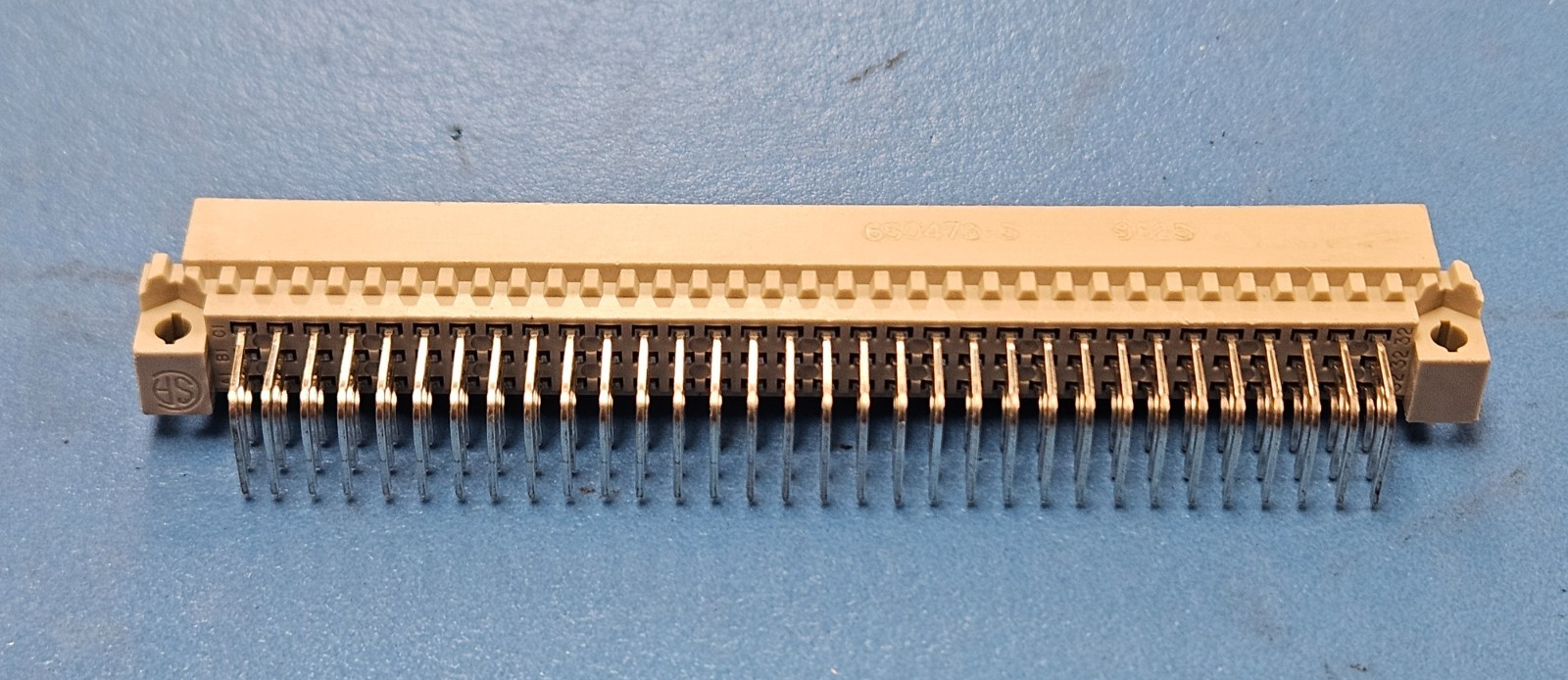

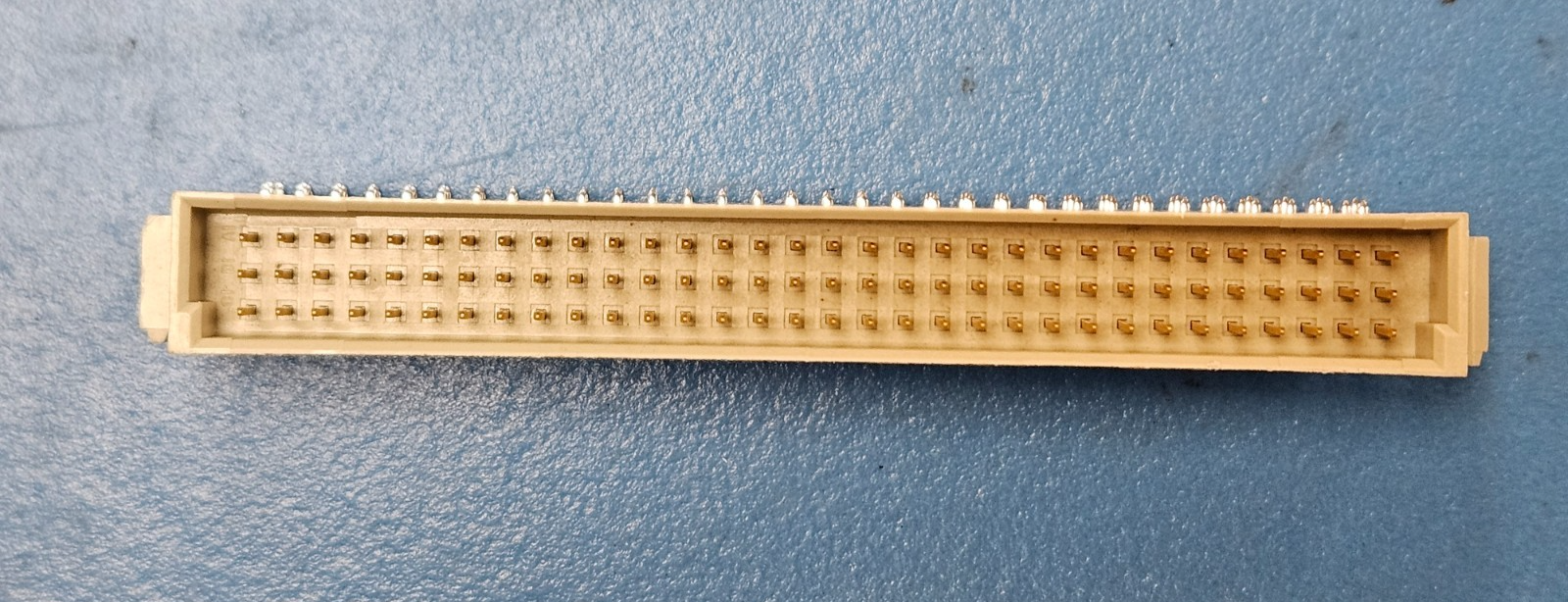

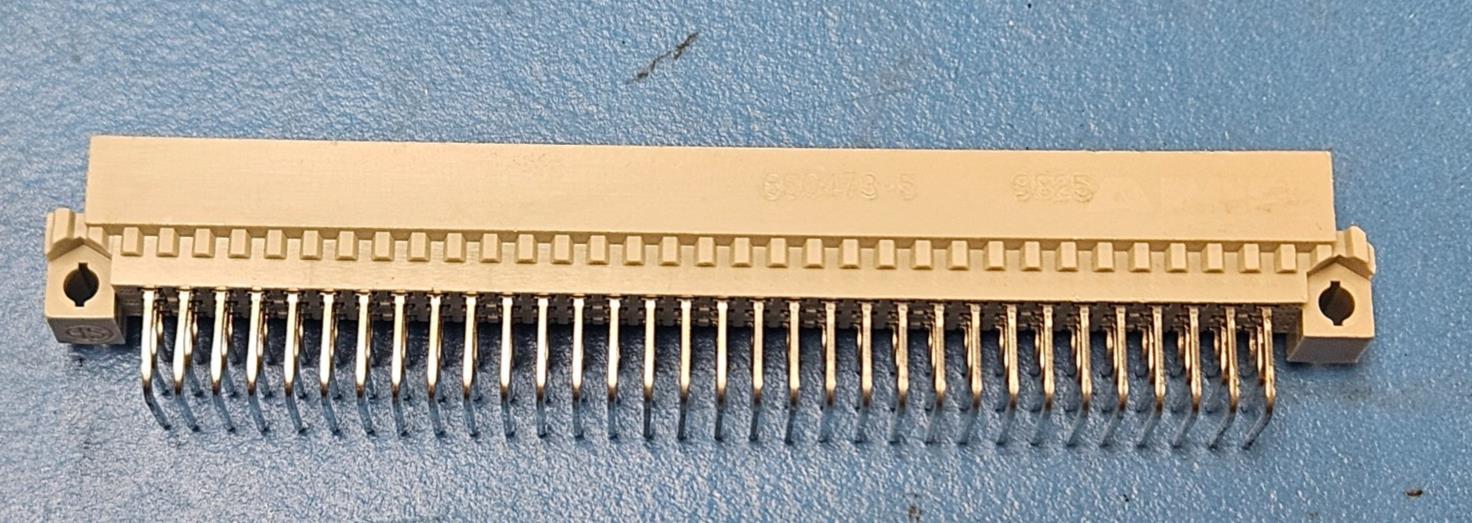

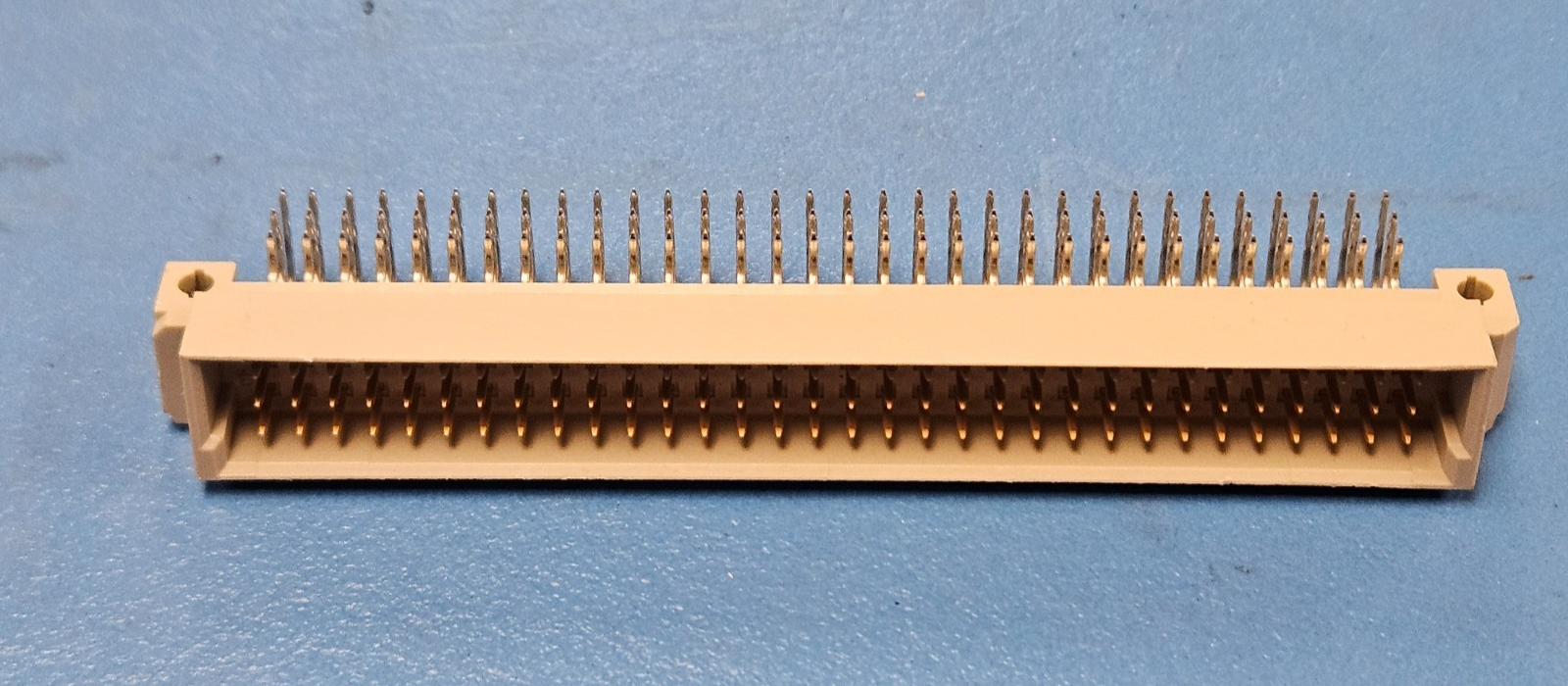

(1PC) 650473-5 AMP Board Connector, 96 Contact, 3 Row, Male, Right Angle
Tax included.

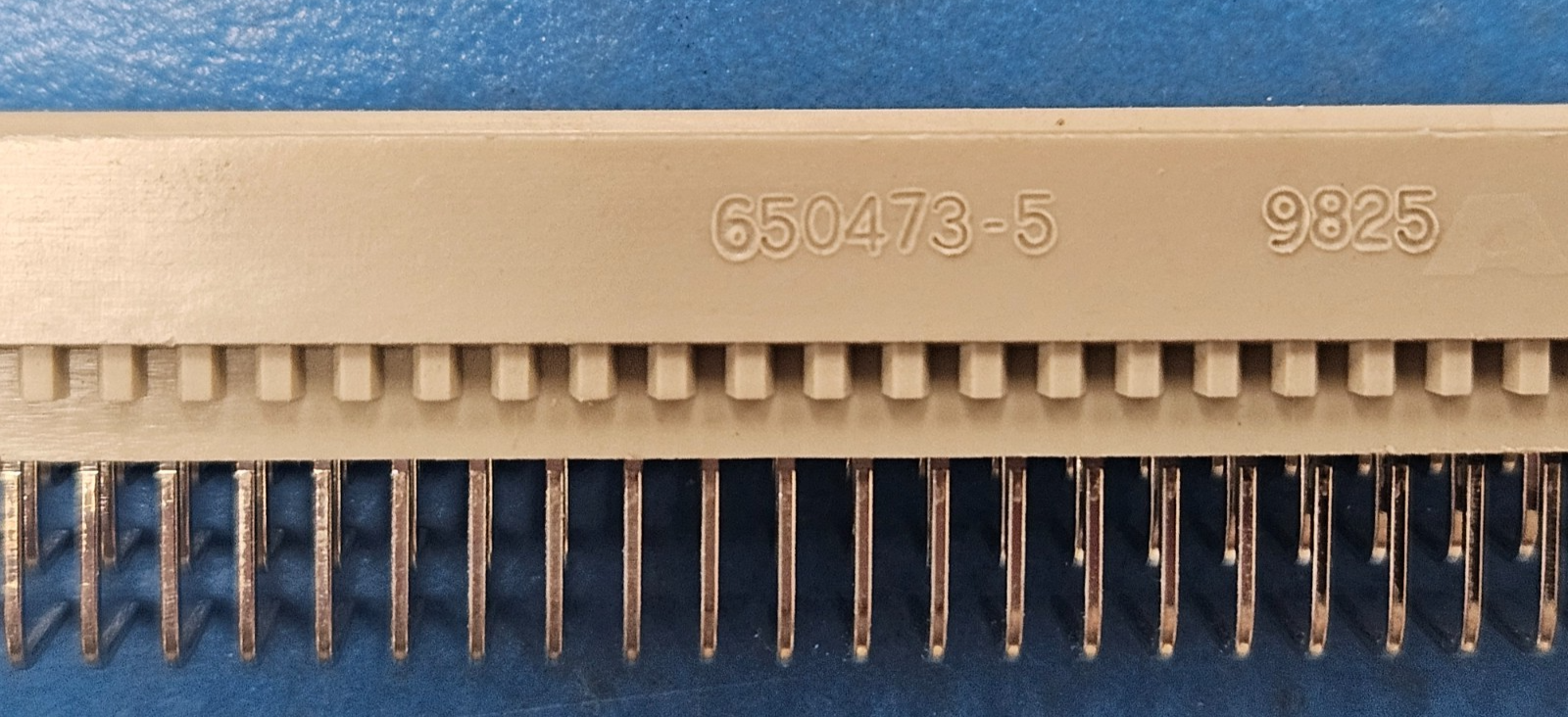

This listing is for (1PC) of 650473-5 by TE Connectivity
Status Active
Additional Feature STANDARD: DIN 41612
Body Breadth (inch) 0.437000
Body Depth (inch) 0.711000
Body Length (inch) 3.700000
Body/Shell Style PLUG
Connector Type BOARD CONNECTOR
Contact Finish - Mating NOT APPLICABLE
Contact Gender MALE
Contact Material NOT APPLICABLE
Contact Pattern RECTANGULAR
Contact Resistance (mohm) 20.000000000000000
Contact Style SQ PIN-SKT
DIN Conformance NO
EMI Shielded NO
Empty Shell NO
Filter Feature NO
IEC Conformance NO
Insulation Resistance (ohm) 1000000000000.000000000000000
Insulator Color GRAY
Insulator Material GLASS FILLED POLYESTER
MIL Conformance NO
Mains Connector Rating 115/230VAC
Mating Contact Pitch (inch) 0.1
Mating Contact Row Spacing (inch) 0.1
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 HOLE .099-.111
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Name of Rows Loaded A,B,C
Number of Connectors ONE
Number of PCB Rows 3
Number of Ports 1
Number of Rows Loaded 3
Operating Temperature-Max (Cel) 105
Operating Temperature-Min (Cel) -55
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 2.54
Panel Mount NO
Rated Current (Signal) (A) 1.5000000000000000
Screening Level / Reference Standard UL, CSA
Terminal Length (inch) 0.104000
Terminal Pitch (mm) 2.54
Termination Type SOLDER
Number of Contacts 96
UL Flammability Code 94V-0
