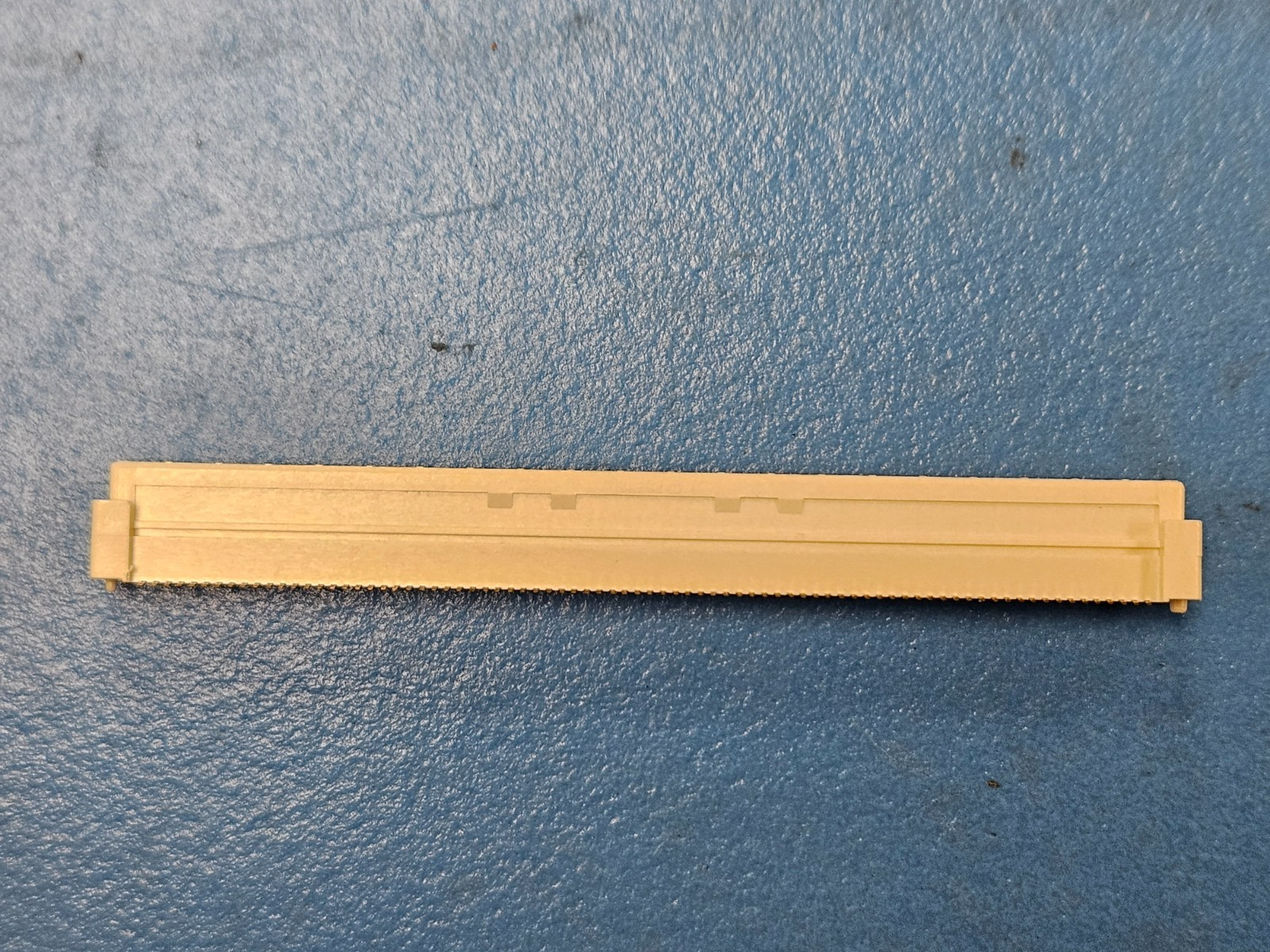

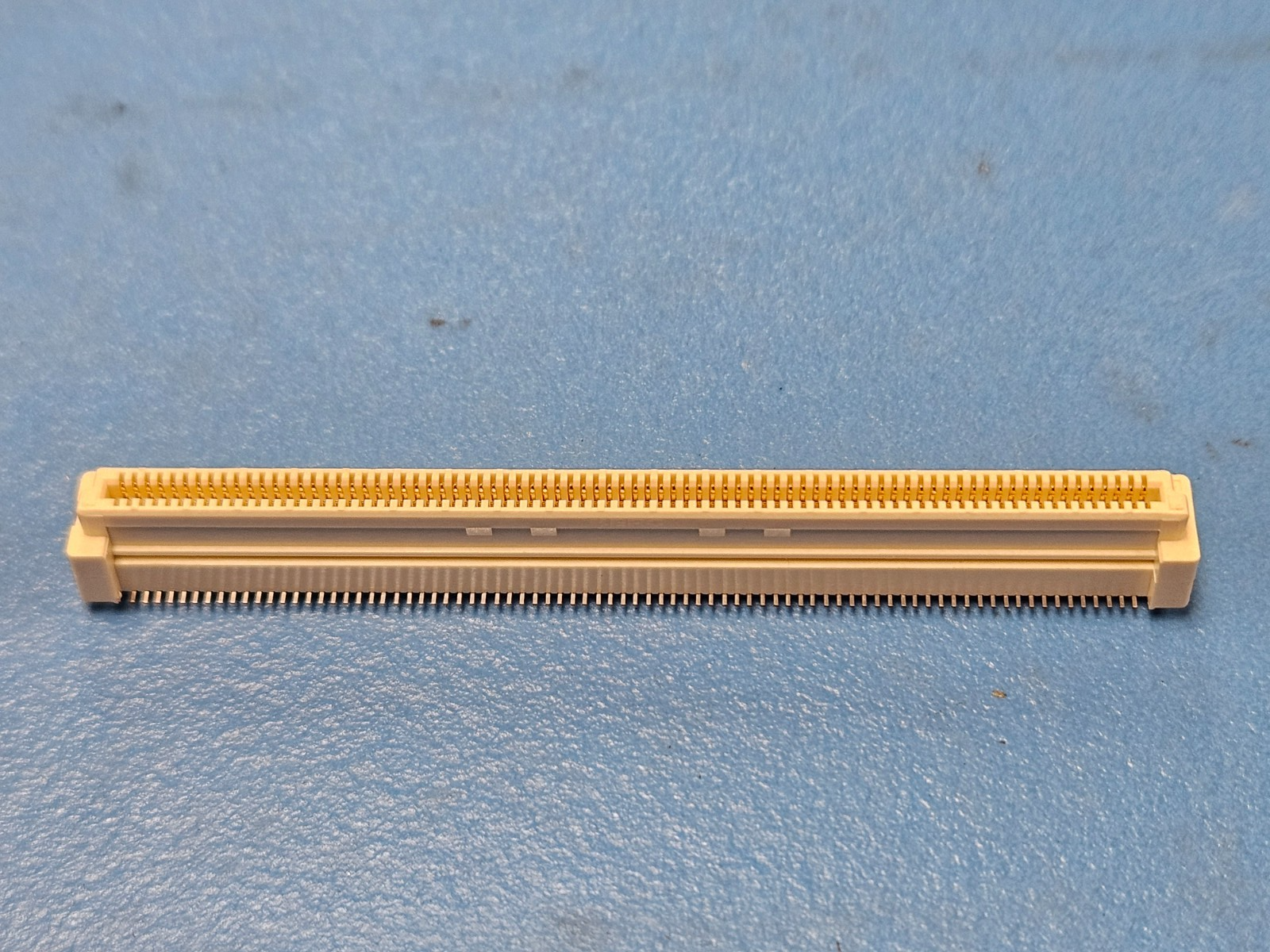

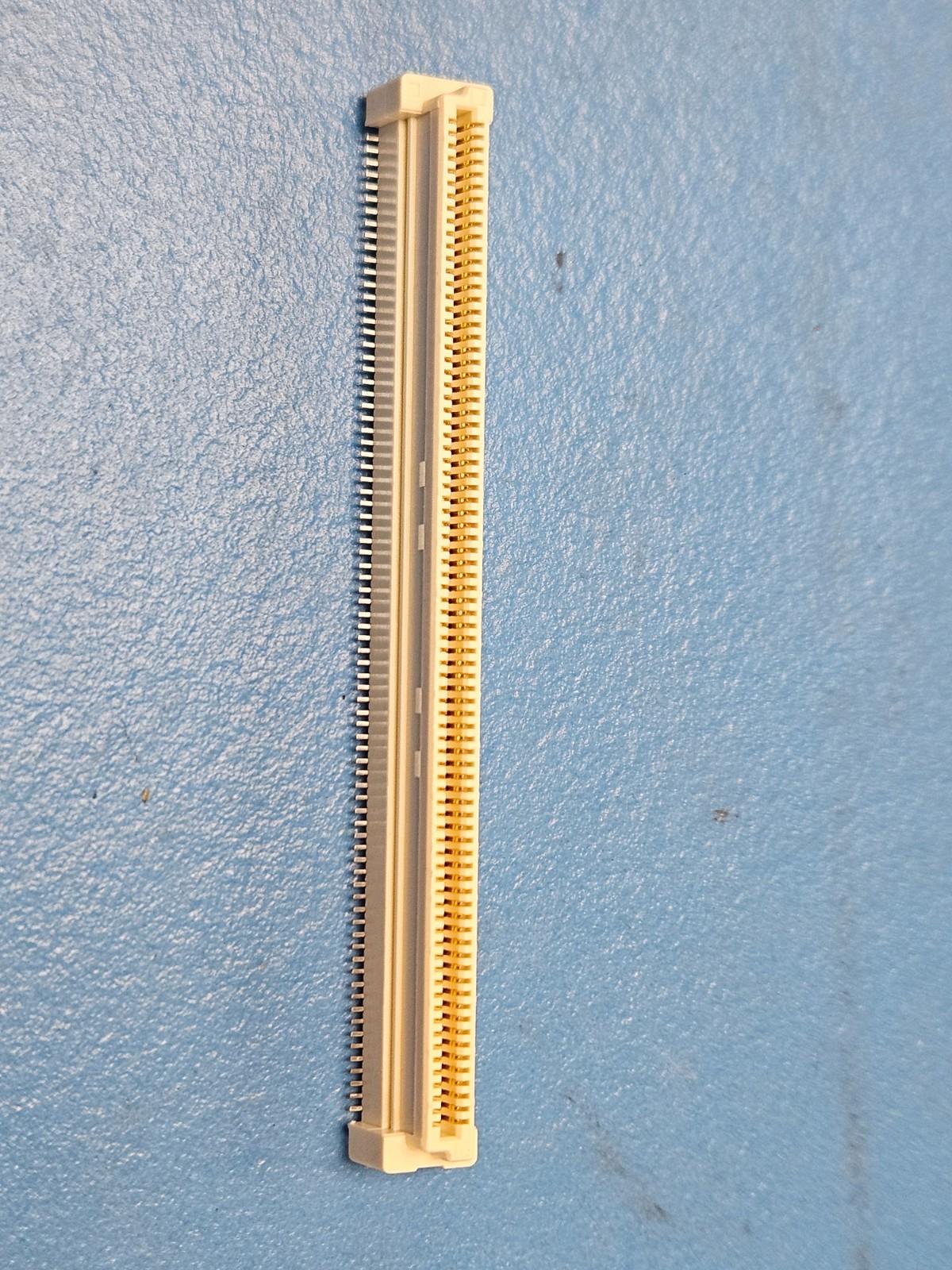

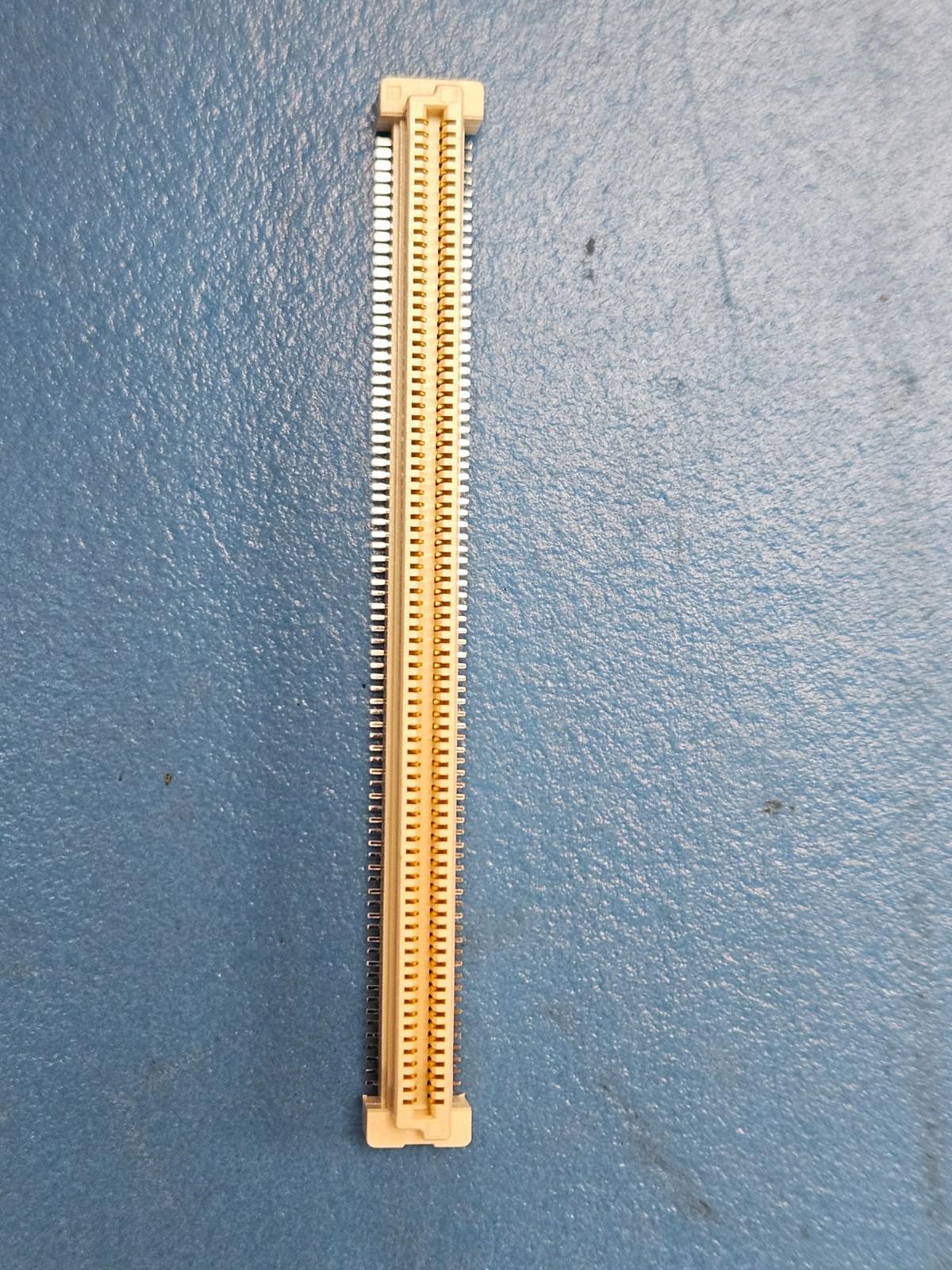

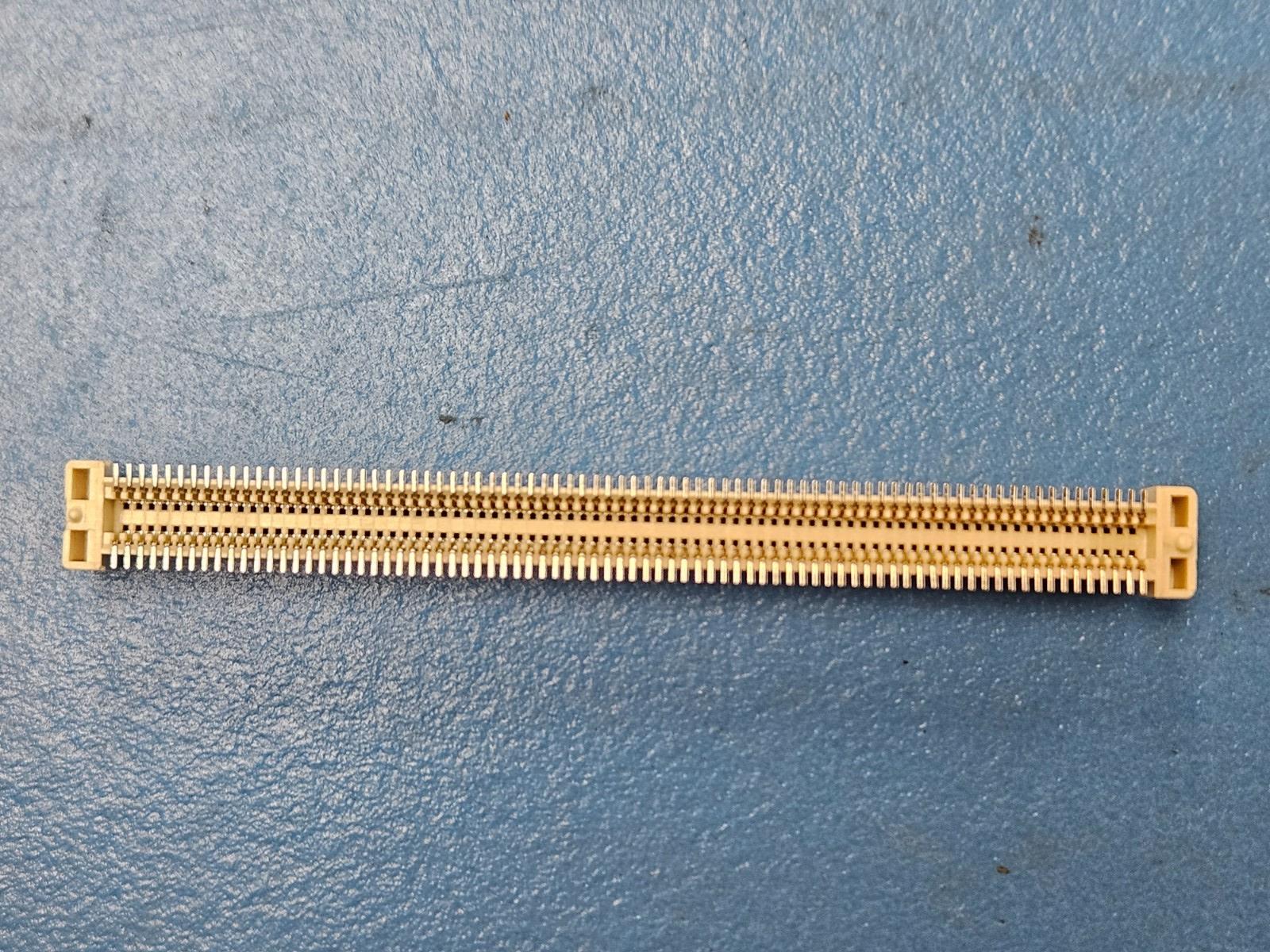

(1PC) 61082-162000 Board Stacking Connector, 160 Contact, 2 Row, Female, Locking
Tax included.
This listing is for (1PC) of 61082-16200 by TE Connectivity
Status Discontinued
Board Mounting Option PEG
Body Breadth (inch) 0.268000
Body Depth (inch) 0.303000
Body Length (inch) 2.748000
Body/Shell Style RECEPTACLE
Connector Type BOARD STACKING CONNECTOR
Contact Finish - Mating GOLD (8) OVER NICKEL (50)
Contact Finish - Termination Tin/Lead (Sn/Pb)
Contact Gender FEMALE
Contact Material BERYLLIUM COPPER
Contact Pattern RECTANGULAR
Contact Resistance (mohm) 50.000000000000000
Contact Style BELLOWED TYPE
DIN Conformance NO
Dielectric Withstanding Voltage (V) 707VAC
Durability (Cycles) 100
Filter Feature NO
IEC Conformance NO
Insertion Force-Max (N) 0.9
Insulation Resistance (ohm) 1000000000.000000000000000
Insulator Color NATURAL
Insulator Material GLASS FILLED LIQUID CRYSTAL POLYMER
J-STD-609 Code e0
MIL Conformance NO
Mating Contact Pitch (inch) 0.032
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number of Connectors ONE
Number of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -40
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 4.8
Plating Thickness (inch) 7.87u
Polarization Key POLARIZED HOUSING
Rated Current (Signal) (A) 0.8000000000000000
Screening Level / Reference Standard UL
Terminal Pitch (mm) 0.8
Termination Type SURFACE MOUNT
Number of Contacts 160
UL Flammability Code 94V-0
Withdrawl Force-Min (N) 0.1
