(1PC) 56P30-01-1-04N Grayhill Switch Rotary SP4T 4 Flatted Shaft PC Pins 0.2A 11
Tax included.

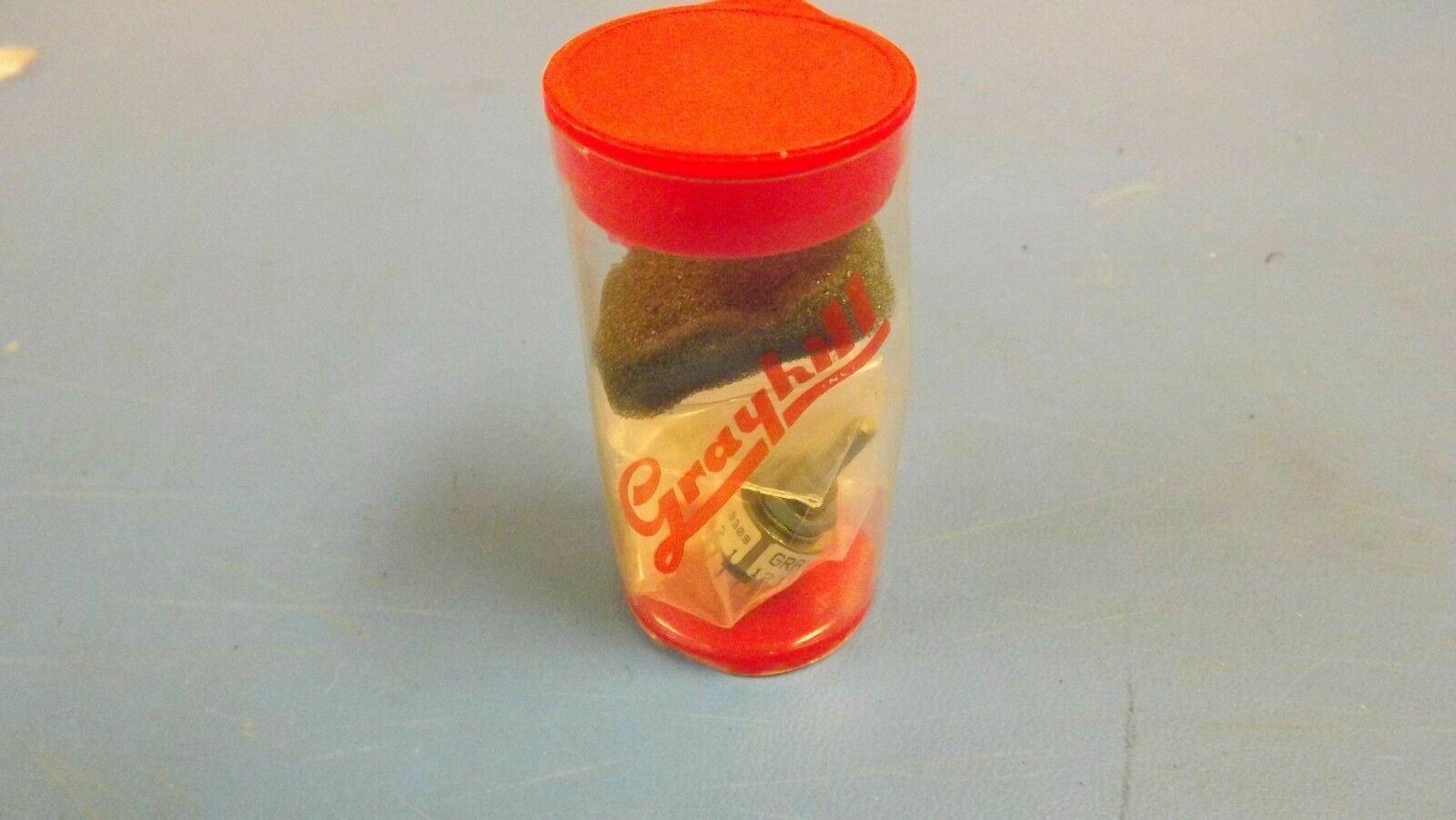

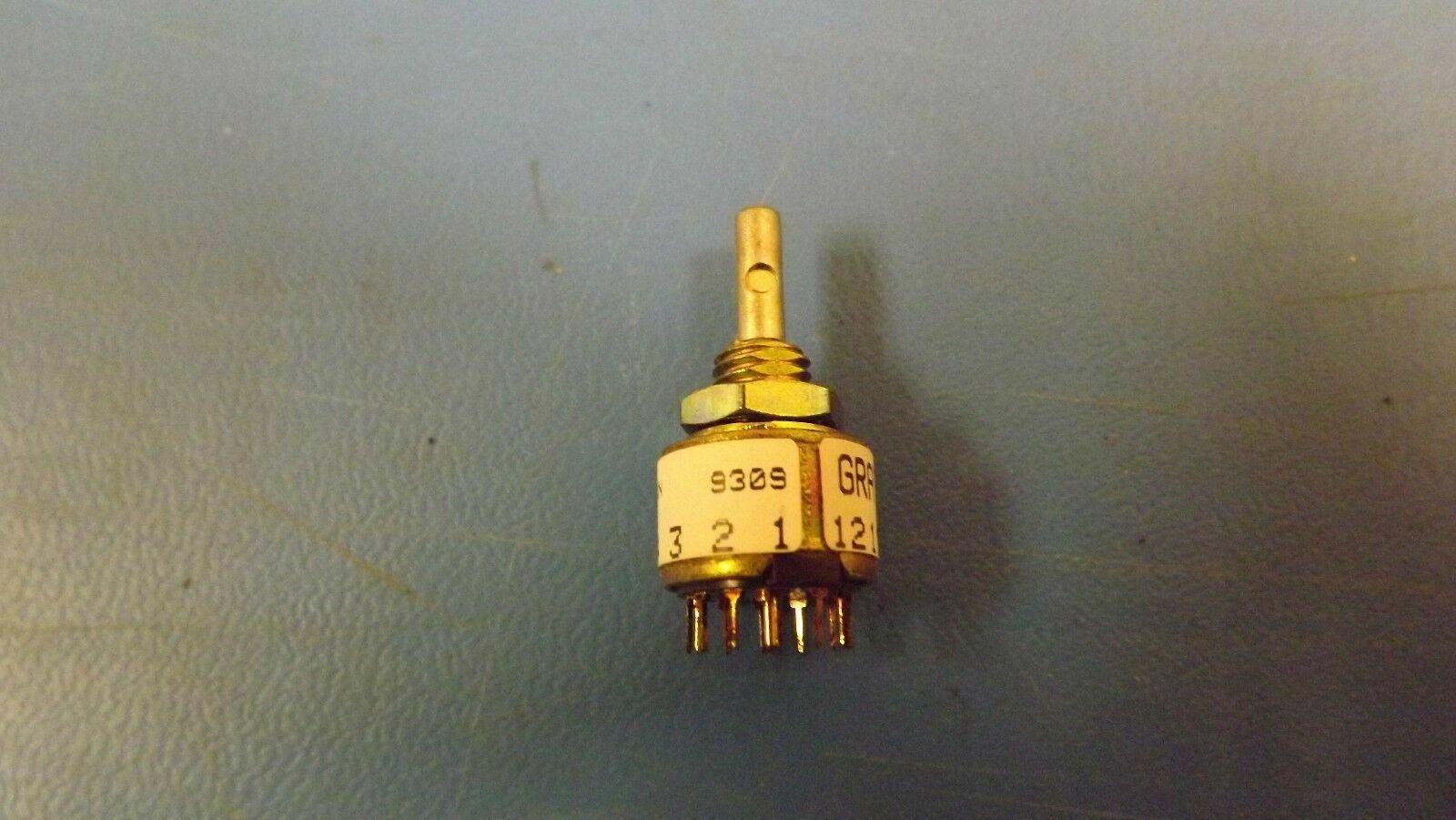

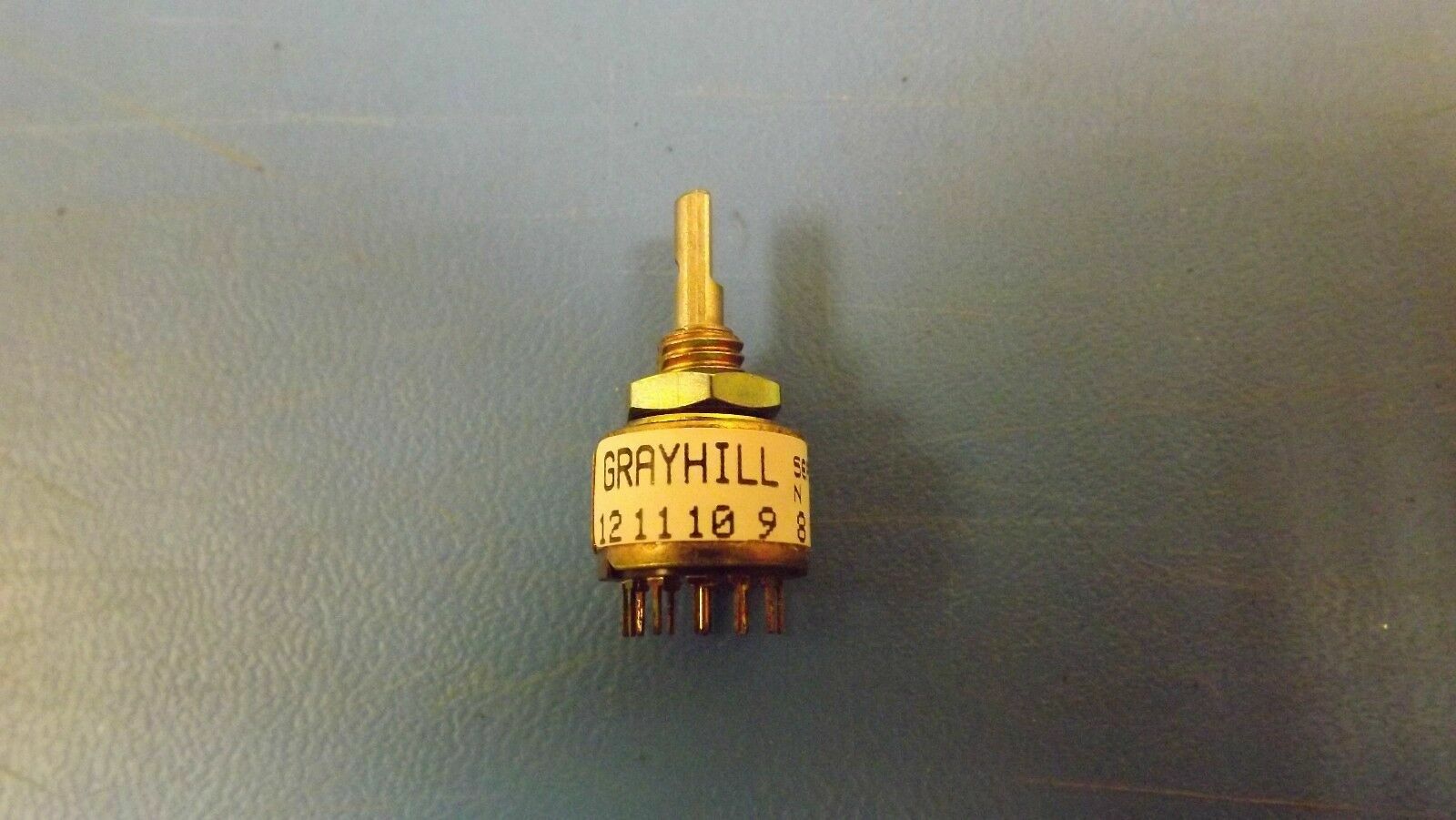

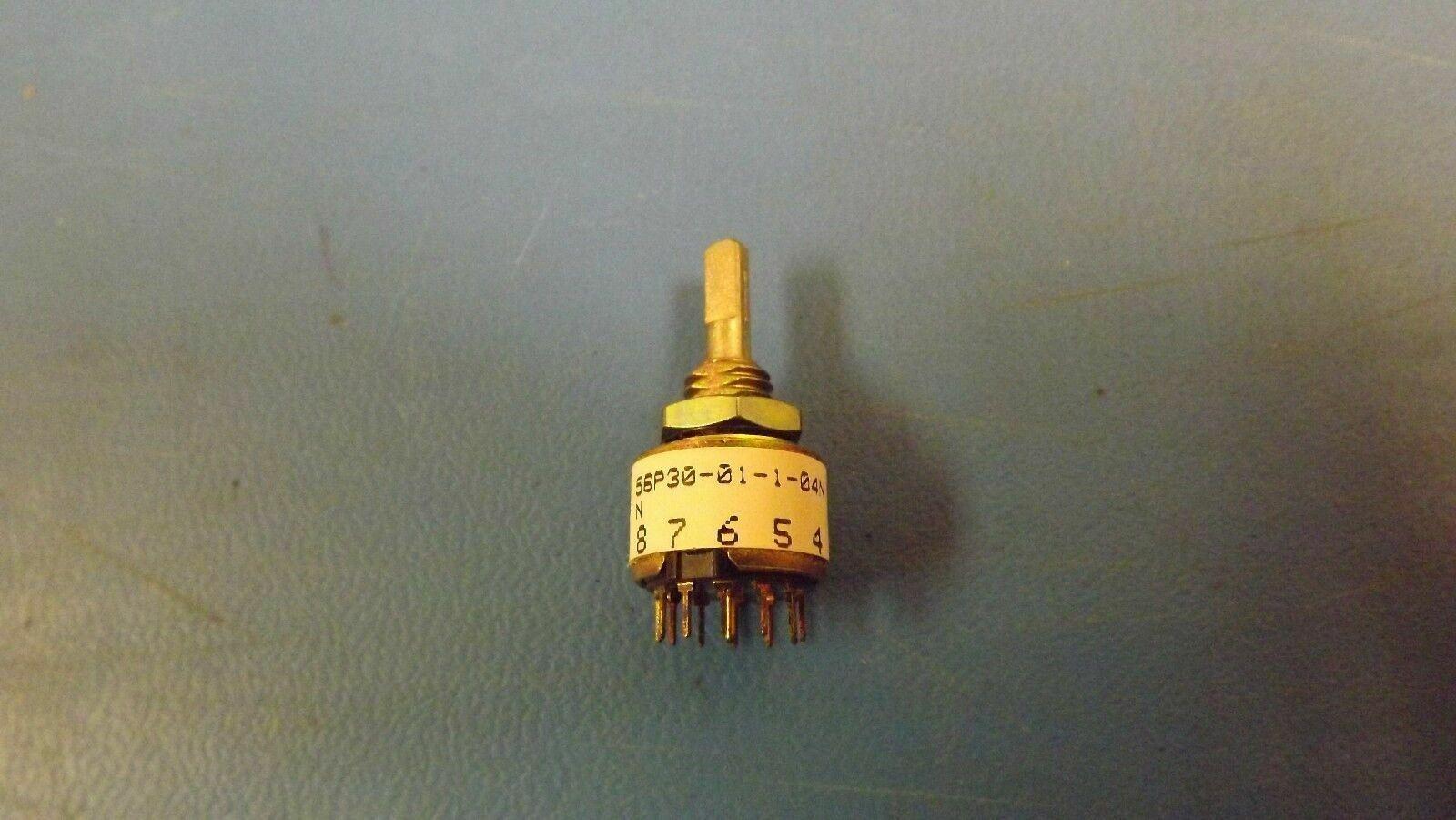

THIS LISTING IS FOR (1PC) OF 56P30-01-1-04N BY GRAYHILL
**LEADS TARNISHED
| Status | Active |
| Switch Type | ROTARY SWITCH |
| Actuator Length | 0.375 inch |
| Actuator Material | ZINC DIE CAST |
| Actuator Type | ROTARY SHAFT |
| Body Height | 9.58 mm |
| Body Length or Diameter | 12.7 mm |
| Bushing Diameter | 0.25 inch |
| Bushing Length | 0.25 inch |
| Bushing Type | 1/4-28 |
| Center Contact Material | BRASS |
| Center Contact Plating | SILVER OVER NICKEL |
| Contact AC Max Rating R Load | .2A@115VAC |
| Contact Current(AC)-Max | 0.2 A |
| Contact Current(DC)-Max | 0.2 A |
| Contact DC Max Rating R Load | .2A@30VDC |
| Contact Resistance | 0.1 ohm |
| Contact Voltage(AC)-Max | 115.0 V |
| Contact Voltage(DC)-Max | 30.0 V |
| Dielectric Withstand Volts (V) | 600VAC |
| Electrical Life | 10000.0 Cycle(s) |
| End Contact Material | BRASS |
| End Contact Plating | GOLD |
| Housing Material | ZINC DIE CAST |
| Indexing Angle | 30.0 deg |
| Insulation Resistance | 1.0E10 ohm |
| Insulator Material | THERMOSET 94V-0 |
| JESD-609 Code | e4 |
| Manufacturer Series | 56 |
| Mounting Feature | THROUGH HOLE-STRAIGHT |
| Number of Positions | 4 |
| Number of Switch Sections | 1.0 |
| PCB Hole Count | 12.0 |
| Switch Action | LATCHED |
| Switch Function | SP4T |
| Terminal Finish | Gold (Au) |
| Terminal Length | 0.11 inch |
| Terminal Material | BRASS |
| Termination Type | SOLDER |
| Additional Feature | INDUSTRIAL QUALITY |
