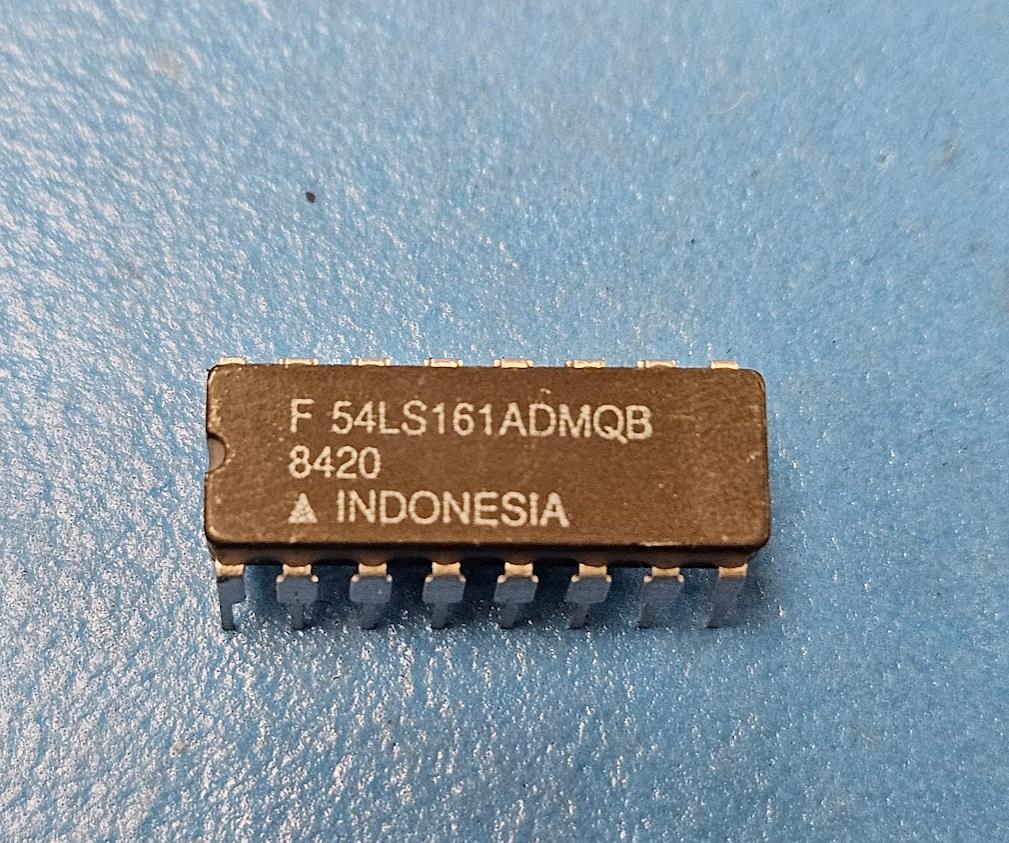

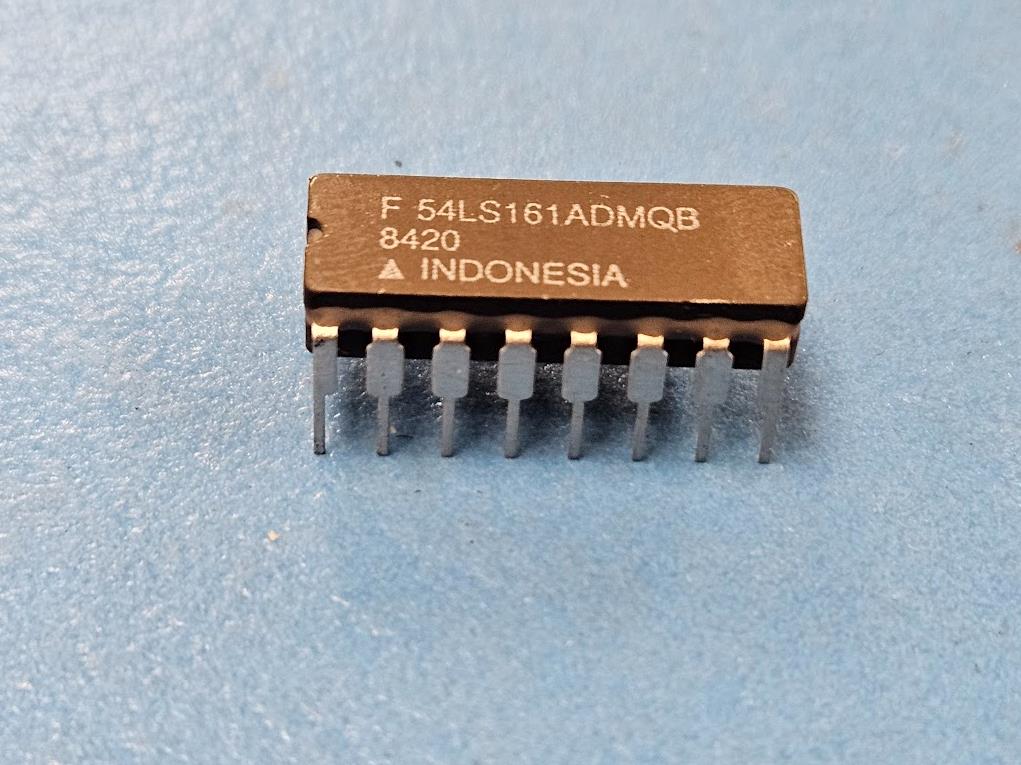

(1PC) 54LS161ADMQB Binary Counter, Synchronous, 4-Bit, Up Direction, TTL, CDIP16
Tax included.
This listing is for (2pcs) of 54LS161ADMQB by FSC
Mfr Package Description CERAMIC, DIP-16
Status Discontinued
Logic IC Type BINARY COUNTER
Sub Category Counters
Count Direction UP
Family LS
fmax-Min 25.0 MHz
JESD-30 Code R-GDIP-T16
JESD-609 Code e0
Load/Preset Input YES
Max Frequency@Nom-Sup 2.0E7 Hz
Max I(ol) 0.004 Amp
Mode of Operation SYNCHRONOUS
Number of Bits 4
Number of Functions 1
Number of Terminals 16
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Power Supply Current-Max (ICC) 32.0 mA
Propagation Delay (tpd) 38.0 ns
Qualification Status Not Qualified
Screening Level MIL-STD-883 Class B
Seated Height-Max 5.08 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount NO
Technology TTL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Trigger Type POSITIVE EDGE
Length 19.304 mm
Width 7.62 mm
