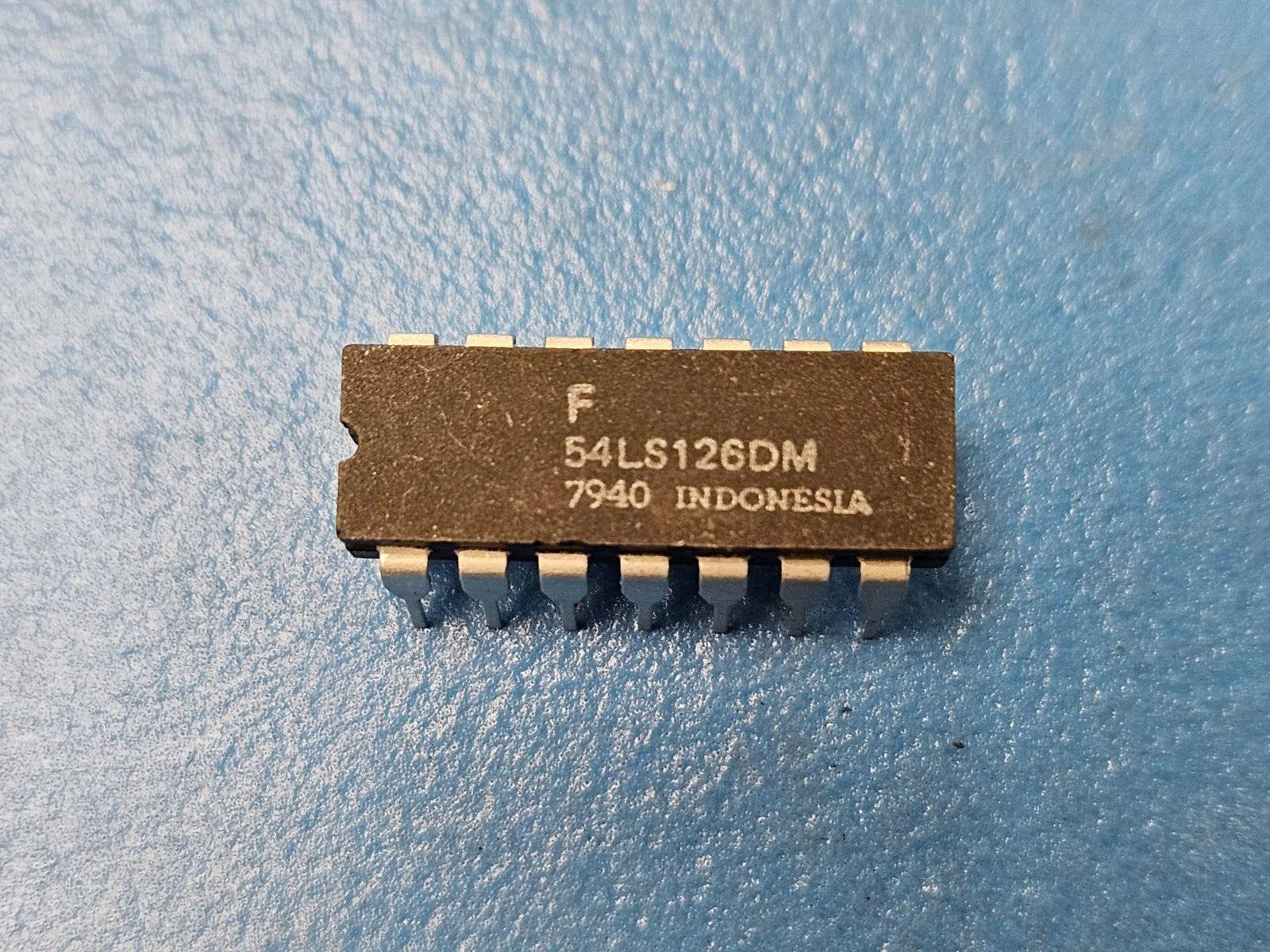

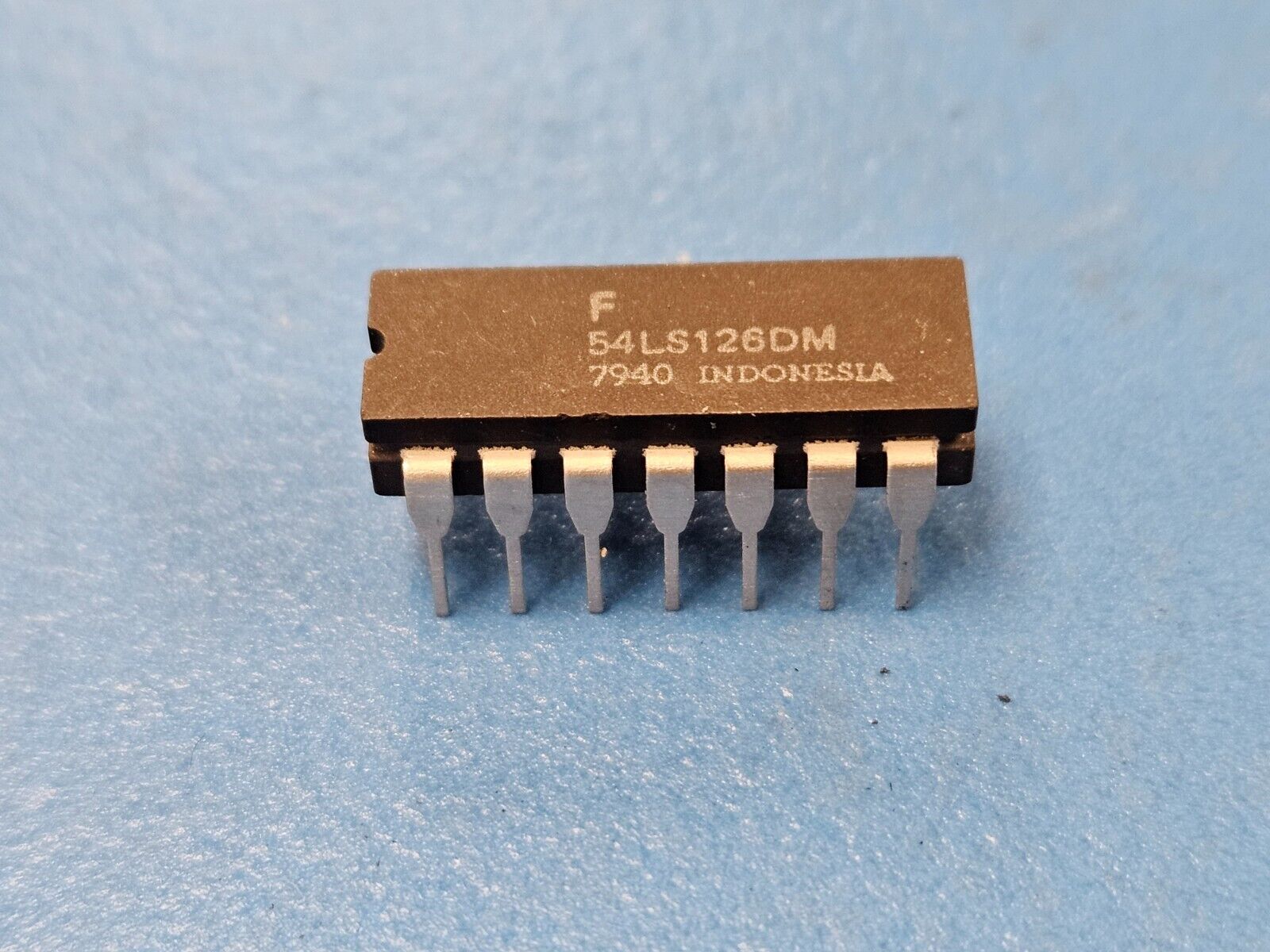

(1PC) 54LS126DM Bus Driver, 1-Func, 4-Bit, True Output, TTL, CDIP14
Tax included.
This listing is for (1PC) of 54LS126DM by FSC
Status Discontinued
Logic IC Type BUS DRIVER
Sub Category Bus Driver/Transceivers
Control Type ENABLE HIGH
JESD-30 Code R-XDIP-T14
JESD-609 Code e0
Max I(ol) 0.012 Amp
Moisture Sensitivity Level 2A
Number of Bits 4
Number of Functions 1
Number of Terminals 14
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material CERAMIC
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Supply Voltage-Nom (Vsup) 5
Surface Mount NO
Technology TTL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
