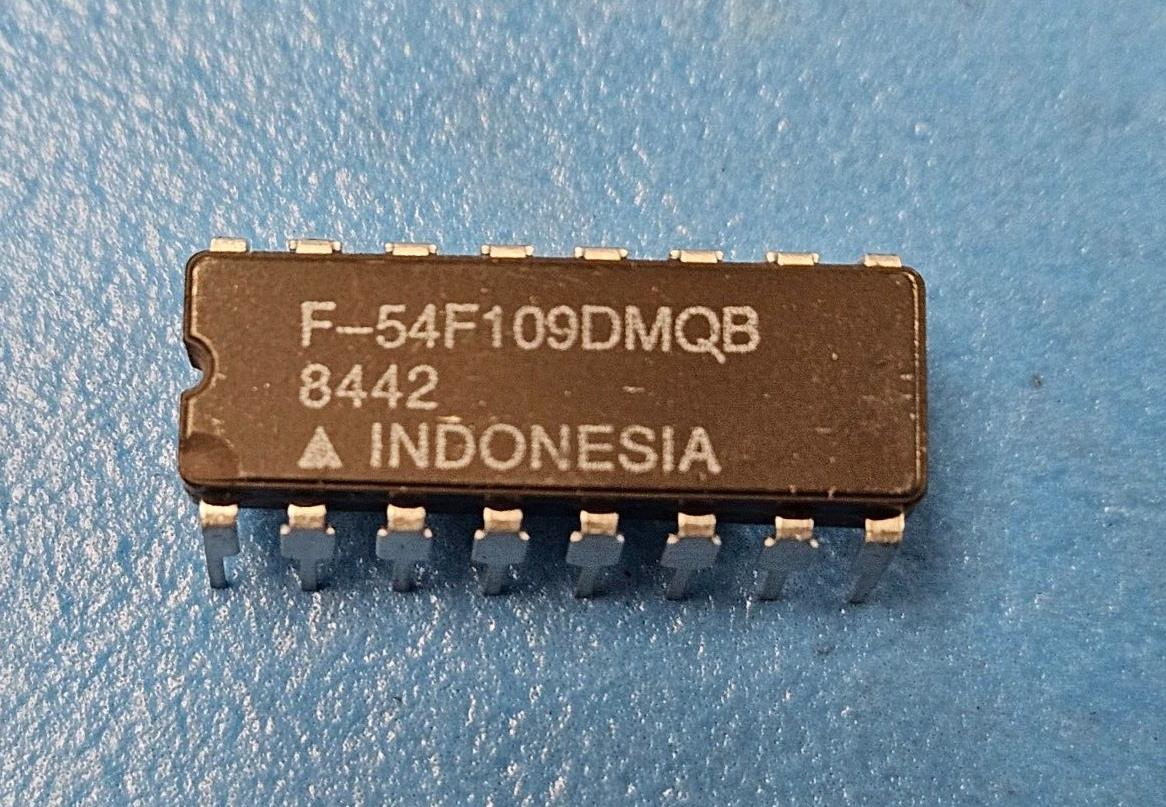

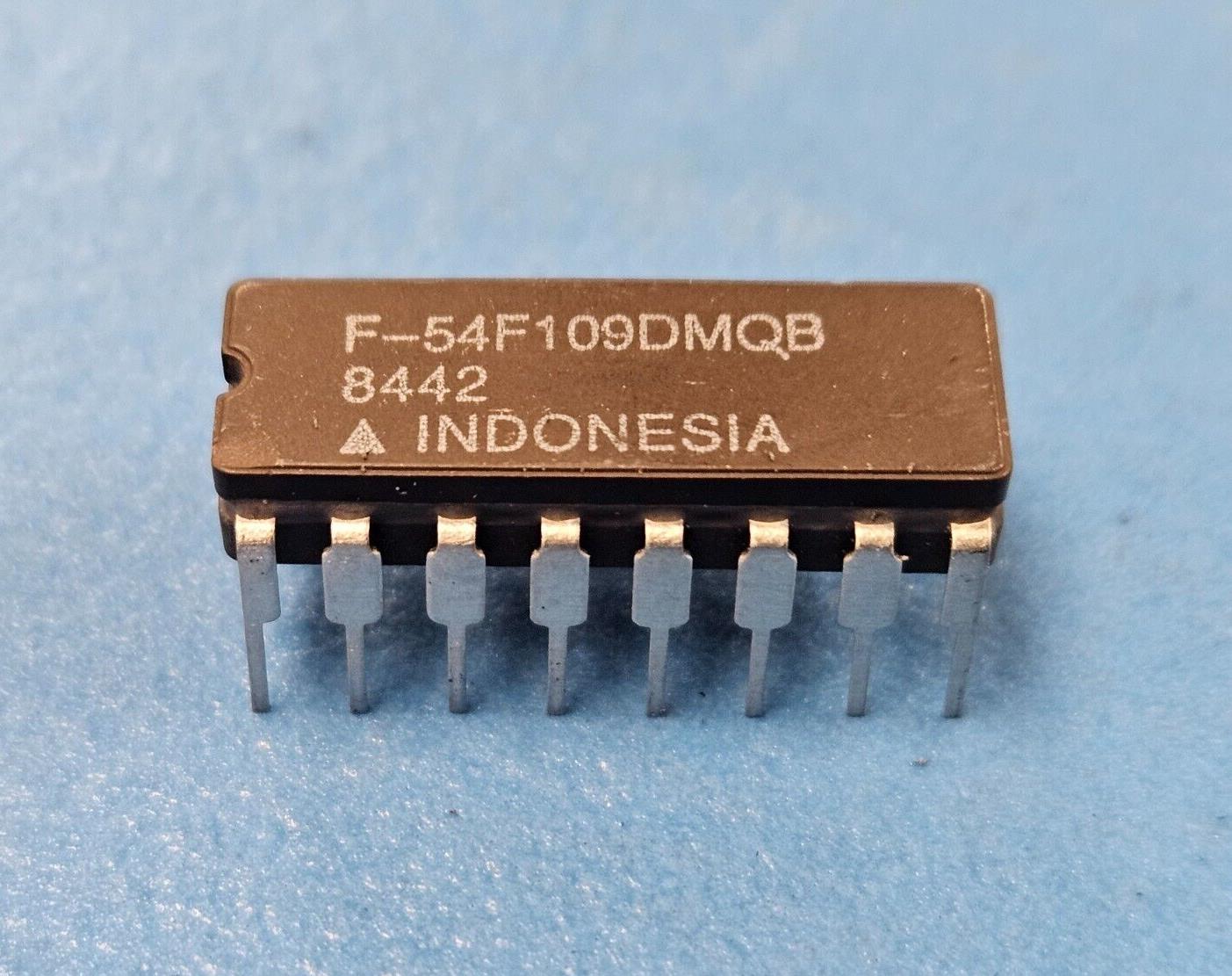

(1PC) 54F109DMQB J-Kbar Flip-Flop, 2-Func, 2-Bit, TTL, CDIP16
Tax included.
This listing is for (1PC) of 54F109DMQB by FSC
Mfr Package Description CERAMIC, DIP-16
Status Discontinued
Logic IC Type J-KBAR FLIP-FLOP
Sub Category FF/Latches
Family F/FAST
fmax-Min 125.0 MHz
JESD-30 Code R-GDIP-T16
JESD-609 Code e0
Max Frequency@Nom-Sup 7.0E7 Hz
Max I(ol) 0.02 Amp
Number of Bits 2
Number of Functions 2
Number of Terminals 16
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Output Polarity COMPLEMENTARY
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Power Supply Current-Max (ICC) 17.0 mA
Propagation Delay (tpd) 10.5 ns
Qualification Status Not Qualified
Screening Level 38535Q/M;38534H;883B
Seated Height-Max 5.08 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount NO
Technology TTL
Temperature Grade MILITARY
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Trigger Type POSITIVE EDGE
Length 19.43 mm
Width 7.62 mm
