(1PC) 535068-5 Board Euro Connector, 32 Contact, 2 Row, Female, Straight
Tax included.

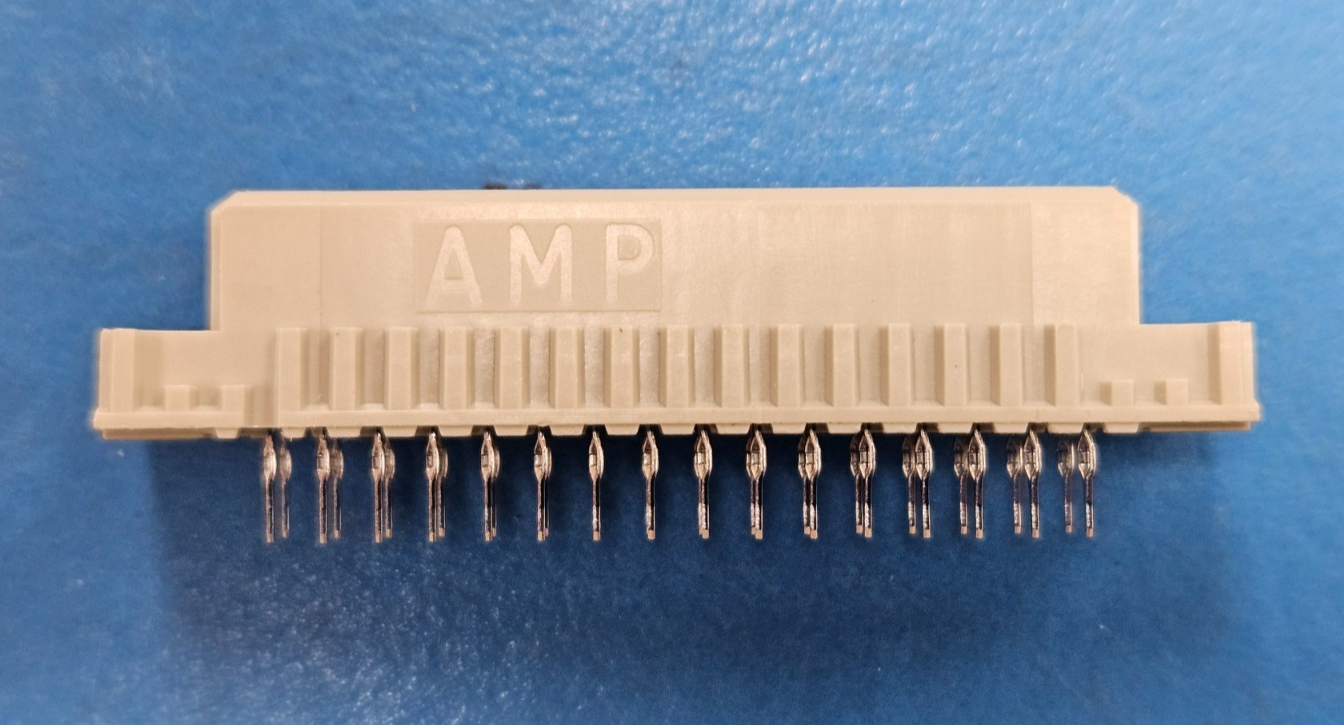

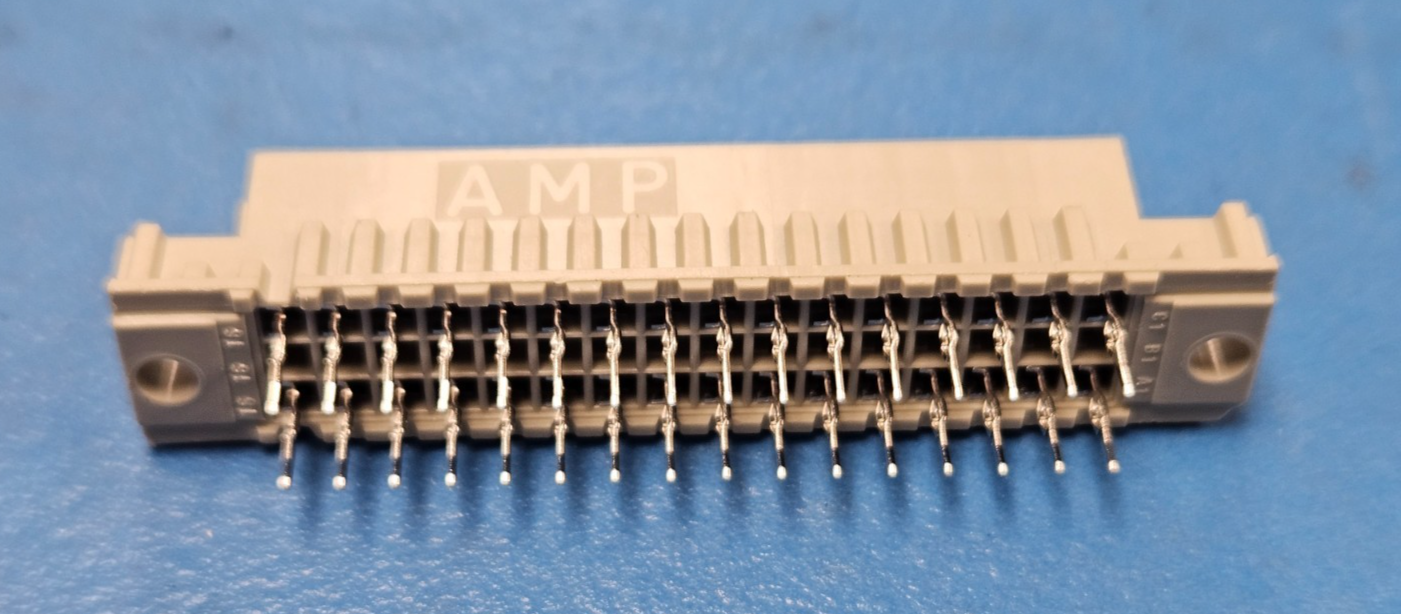

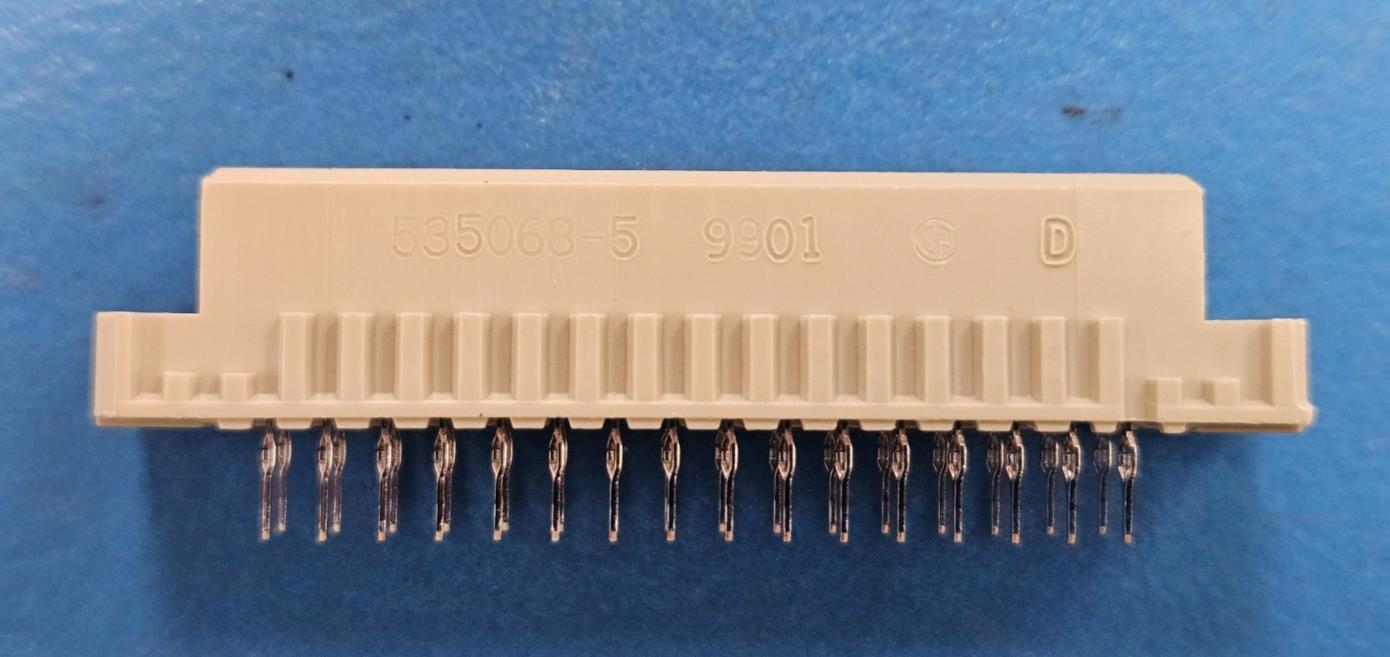

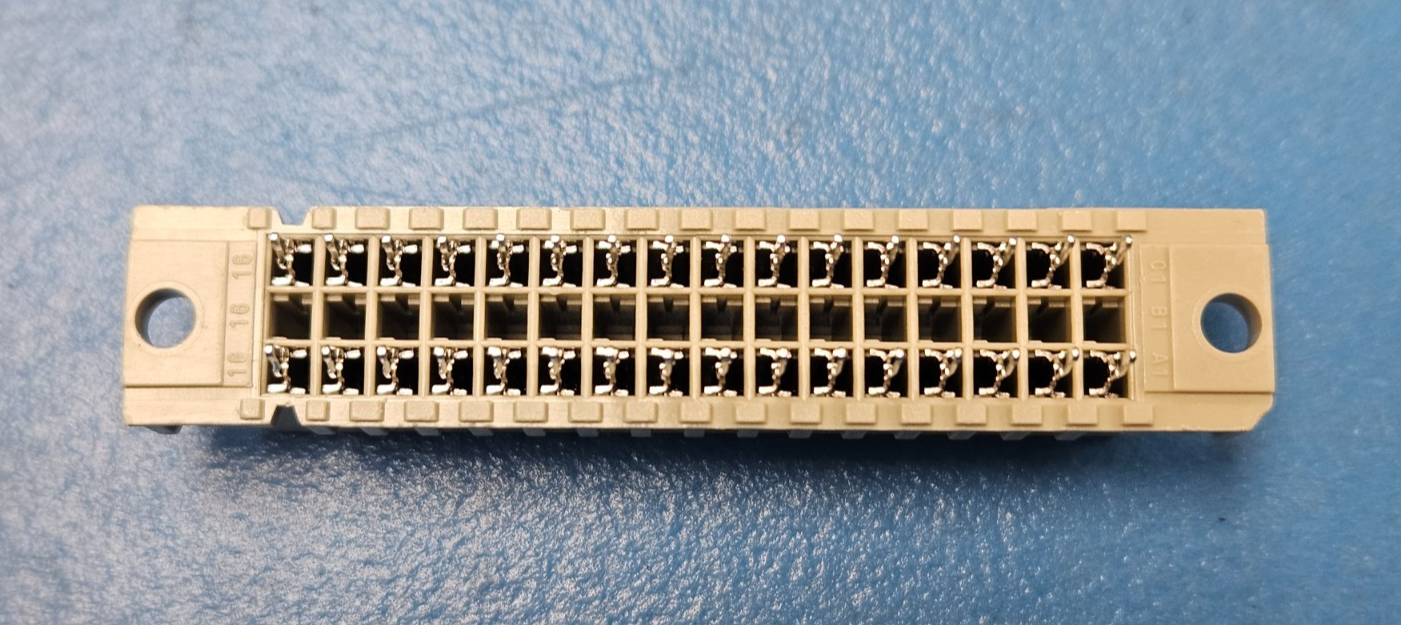

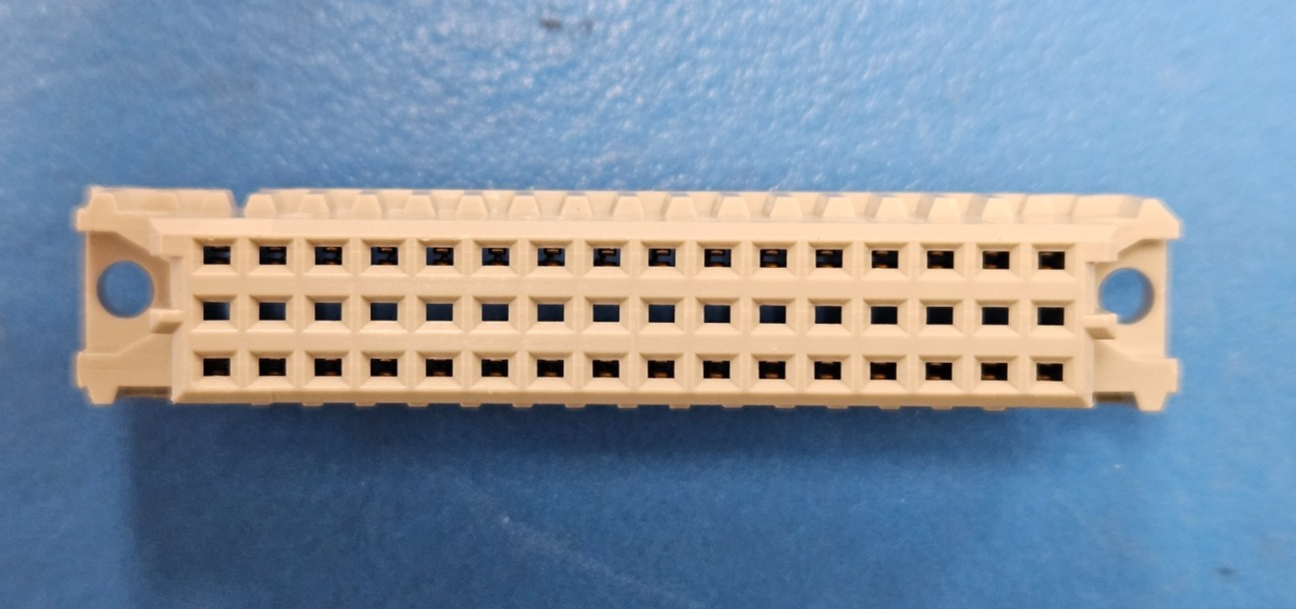

This listing is for (1PC) of 535068-5 by AMP
Status Discontinued
Additional Feature STANDARDS: DIN 41612; IEC 603-2
Body Breadth (inch) 0.417000
Body Depth (inch) 0.453000
Body Length (inch) 2.100000
Body/Shell Style RECEPTACLE
Connector Type BOARD EURO CONNECTOR
Contact Finish - Mating NOT SPECIFIED
Contact Gender FEMALE
Contact Material PHOSPHOR BRONZE
Contact Resistance (mohm) 15.000000000000000
Contact Style SQ PIN-SKT
DIN Conformance YES
Dielectric Withstanding Voltage (V) 1000VAC
Filter Feature NO
IEC Conformance YES
Insertion Force-Max (N) .9452
Insulation Resistance (ohm) 1000000000000.000000000000000
Insulator Color GRAY
Insulator Material GLASS FILLED POLYESTER
MIL Conformance NO
Mating Contact Pitch (inch) 0.1
Mating Contact Row Spacing (inch) 0.2
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Name of Rows Loaded A,C
Number of Connectors ONE
Number of PCB Rows 3
Number of Rows Loaded 2
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -55
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 2.54
Polarization Key POLARIZED HOUSING
Rated Current (Signal) (A) 1.5000000000000000
Screening Level / Reference Standard UL, CSA
Terminal Length (inch) 0.190000
Terminal Pitch (mm) 2.54
Termination Type PRESS FIT
Number of Contacts 32
UL Flammability Code 94V-0
Withdrawl Force-Min (N) .15012
