(1PC) 52755-1760 Connector, 176 Contact, Female, Right Angle, Locking,
Tax included.

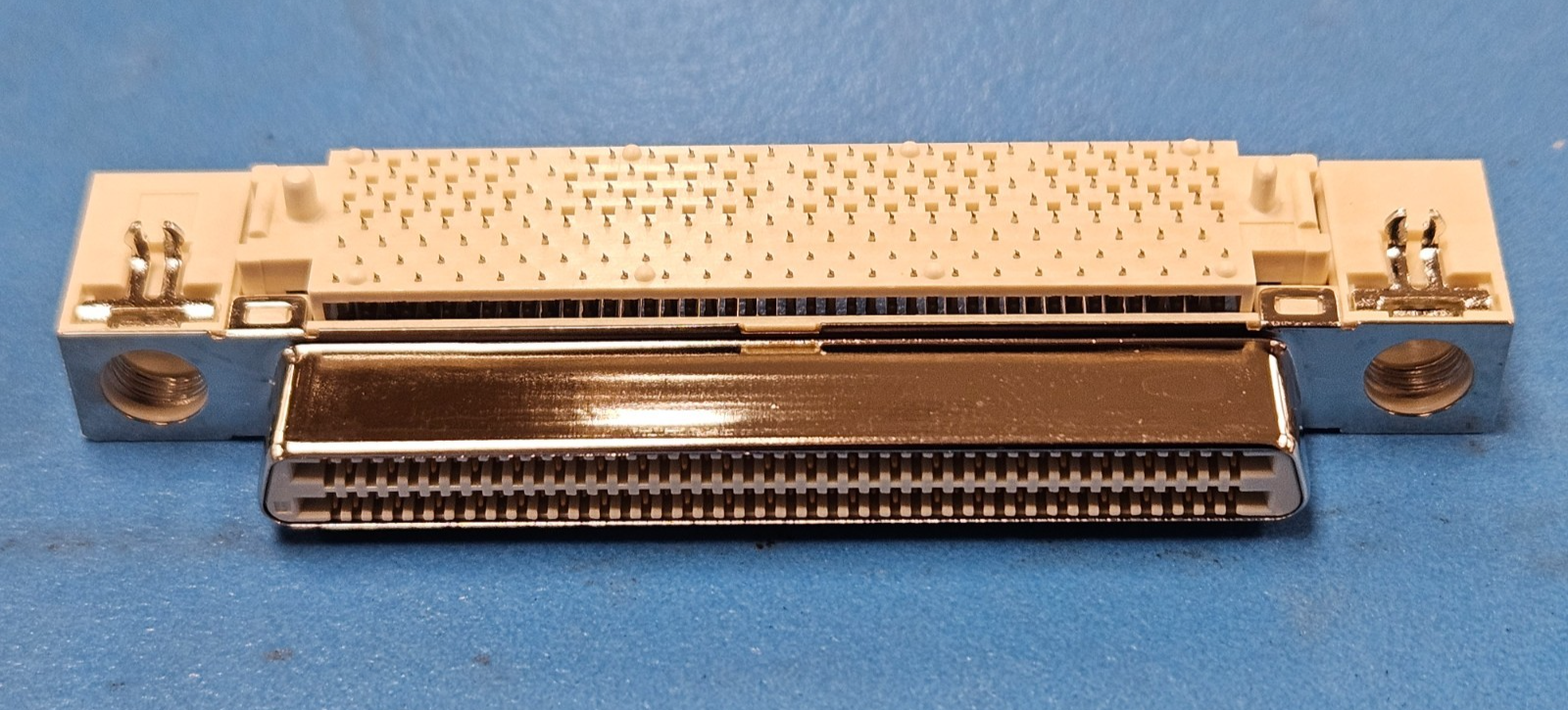

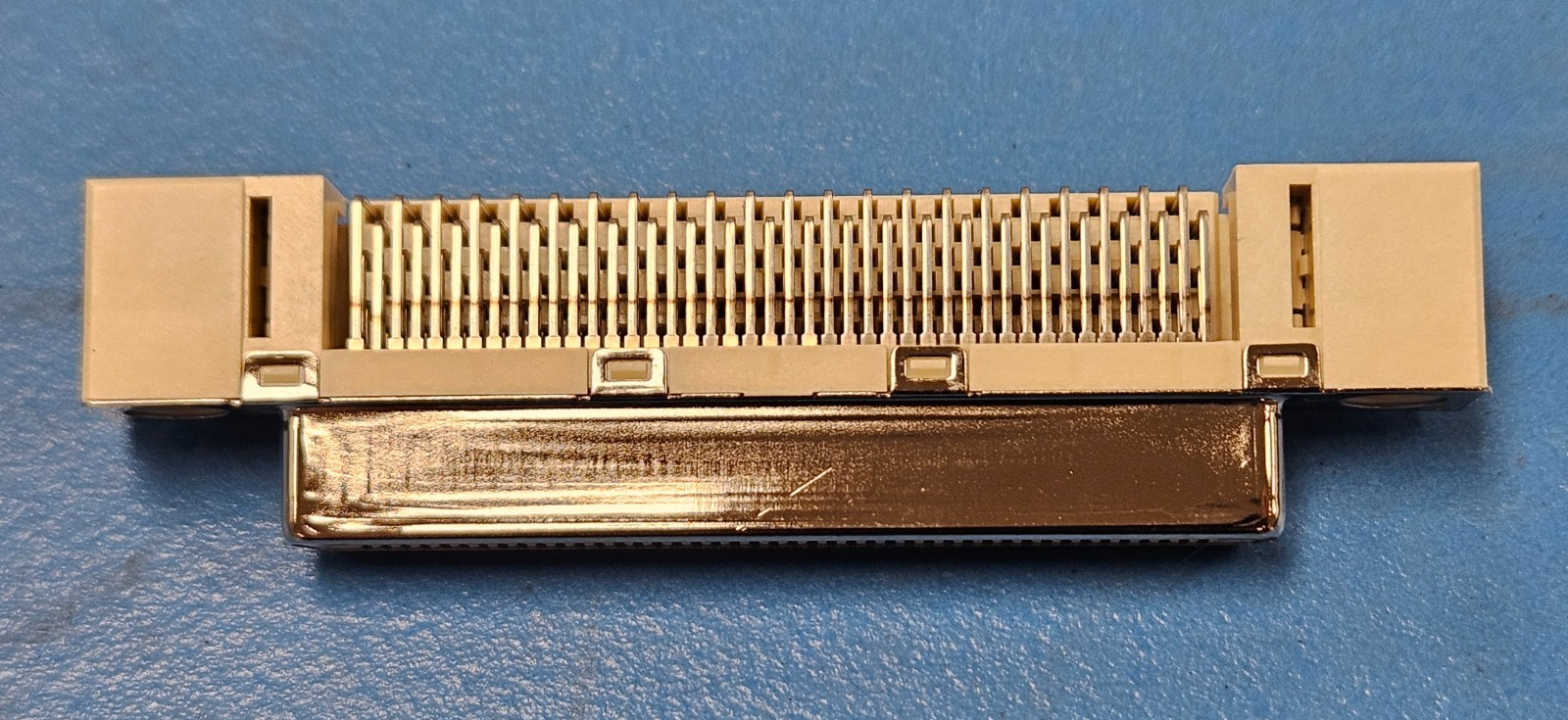

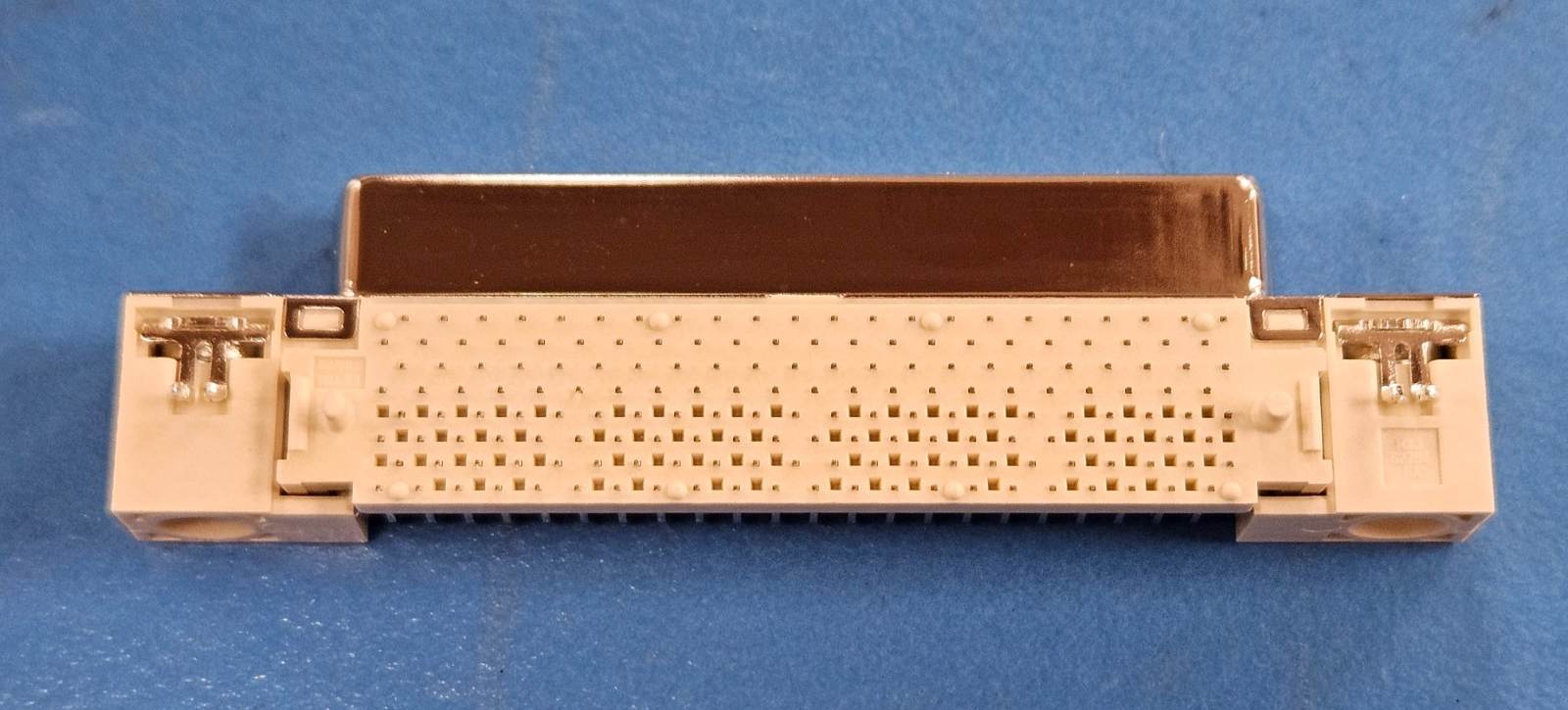

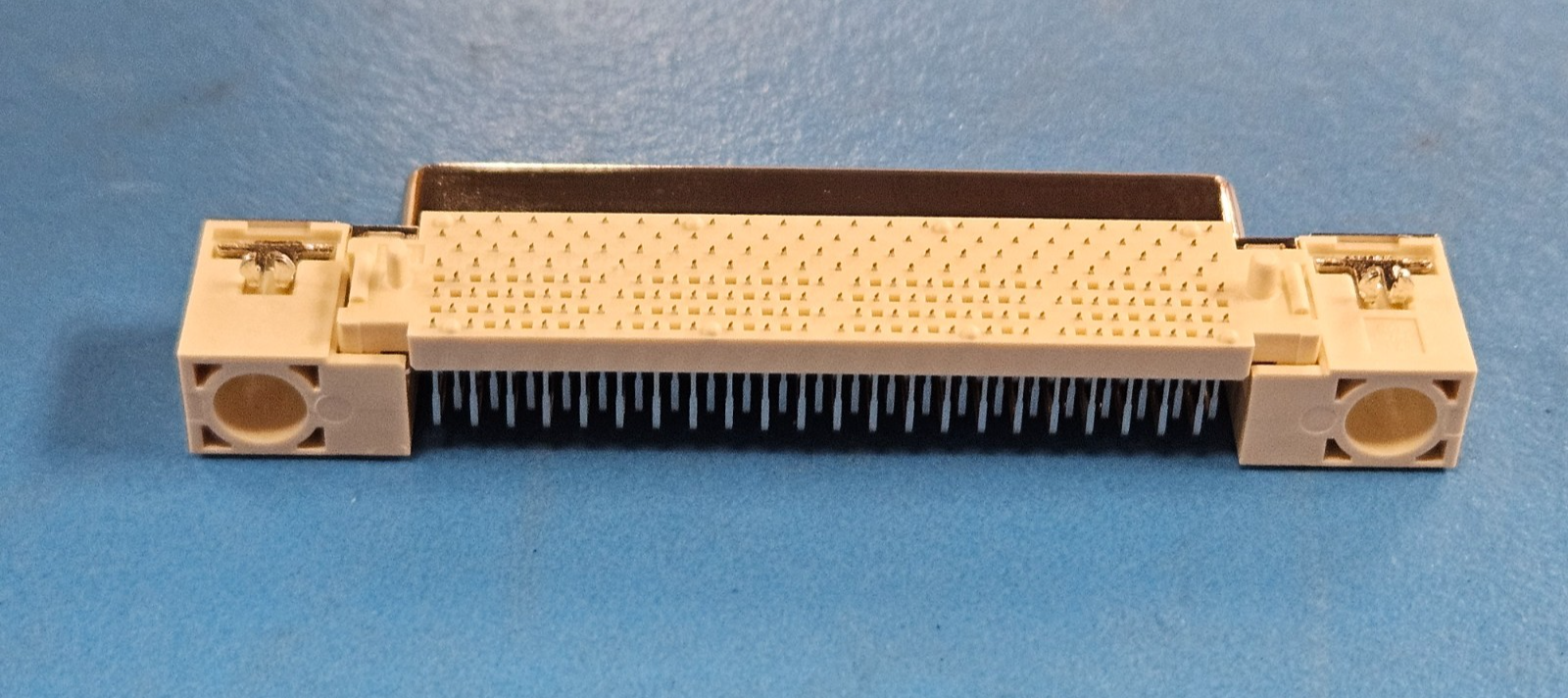

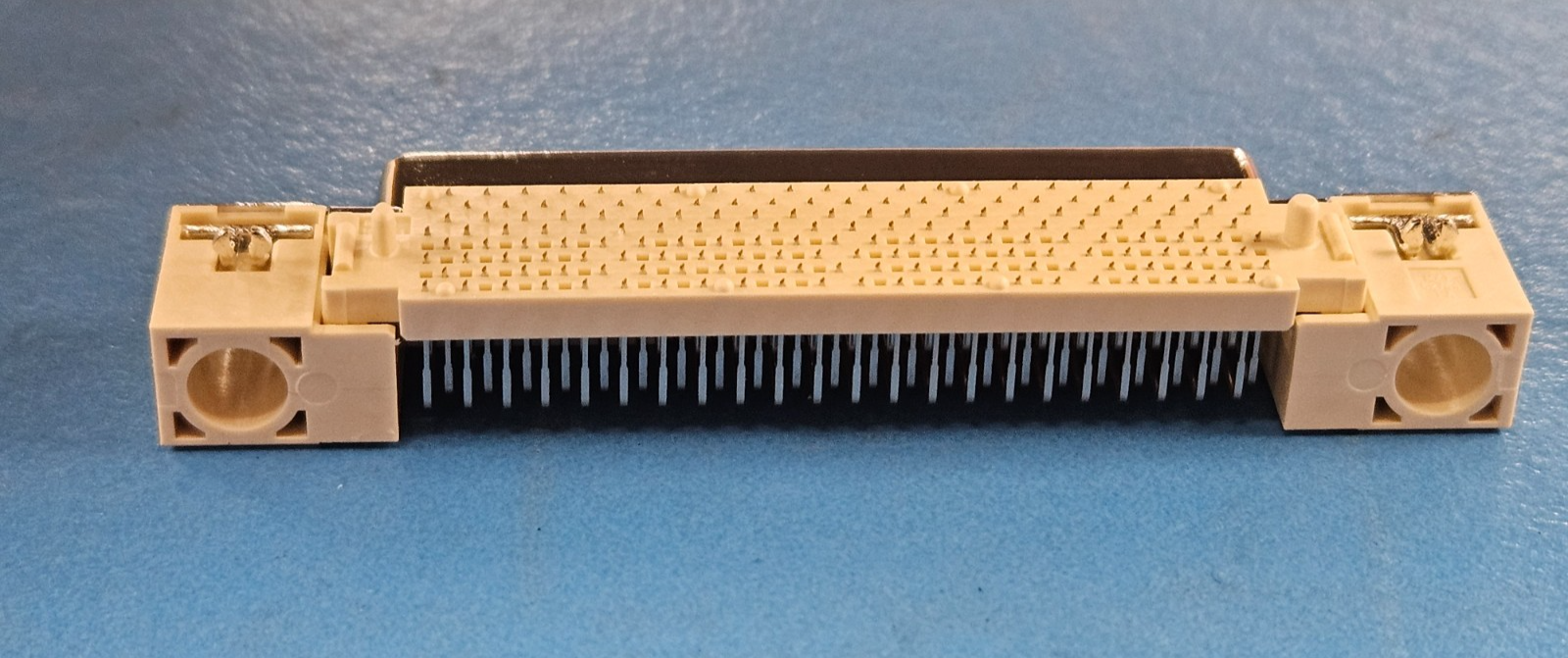

This listing is for (1PC) of 52755-1760 by Molex
Status Discontinued
Additional Feature STAGGERED CONFIGURATION, SHIELDED
Board Mounting Option SPLIT BOARD LOCK
Body Breadth (inch) 0.303000
Body Depth (inch) 0.458000
Body Length (inch) 2.764000
Body/Shell Style RECEPTACLE
Connector Type TELECOM AND DATACOM CONNECTOR
Contact Finish - Mating NOT SPECIFIED
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance (mohm) 70.000000000000000
Contact Style DOCKING
DIN Conformance NO
Dielectric Withstanding Voltage (V) 500VAC
Durability (Cycles) 5000
Empty Shell NO
Filter Feature NO
IEC Conformance NO
Insertion Force-Max (N) .3892
Insulation Resistance (ohm) 500000000.000000000000000
Insulator Color WHITE
Insulator Material GLASS FILLED LIQUID CRYSTAL POLYMER
MIL Conformance NO
Mating Contact Pitch (inch) 0.039
Mating Information MULTIPLE MATING PARTS AVAILBLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Option 2 SCREWLOCKS
Mounting Style RIGHT ANGLE
Mounting Type BOARD AND PANEL
Number of PCB Rows 8
Number of Rows Loaded 4
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -55
Option GENERAL PURPOSE
PCB Contact Pattern STAGGERED
PCB Contact Row Spacing (mm) 1.27
Rated Current (Signal) (A) 0.4000000000000000
Screening Level / Reference Standard UL
Shell Finish NICKEL
Terminal Pitch (mm) 2.0066
Termination Type SOLDER
Number of Contacts 176
UL Flammability Code 94V-0
Withdrawl Force-Min (N) .0834
