(1PC) 432-18A TELEDYNE, RF Relay, 2 Form C, DPDT, Latched, 30VDC, 1A, 28VDC
Tax included.

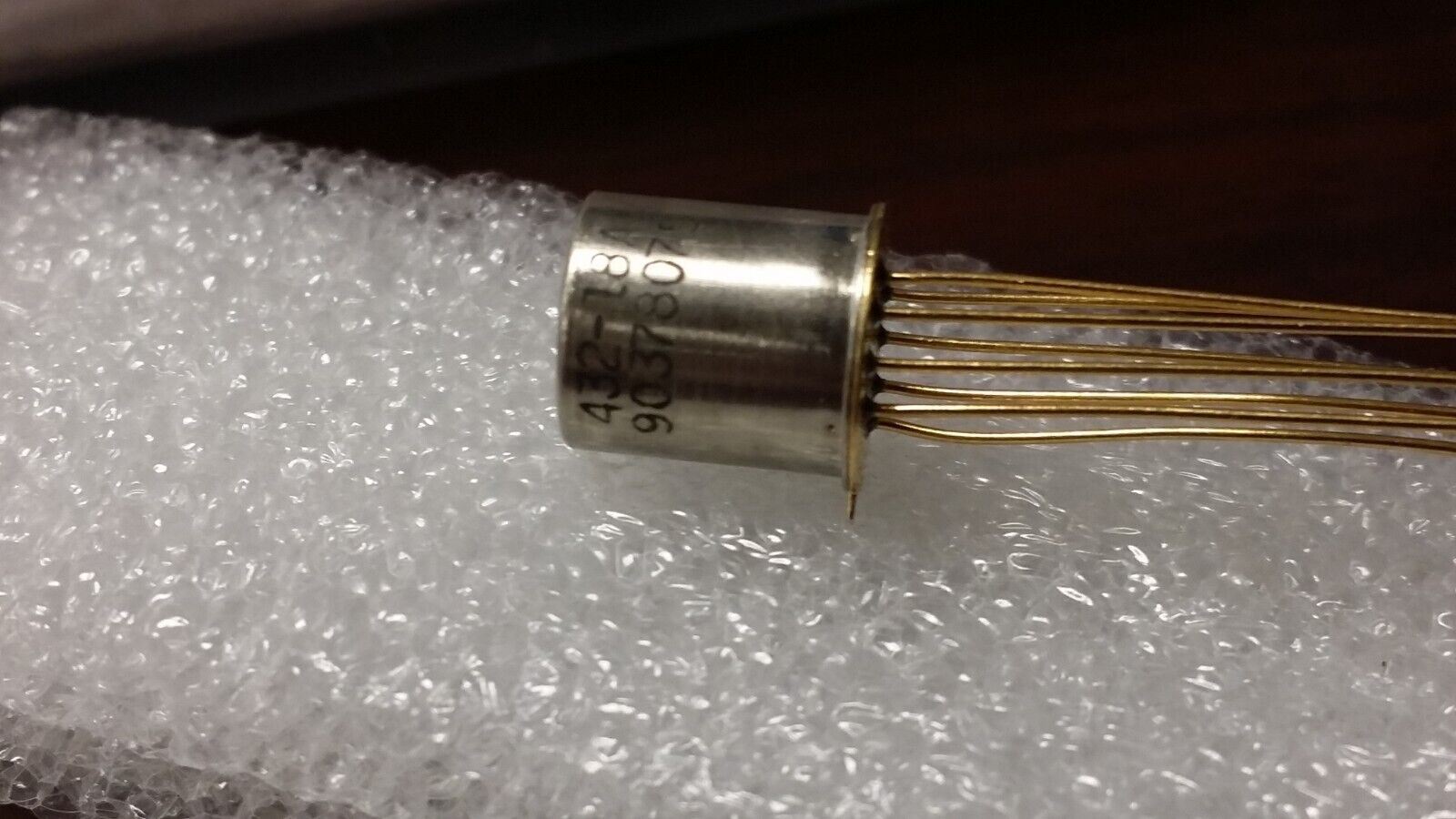

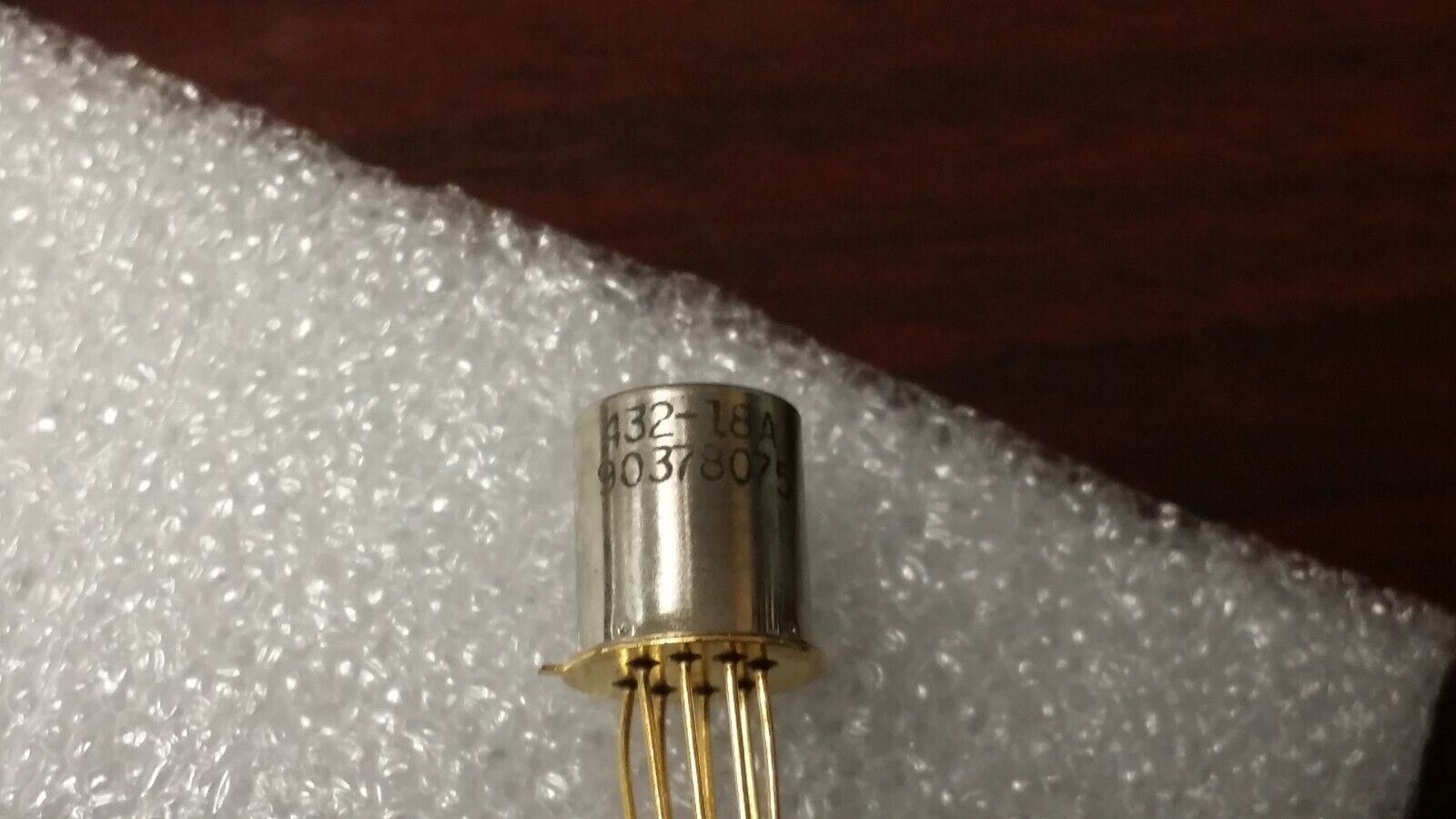

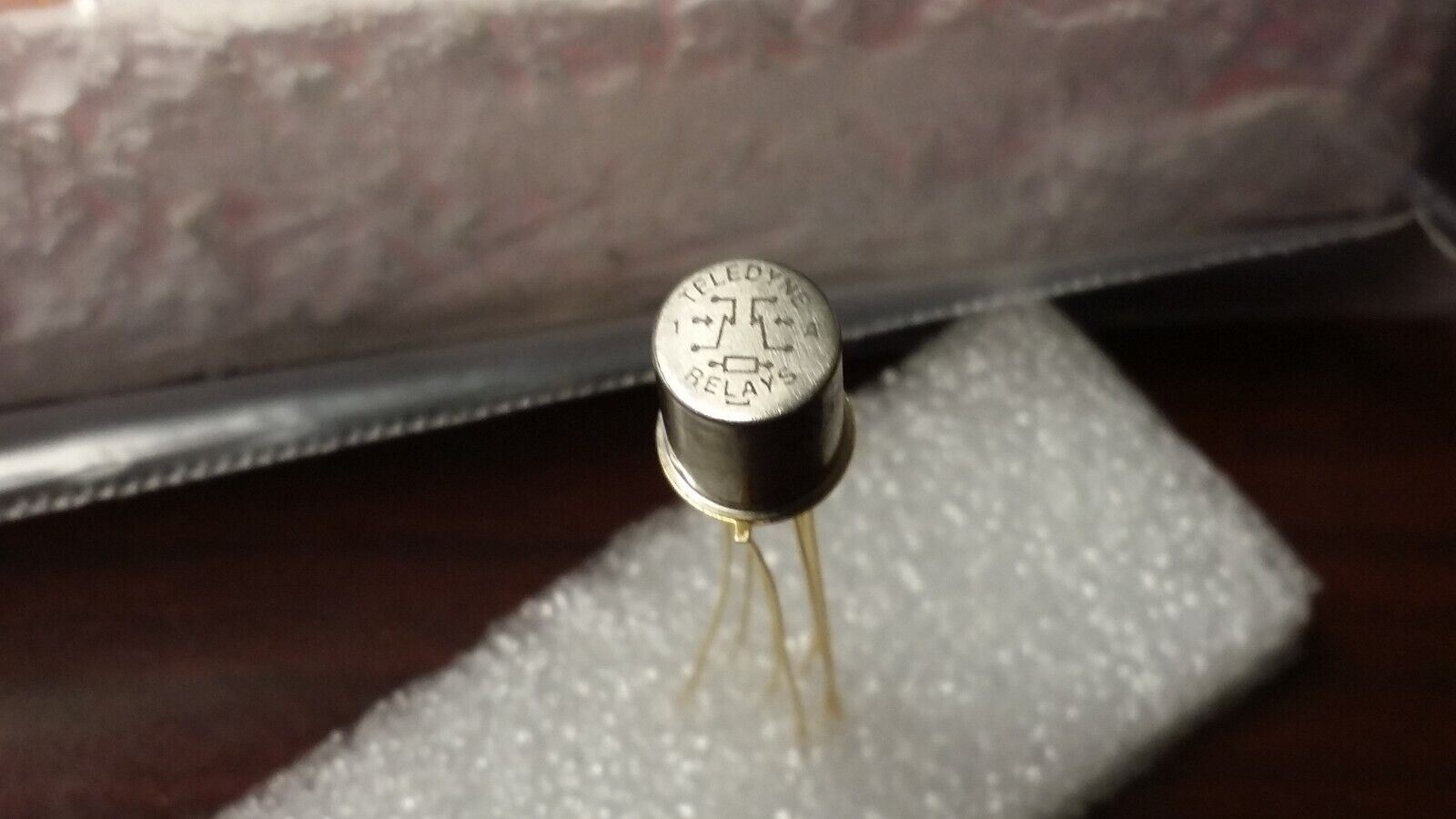

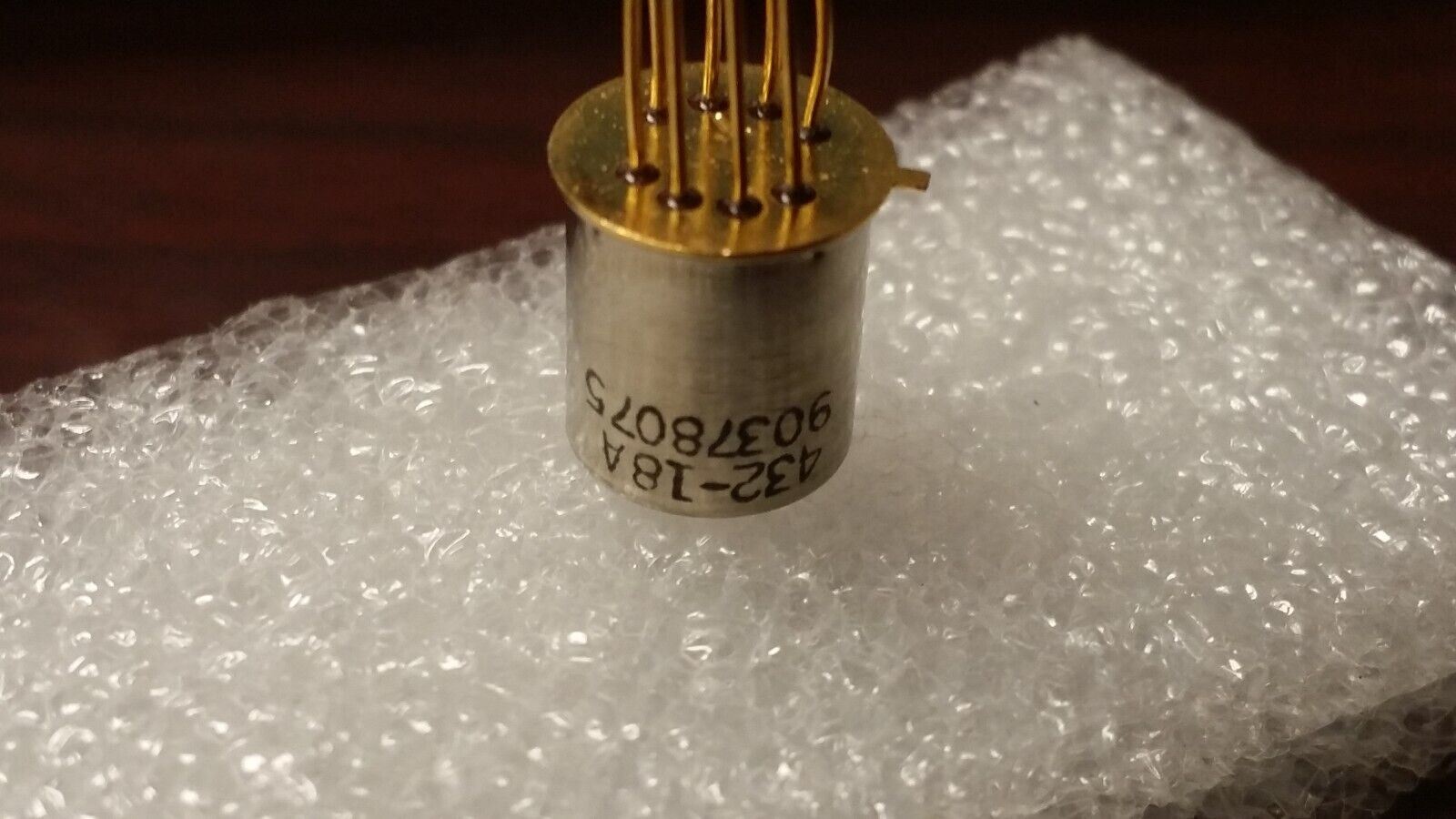

THIS IS FOR (1PC) OF 432-18A BY TELEDYNE
RF Relay, 2 Form C, DPDT, Latched, 30VDC, 1A, 28VDC
Part #: ER432-18A
Part Category: Relays
Manufacturer: Teledyne Technologies Incorporated
Description: RF Relay, 2 Form C, DPDT, Latched, 30VDC (Coil), 1A (Contact), 28VDC (Contact), DC Input, Random, AC/DC Output
REACH Compliant Yes
Status Active
Relay Type RF RELAY
Body Height 9.52 mm
Body Length or Diameter 9.4 mm
Coil/Input Supply Type DC
Coil Operate Voltage(DC) 13.5 V
Coil Resistance 1600.0 ohm
Coil Voltage-Nom 18.0 V
Coil Voltage(DC)-Max 30.0 V
Contact AC Max Rating R Load 0.25A@115VAC
Contact Current(AC)-Max 0.25 A
Contact Current(DC)-Max 1.0 A
Contact DC Max Rating R Load 1A@28VDC
Contact/Output Supply Type AC/DC
Contact Resistance 100.0 mohm
Contact Voltage(AC)-Max 115.0 V
Contact Voltage(DC)-Max 28.0 V
Electrical Life 100000.0 Cycle(s)
Input Switching Control Type Random
Insulation Resistance 1.0E10 ohm
Number of Terminals 8
Operate Time 4.0 ms
Operating Temperature-Min -65.0 Cel
Operating Temperature-Max 125.0 Cel
Physical Dimension 9.4mm x 9.52mm
Relay Action LATCHED
Relay Form 2 FORM C
Relay Function DPDT
Release Time 2.0 ms
Sealing HERMETICAL
Terminal Length 0.019 Meter
Termination Type SOLDER
