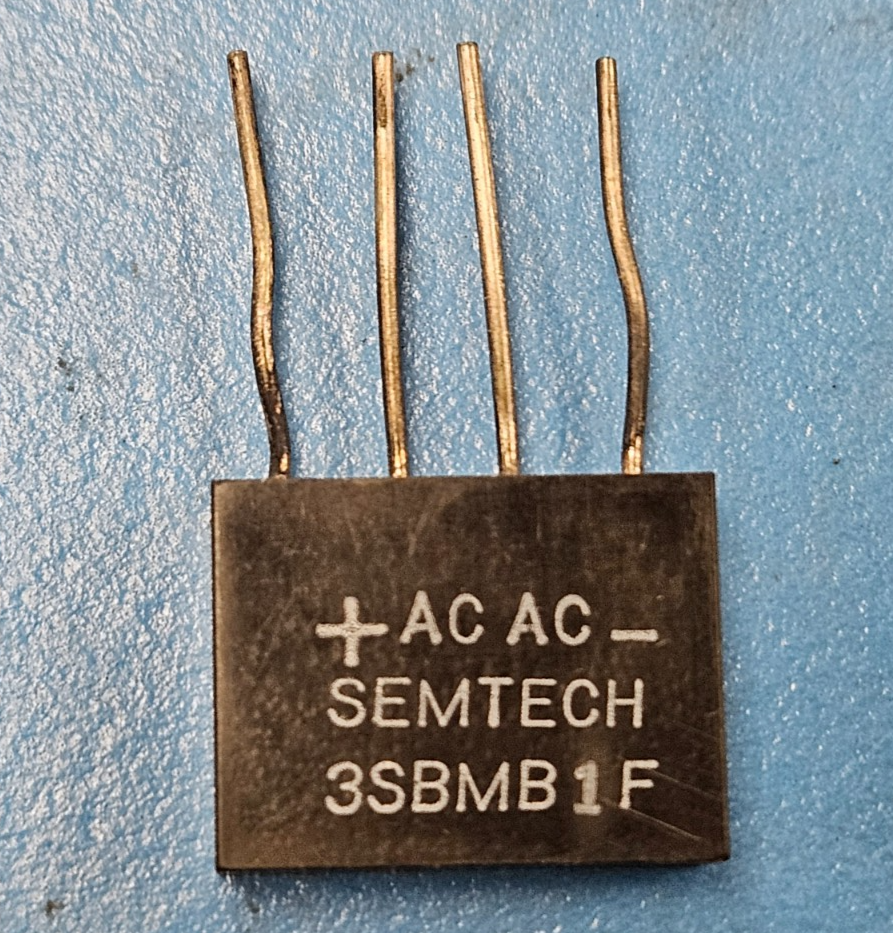

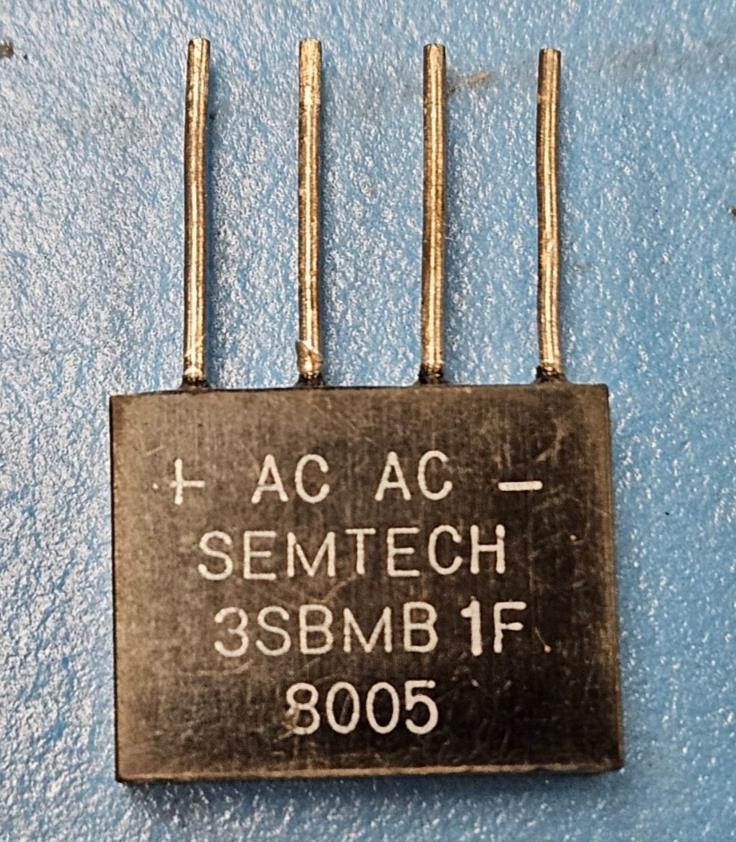

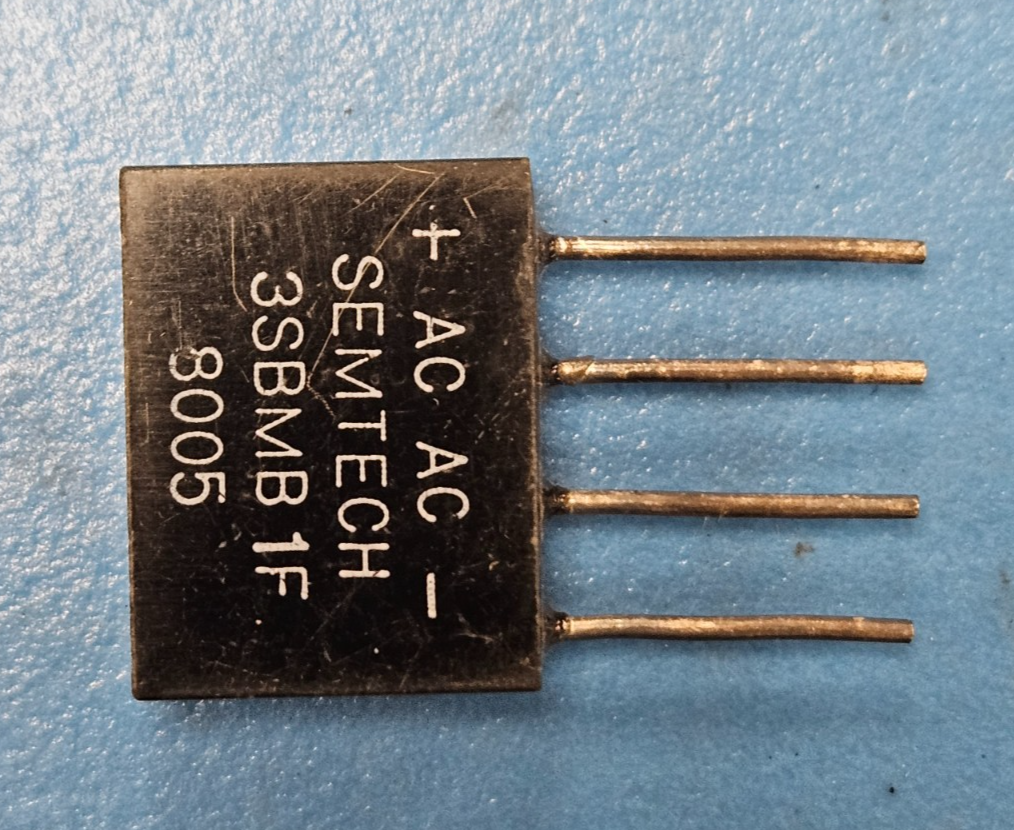

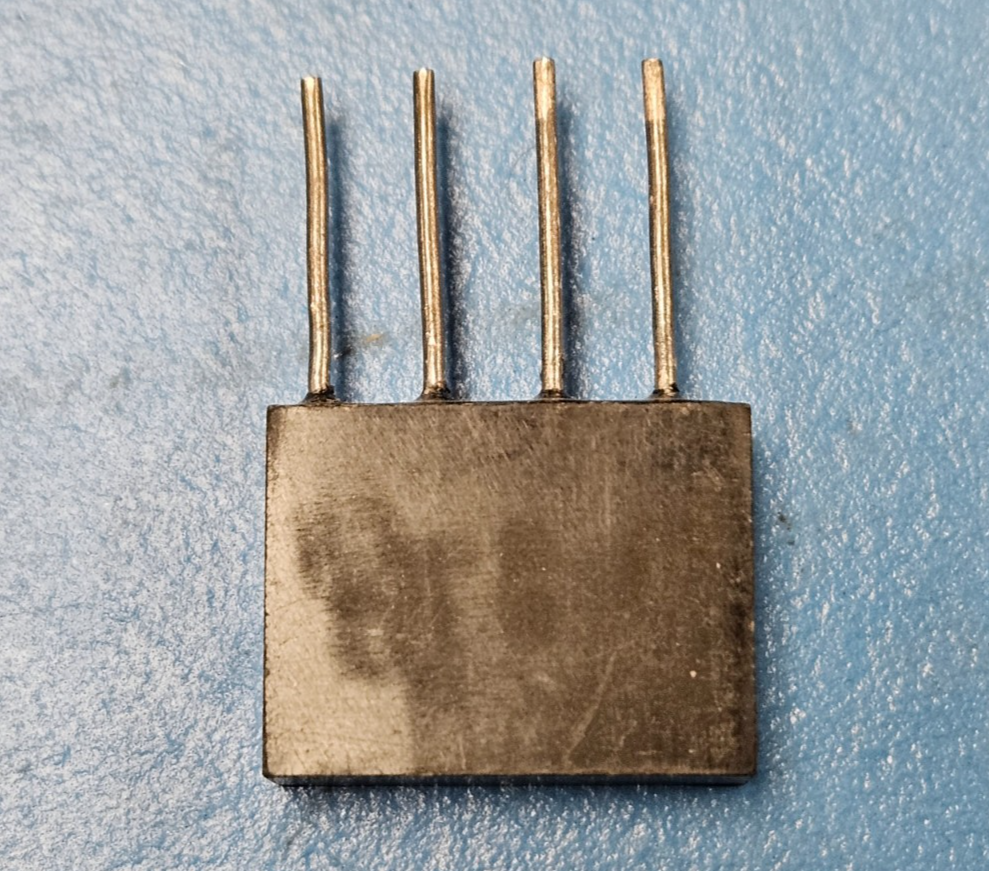

(1PC) 3SBMB1F Semtec Bridge Rectifiers A 1PHFW 3A FAST 100V Through Hole
Tax included.
This listing is for (1PC) of 3SBMB1F by Semtec
Status Transferred
Configuration BRIDGE, 4 ELEMENTS
Diode Element Material SILICON
Diode Type BRIDGE RECTIFIER DIODE
Forward Voltage-Max (V) 1.1000000000000000
JESD-30 Code R-PSIP-W4
Non-rep Pk Forward Current-Max (A) 150.0000000000000000
Number of Elements 4
Number of Phases 1
Number of Terminals 4
Operating Temperature-Max (Cel) 150.0000000000000000
Output Current-Max (A) 3.0000000000000000
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style IN-LINE
DLA Qualification Not Qualified
Rep Pk Reverse Voltage-Max (V) 100.0000000000000000
Reverse Recovery Time-Max (us) 0.1500000000000000
Surface Mount NO
Terminal Form WIRE
Terminal Position SINGLE
