(1PC) 38BM-4-H-3-S GRAYHILL Pushbutton Switch SPST-NO Standard SMD, Right Angle
(1PC) 38BM-4-H-3-S GRAYHILL Pushbutton Switch SPST-NO Standard SMD, Right Angle
(1PC) 38BM-4-H-3-S GRAYHILL Pushbutton Switch SPST-NO Standard SMD, Right Angle
(1PC) 38BM-4-H-3-S GRAYHILL Pushbutton Switch SPST-NO Standard SMD, Right Angle

(1PC) 38BM-4-H-3-S GRAYHILL Pushbutton Switch SPST-NO Standard SMD, Right Angle

Tax included.
Only 7 left!

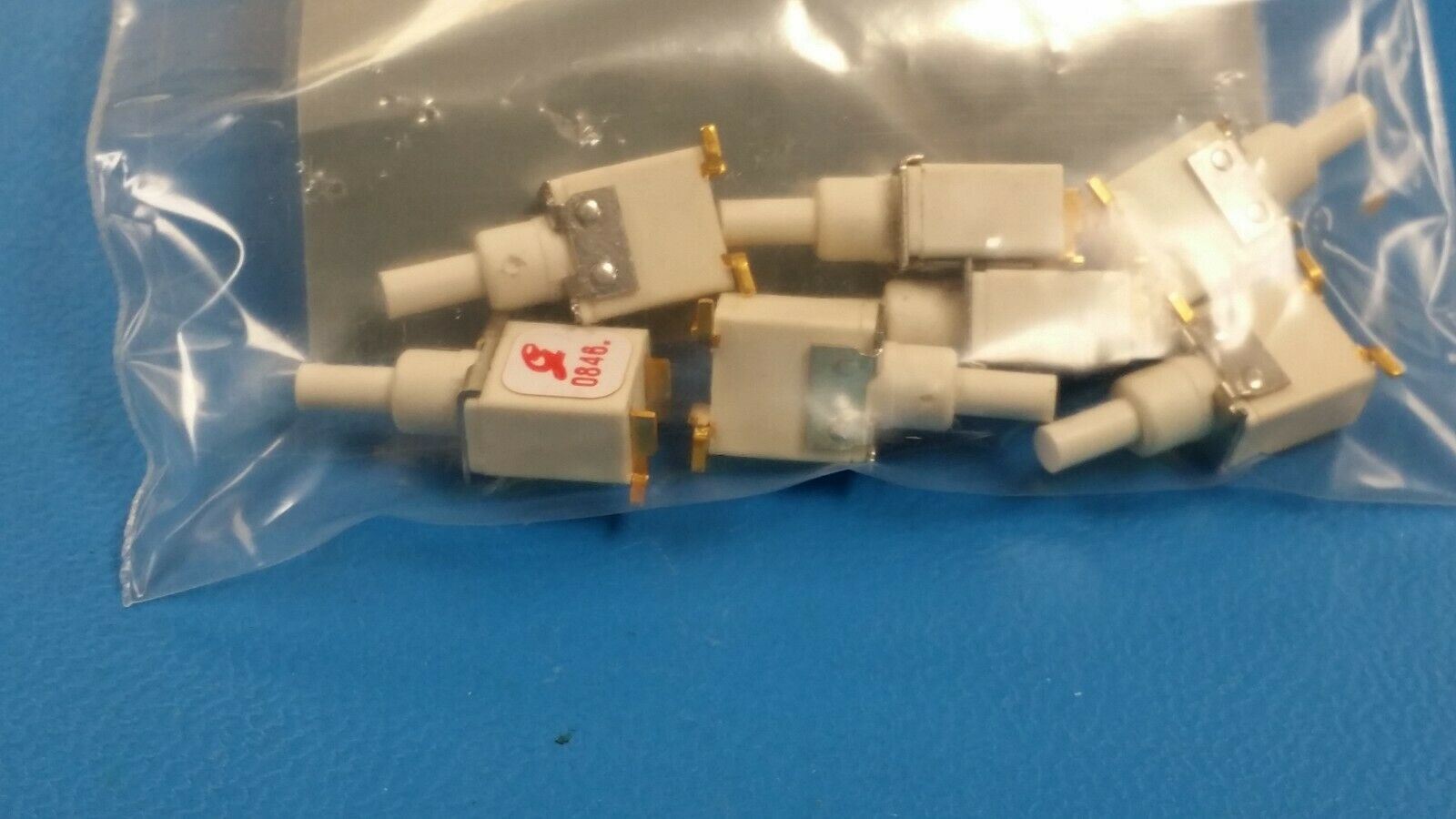

THIS LISTING IS FOR (1PC) OF 38BM-4-H-3-S BY GRAYHILL
Pushbutton Switch SPST-NO Standard SMD, Right Angle

Manufacturer: Grayhill
Product Category: Pushbutton Switches
RoHS: YES
Product: Standard Switches
Illuminated: Non-Illuminated
Lamp Type: -
Contact Form: SPST
Switch Function: OFF - (ON)
Current Rating: 400 mA
Voltage Rating AC: 20 VAC
Voltage Rating DC: 20 VDC
Power Rating: 400 mVA
Mounting Style: SMD/SMT
Mounting Type: Sealed
Termination Style: J Form Lead
Contact Plating: Gold
Actuator: Plunger
Cap Color: White
Packaging: Cut Tape
Packaging: Reel
Color: White
Height: 5.08 mm
Housing Material: Thermoplastic (TP)
Length: 9.25 mm
Material: Thermoplastic
Width: 8.13 mm
Brand: Grayhill
Flammability Rating: UL 94 V-0
Life: 80000 Cycles
Product Type: Pushbutton Switches
