(1PC) 2N5130 Bipolar Transistor 0.05A 12V 1-Element NPN Silicon TO-106
Tax included.

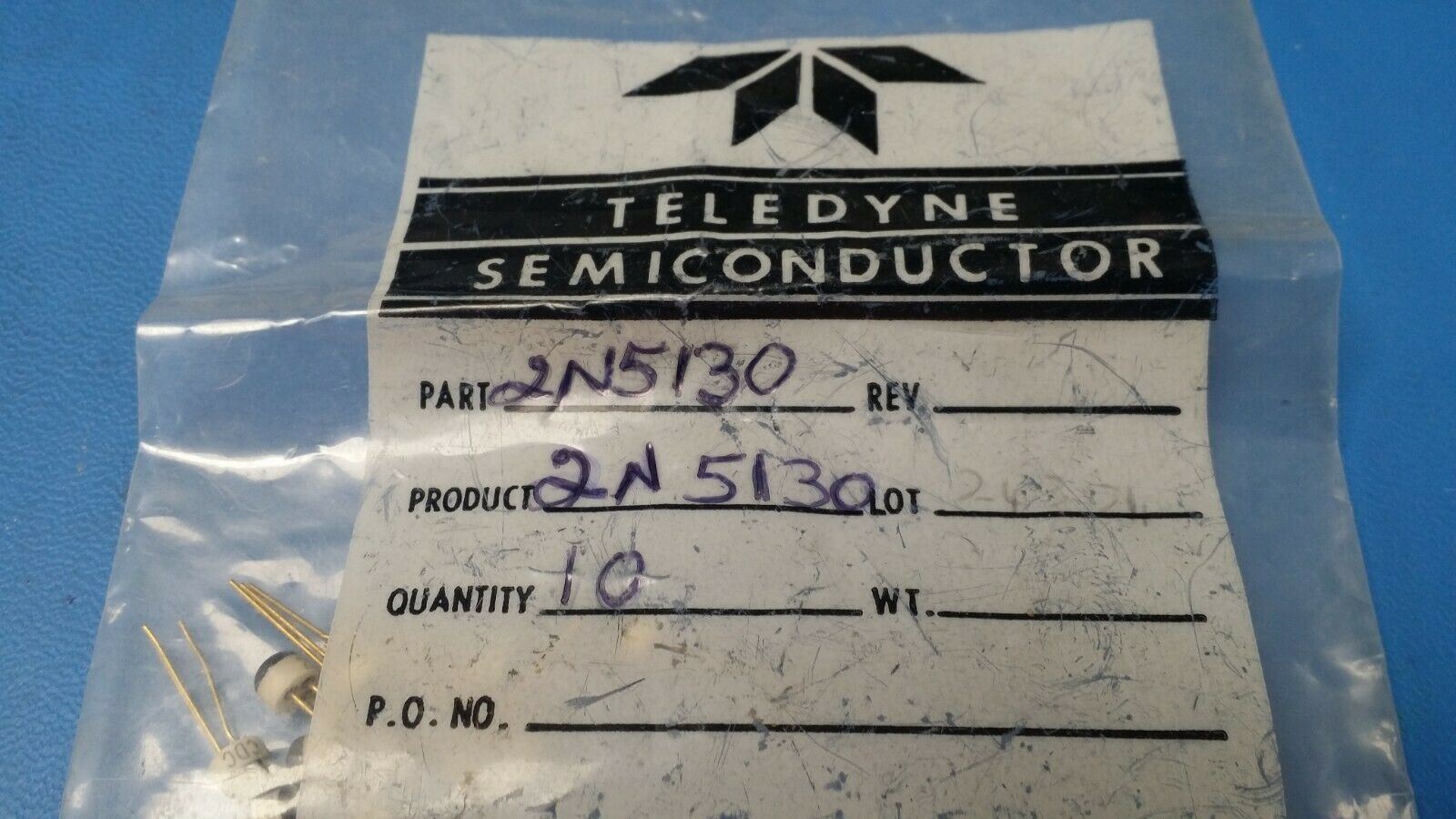

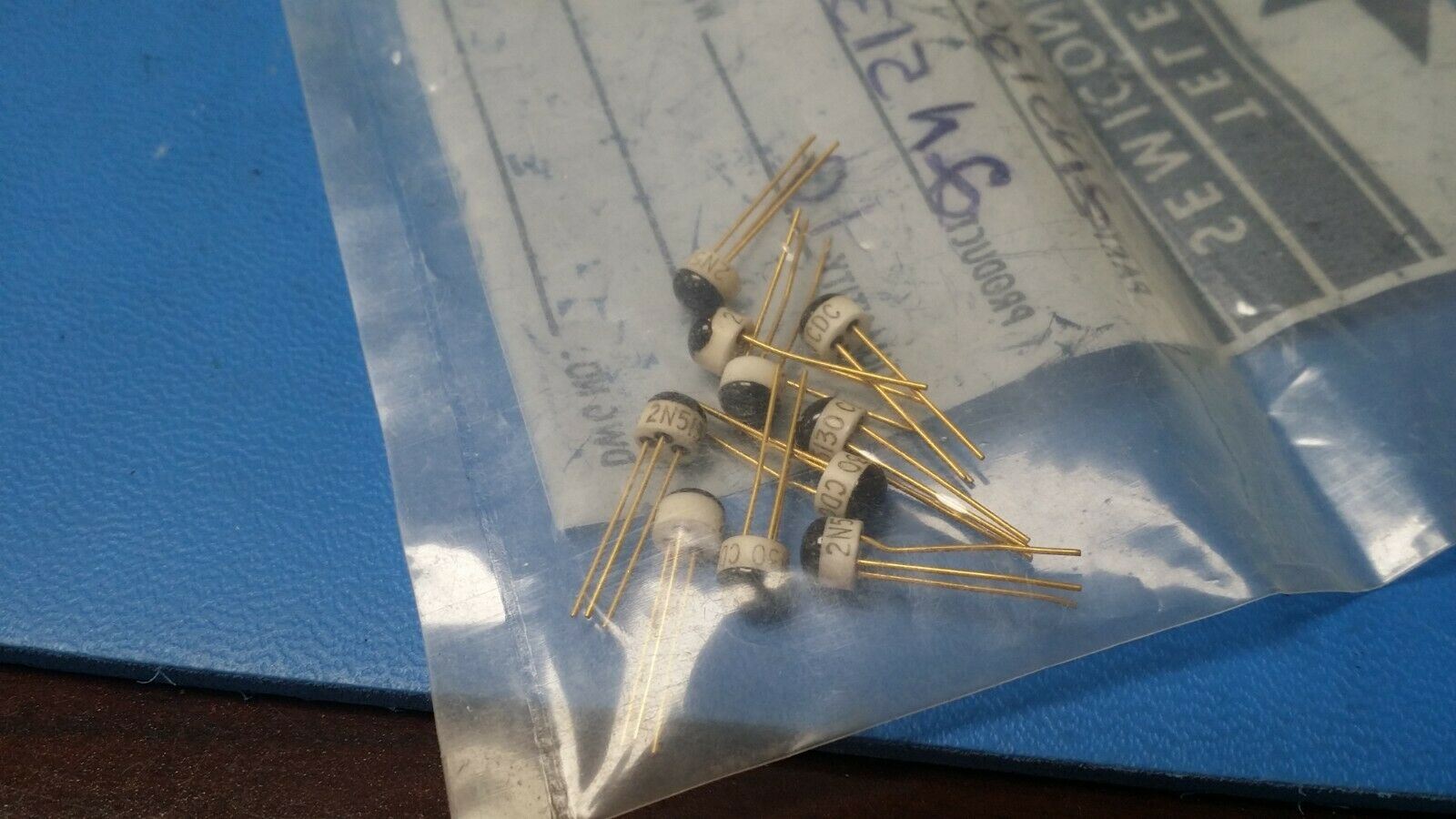

THIS IS FOR (1PC) OF 2N5130 BY TELEDYNE
Small Signal Bipolar Transistor 0.05A 12V 1-Element NPN Silicon TO-106
Status Active-Unconfirmed
Collector Current-Max (IC) 0.05 A
Configuration Single
DC Current Gain-Min (hFE) 15.0
JESD-609 Code e0
Number of Elements 1.0
Operating Temperature-Max 150.0 Cel
Polarity/Channel Type NPN
Power Dissipation-Max (Abs) 0.2 W
Sub Category Other Transistors
Surface Mount NO
Terminal Finish Tin/Lead (Sn/Pb)
Transition Frequency-Nom (fT) 450.0 MHz
