(1PC) 221789-1 RF SMA Connector, 1 Contact, Female, Locking, Jack, 50 Ohm
Tax included.

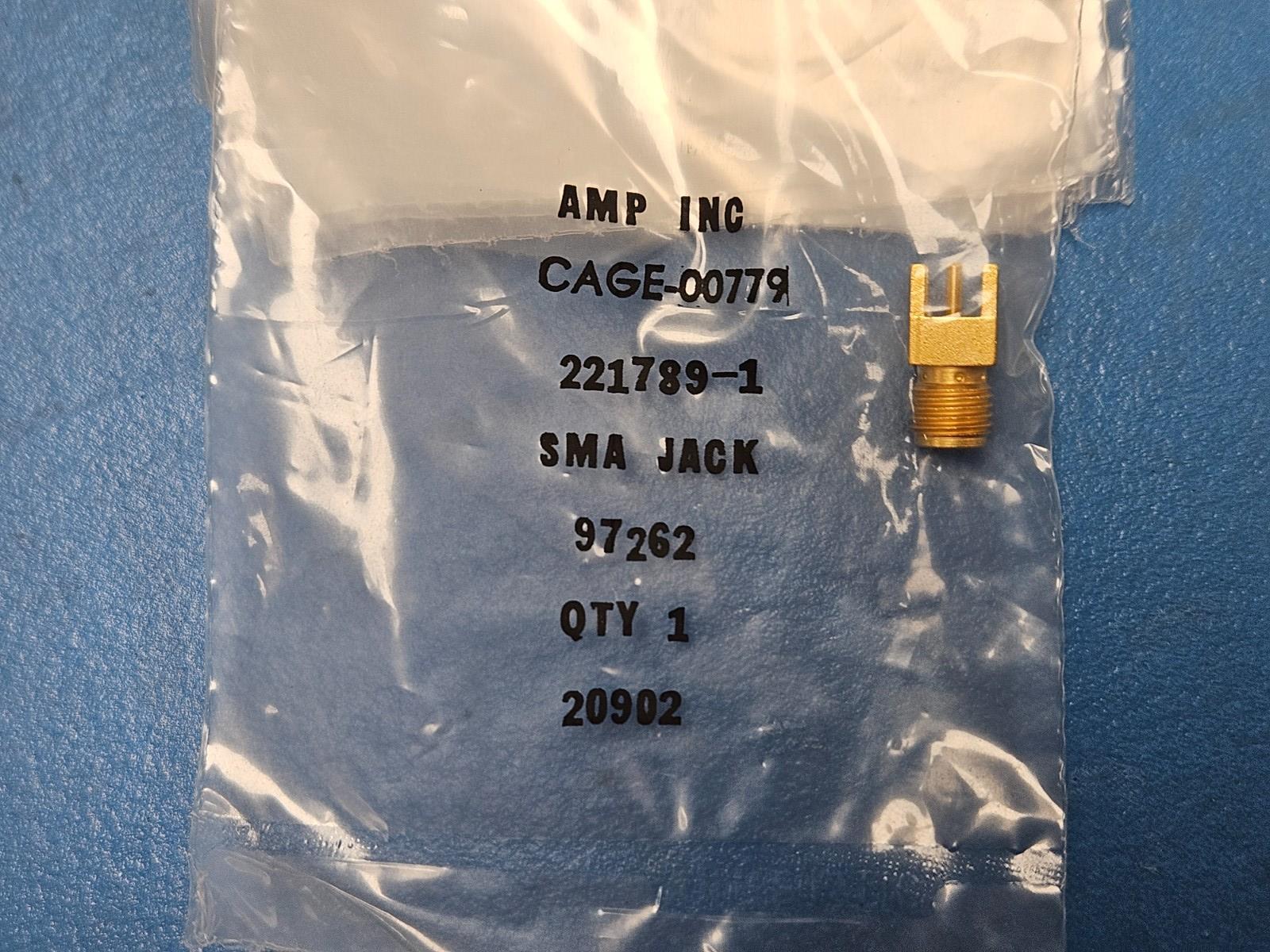

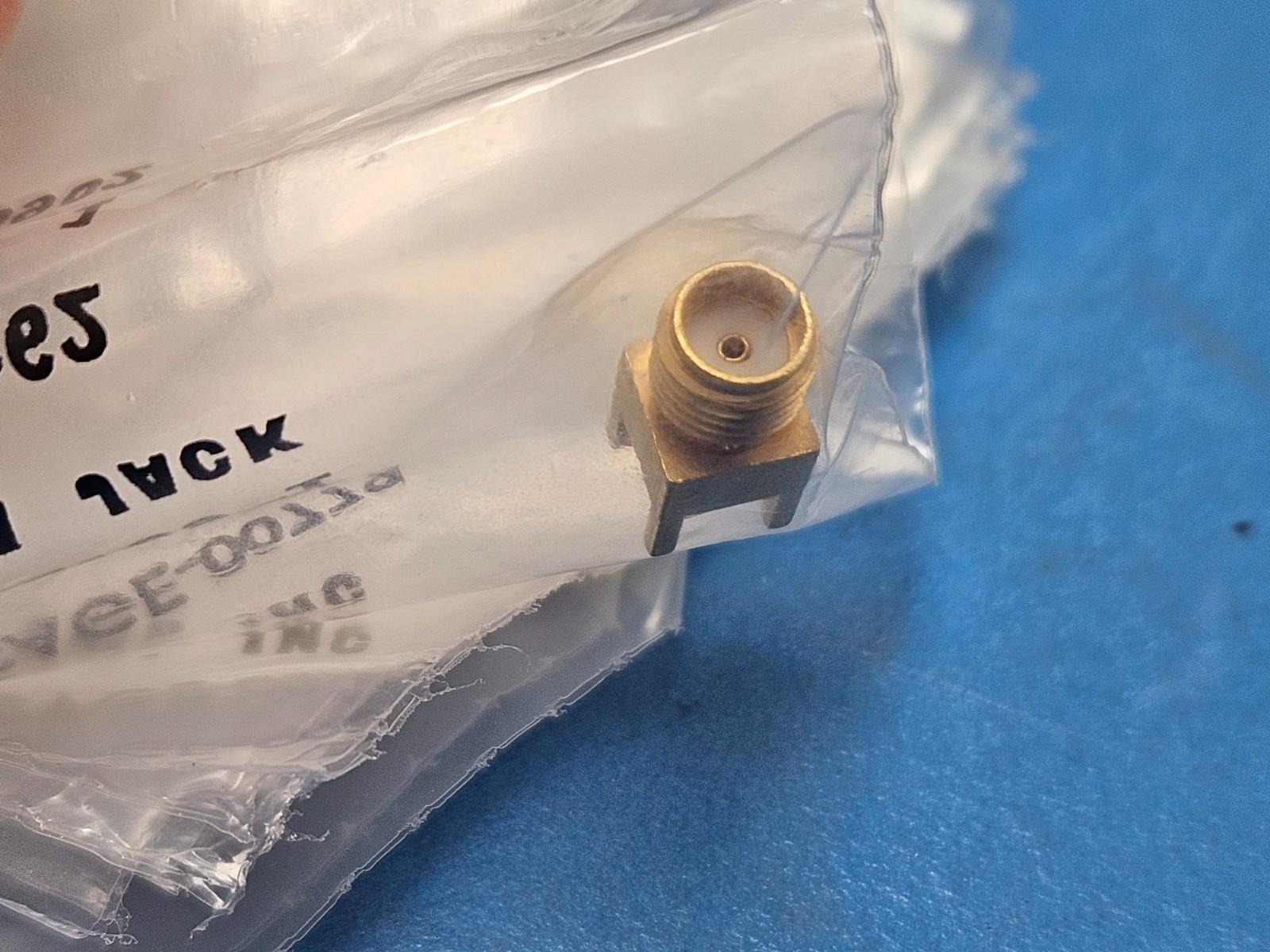

This listing is for (1PC) of 221789-1 by AMP
Status Discontinued
Additional Feature ROHS COMPLIANT
Body Depth (inch) 0.375000
Body Length (inch) 0.530000
Body/Shell Style JACK
Characteristic Impedance (ohm) 50.0000000000000000
Connector Type RF SMA CONNECTOR
Contact Finish - Mating NOT SPECIFIED
Contact Finish - Termination Gold (Au)
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Resistance (mohm) 2.000000000000000
Contact Style COAX
Coupling Type THREADED
DIN Conformance NO
Durability (Cycles) 500
EMI Shielded NO
Empty Shell NO
Filter Feature NO
IEC Conformance NO
Insertion Loss (dB) 0.3000000000000000
Insulation Resistance (ohm) 5000000000.000000000000000
Insulator Material FLUOROPOLYMER
J-STD-609 Code e4
MIL Conformance NO
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number of Connectors ONE
Number of Ports 1
Operating Frequency-Max (GHz) 4.0000000000000000
Operating Temperature-Max (Cel) 165
Operating Temperature-Min (Cel) -65
Option GENERAL PURPOSE
Panel Mount NO
Shell Finish GOLD
Shell Material BRASS
Terminal Length (inch) 0.155000
Termination Type SOLDER
Number of Contacts 1
VSWR 1.3000000000000000
