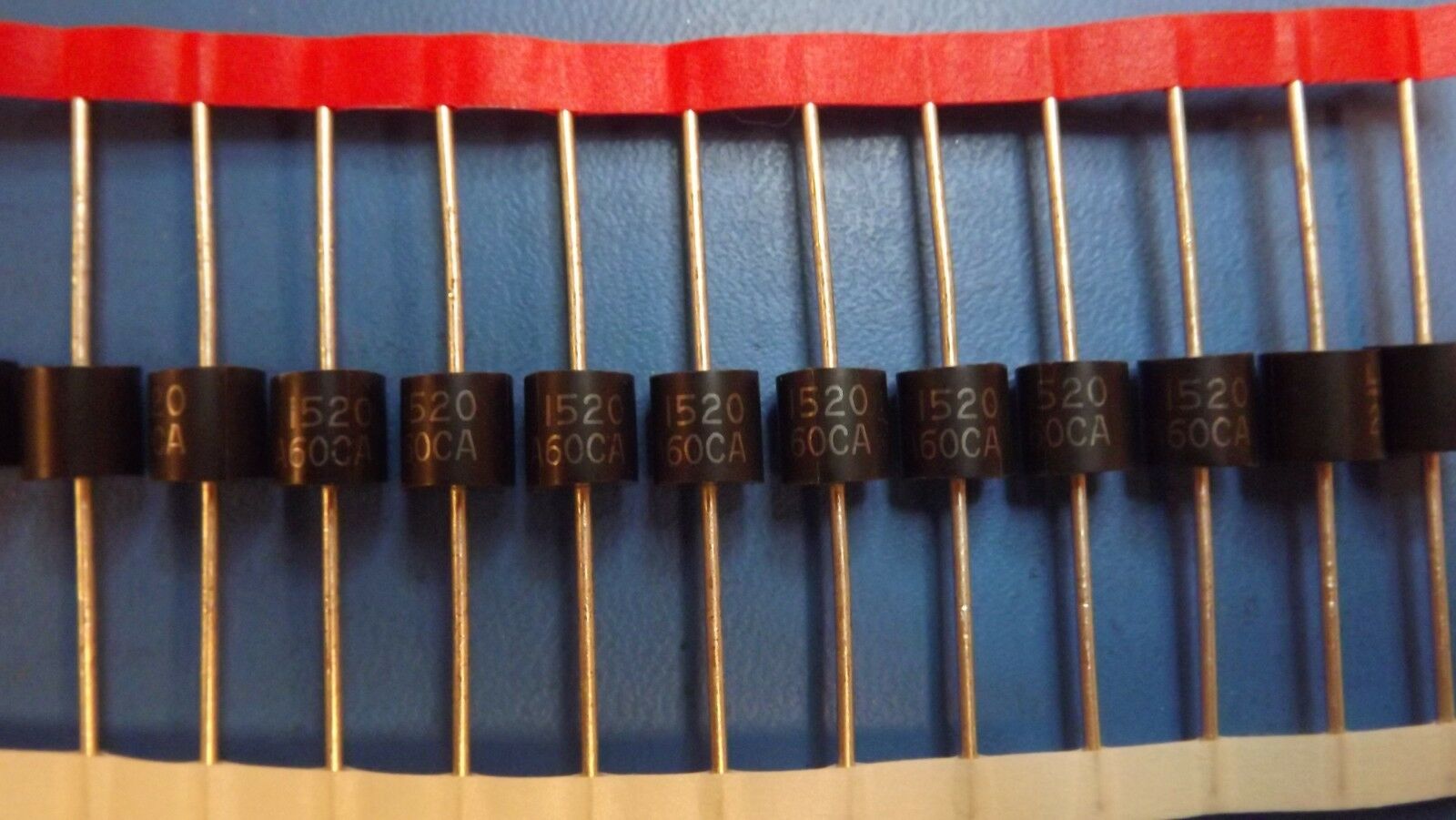

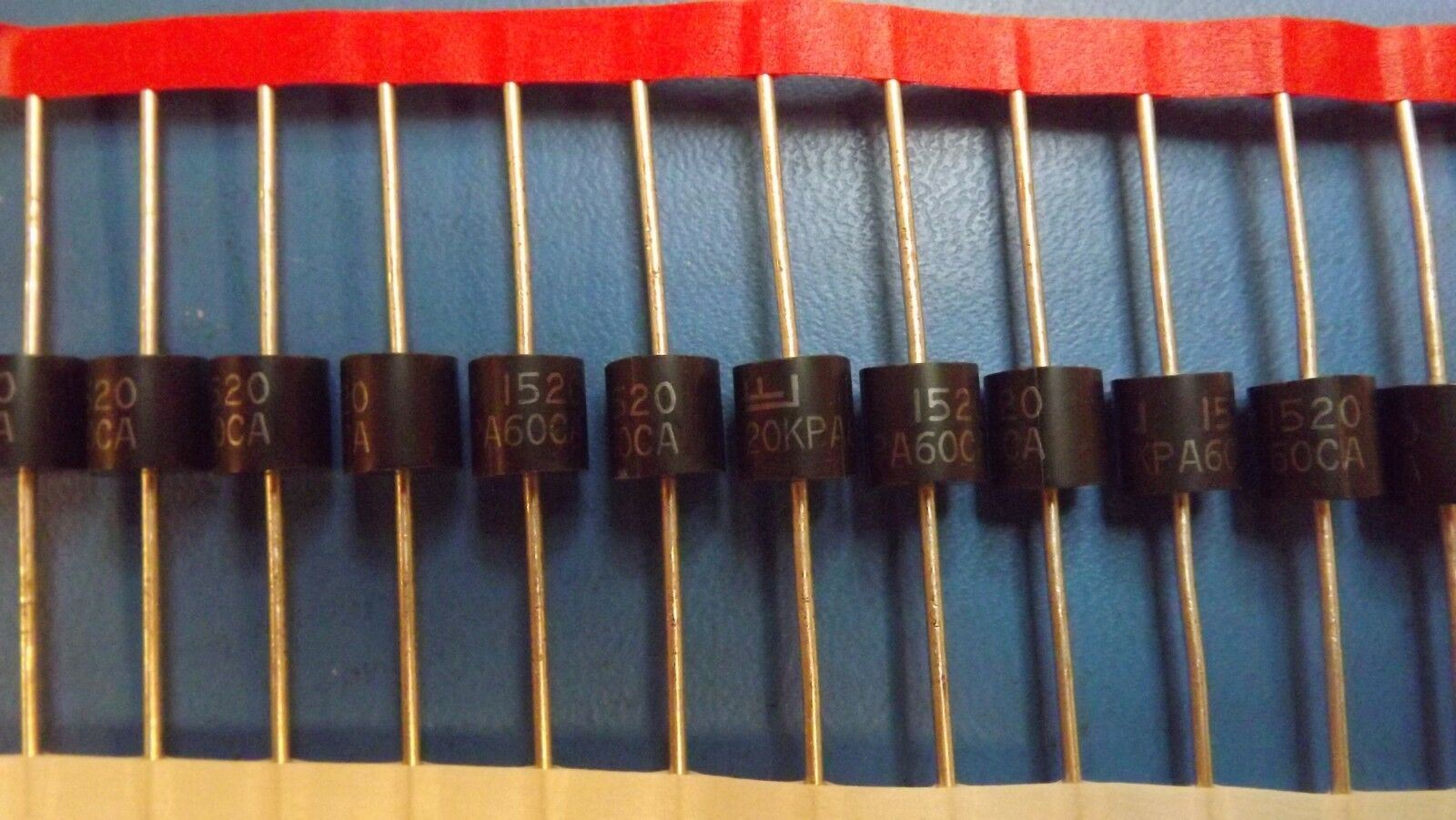

(1PC) 20KPA60CA LITTELFUSE TVS DIODE 60V 97.6V P600

  • $12.95
    Unit price per
Tax included.

Only 23 left!

THIS LISTING IS FOR (1PC) OF 20KPA60CA BY LITTELFUSE

SPECIFICATIONS

Mfr Package Description HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Breakdown Voltage-Min 67.0  V
Case Connection ISOLATED
Clamping Voltage-Max 97.6  V
Configuration SINGLE
Diode Element Material SILICON
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Non-rep Peak Rev Power Dis-Max 20000.0  W
Number of Elements 1.0
Number of Terminals 2
Operating Temperature-Min -55.0  Cel
Operating Temperature-Max 175.0  Cel
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity BIDIRECTIONAL
Power Dissipation-Max 8.0  W
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 60.0  V
Sub Category Transient Suppressors
Surface Mount NO
Technology AVALANCHE
Terminal Finish Matte Tin (Sn)
Terminal Form WIRE
Terminal Position AXIAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Additional Feature UL RECOGNIZED
