(1PC) 2092-1511-002 AEP STRIPLINE TERMINATED, MALE, SMB CONNECTOR, JACK
Tax included.

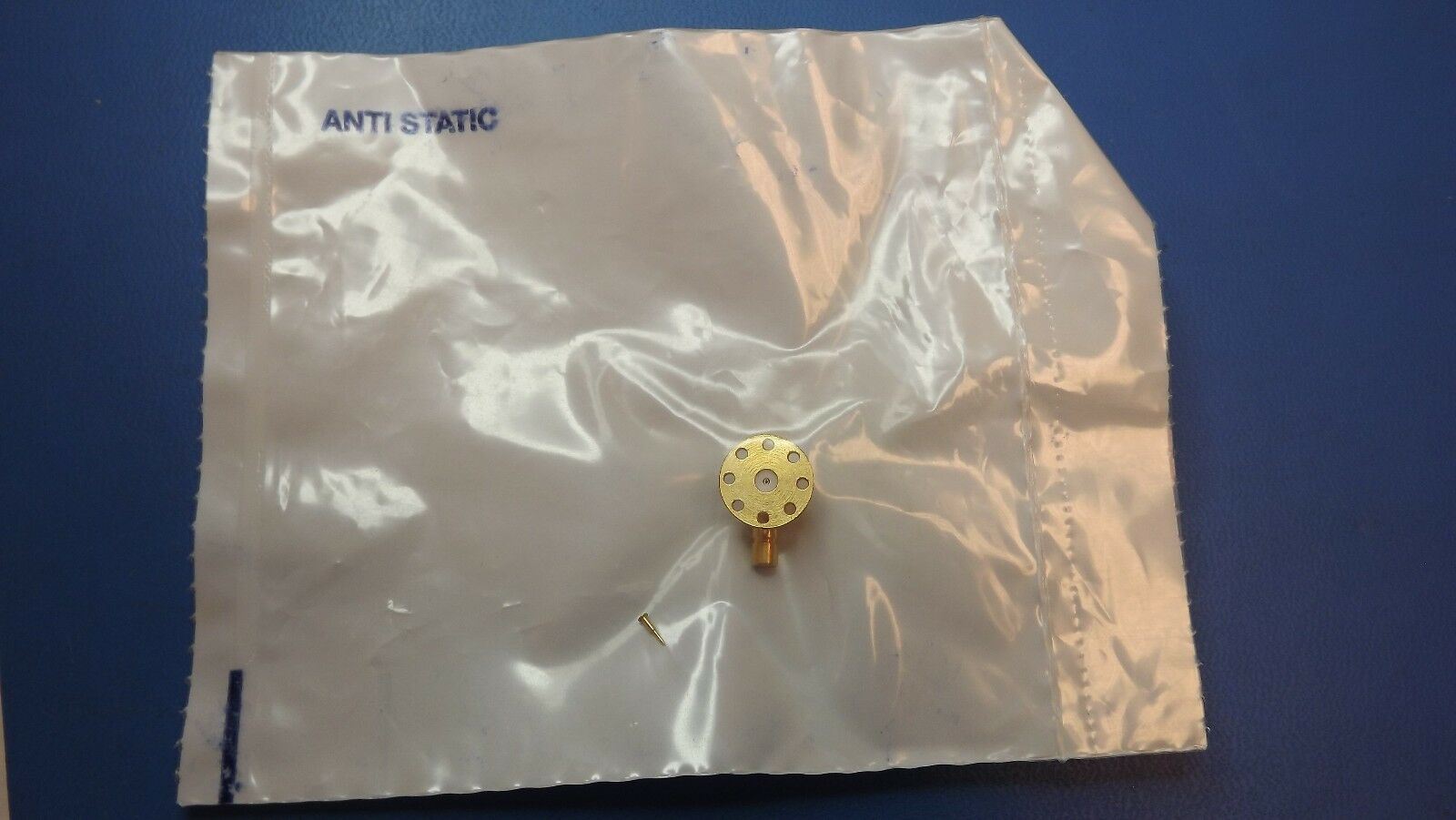

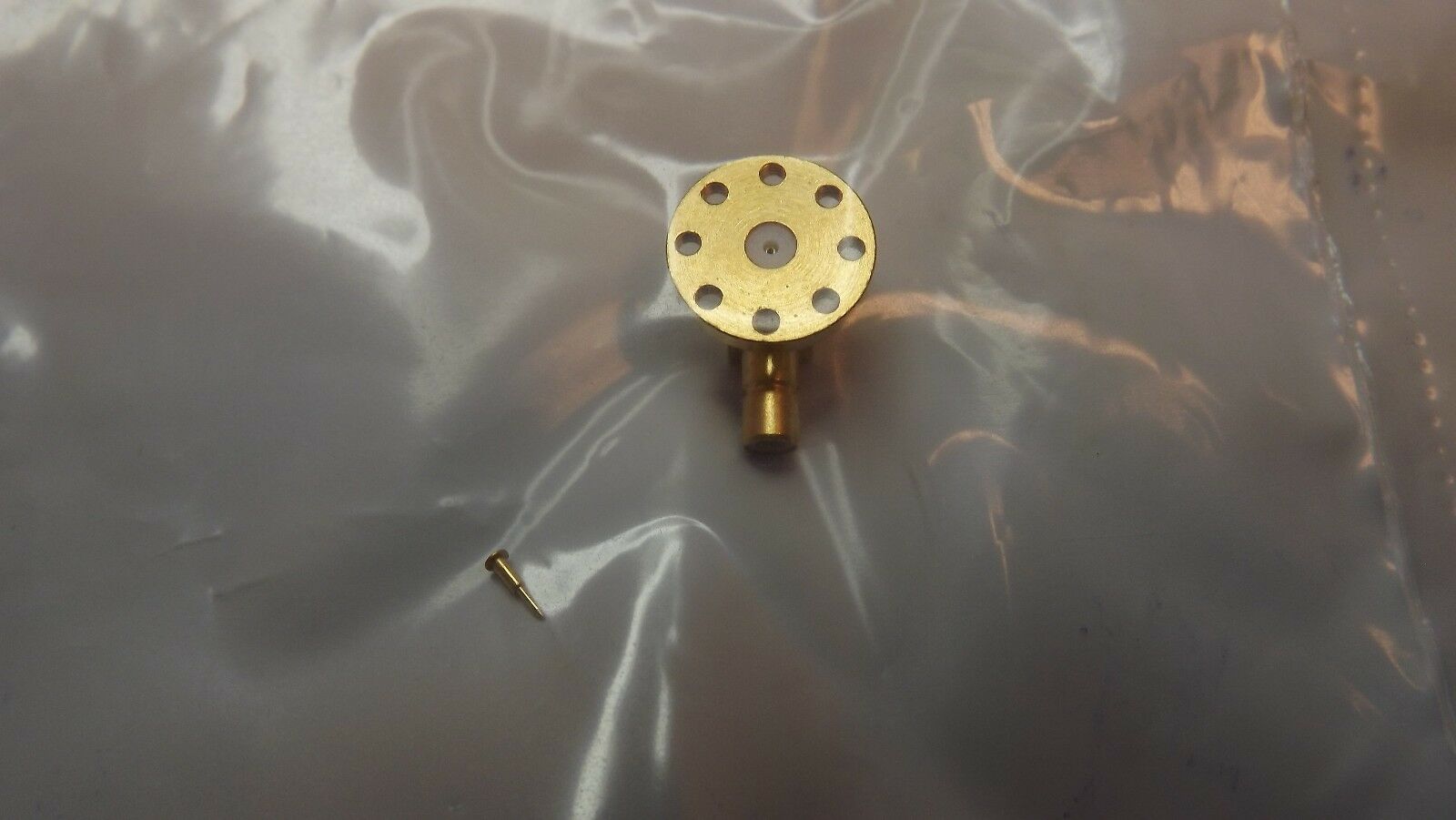

THIS LISTING IS FOR (1PC) OF 2092-1511-002 BY AEP
SPECIFICATIONS
| Status | Active |
| Connector Type | RF SMB CONNECTOR |
| Body/Shell Style | JACK |
| Characteristic Impedance | 50.0 ohm |
| Contact Finish - Mating | GOLD |
| Contact Finish - Termination | GOLD |
| Contact Gender | MALE |
| Coupling Type | SNAP |
| DIN Conformance | NO |
| Filter Feature | NO |
| IEC Conformance | NO |
| Insertion Loss | 0.6 dB |
| Insulator Material | POLYTETRAFLUORO ETHYLENE |
| JESD-609 Code | e4 |
| Manufacturer Series | 2092 |
| MIL Conformance | NO |
| Mounting Style | RIGHT ANGLE |
| Mounting Type | STRIPLINE |
| Output Frequency-Max | 4.0 GHz |
| Option | GENERAL PURPOSE |
| Panel Mount | NO |
| Additional Feature | INSERTION LOSS MAX AT 1.5 GHZ |
