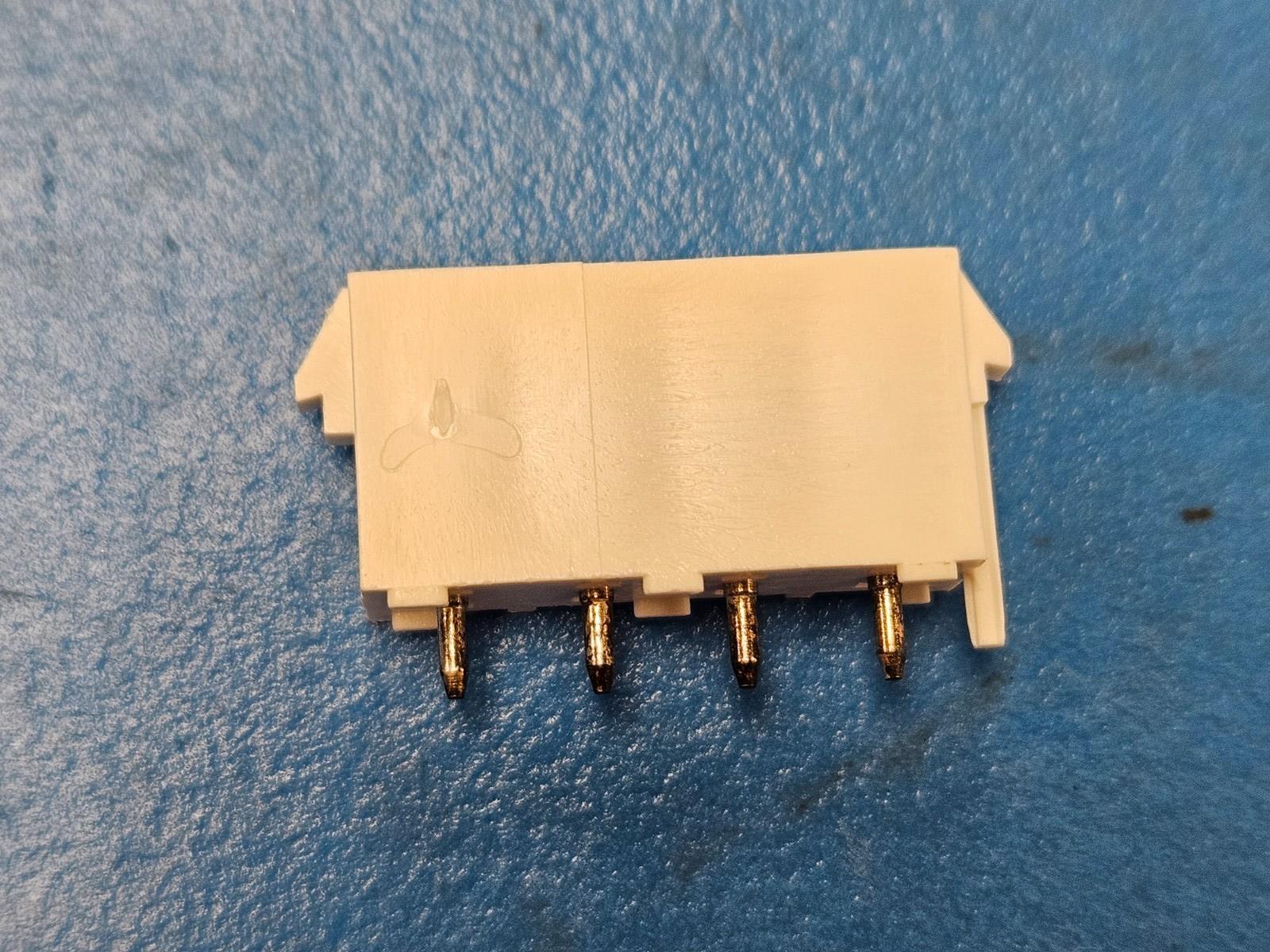

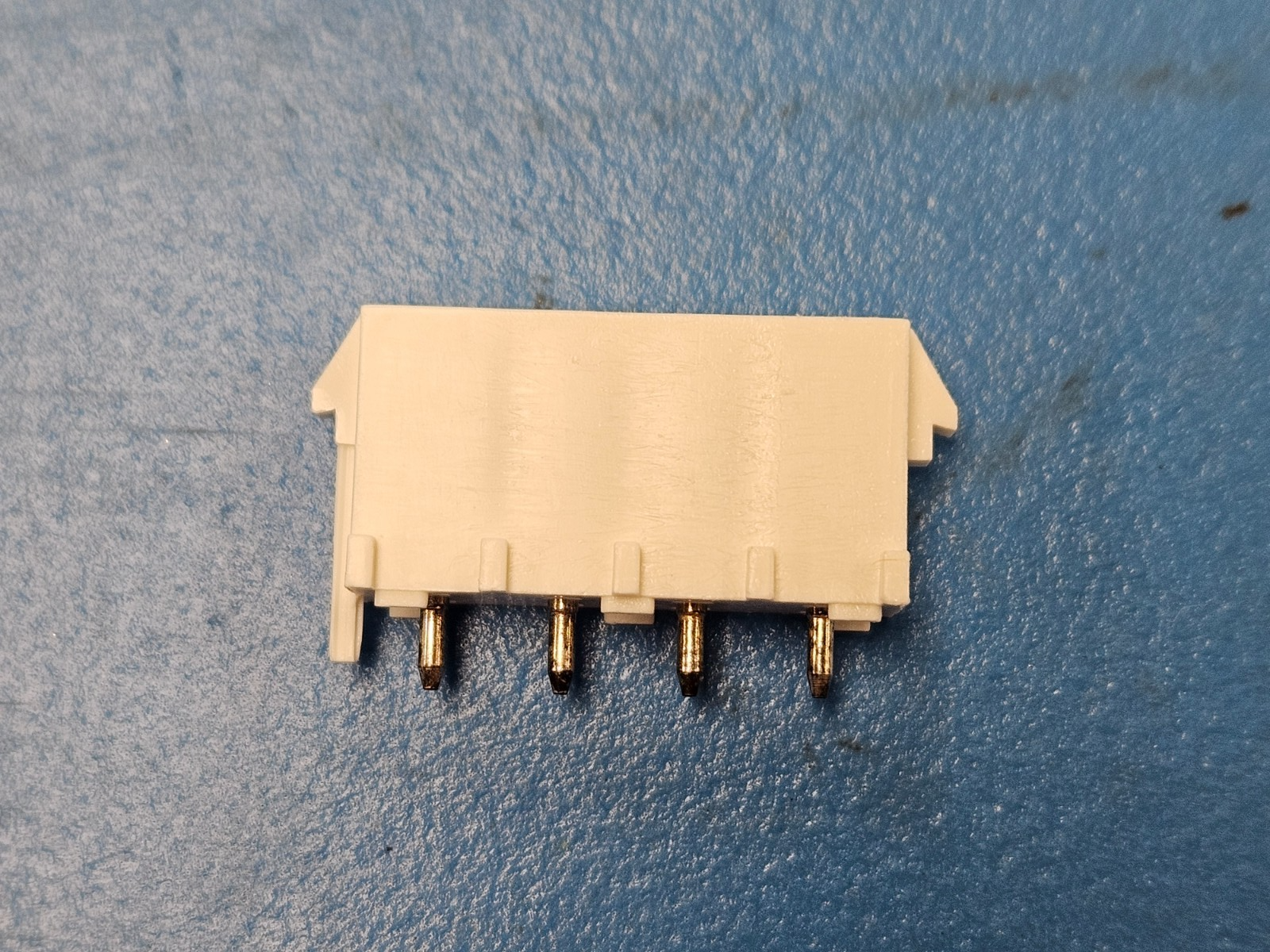

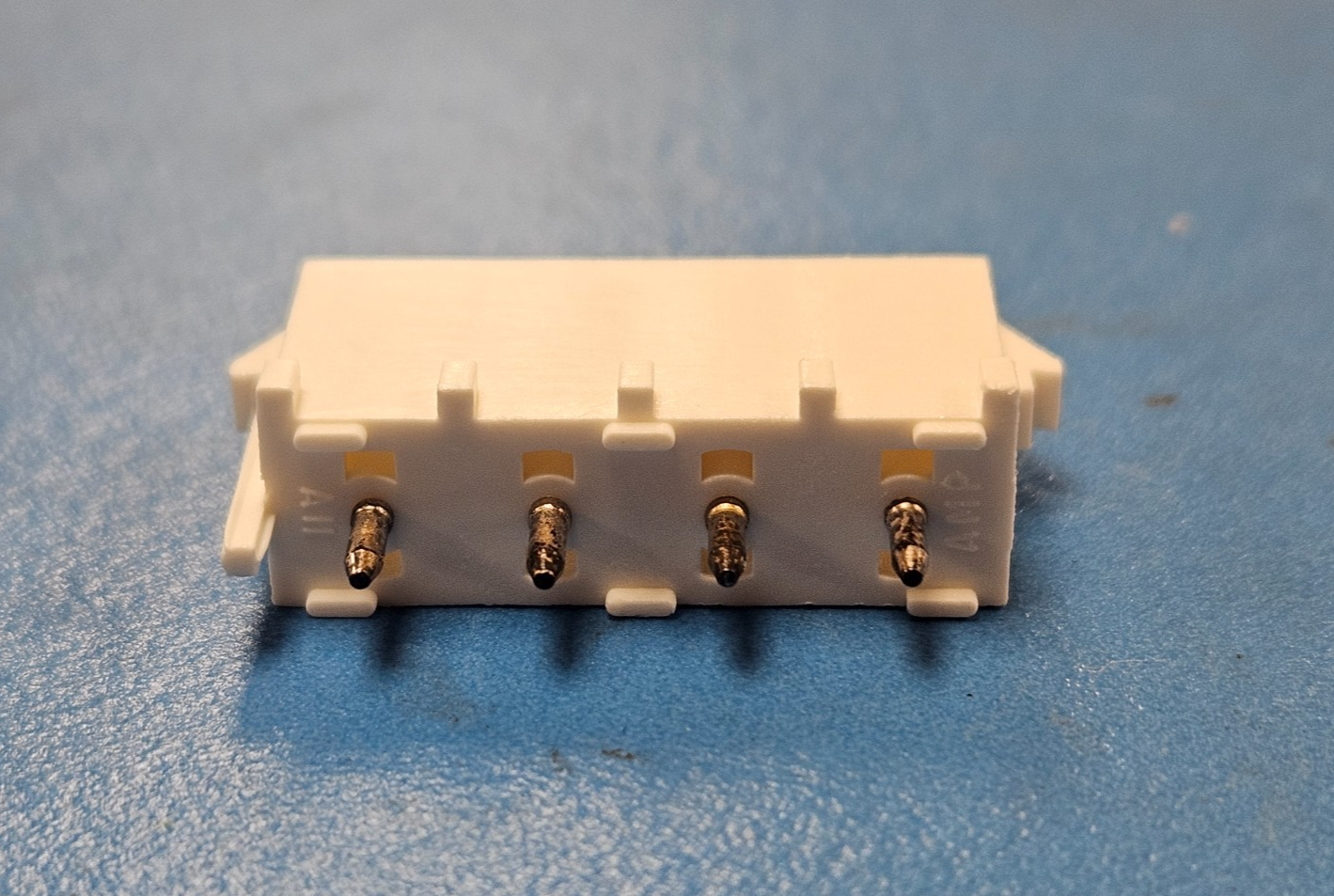

(1PC) 194010-1 Connector Power HDR 4 POS 6.35mm 1 Terminal 1 Port
Tax included.

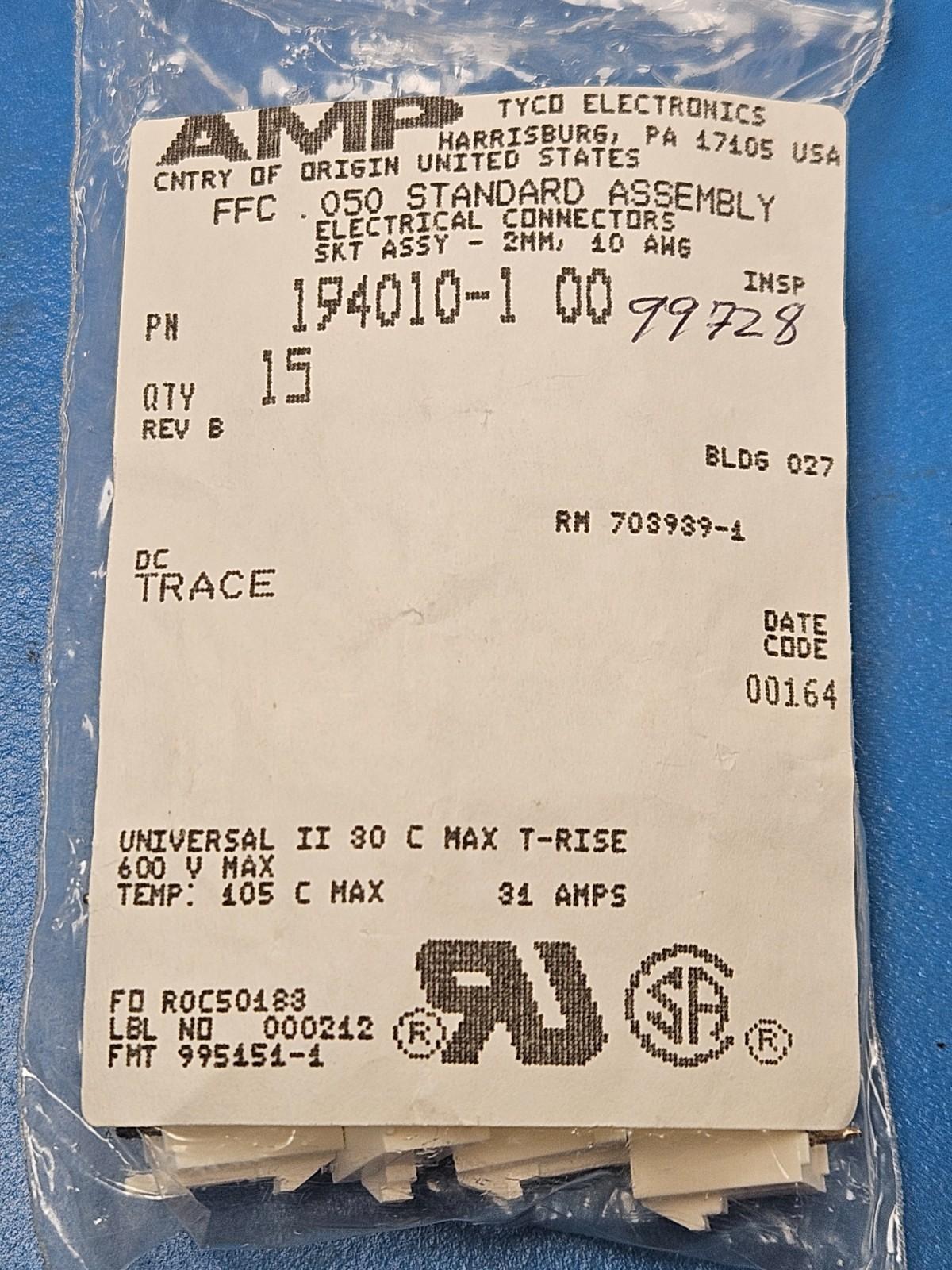

This listing is for (1PC) of 194010-1 by AMP
Status Active
Additional Feature MATE-N-LOK, PIN HEADER
Body Breadth (inch) 0.300000
Body Depth (inch) 0.580000
Body Length (inch) 1.050000
Body/Shell Style PLUG
Connector Type COMBINATION LINE CONNECTOR
Contact Arrangement S0P4
Contact Finish - Mating NOT APPLICABLE
Contact Gender MALE
Contact Material NOT APPLICABLE
Contact Pattern RECTANGULAR
Contact Style RND PIN-SKT
DIN Conformance NO
Durability (Cycles) 50
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insulation Resistance (ohm) 1000000000.000000000000000
Insulator Color WHITE
Insulator Material GLASS FILLED POLYAMIDE
MIL Conformance NO
Mains Connector Rating 36A
Mixed Contacts NO
Mounting Option 1 DETENT
Mounting Option 2 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number of Connectors ONE
Number of Ports 1
Operating Temperature-Max (Cel) 105
Operating Temperature-Min (Cel) -55
Option GENERAL PURPOSE
Panel Mount NO
Plating Thickness (inch) 400u
Polarization Key POLARIZED
Rated Current (Signal) (A) 36.0000000000000000
Screening Level / Reference Standard CSA, UL, V
Terminal Length (inch) 0.145000
Terminal Pitch (mm) 600
Termination Type SOLDER
Number of Contacts 4
UL Flammability Code 94V-0
