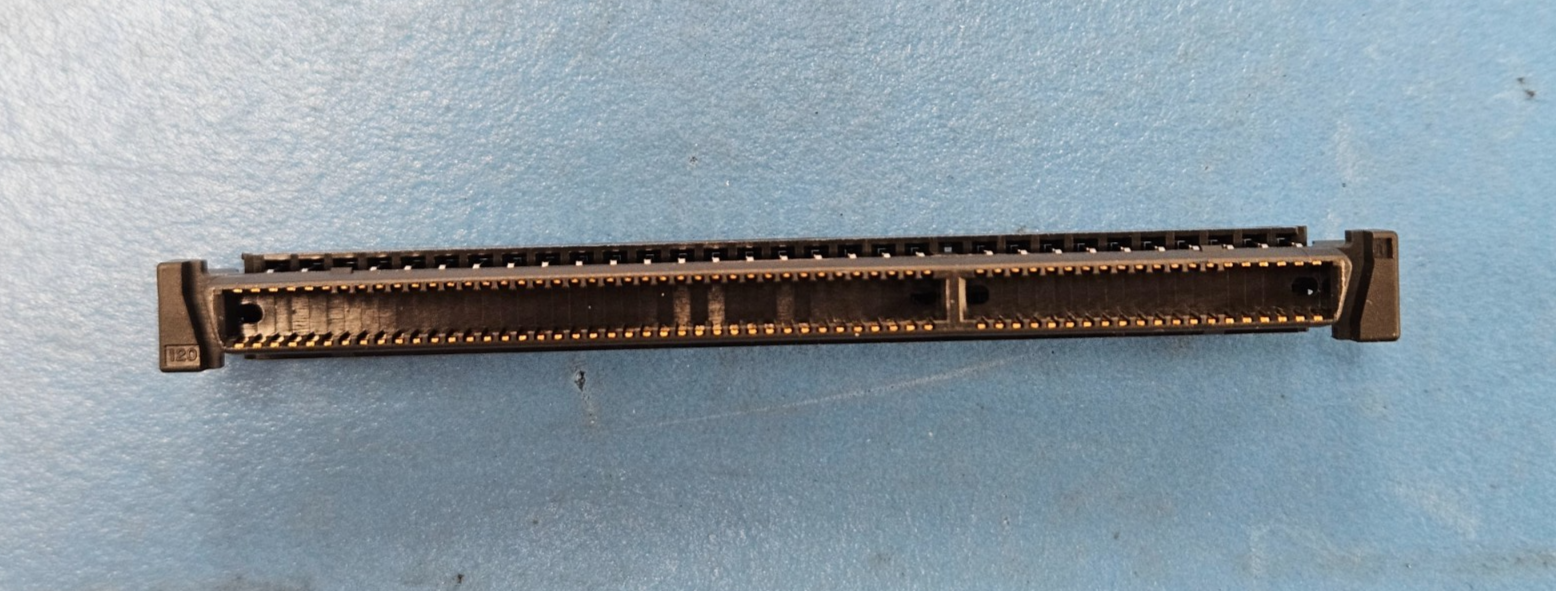

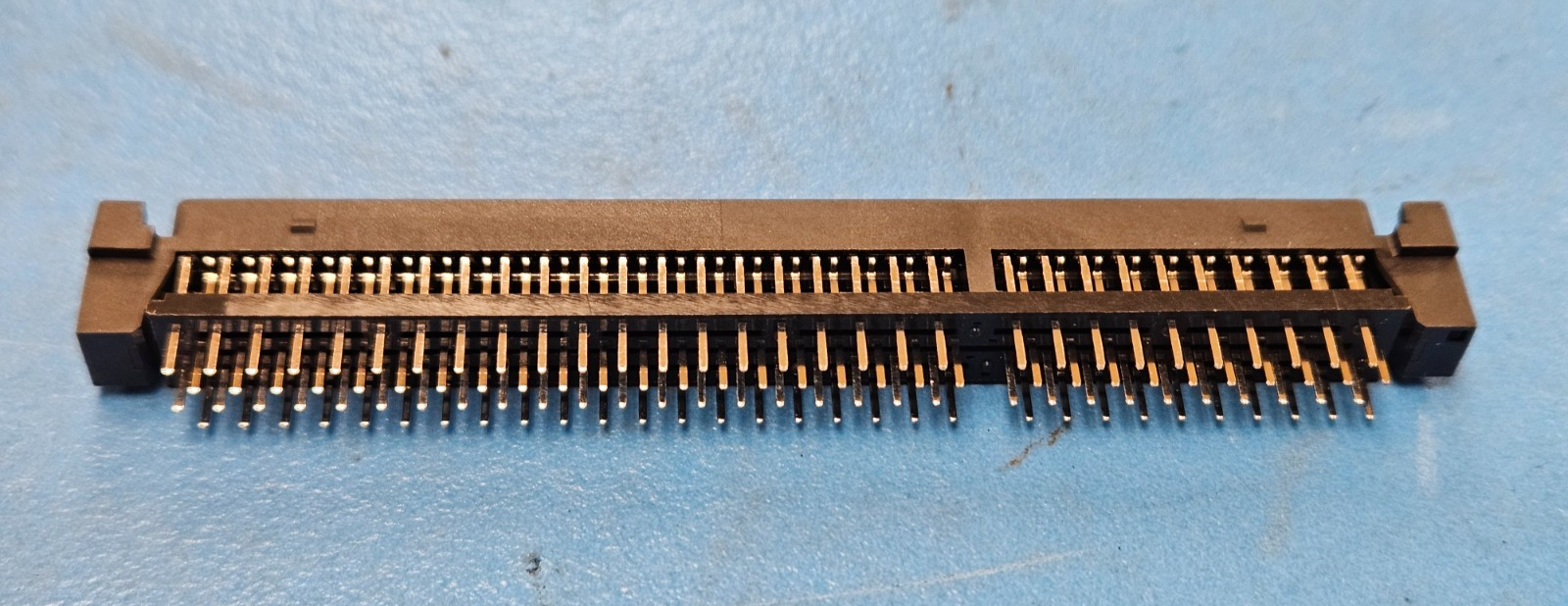

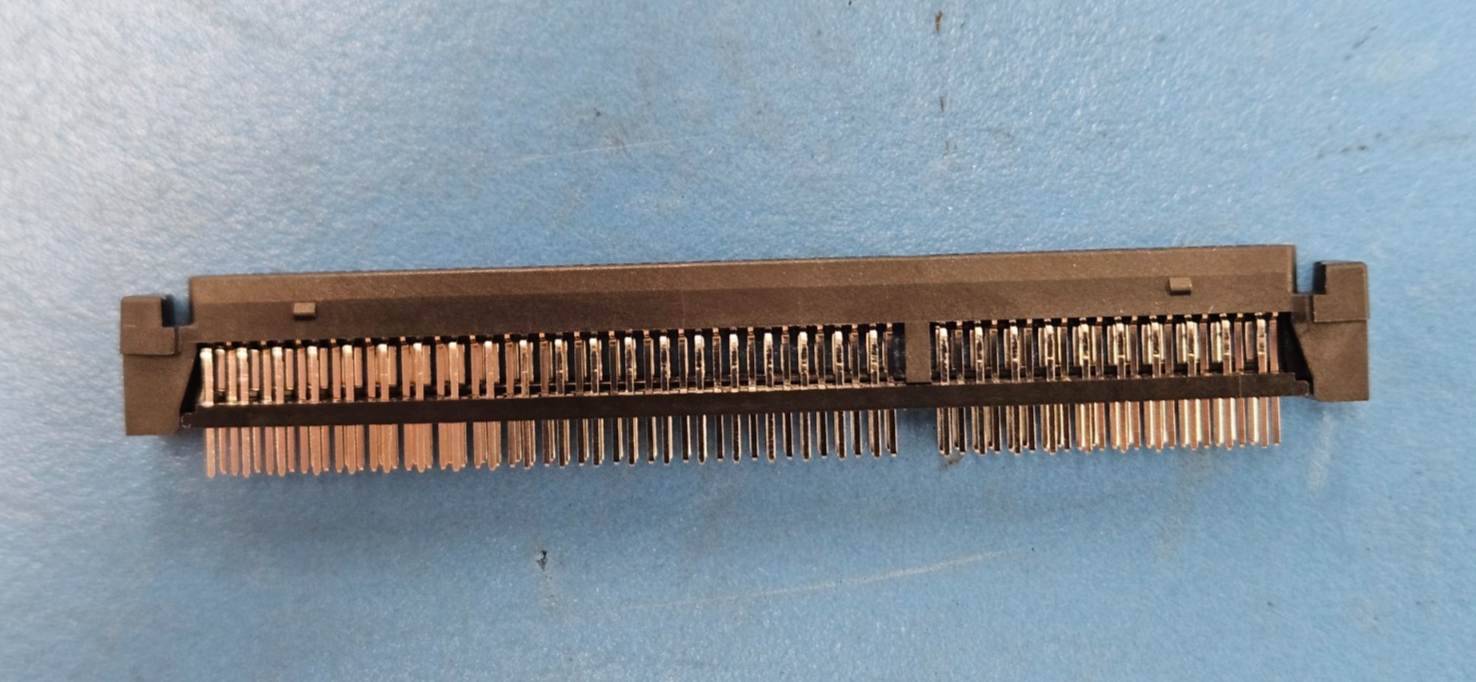

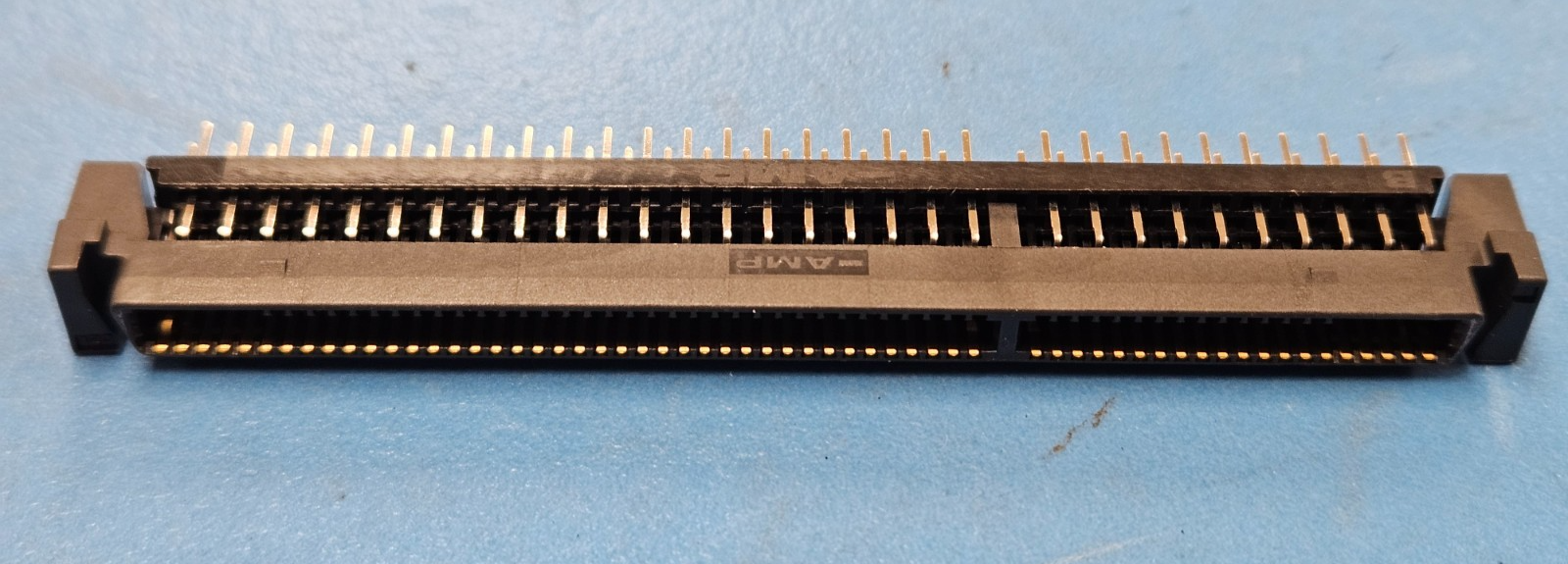

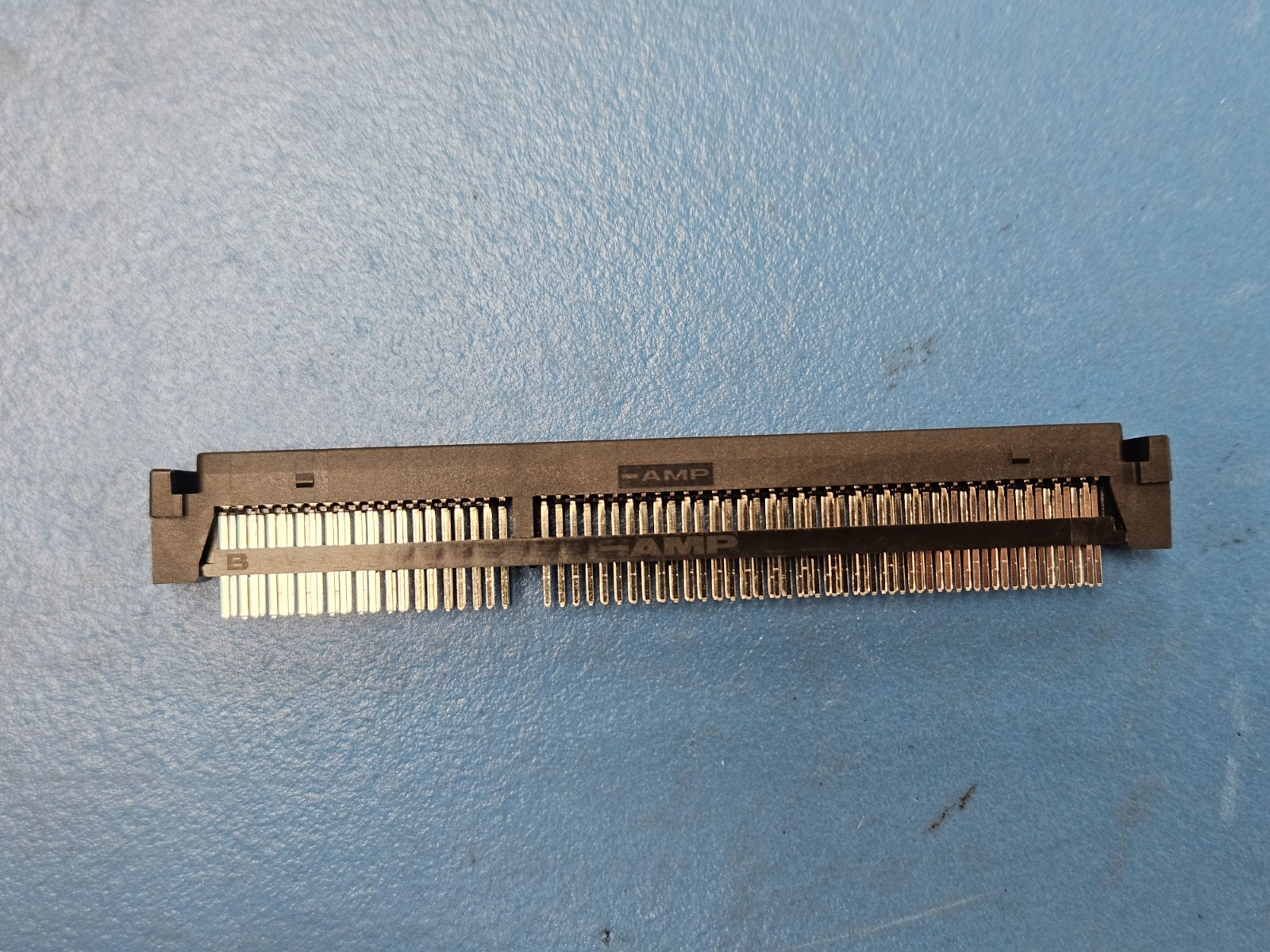

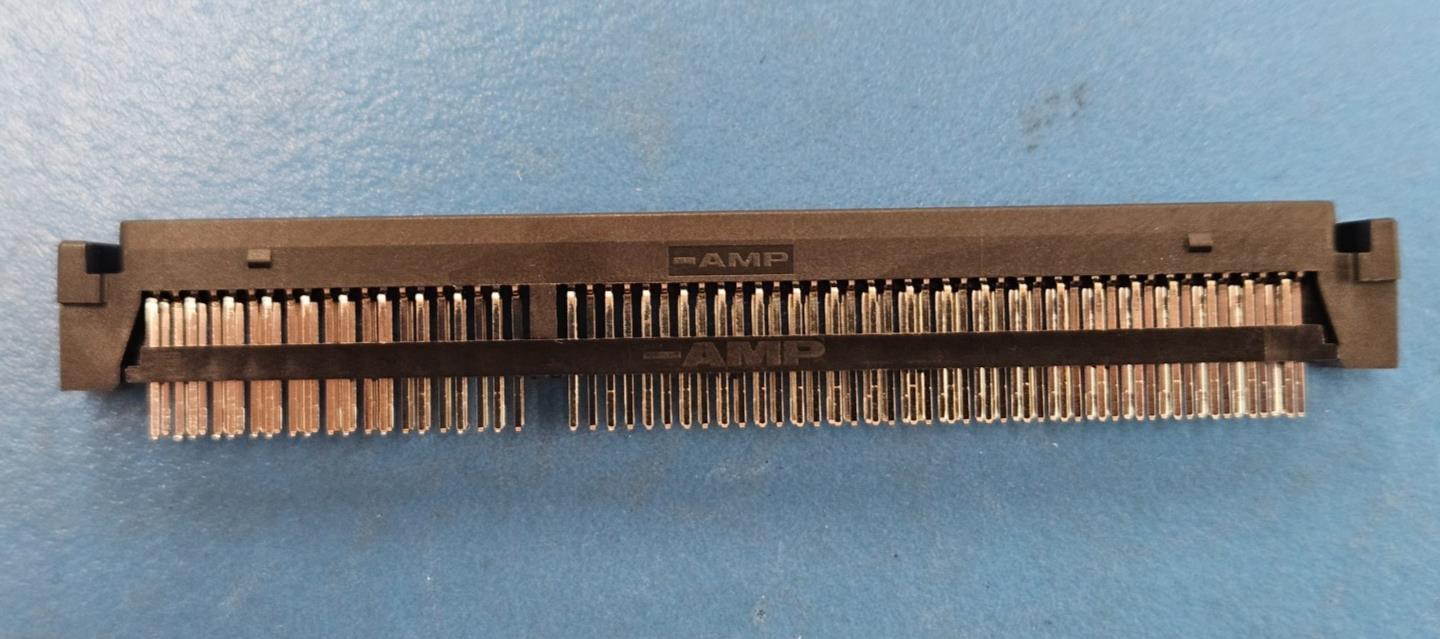

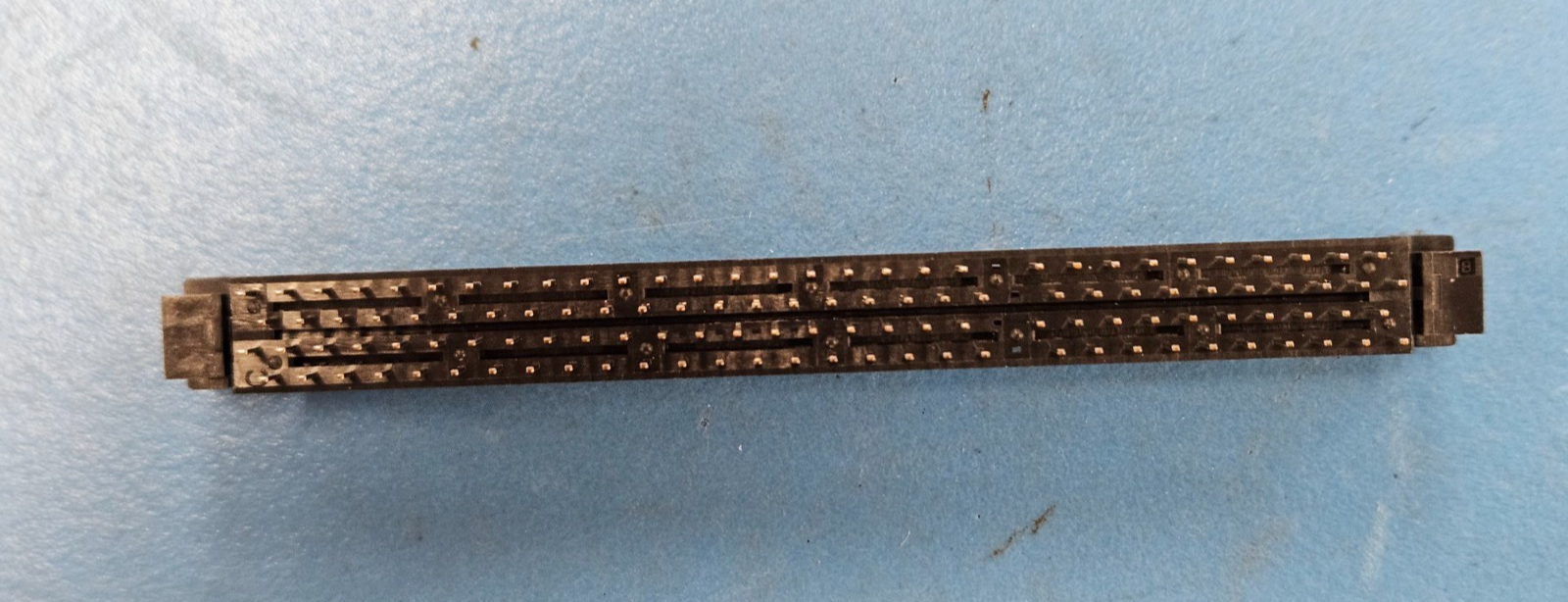

(1PC) 176374-5 AMP Board Connector, 120 Contact, 2 Row, Female, Straight
Tax included.
This listing is for (1PC) of 176374-5 by AMP
Status Discontinued
Board Mounting Option LOCATING POSTS
Body Depth (inch) 0.492000
Body Length (inch) 3.547000
Body/Shell Style PLUG
Connector Type BOARD CONNECTOR
Contact Finish - Mating AU
Contact Gender FEMALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Resistance (mohm) 35.000000000000000
Contact Style BELLOWED TYPE
Dielectric Withstanding Voltage (V) 250VAC
Durability (Cycles) 2000
Filter Feature NO
Insulation Resistance (ohm) 1000000000.000000000000000
Insulator Color BLACK
Insulator Material GLASS FILLED POLYAMIDE
Mating Contact Pitch (inch) 0.05
Mixed Contacts NO
Mounting Style STRAIGHT
Mounting Type BOARD
Number of Connectors ONE
Number of PCB Rows 4
Number of Rows Loaded 2
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -55
PCB Contact Pattern STAGGERED
PCB Contact Row Spacing (mm) 1.905
Plating Thickness (inch) 12u
Polarization Key D-SHAPE
Rated Current (Signal) (A) 1.0000000000000000
Screening Level / Reference Standard UL
Terminal Length (inch) 0.122000
Terminal Pitch (mm) 2.54
Termination Type SOLDER
Number of Contacts 120
