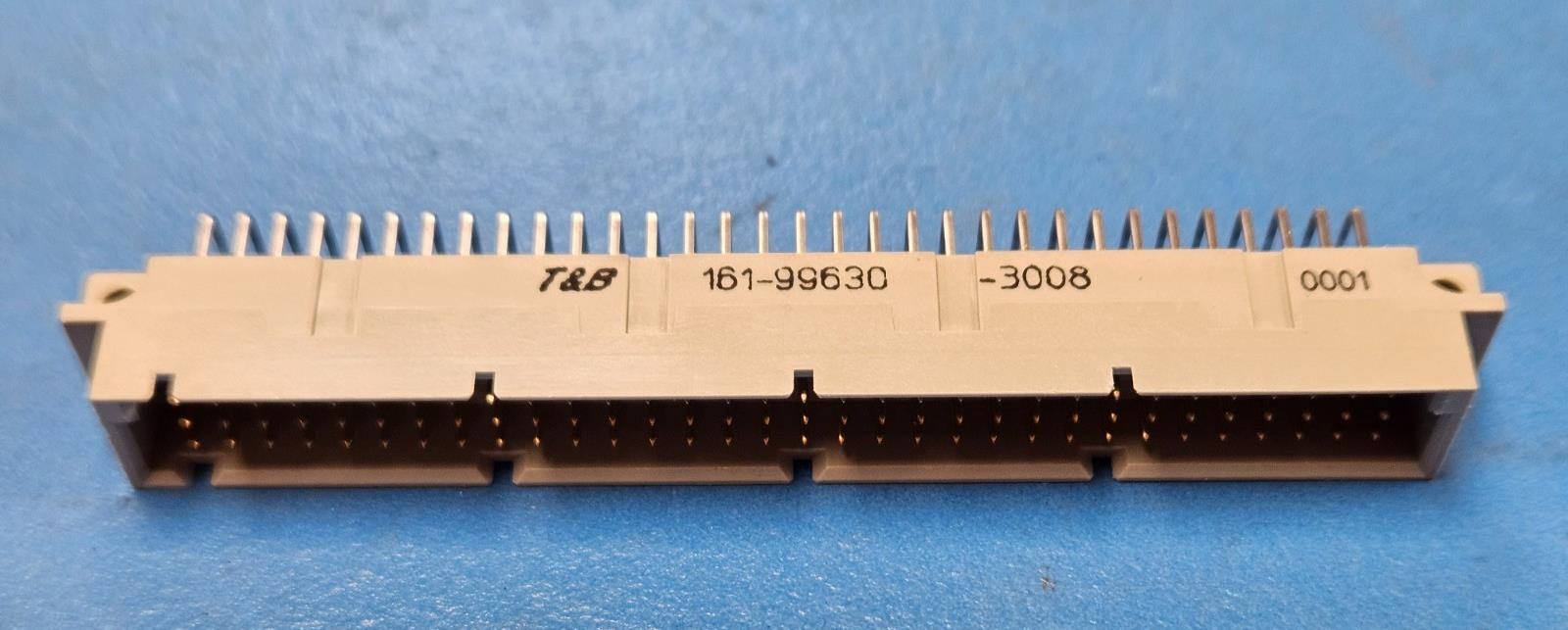

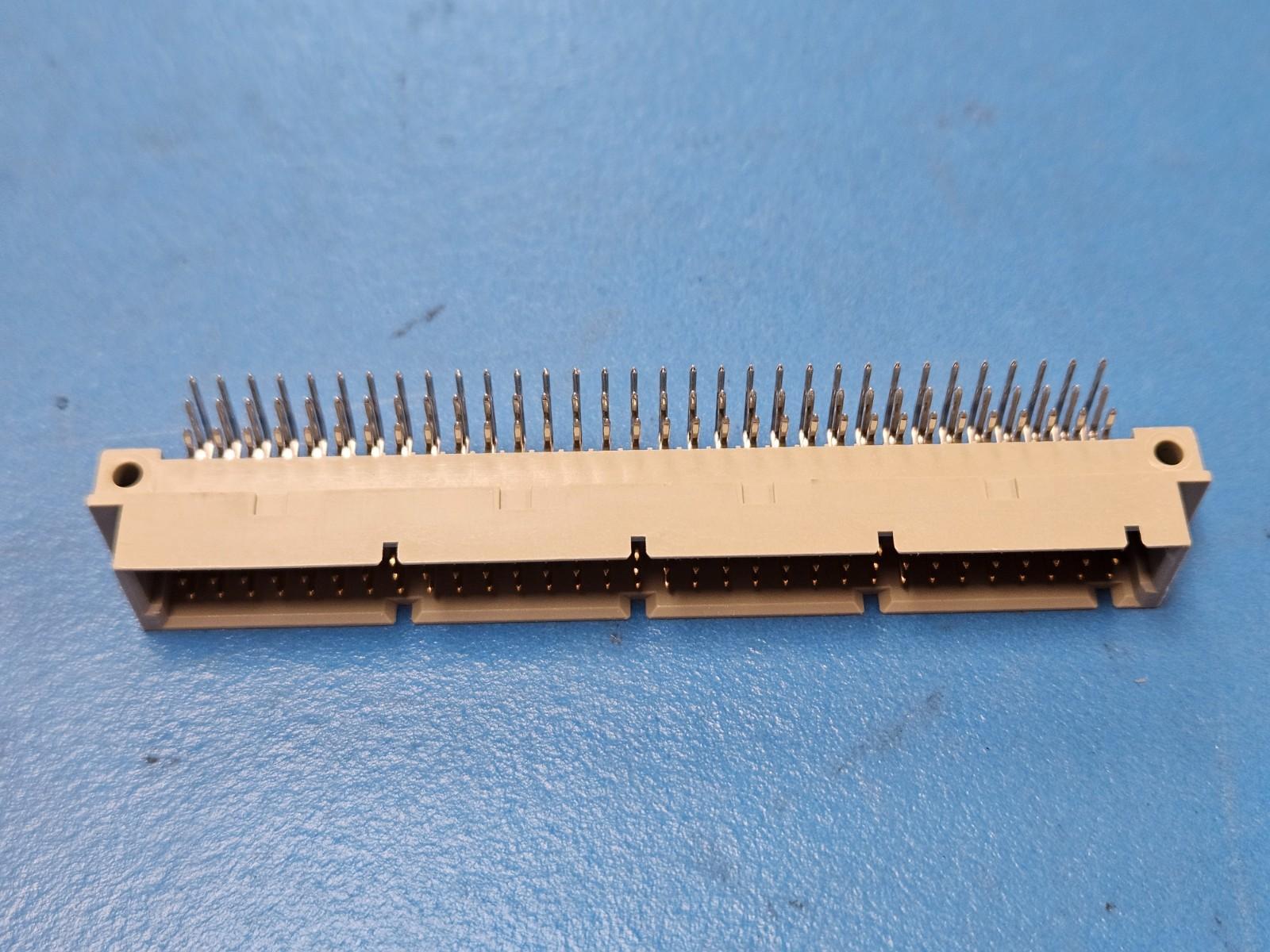

(1PC) 161-99630-3008 Board Euro Connector, 96 Contact, 3 Row, Male, RA
Tax included.
This listing is for (1PC) of 161-99630-3008 by Thomas & Betts
Status Discontinued
Additional Feature STANDARD: DIN 41612
Body Breadth (inch) 0.437000
Body Depth (inch) 0.709000
Body Length (inch) 3.701000
Body/Shell Style RECEPTACLE
Connector Type BOARD EURO CONNECTOR
Contact Finish - Mating AU ON NI
Contact Finish - Termination TIN LEAD OVER NICKEL
Contact Gender MALE
Contact Material COPPER ALLOY
Contact Style SQ PIN-SKT
DIN Conformance YES
Dielectric Withstanding Voltage (V) 500VDC
Durability (Cycles) 400
Filter Feature NO
IEC Conformance NO
Insulation Resistance (ohm) 1000000000.000000000000000
Insulator Color GRAY
Insulator Material GLASS FILLED POLYETHYLENE
J-STD-609 Code e0
MIL Conformance NO
Mating Contact Pitch (inch) 0.1
Mating Contact Row Spacing (inch) 0.1
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Name of Rows Loaded A,B,C
Number of Connectors ONE
Number of PCB Rows 3
Number of Rows Loaded 3
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -55
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 2.54
Polarization Key POLARIZED HOUSING
Rated Current (Signal) (A) 2.0000000000000000
Screening Level / Reference Standard UL, CSA
Terminal Length (inch) 0.114000
Terminal Pitch (mm) 2.54
Termination Type SOLDER
Number of Contacts 96
UL Flammability Code 94V-0
