(1PC) 15KPA48A Diode TVS Single Uni-Dir 48V 15KW 2-Pin
Tax included.

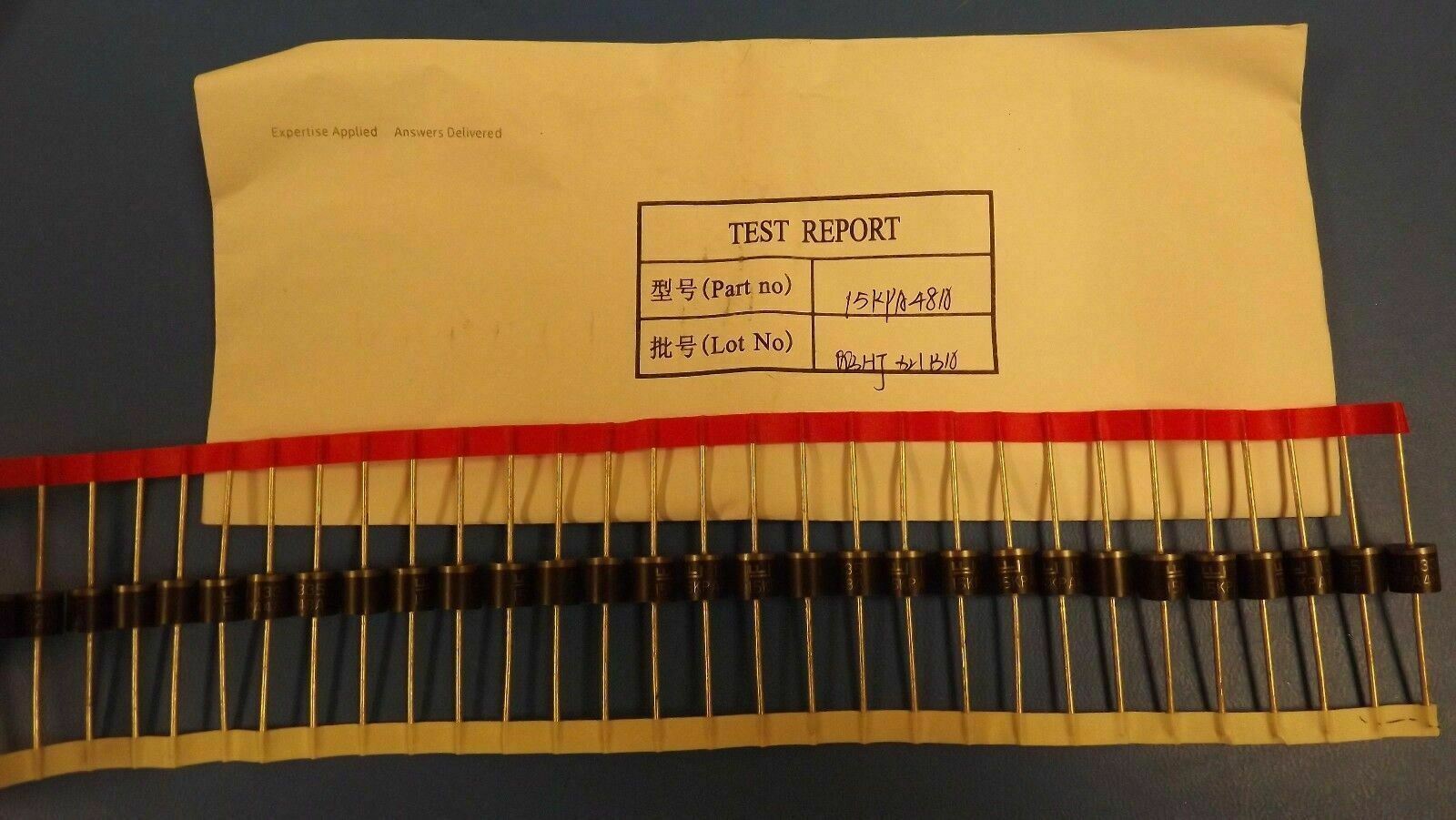

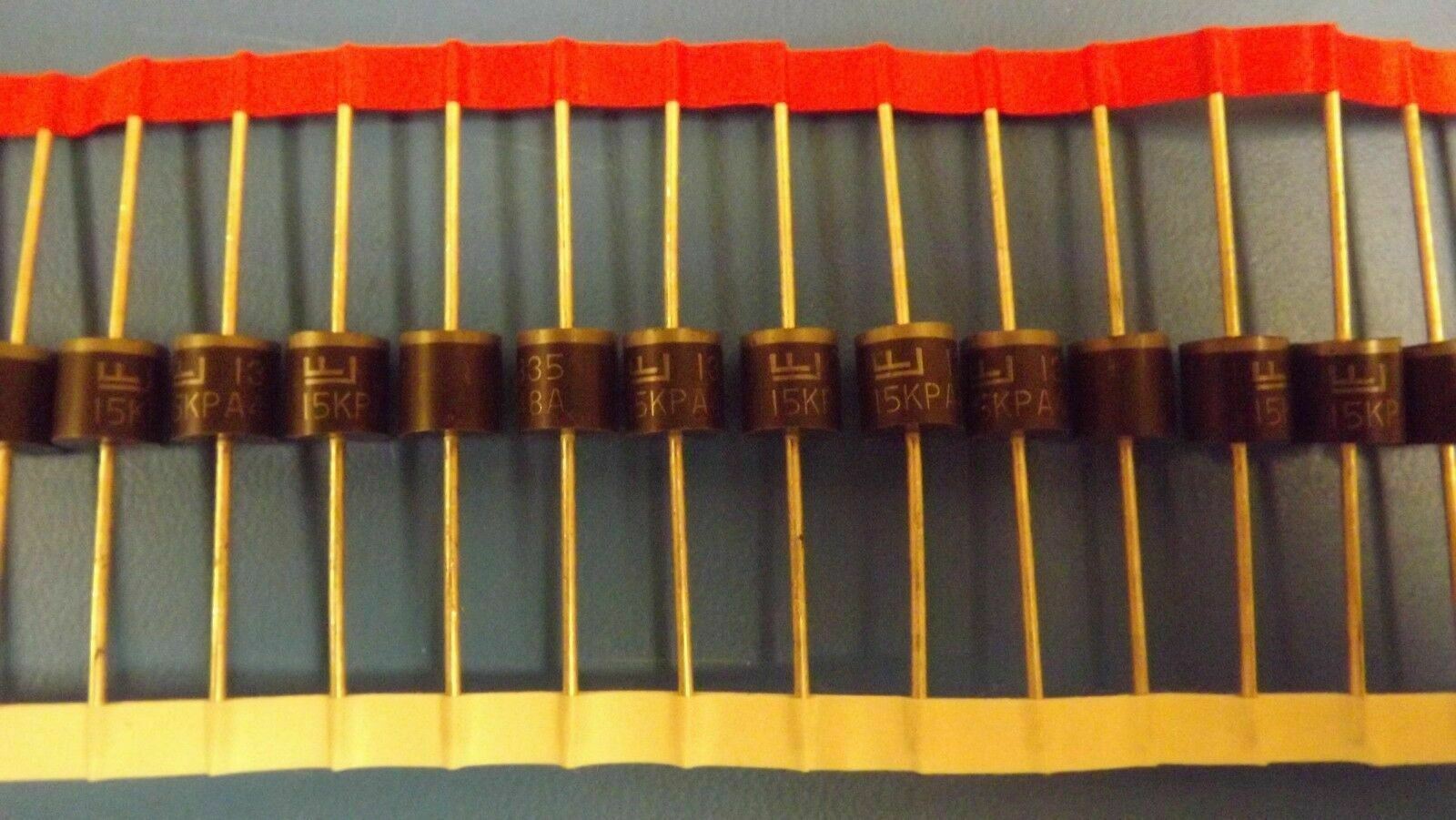

THIS LISTING IS FOR (1PC) OF 15KPA48A BY LITTELFUSE
**WE WILL GLADLY MAKE DEALS ON LARGER QUANTITIES. PLEASE SEND OFFERS OR INQUIRIES.**
SPECIFICATIONS
| Mfr Package Description | HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, P600, 2 PIN |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Active |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE |
| Breakdown Voltage-Min | 53.6 V |
| Breakdown Voltage-Max | 58.7 V |
| Case Connection | ISOLATED |
| Clamping Voltage-Max | 77.7 V |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| JESD-30 Code | O-PALF-W2 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | 2 |
| Non-rep Peak Rev Power Dis-Max | 15000 W |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Min | -55 Cel |
| Operating Temperature-Max | 175 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | ROUND |
| Package Style | LONG FORM |
| Peak Reflow Temperature (Cel) | 260 |
| Polarity | UNIDIRECTIONAL |
| Power Dissipation-Max | 8 W |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 48 V |
| Sub Category | Transient Suppressors |
| Surface Mount | NO |
| Technology | AVALANCHE |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | WIRE |
| Terminal Position | AXIAL |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY, UL RECOGNIZED |
