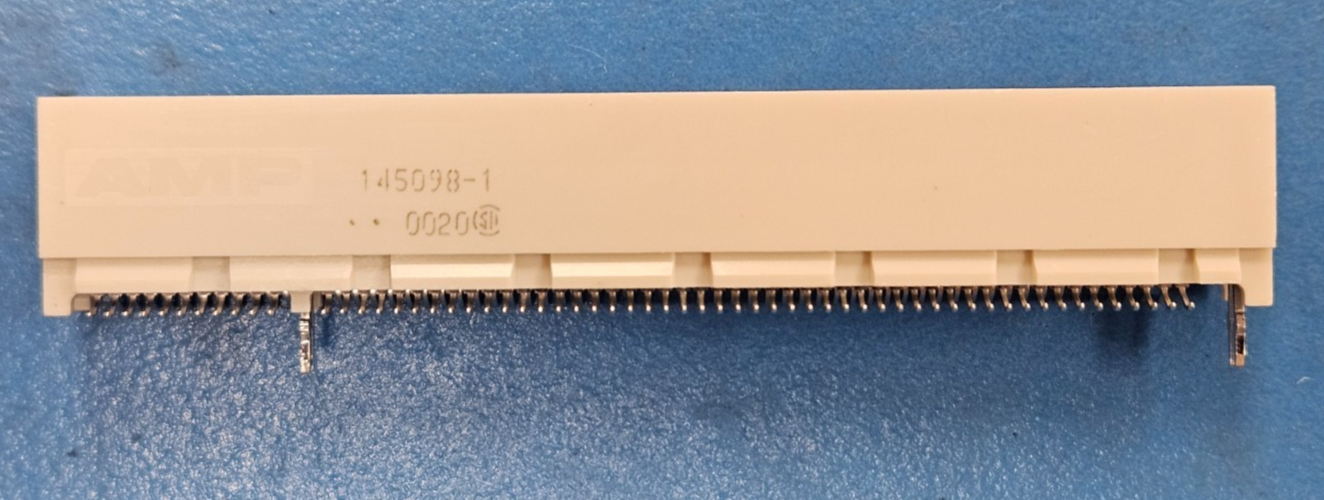

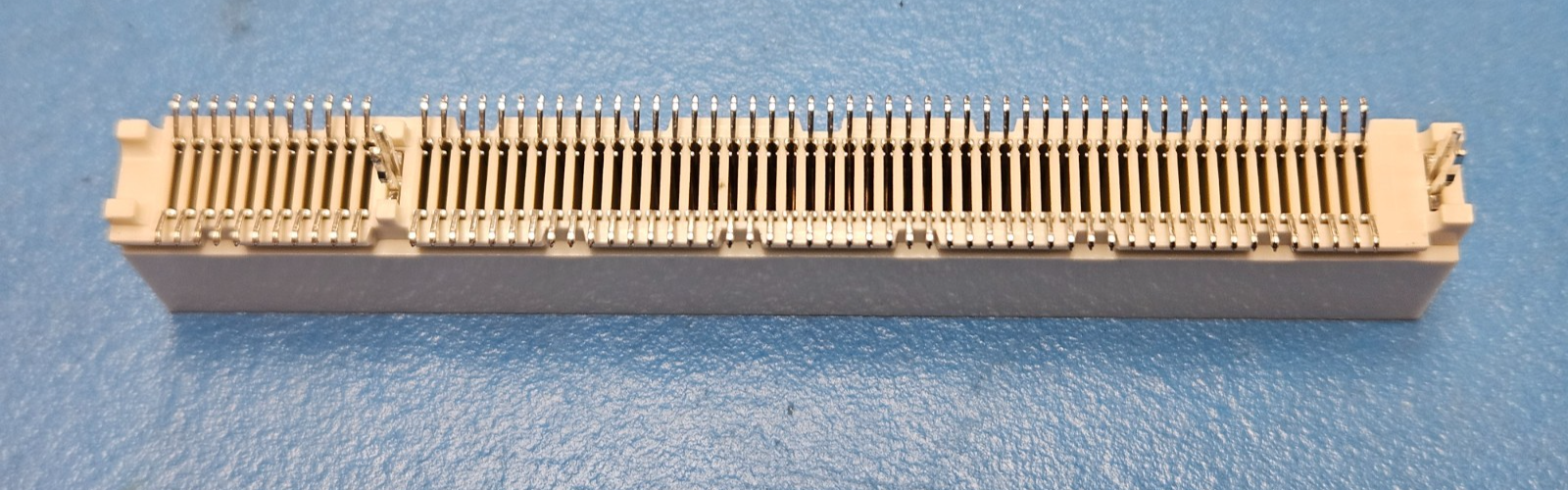

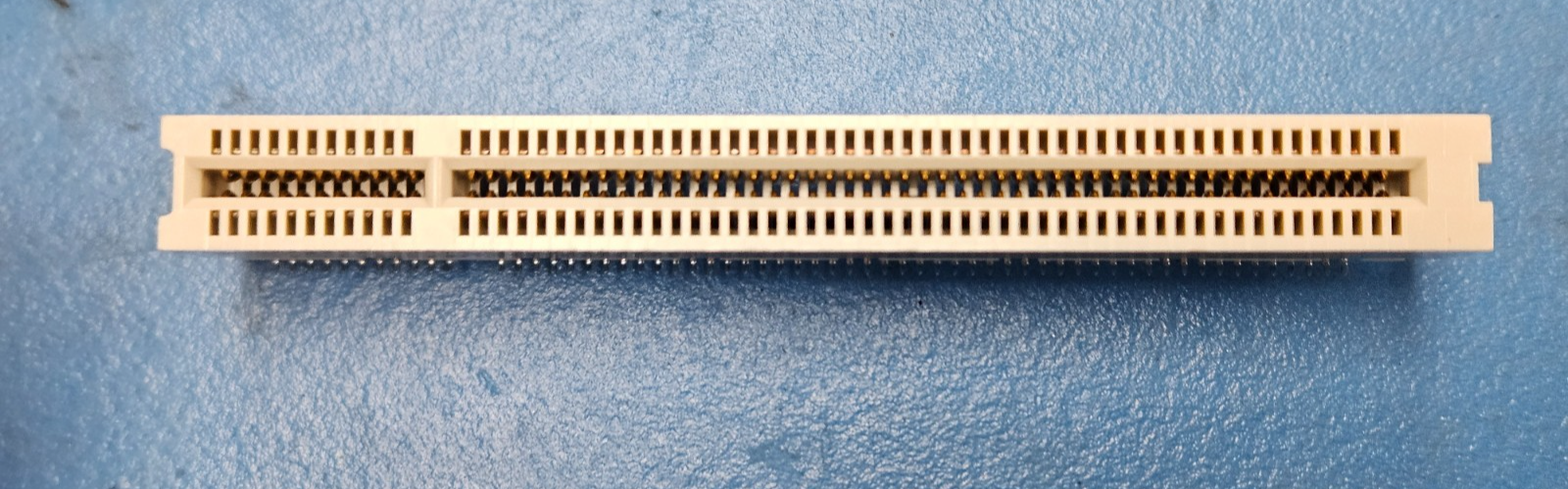

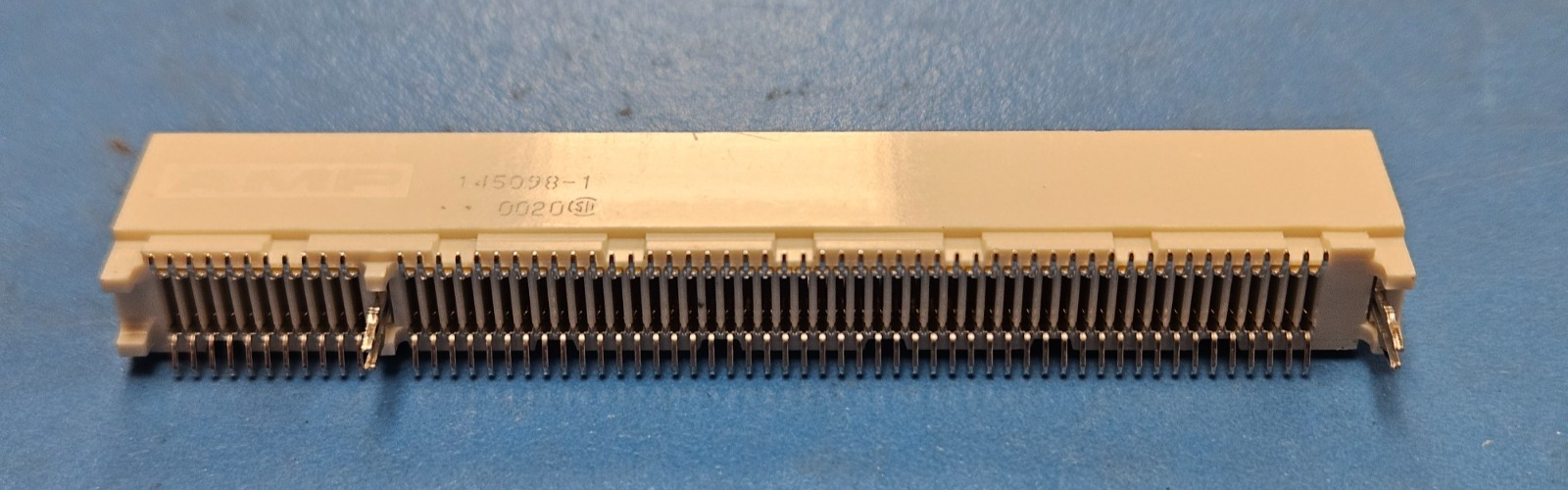

(1PC) 145098-1 AMP Card Edge Connector, 120 Contact, 2 Row, Female, Straight
Tax included.
This listing is for (1PC) of 145098-1 by AMP
Status Discontinued
Additional Feature AMP
Board Mounting Option SPLIT BOARD LOCK
Body Breadth (inch) 0.350000
Body Depth (inch) 0.610000
Body Length (inch) 3.440000
Body/Shell Style RECEPTACLE
Connector Type CARD EDGE CONNECTOR
Contact Finish - Mating NOT SPECIFIED
Contact Finish - Termination TIN LEAD OVER NICKEL
Contact Gender FEMALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Resistance (mohm) 30.000000000000000
Contact Style BELLOWED TYPE
DIN Conformance NO
Dielectric Withstanding Voltage (V) 500VAC
Durability (Cycles) 100
Filter Feature NO
IEC Conformance NO
Insertion Force-Max (N) 2.224
Insulation Resistance (ohm) 1000000000.000000000000000
Insulator Color WHITE
Insulator Material POLYETHYLENE
J-STD-609 Code e0
MIL Conformance NO
Mating Contact Pitch (inch) 0.05
Mixed Contacts NO
Mounting Style STRAIGHT
Mounting Type BOARD
Number of Connectors ONE
Number of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -55
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 8.636
Plating Thickness (inch) 30u
Rated Current (Signal) (A) 1.0000000000000000
Terminal Pitch (mm) 1.27
Termination Type SURFACE MOUNT
Number of Contacts 120
Withdrawl Force-Min (N) .139
