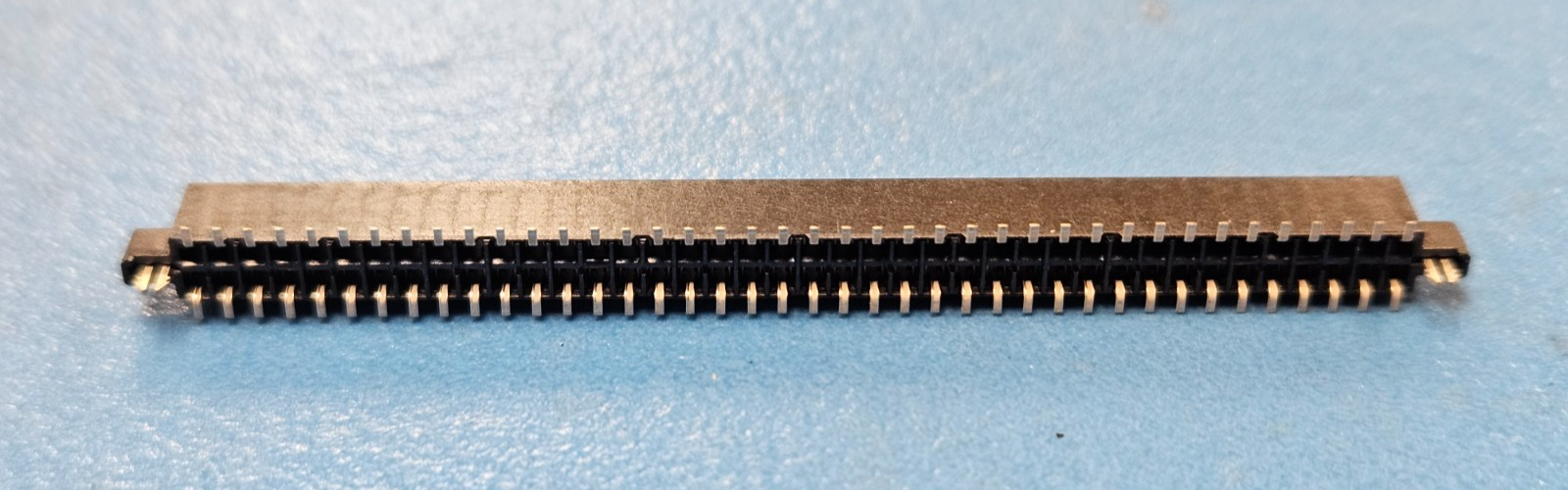

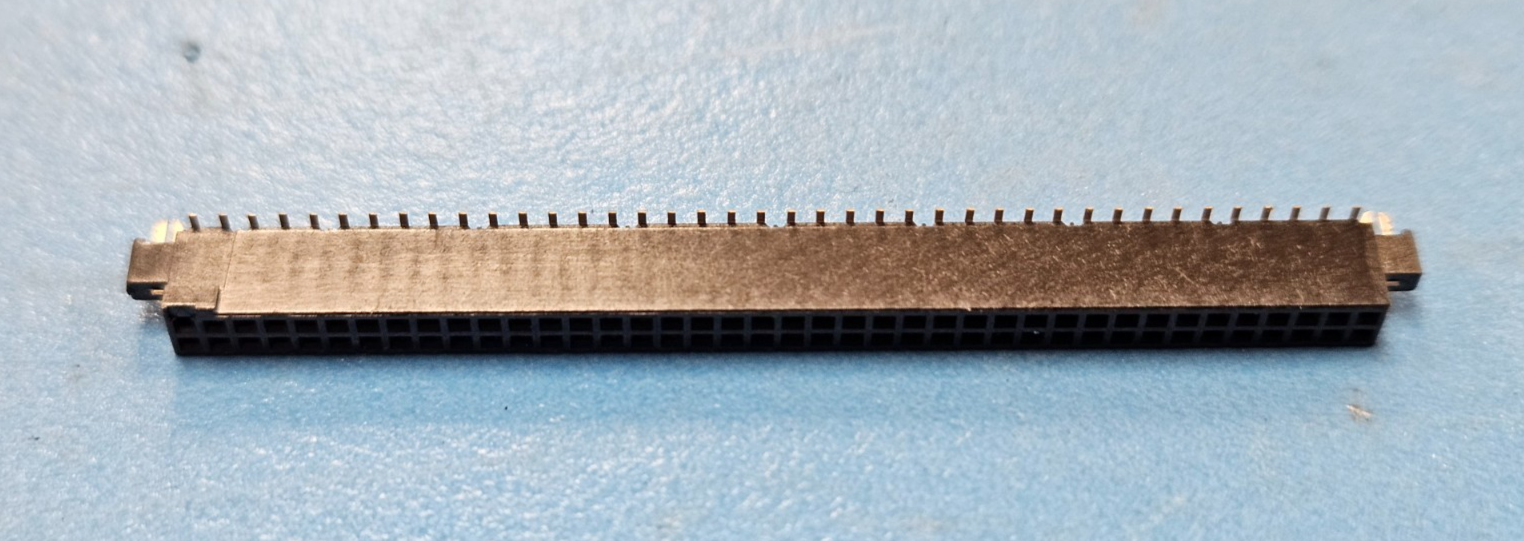

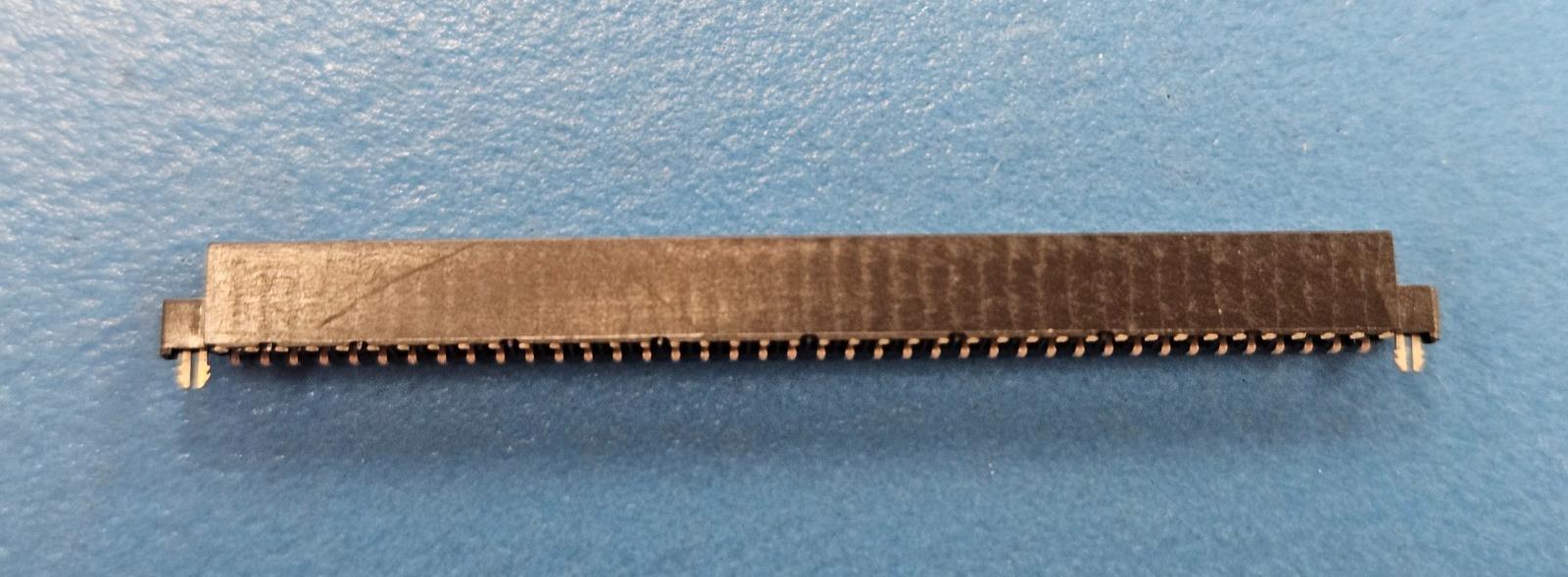

(1PC) 104652-8 Connector Socket Strip RCP 80 POS
Tax included.
This listing is for (1PC) of 104652-8 by Tyco
Status Unknown
Additional Feature AMPMODU
Board Mounting Option SPLIT BOARD LOCK
Body Breadth (inch) 0.120000
Body Depth (inch) 0.187000
Body Length (inch) 2.176000
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish - Mating NOT APPLICABLE
Contact Gender FEMALE
Contact Material NOT APPLICABLE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
Durability (Cycles) 200
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insertion Force-Max (N) 1.7792
Insulation Resistance (ohm) 5000000000.000000000000000
Insulator Color BLACK
Insulator Material GLASS FILLED LIQUID CRYSTAL POLYMER
MIL Conformance NO
Mains Connector Rating .5A
Mating Contact Pitch (inch) 0.05
Mating Contact Row Spacing (inch) 0.05
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number of Connectors ONE
Number of PCB Rows 2
Number of Ports 1
Number of Rows Loaded 2
Operating Temperature-Max (Cel) 105
Operating Temperature-Min (Cel) -65
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 3.302
Panel Mount NO
Plating Thickness (inch) 30u
Polarization Key POLARIZED
Rated Current (Signal) (A) 0.5000000000000000
Screening Level / Reference Standard CSA, LR, U
Terminal Pitch (mm) 1.27
Termination Type SURFACE MOUNT
Number of Contacts 80
UL Flammability Code 94V-0
Withdrawl Force-Min (N) .278
