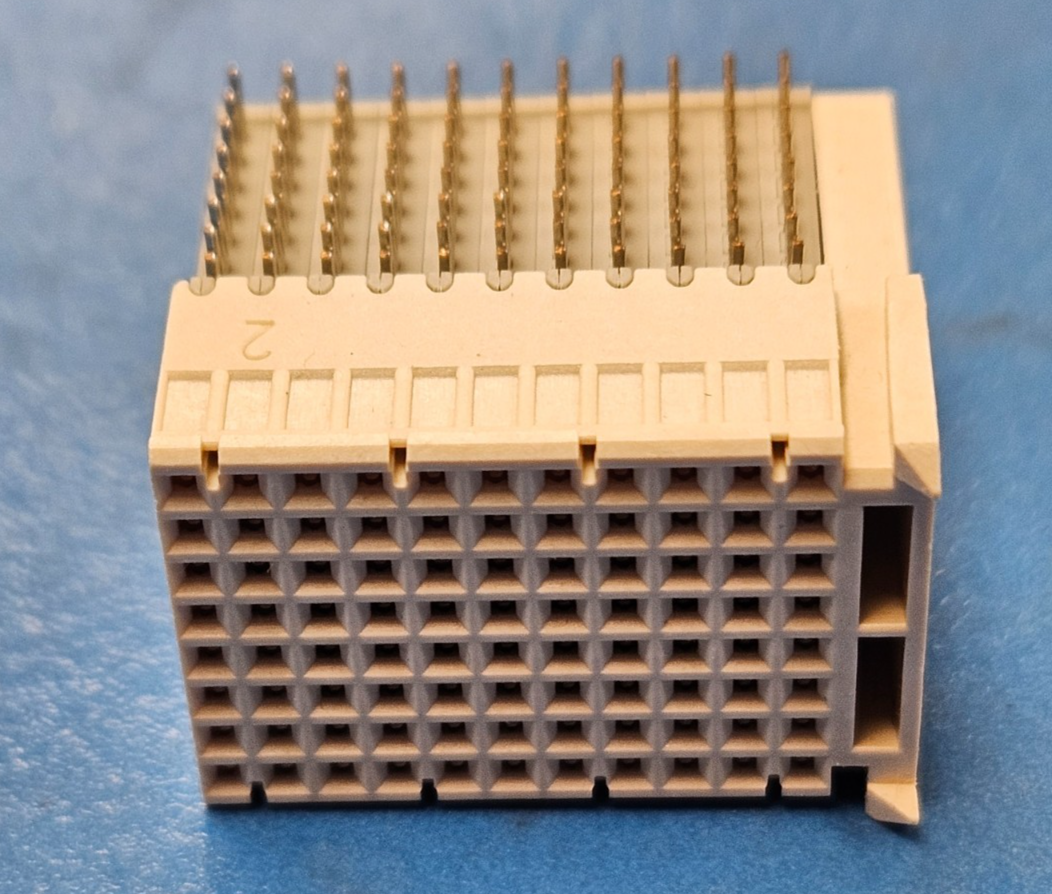

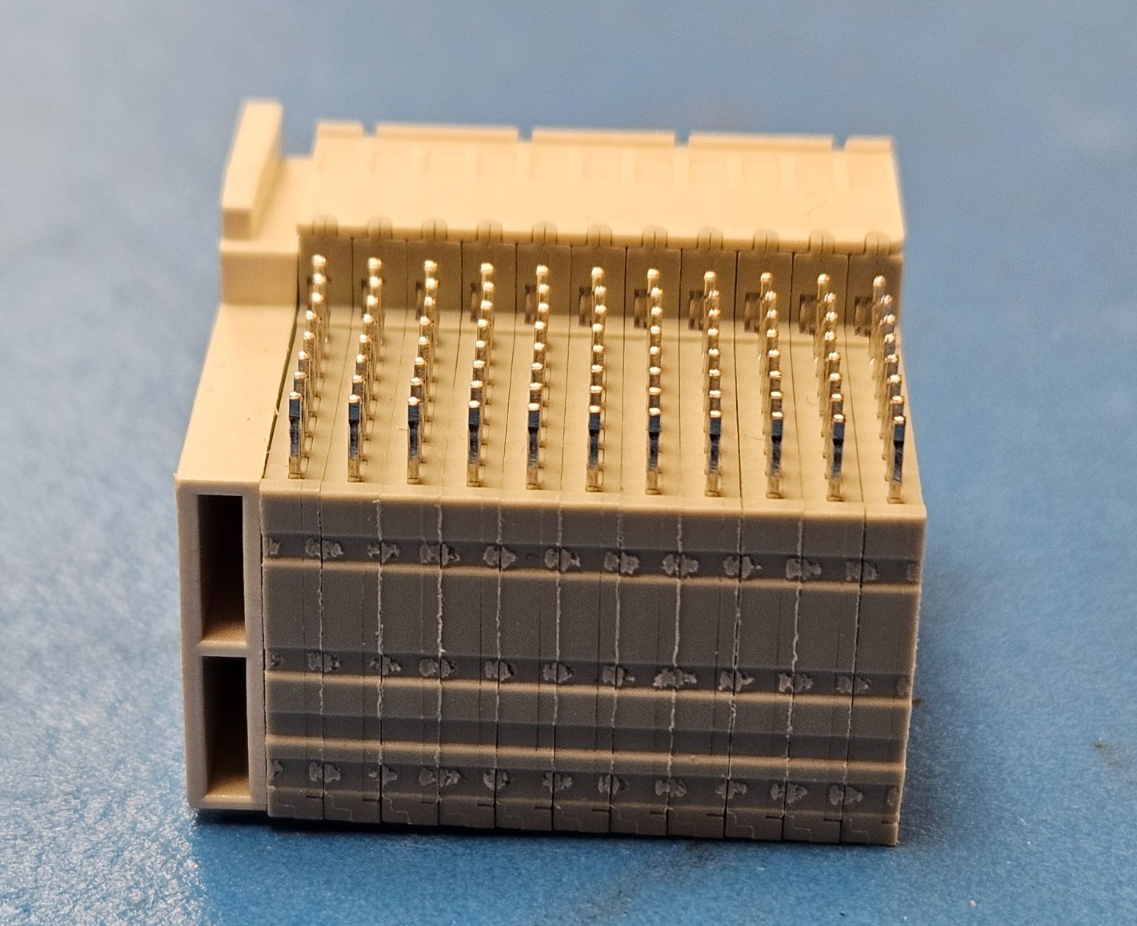

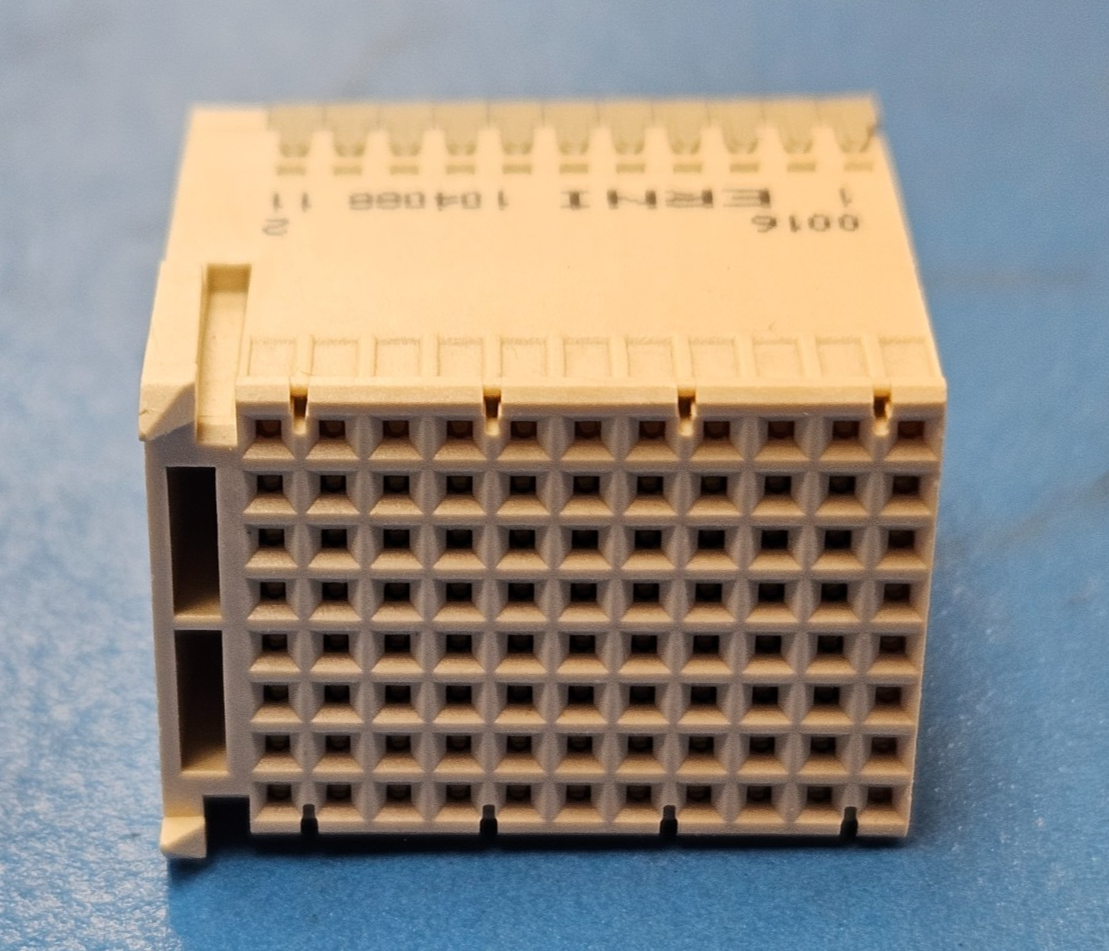

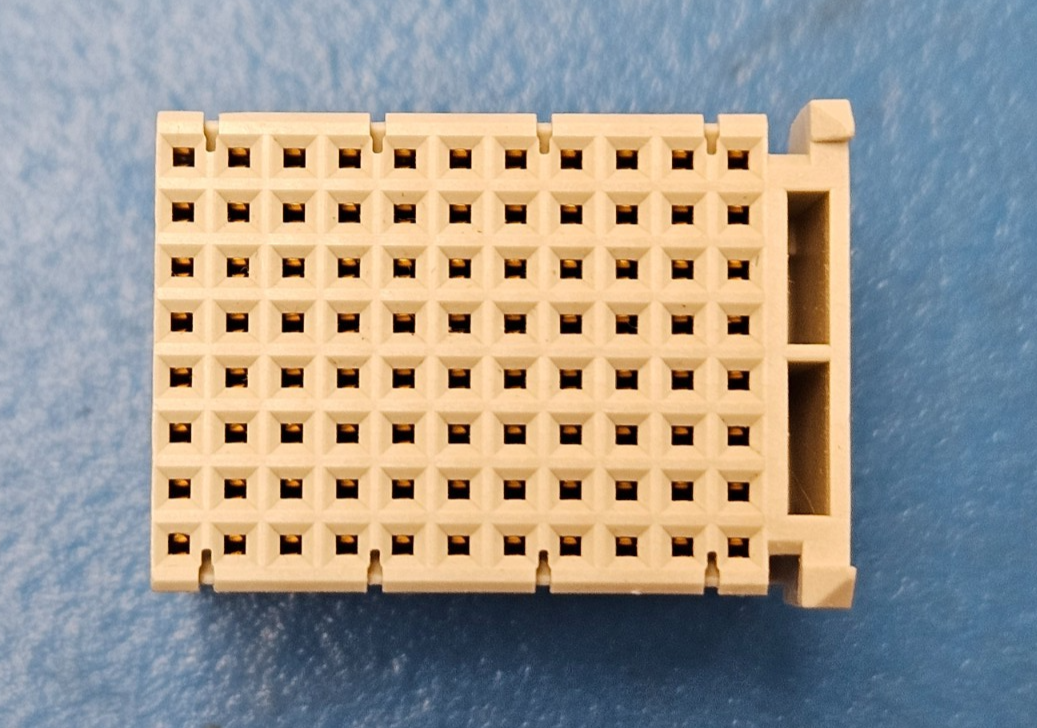

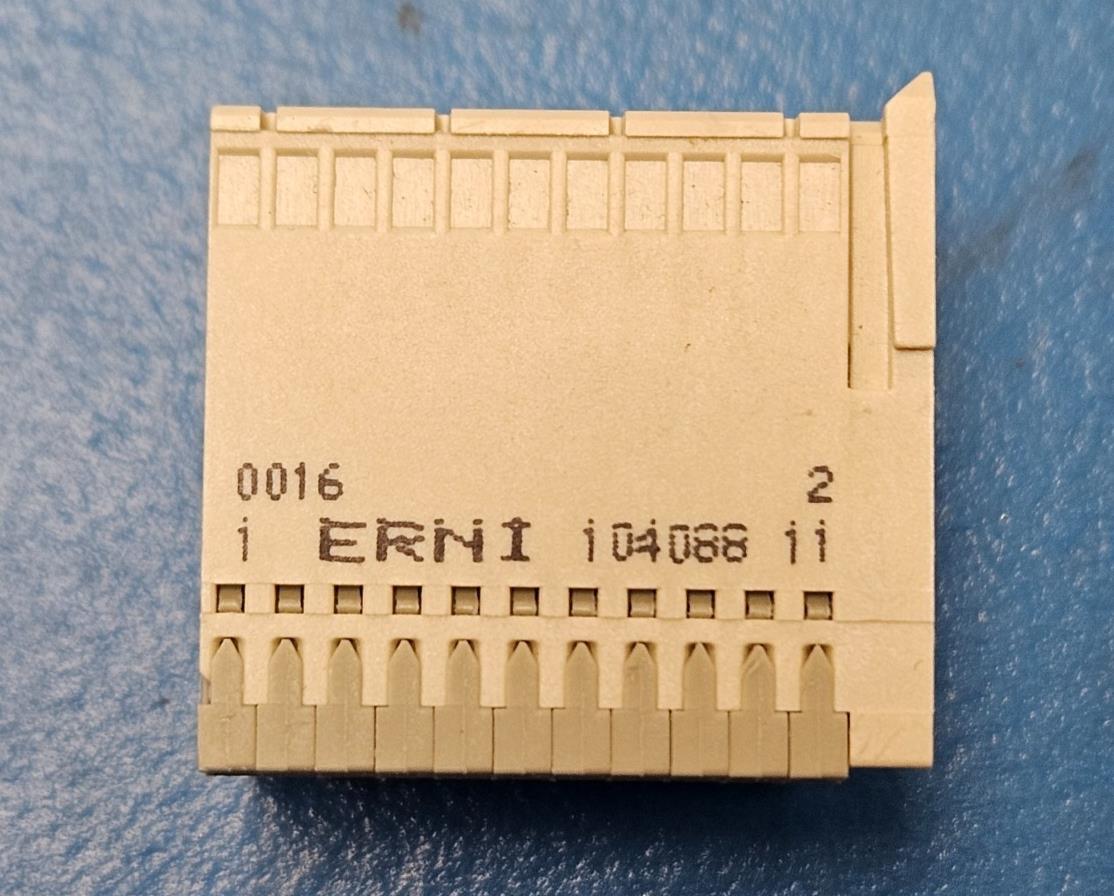

(1PC) 104088 ERNI Board Connector, 88 Contact, 8 Row, Female, RA
Tax included.

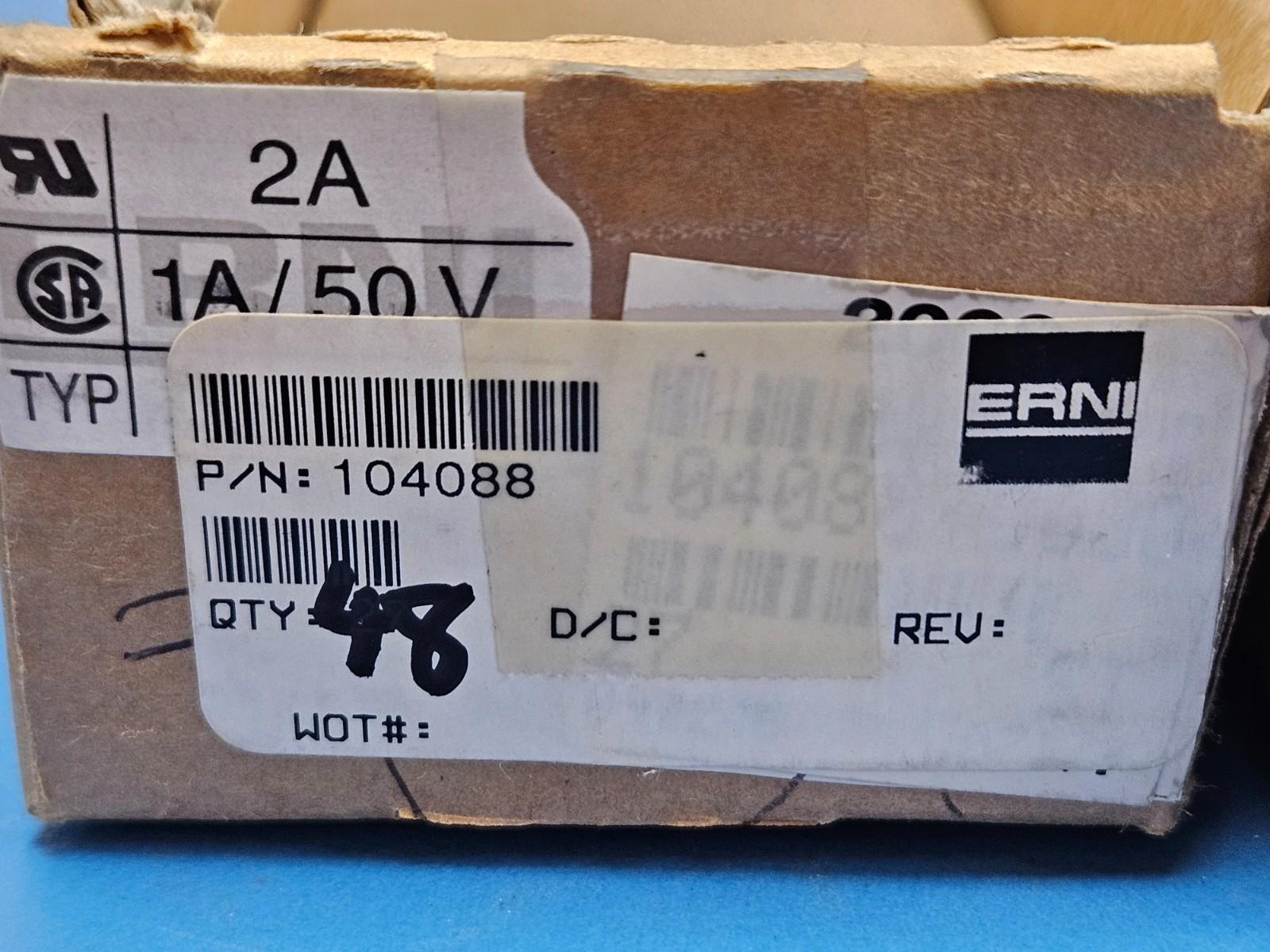

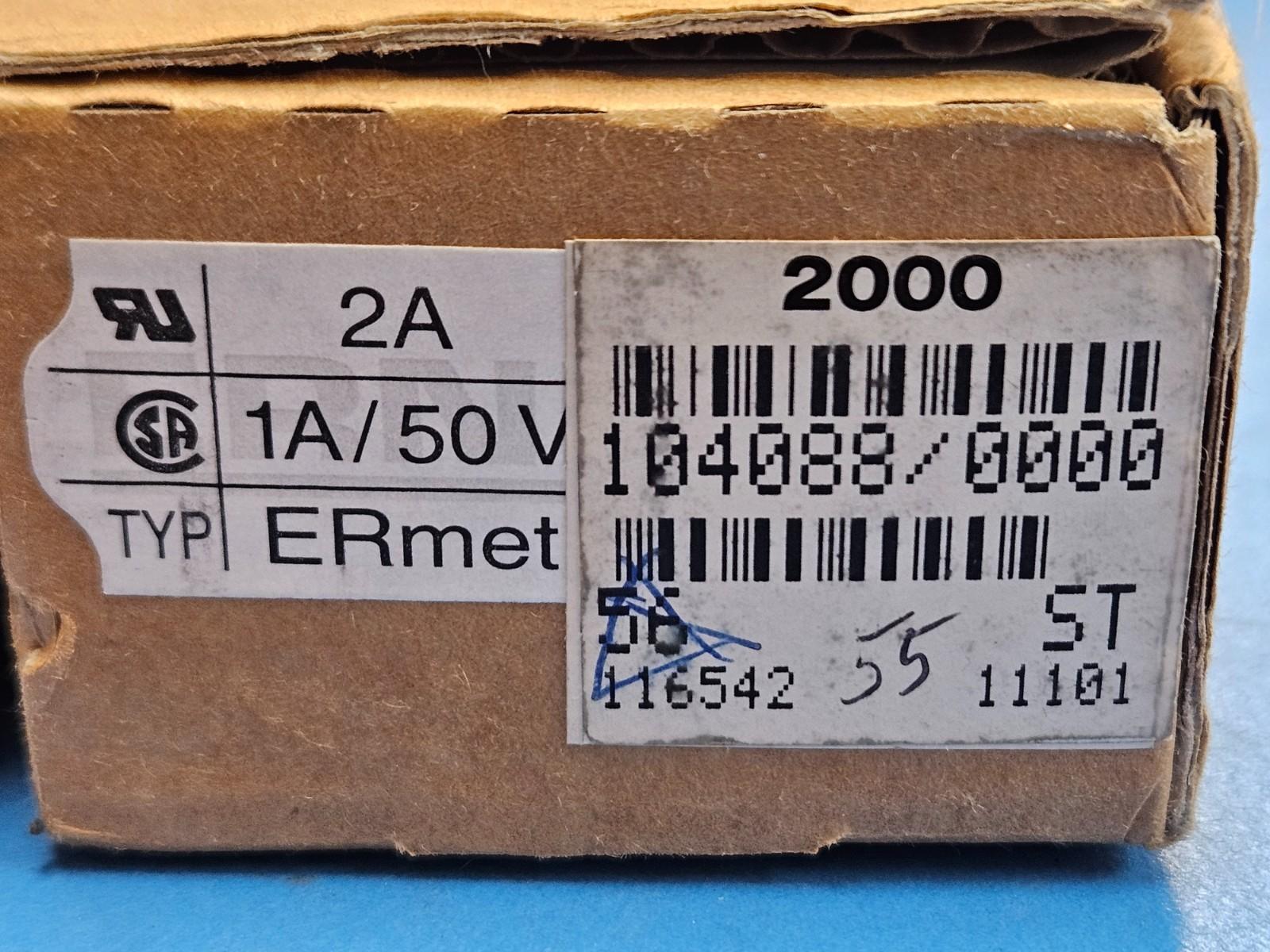

This listing is for (1PC) of 104088 by ERNI
Status Discontinued
Additional Feature ERMET, STANDARD: IEC 61076-4-101, HIGH DENSITY
Board Mounting Option PEG
Body Breadth (inch) 0.719000
Body Depth (inch) 0.904000
Body Length (inch) 0.984000
Body/Shell Style PLUG
Connector Type BOARD CONNECTOR
Contact Finish - Mating NOT SPECIFIED
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance (mohm) 20.000000000000000
Contact Style SQ PIN-SKT
DIN Conformance NO
Durability (Cycles) 250
Filter Feature NO
IEC Conformance NO
Insertion Force-Max (N) .7506
Insulation Resistance (ohm) 10000000000.000000000000000
MIL Conformance NO
Mating Contact Pitch (inch) 0.079
Mating Contact Row Spacing (inch) 0.079
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 GUIDE PIN
Mounting Option 2 LOCKING
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number of Connectors ONE
Number of PCB Rows 8
Number of Rows Loaded 8
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -55
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 1.4986
Screening Level / Reference Standard UL
Terminal Length (inch) 0.118000
Terminal Pitch (mm) 2
Termination Type PRESS FIT
Number of Contacts 88
UL Flammability Code 94V-0
Withdrawl Force-Min (N) .139
