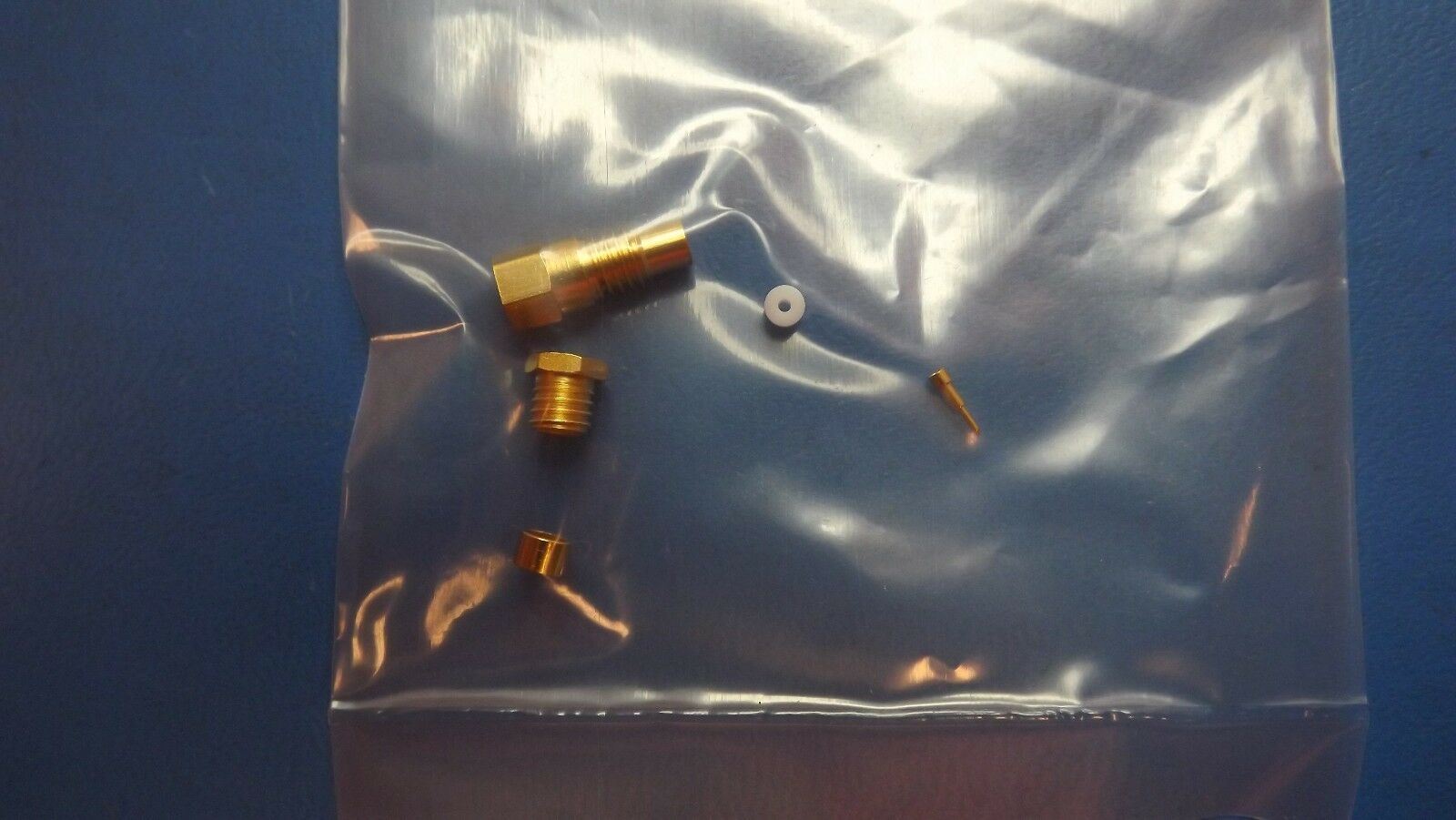

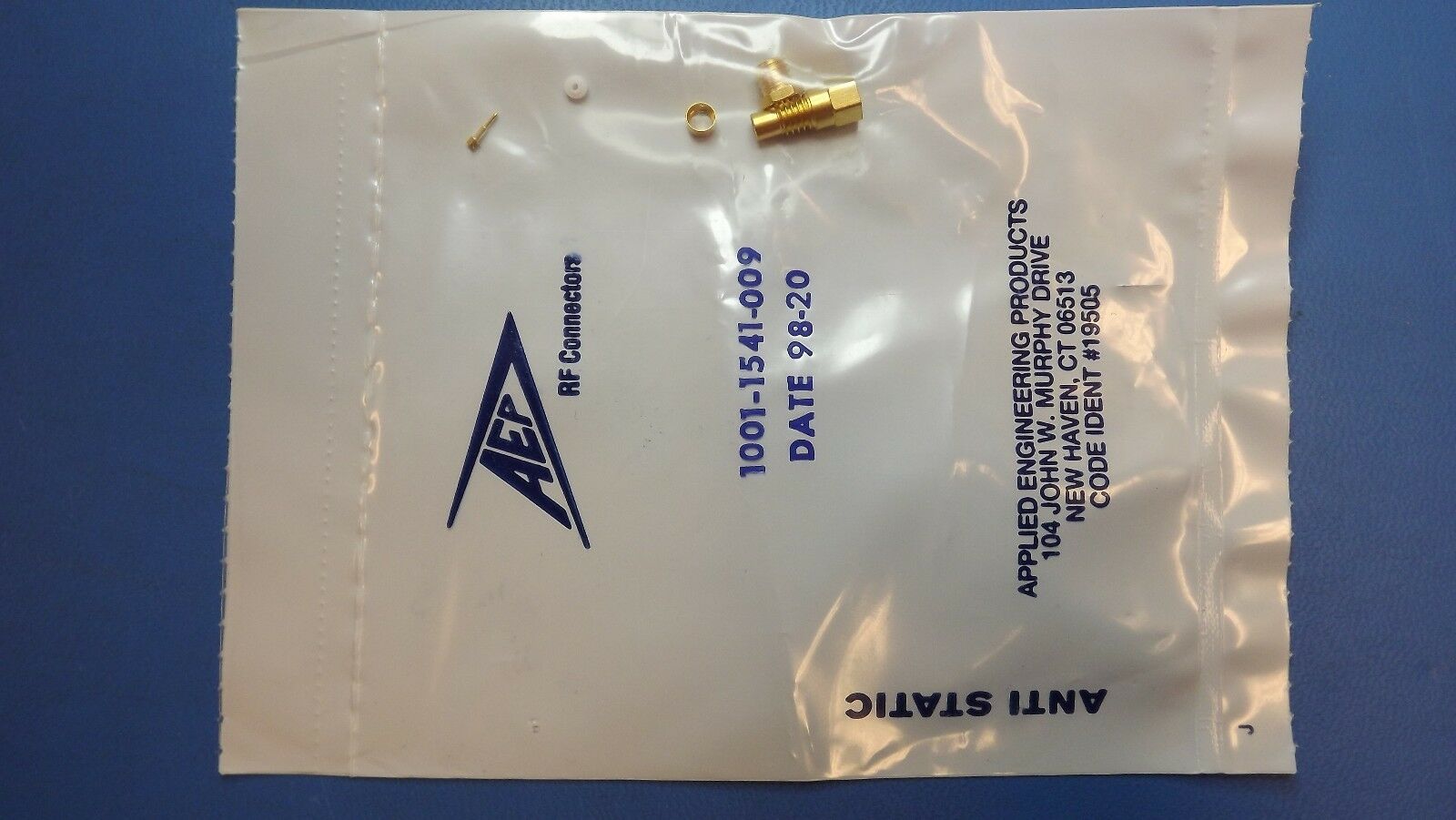

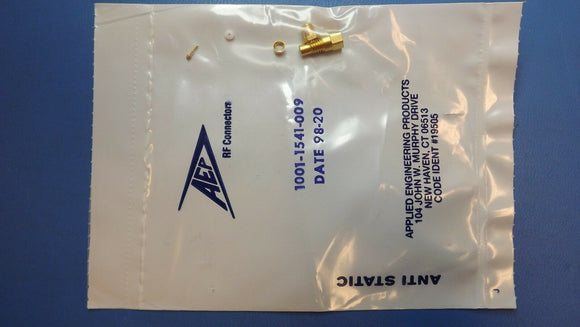

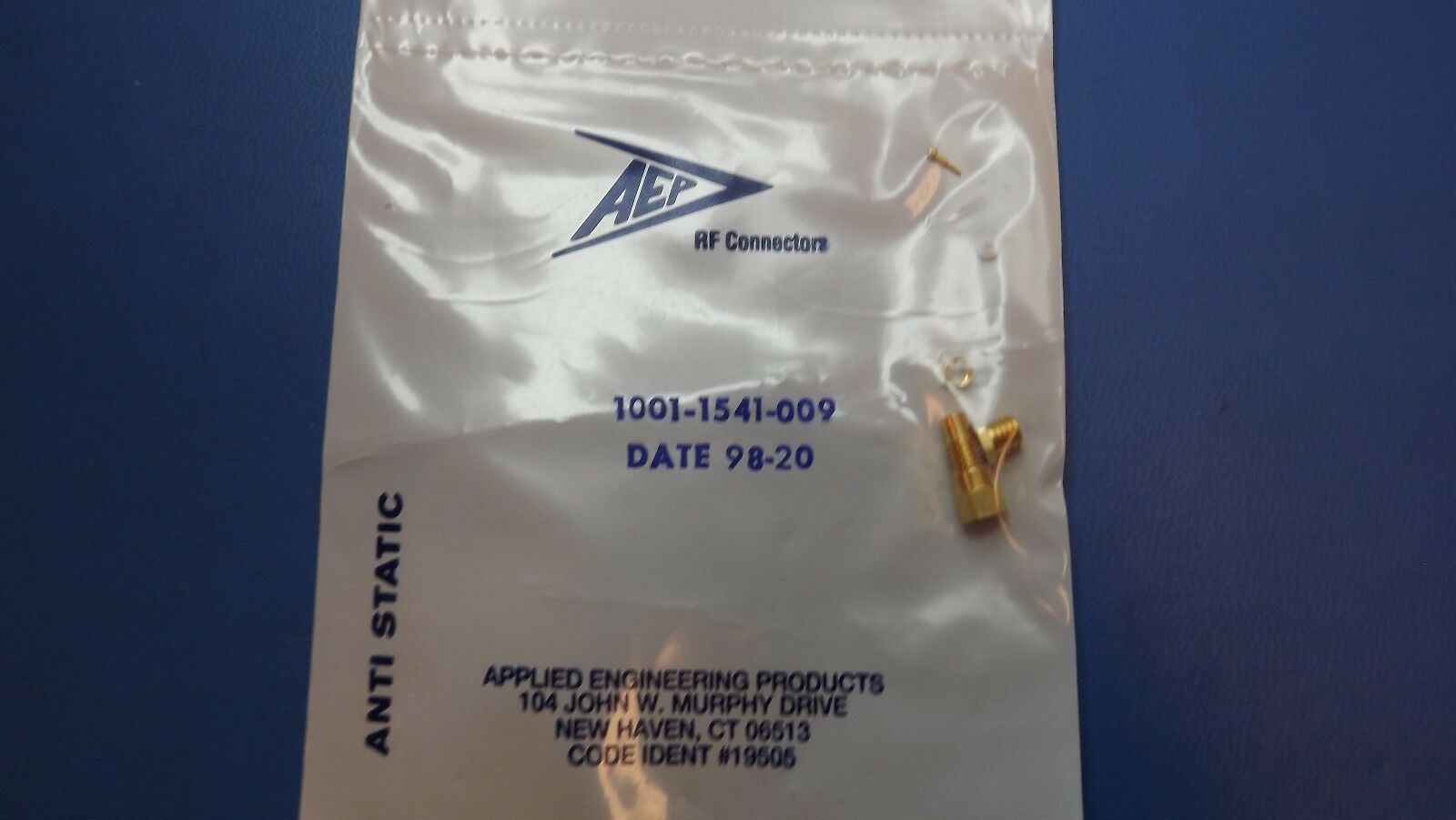

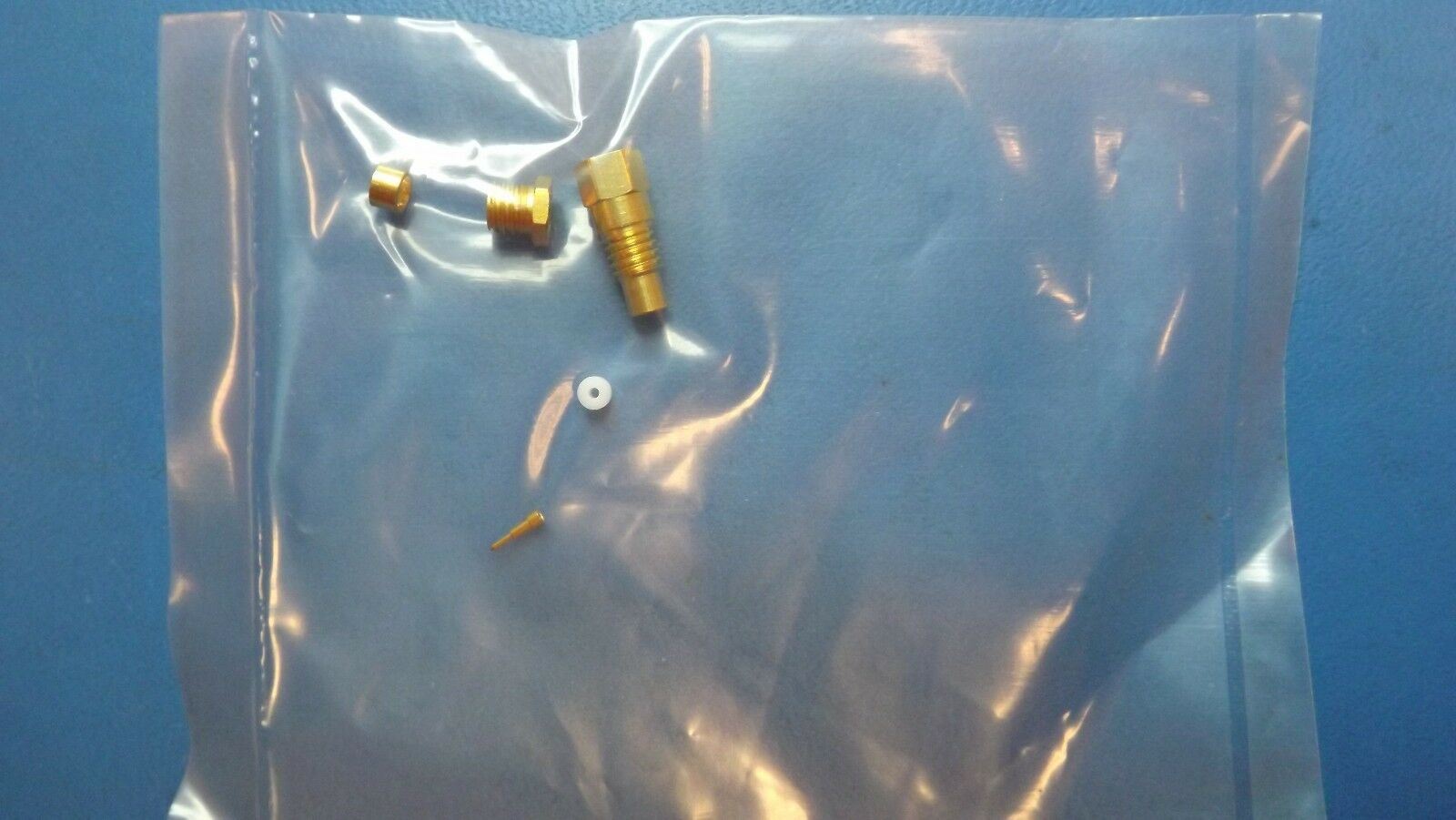

(1PC) 1001-1541-009 CABLE TERMINATED, MALE, SMC CONNECTOR, CLAMP SOLDER, JACK
Tax included.
THIS LISTING IS FOR (1PC) OF 1001-1541-009 BY AEP
SPECIFICATIONS
| Status | Active |
| Connector Type | RF SMC CONNECTOR |
| Body/Shell Style | JACK |
| Characteristic Impedance | 50.0 ohm |
| Contact Finish - Mating | GOLD |
| Contact Finish - Termination | GOLD |
| Contact Gender | MALE |
| Contact Material | NOT SPECIFIED |
| Coupling Type | THREADED |
| DIN Conformance | NO |
| Filter Feature | NO |
| IEC Conformance | NO |
| Insertion Loss | 0.25 dB |
| Insulator Material | POLYTETRAFLUORO ETHYLENE |
| JESD-609 Code | e4 |
| Manufacturer Series | SMC |
| MIL Conformance | YES |
| Mounting Style | RIGHT ANGLE |
| Mounting Type | CABLE |
| Output Frequency-Max | 10.0 GHz |
| Option | GENERAL PURPOSE |
| Panel Mount | NO |
| Terminal Type | CLAMP SOLDER |
| Additional Feature | STANDARD: MIL-PRF-39012, INSERTION LOSS MAX AT 1.5 GHZ |
