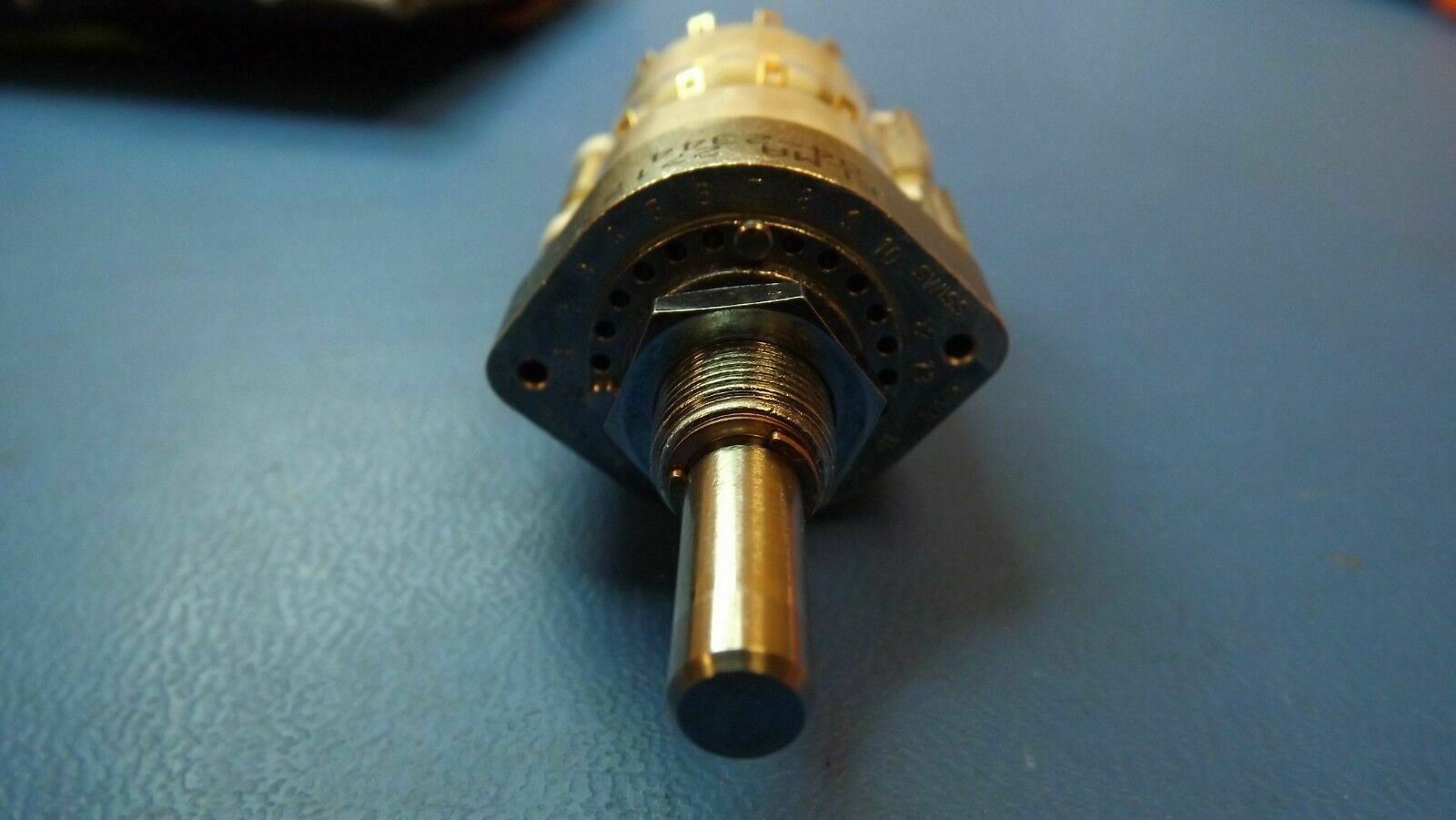

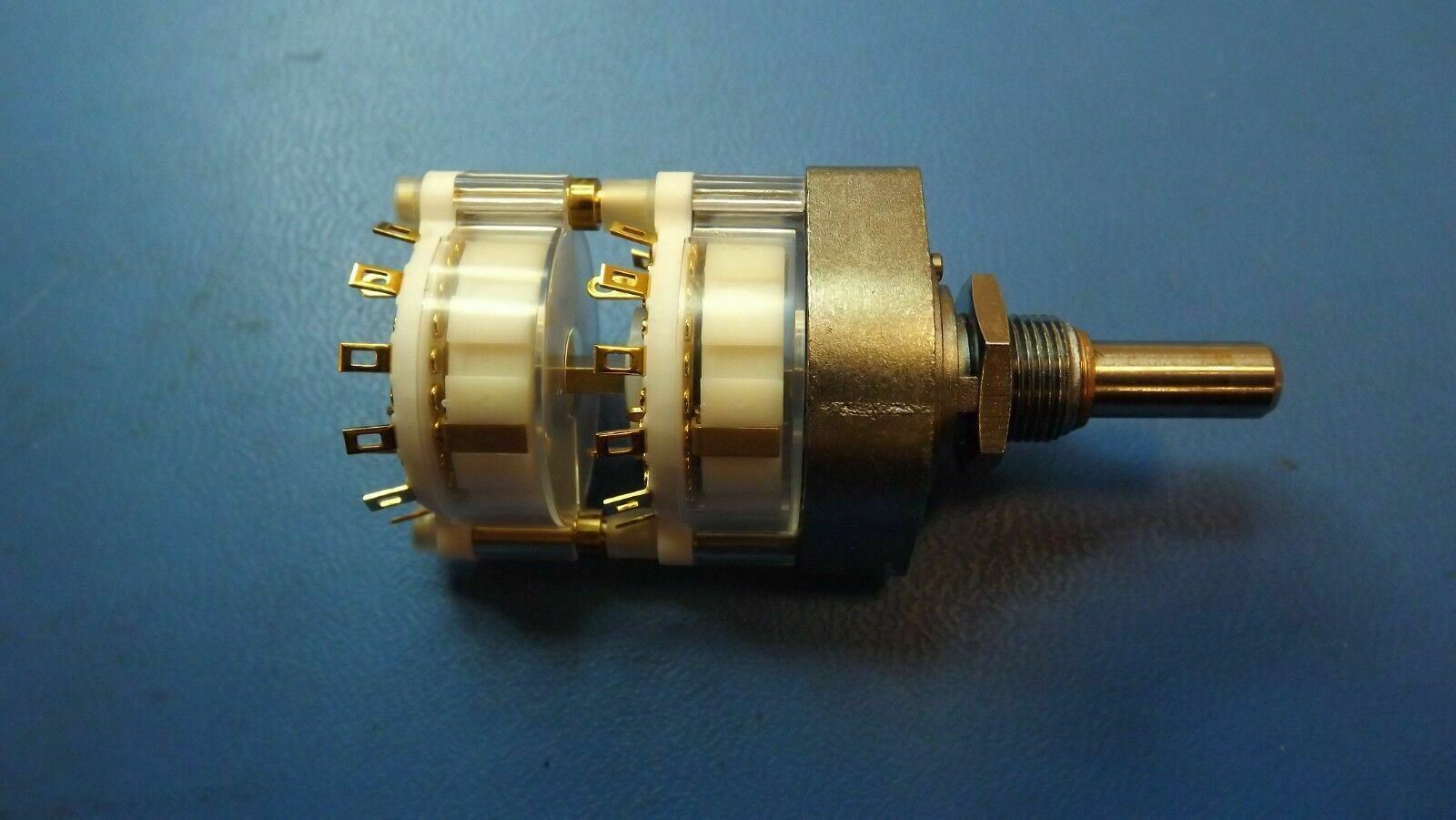

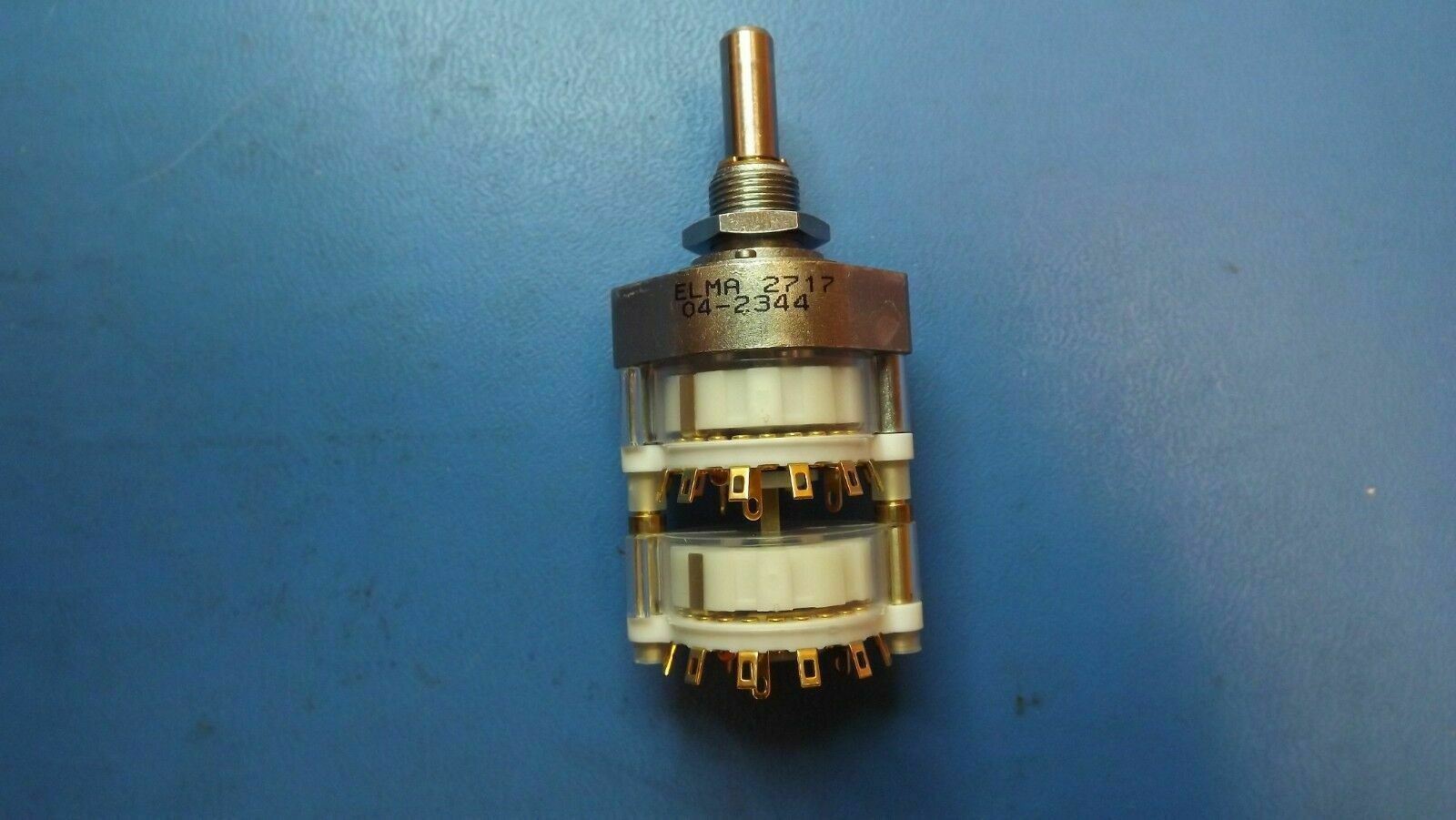

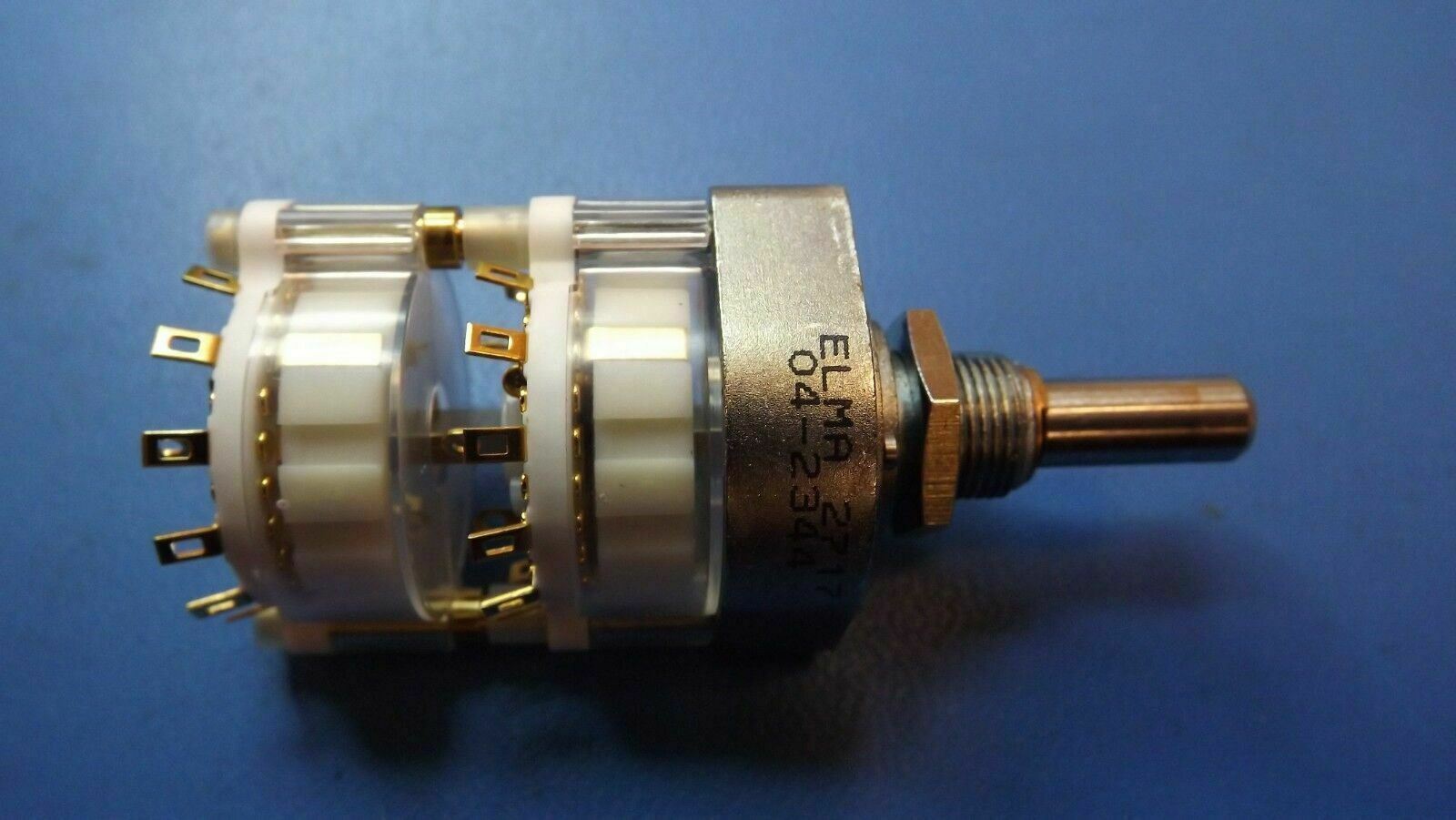

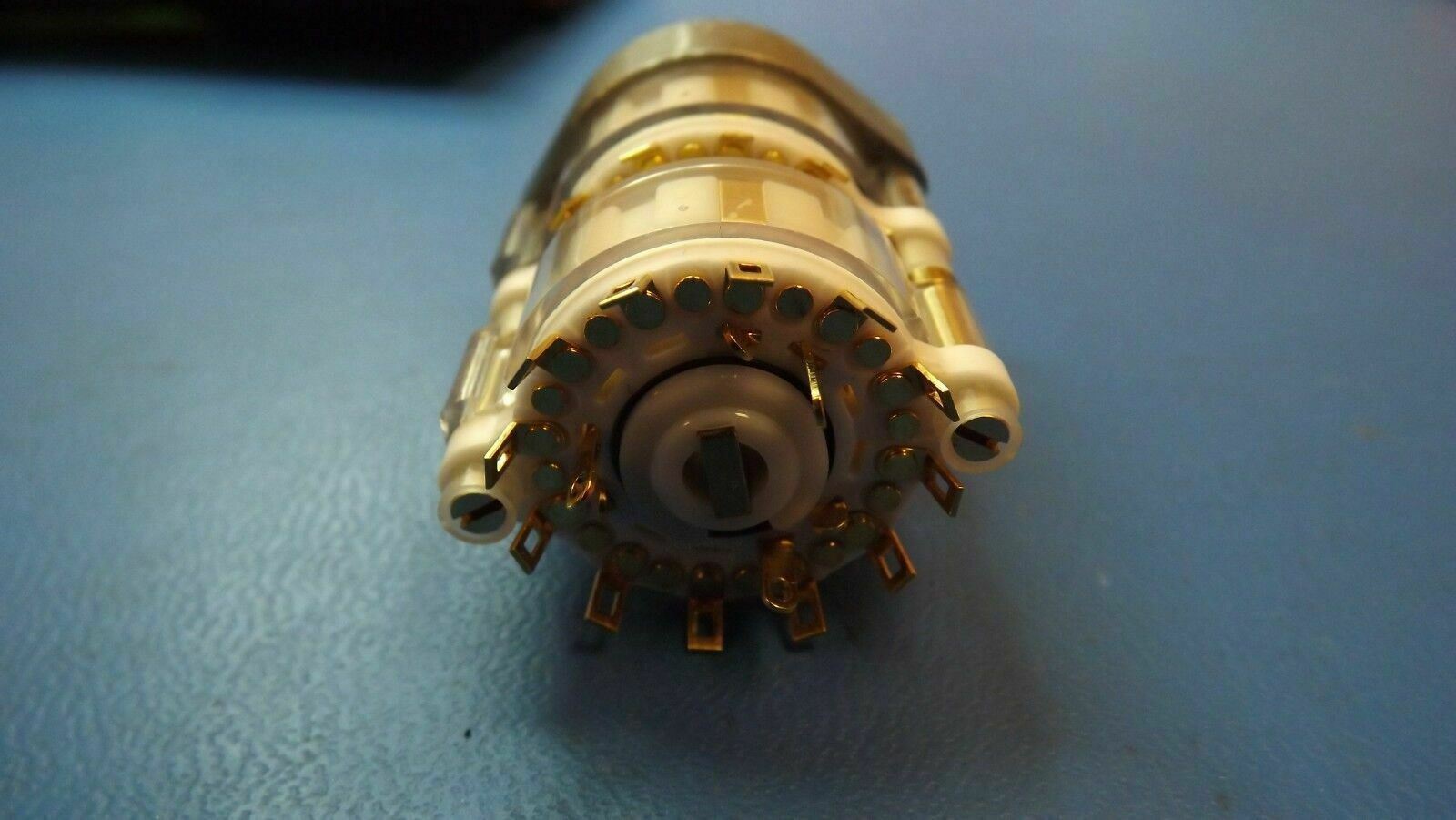

(1PC) 04-2344 ELMA Rotary Switch, 4 Pos, 6P4T, 2A, 2VDC, Steel Spindle Shaft
Tax included.
THIS LISTING IS FOR (1PC) OF 04-2344 BY ELMA
SPECIFICATIONS
| REACH Compliant | Yes |
| Status | Active |
| Switch Type | ROTARY SWITCH |
| Actuator Type | STEEL SPINDLE SHAFT |
| Body Height | 44.8 mm |
| Body Length or Diameter | 32.0 mm |
| Contact AC Max Rating R Load | 2A@2VAC |
| Contact Current(AC)-Max | 2.0 A |
| Contact Current(DC)-Max | 2.0 A |
| Contact DC Max Rating R Load | 2A@2VDC |
| Contact Voltage(AC)-Max | 2.0 V |
| Contact Voltage(DC)-Max | 2.0 V |
| Electrical Life | 25000.0 Cycle(s) |
| Indexing Angle | 30.0 deg |
| Manufacturer Series | 04 |
| Mounting Feature | PANEL MOUNT-THREADED |
| Number of Positions | 4 |
| Number of Switch Sections | 1.0 |
| Packing Method | BULK |
| Switch Action | LATCHED |
| Switch Function | 6P4T |
| Termination Type | SOLDER |
