(19PC) L4C381JC15 Logic Devices Bit-Slice Processor, 16-Bit, CMOS, PLCC68
(19PC) L4C381JC15 Logic Devices Bit-Slice Processor, 16-Bit, CMOS, PLCC68
(19PC) L4C381JC15 Logic Devices Bit-Slice Processor, 16-Bit, CMOS, PLCC68
(19PC) L4C381JC15 Logic Devices Bit-Slice Processor, 16-Bit, CMOS, PLCC68
(19PC) L4C381JC15 Logic Devices Bit-Slice Processor, 16-Bit, CMOS, PLCC68
(19PC) L4C381JC15 Logic Devices Bit-Slice Processor, 16-Bit, CMOS, PLCC68

(19PC) L4C381JC15 Logic Devices Bit-Slice Processor, 16-Bit, CMOS, PLCC68

Tax included.
Only 17 left!

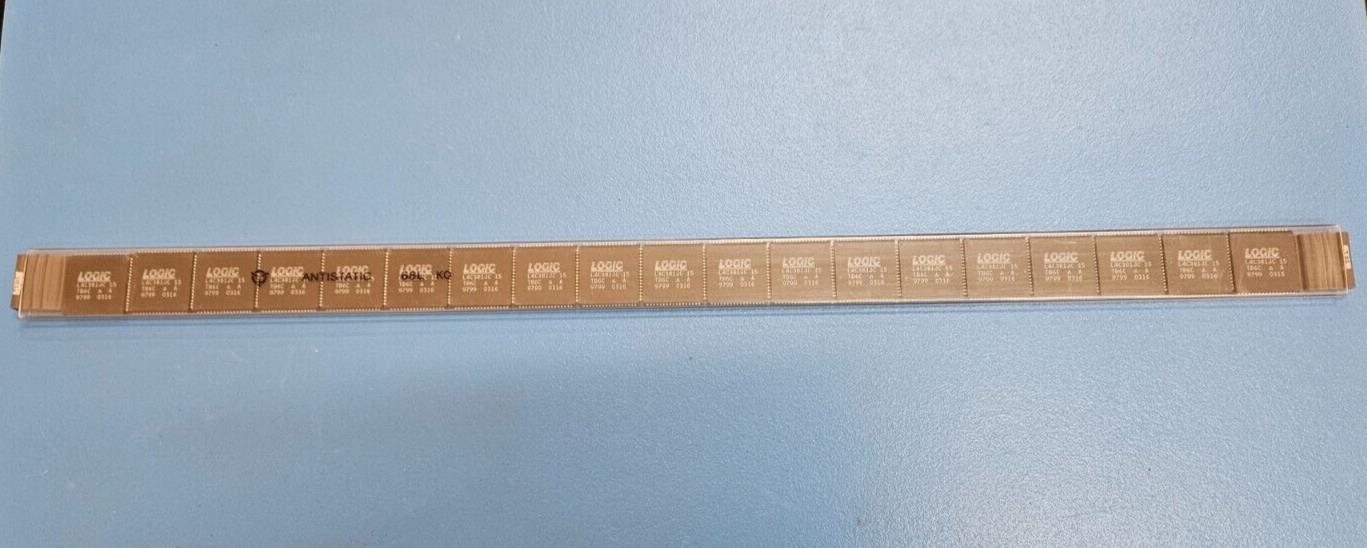

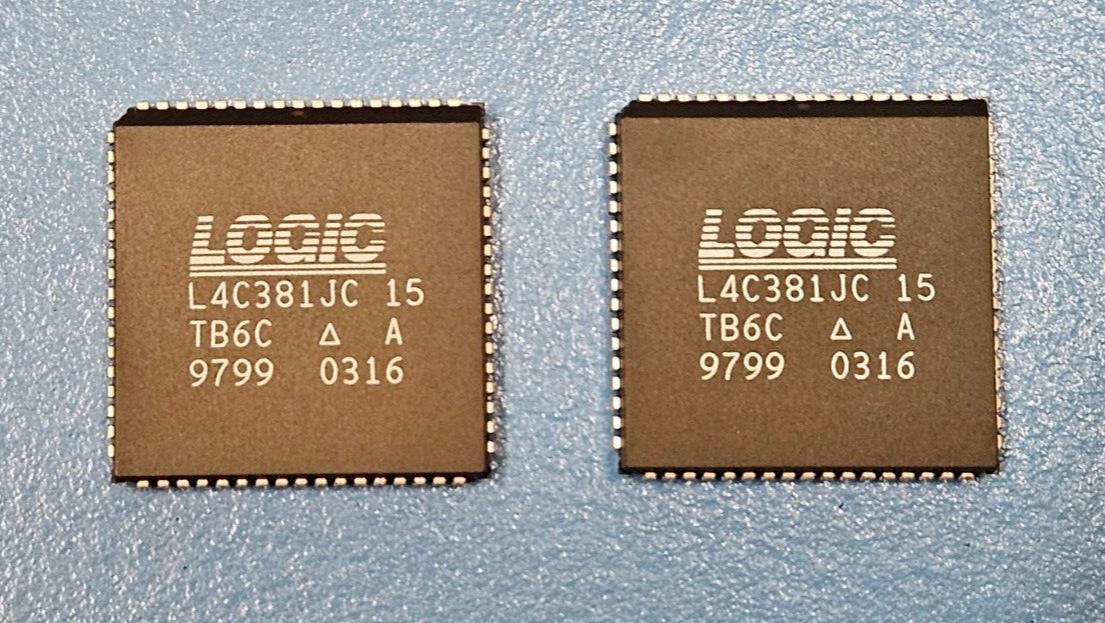

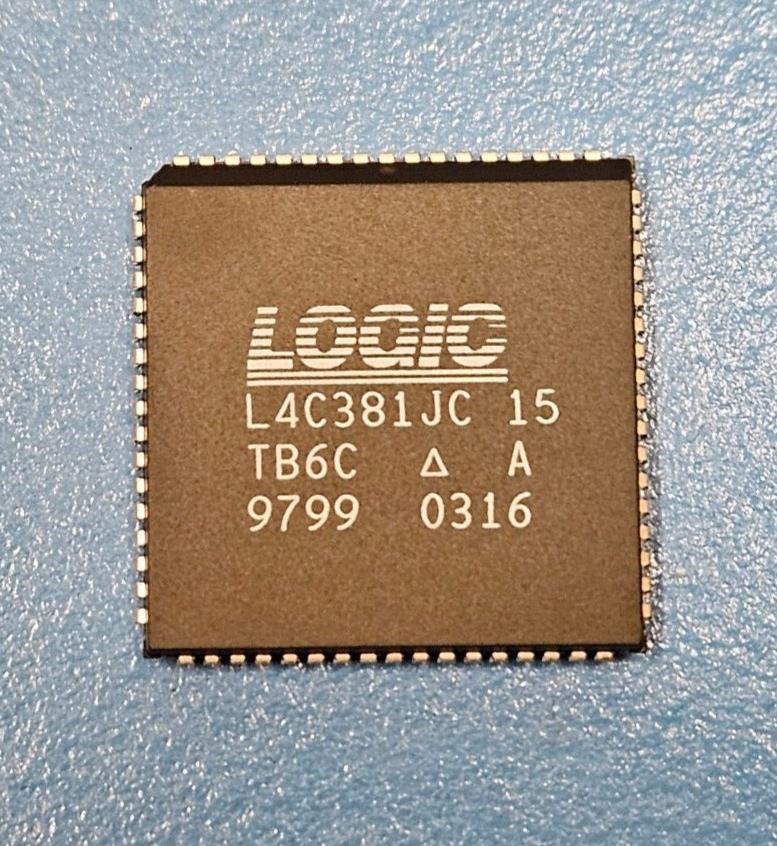

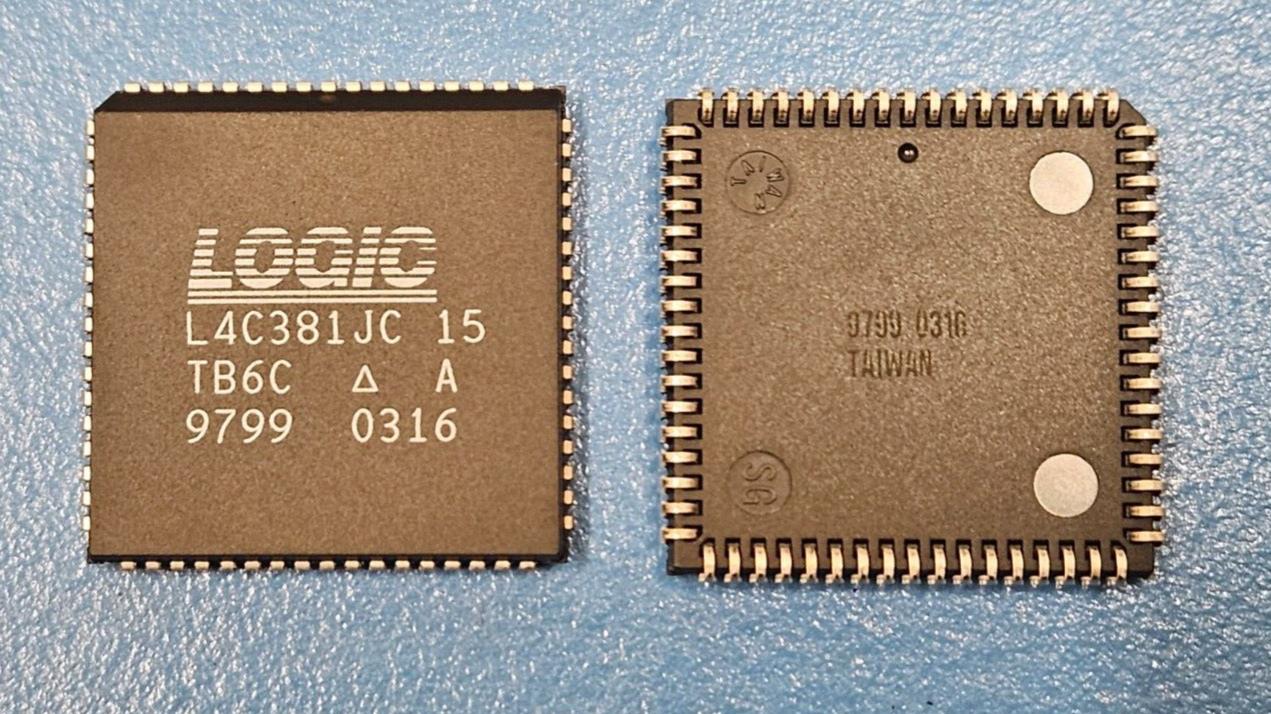

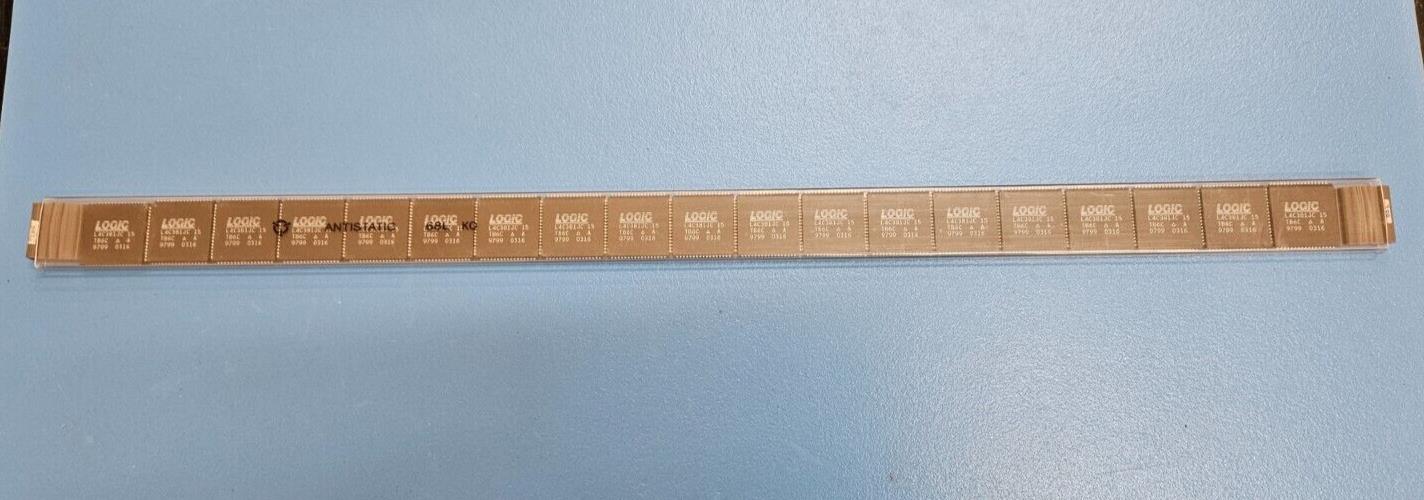

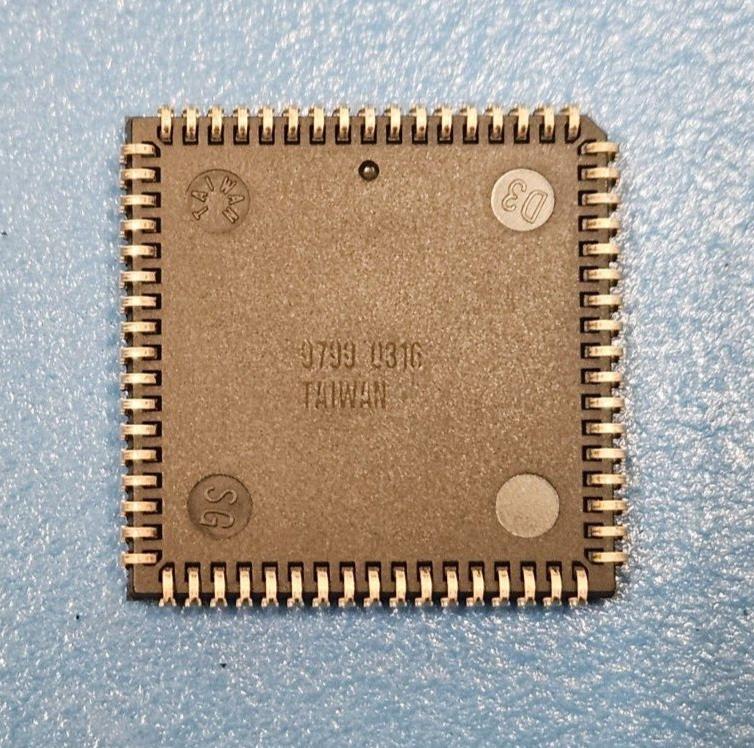

THIS LISTING IS FOR (19PC) OF L4C381JC15 BY LOGIC DEVICES

Mfr Package Description PLASTIC, LCC-68
REACH Compliant Yes
Status Contact Mfr
Clock Frequency-Max 66.67  MHz
External Data Bus Width 16.0
JESD-30 Code S-PQCC-J68
JESD-609 Code e0
Moisture Sensitivity Level 3
Number of Terminals 68
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Shape SQUARE
Package Style CHIP CARRIER
Peak Reflow Temperature (Cel) 225
Qualification Status Not Qualified
Seated Height-Max 5.08  mm
Supply Current-Max 30.0  mA
Supply Voltage-Nom 5.0  V
Supply Voltage-Min 4.75  V
Supply Voltage-Max 5.25  V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch 1.27  mm
Terminal Position QUAD
Length 24.2316  mm
Width 24.2316  mm
Additional Feature 2 X 16 BIT INPUT BUS
