(17PCS) SN74LVC2G125YZPR Buffer/Line Driver 2-CH Non-Invert 3-ST CMOS 8-PinDSBGA
Tax included.

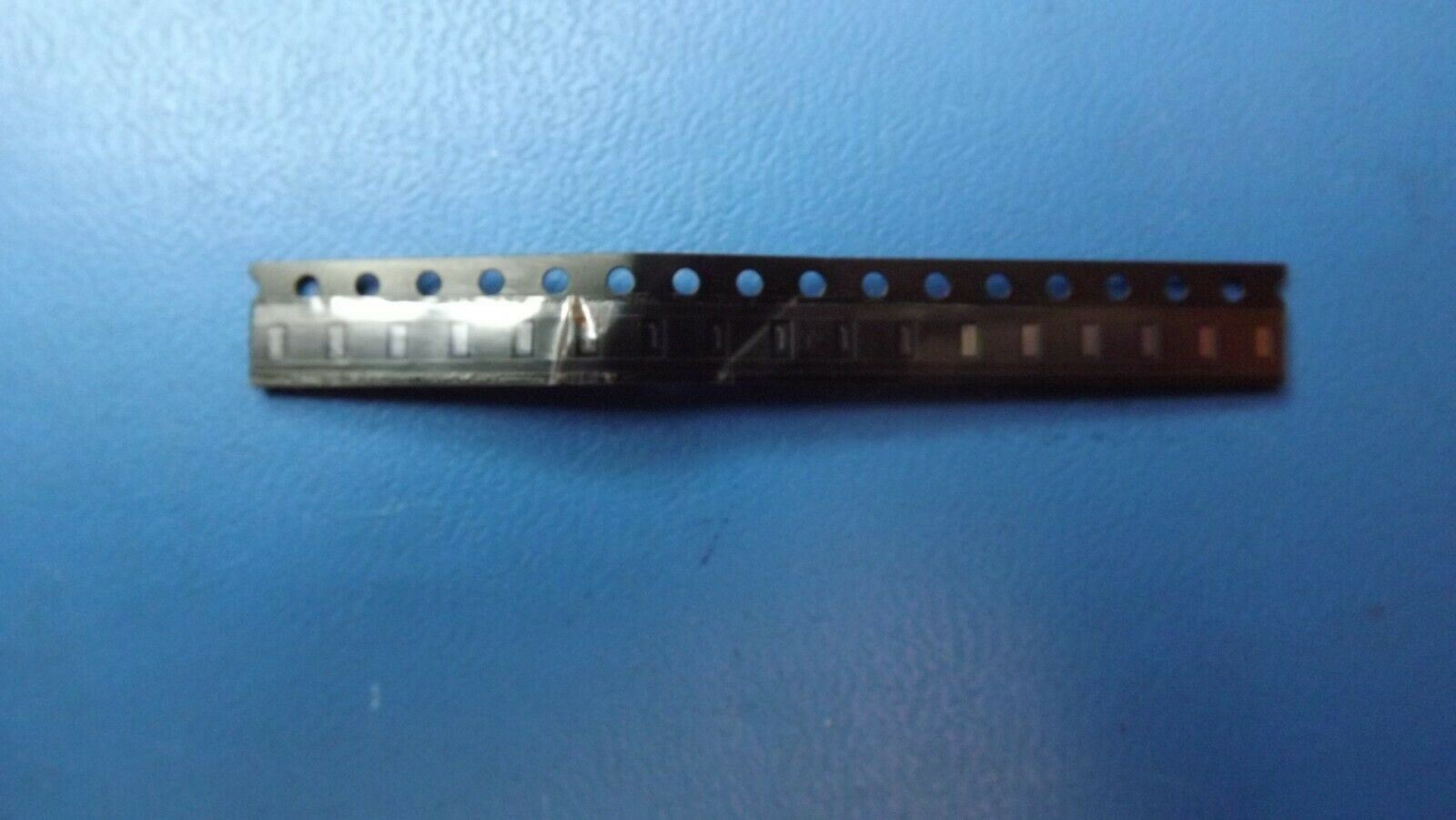

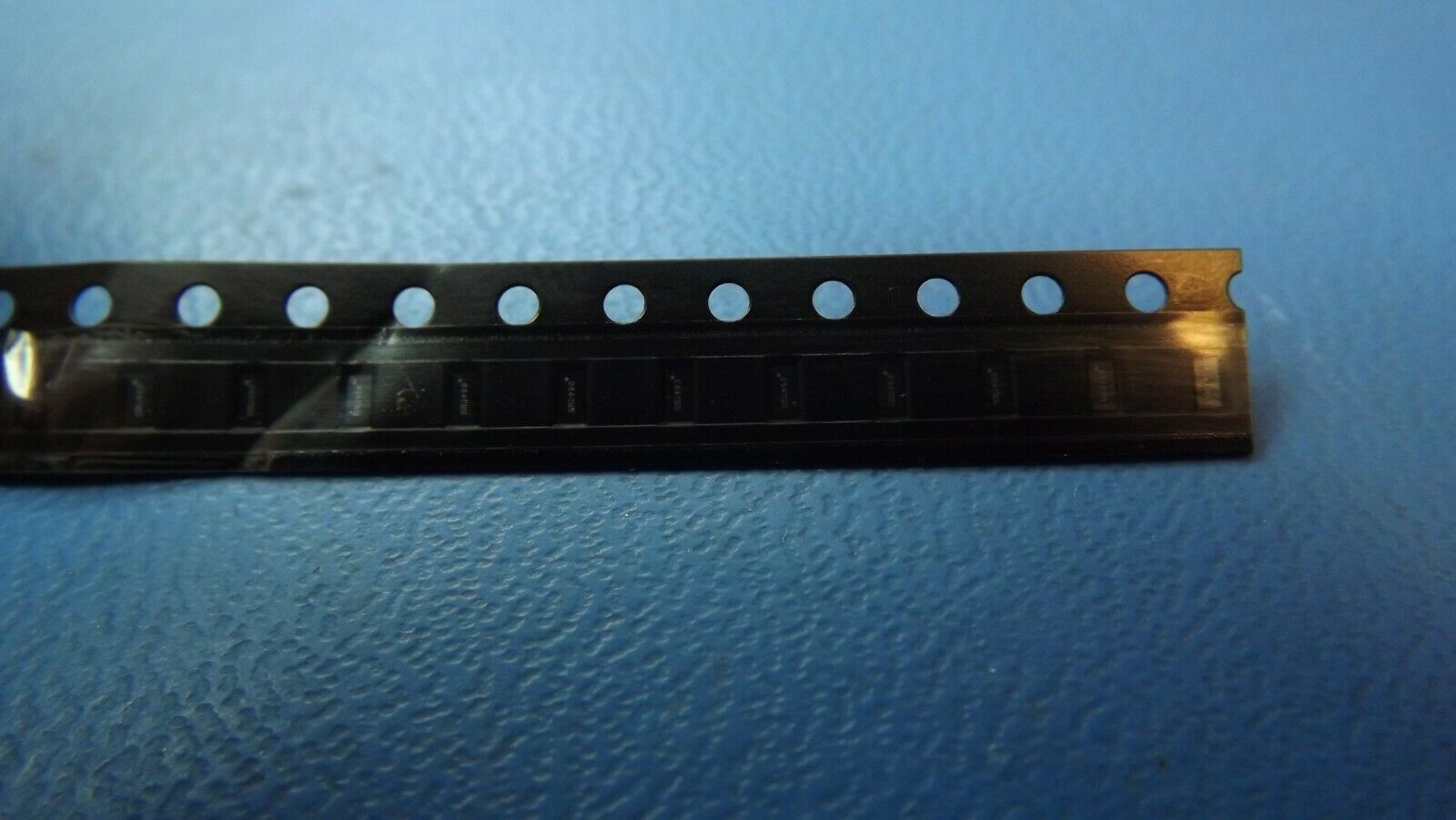

THIS LISTING IS FOR (17PCS) OF SN74LVC2G125YZPR BY TEXAS INSTRUMENTS
SPECIFICATIONS
| Mfr Package Description | DSBGA-8 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Logic IC Type | BUS DRIVER |
| Sub Category | Bus Driver/Transceiver |
| Control Type | ENABLE LOW |
| Family | LVC/LCX/Z |
| JESD-30 Code | R-XBGA-B8 |
| JESD-609 Code | e1 |
| Load Capacitance (CL) | 50.0 pF |
| Load/Preset Input | YES |
| Max I(ol) | 0.024 Amp |
| Moisture Sensitivity Level | 1 |
| Number of Bits | 1 |
| Number of Functions | 2 |
| Number of Ports | 2 |
| Number of Terminals | 8 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 125.0 Cel |
| Output Characteristics | 3-STATE |
| Output Polarity | TRUE |
| Package Body Material | UNSPECIFIED |
| Package Code | VFBGA |
| Package Equivalence Code | BGA8,2X4,20 |
| Package Shape | RECTANGULAR |
| Package Style | GRID ARRAY, VERY THIN PROFILE, FINE PITCH |
| Packing Method | TAPE AND REEL |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies (V) | 3.3 |
| Prop. Delay@Nom-Sup | 4.3 ns |
| Propagation Delay (tpd) | 9.1 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 0.5 mm |
| Supply Voltage-Nom (Vsup) | 1.8 |
| Supply Voltage-Min (Vsup) | 1.65 V |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | AUTOMOTIVE |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) |
| Terminal Form | BALL |
| Terminal Pitch | 0.5 mm |
| Terminal Position | BOTTOM |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 1.9 mm |
| Width | 0.9 mm |
