1761-L10BWA MicroLogix 1000 AC controller has 10 available I/O points

This MicroLogix 1000 from Allen-Bradley is a 10 Point Controller with DC inputs, Digital Relay Contact Outputs, and 120/240 AC power.

Manufacturer Rockwell Automation

Brand Allen-Bradley

Part Number/Catalog No. 1761-L10BWA

Controller MicroLogix 1000

I/O Count 10 points

Input Type 24V dc

Output Type Relay

Power Supply 120/240V ac

Safety Feature Master Control Relay

Digital Outputs 4 Contact Outputs

UPC 10662072744595

Product Lifecycle Status* Discontinued/Obsolete

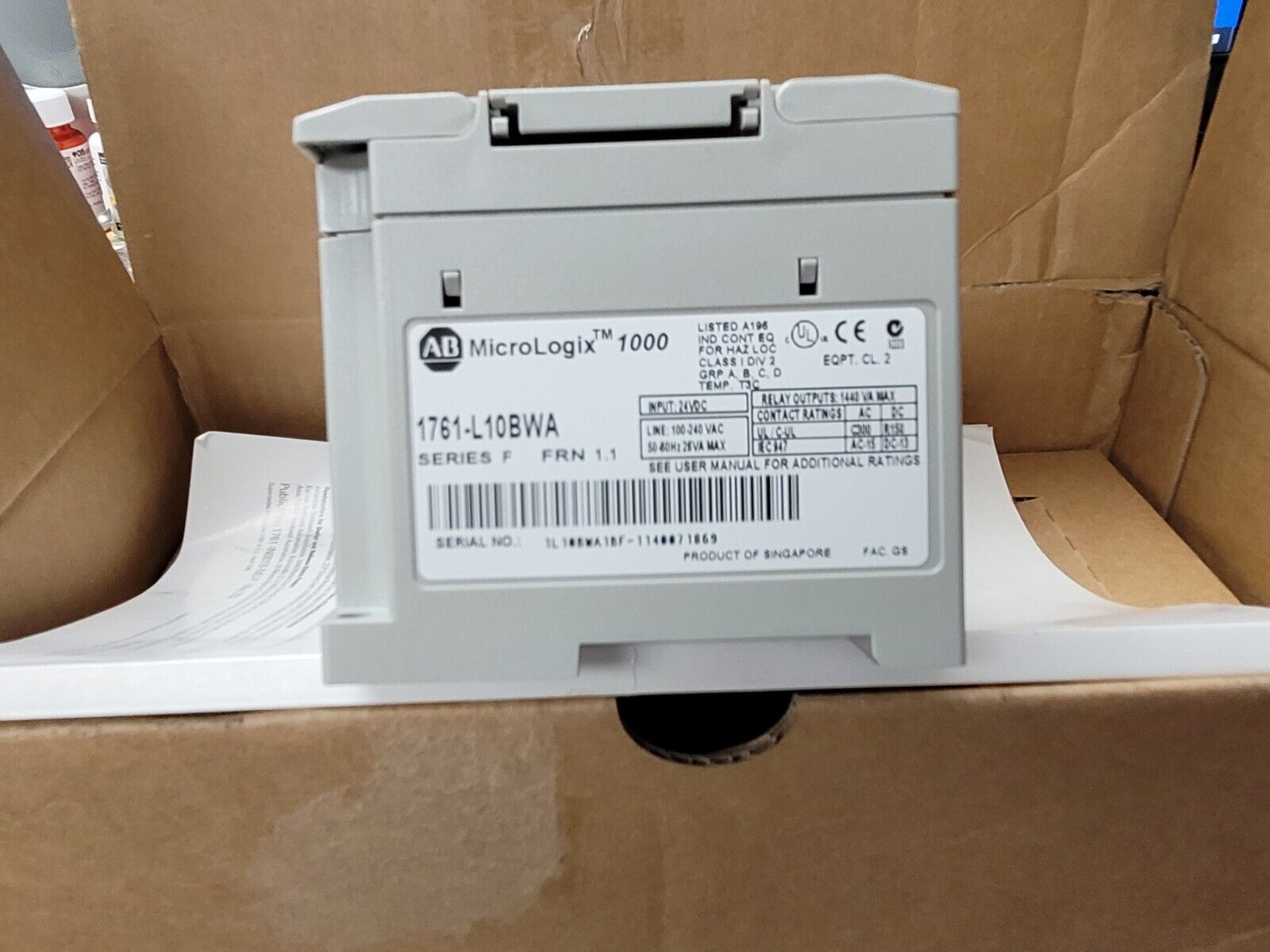

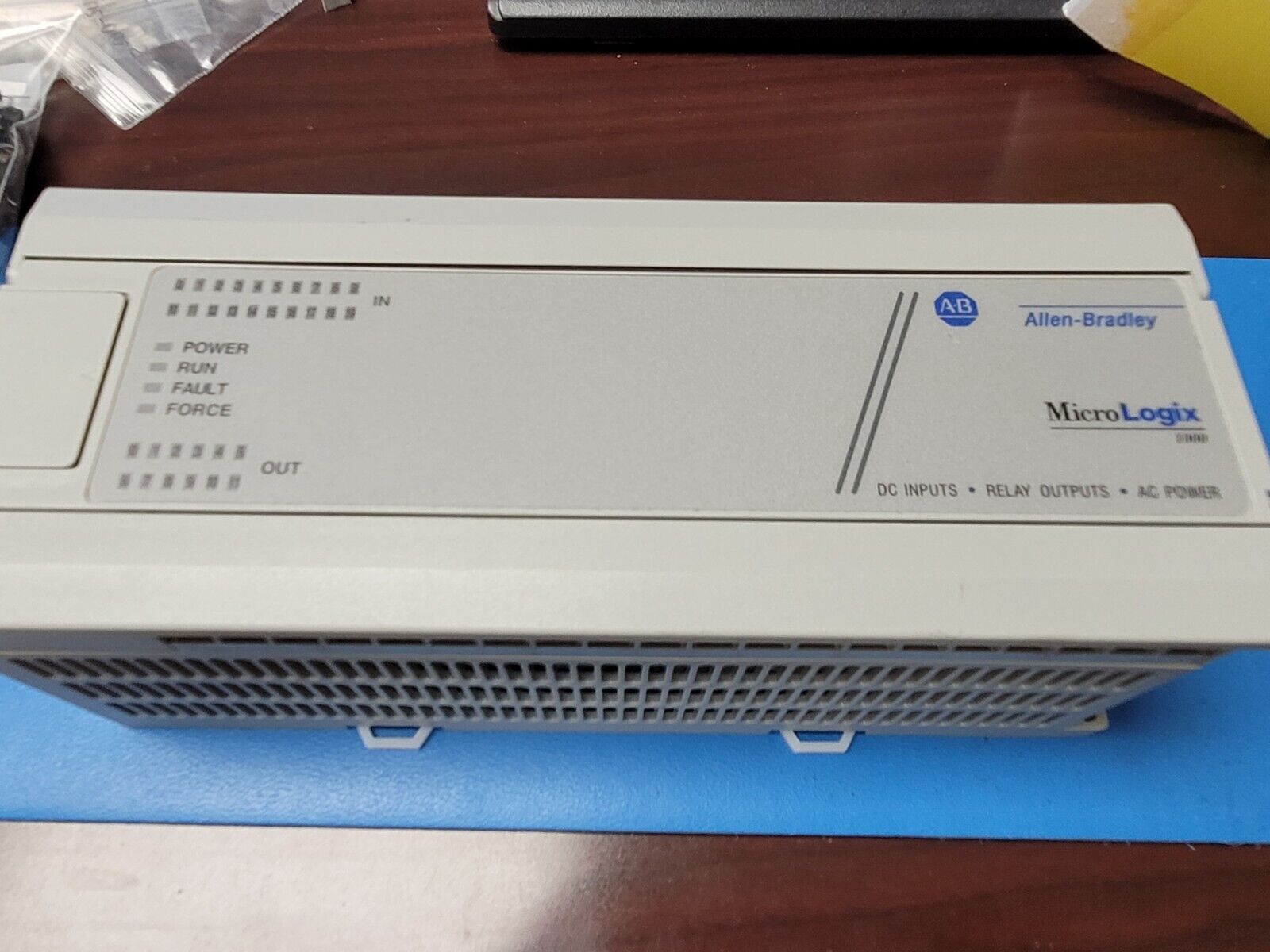

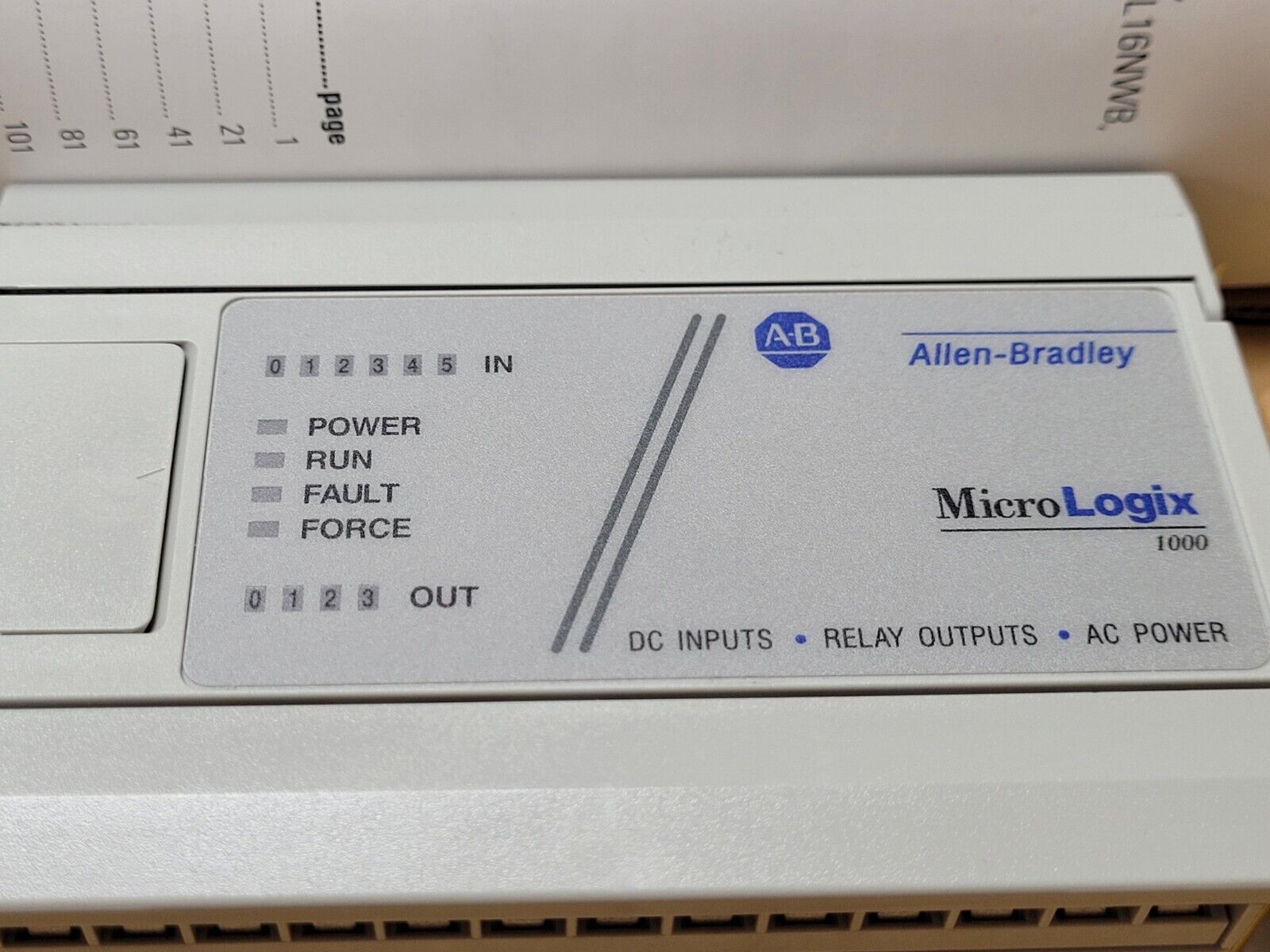

The Allen-Bradley 1761-L10BWA MicroLogix 1000 AC controller has 10 available I/O points. It has 6 24-Volt DC inputs and 4 relay outputs, as well as a single 6.6 kHz high-speed input counter. The controller also comes with a 1 K EEPROM back-up memory that can store up to 737 instruction words or 437 data-table words. It uses 120 to 240 Volts AC power. It also comes with an RS-232-C communication port and an IP20 enclosure. The entire 1761-L10BWA controller measures 4.72 x 2.87 x 3.15 inches and it can mount on either a DIN rail or panel. LED indicators display its status, input, and output diagnostics.

The power supply voltage range of the 1761-L10BWA controller is 85 to 264 Volts AC at 47 to 63 Hertz. It comes with a 24 Volts DC sensor power of 200 mA at a maximum of 200 µF capacitance and a maximum power supply inrush current of 30 Amps for 8 milliseconds. The controller has a power consumption of 24 VA at 120 Volts AC and 32 VA at 240 Volts AC. It has an off-state input voltage range of 0 to 20 Volts AC and a signal delay of 20 milliseconds for both ON and OFF states. It also has an operating output voltage range of 5 to 264 Volts AC and a minimum power cycle of 50,000.

The 1761-L10BWA’s storage temperature range is -40 to 85 degrees Celsius. It has an operating temperature range of 0 to 55 degrees Celsius when mounted horizontally and a range of 0 to 45 degrees Celsius when it is mounted vertically. It has an operating shock of 10 g and a non-operating shock of 20 g. It has an isolation of 1500 Volts AC and a non-condensing relative humidity of 5 to 95%. Its operating vibration is 2.5 g, while its non-operating vibration is 5 g.
