(16PCS) 74HC139D DUAL 2-TO-4 DECODER / DEMUX SOIC-16
Tax included.

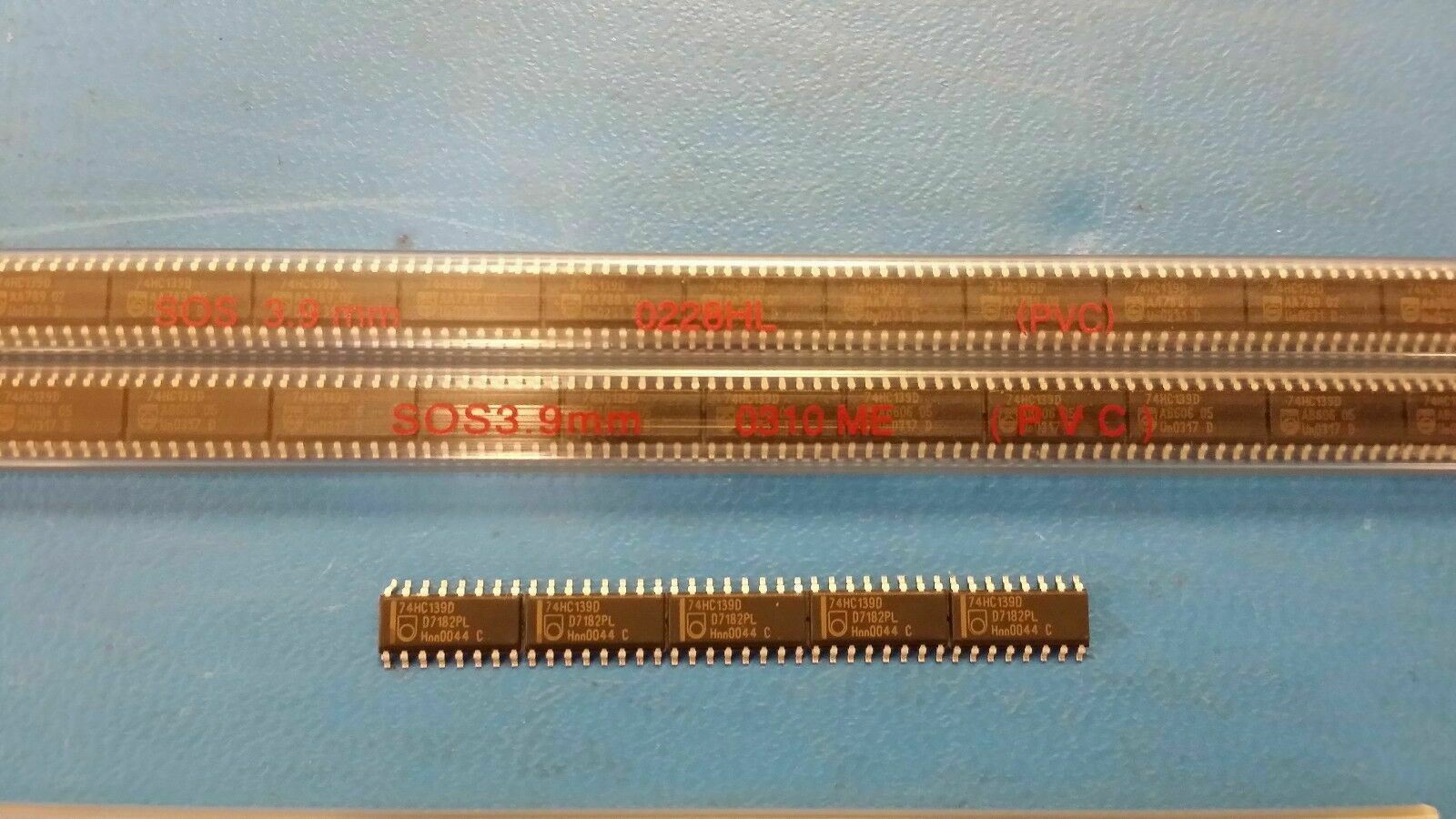

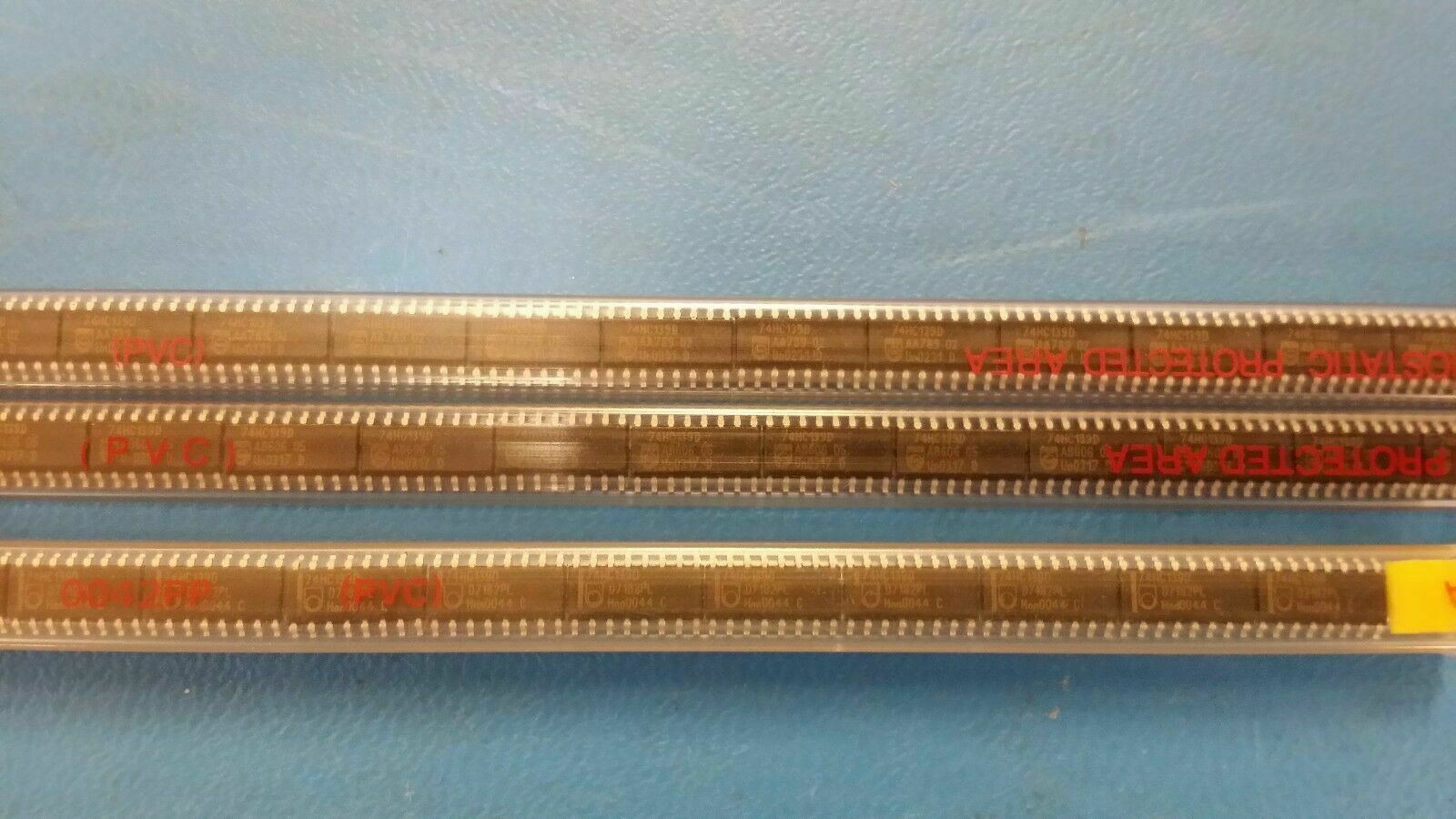

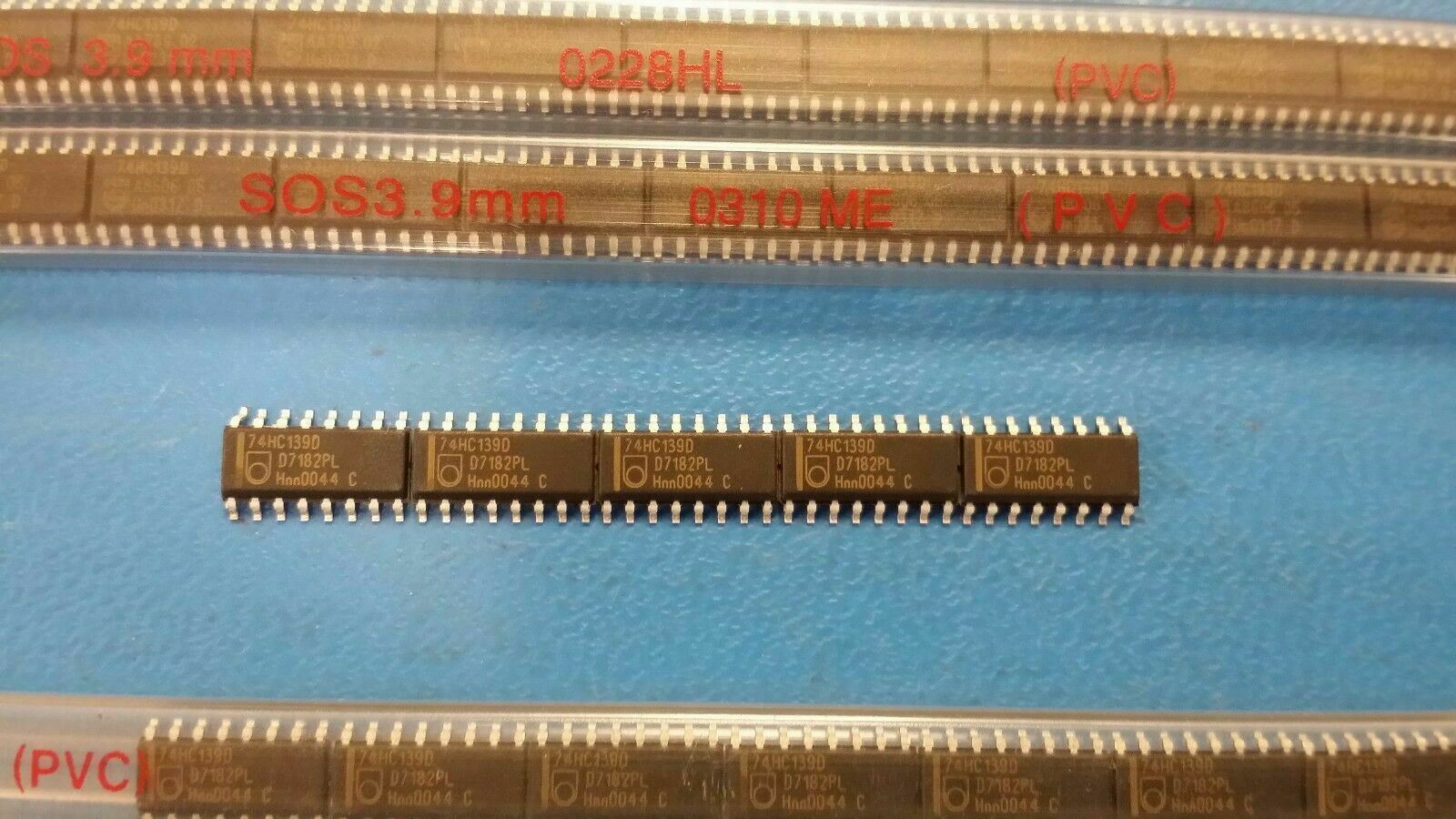

THIS LISTING IS FOR (16PCS) OF 74HC139D BY PHILIPS.
SPECIFICATIONS
| Mfr Package Description | SOT-109, SO-16 |
| REACH Compliant | N/A |
| EU RoHS Compliant | N/A |
| China RoHS Compliant | N/A |
| Status | Active |
| Logic IC Type | OTHER DECODER/DRIVER |
| Sub Category | Decoder/Drivers |
| Family | HC/UH |
| Input Conditioning | STANDARD |
| JESD-30 Code | R-PDSO-G16 |
| JESD-609 Code | N/A |
| Load Capacitance (CL) | 50 pF |
| Max I(ol) | 0.0040 Amp |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 2 |
| Number of Terminals | 16 |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Max | 125 Cel |
| Output Polarity | INVERTED |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP16,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies (V) | 2/6 |
| Prop. Delay@Nom-Sup | 44 ns |
| Propagation Delay (tpd) | 44 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.75 mm |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Min (Vsup) | 2 V |
| Supply Voltage-Max (Vsup) | 6 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | AUTOMOTIVE |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Length | 9.9 mm |
| Width | 3.9 mm |
