16CPR4805S Low power DC-DC converter operating temperature from -25 °C to 75 °C
16CPR4805S Low power DC-DC converter operating temperature from -25 °C to 75 °C

16CPR4805S Low power DC-DC converter operating temperature from -25 °C to 75 °C

Tax included.
Only 0 left!
Will be in stock after

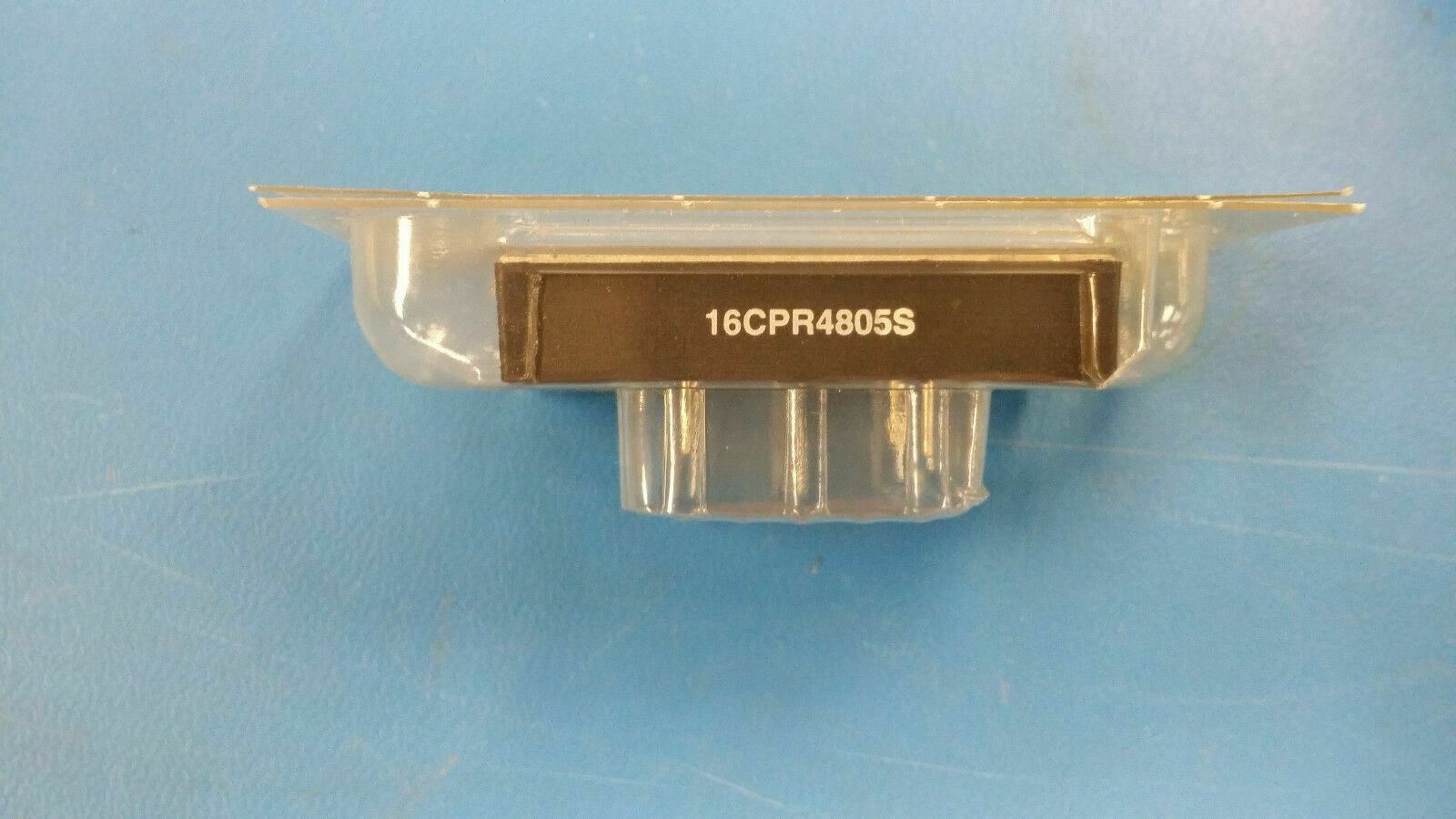

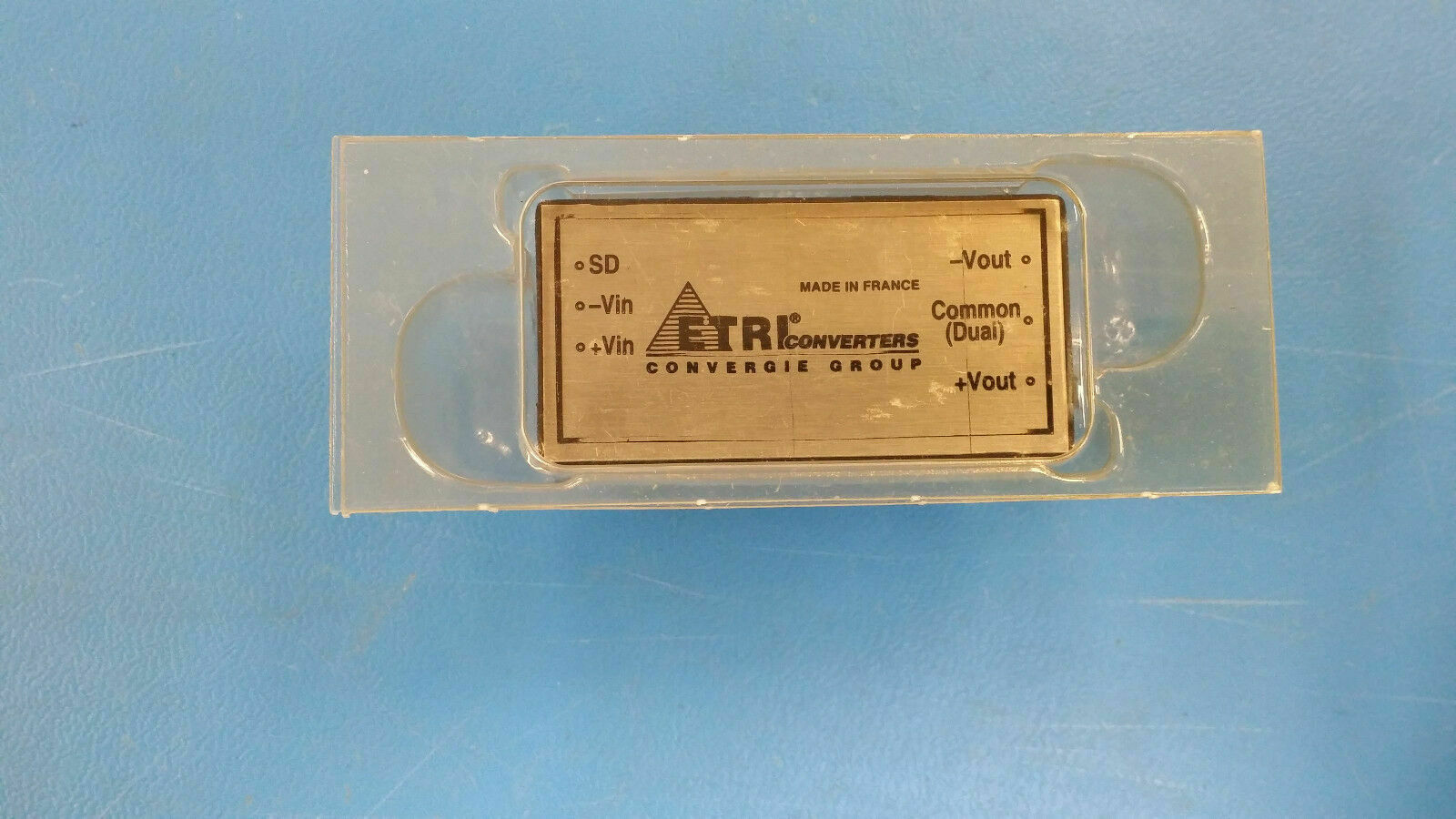

THIS LISTING IS FOR (1 PC) OF 16CPR4805S BY ETRI CONVERTERS

Low power DC- DC converter series operating at a temperature from -25 °C to 75 °C
  • Large input voltage range: 9-18 V, 18-36 V or 36-72V
  • Compact size
  • Single and dual output voltages
  • 21 models from 10 W to 15 W

    • Protection :

  • Output over current protection
  • Short circuit protection
  • Isolation voltage Input/Output: 1500 VDC ( 1 Min )
    • Model
    Output Power
    Output
    Specifications
    Nominal
    Input Voltage
    Input
    Voltage Range
    Switching
    Frequency

    Nominal
    Output Voltage

    Nominal
    Output Current

    Case
    16CPR1203S 10 W
    Single output voltage
    12 V
    9,5 V - 18 V
    370 KHz

    3.3

    3000 mA

    		2 "* 1" * 0.4 "
    16CPR1205D
    15 W
    Dual output voltage
    12 V
    9,5 V - 18 V
    370 KHz

    ± 5 V

    1500 mA

    		2 "* 1" * 0.4 "
    16CPR1205S 12,5 W
    Single output voltage
    12 V
    9,5 V - 18 V
    370 KHz

    5 V

    2500 mA

    		2 "* 1" * 0.4 "
    16CPR1212D
    15 W
    Dual output voltage
    12 V
    9,5 V - 18 V
    370 KHz

    ±12 V

    625 mA

    		2 "* 1" * 0.4 "
    16CPR1212S 15 W
    Single output voltage
    12 V
    9,5 V - 18 V
    370 KHz

    12 V

    1250 mA

    		2 "* 1" * 0.4 "
    16CPR1215D
    15 W
    Dual output voltage
    12 V
    9,5 V - 18 V
    370 KHz

    ±15 V

    500 mA

    		2 "* 1" * 0.4 "
    16CPR1215S 15 W
    Single output voltage
    12 V
    9,5 V - 18 V
    370 KHz

    15 V

    1000 mA

    		2 "* 1" * 0.4 "
    16CPR2403S
    10 W
    Single output voltage
    24 V
    18 V - 36 V
    370 KHz

    3,3 V

    3000 mA

    		2 "* 1" * 0.4 "
    16CPR2405D 15 W
    Dual output voltage
    24 V
    18 V -36 V
    370 KHz

    ±5 V

    1500 mA

    		2 "* 1" * 0.4 "
    16CPR2405S
    15 W
    Single output voltage
    24 V
    18 V - 36 V
    370 KHz

    5 V

    3000 mA

    		2 "* 1" * 0.4 "
    16CPR2412D 15 W
    Dual output voltage
    24 V
    18 V - 36 V
    370 KHz

    ± 12 V

    625 mA

    		2 "* 1" * 0.4 "
    16CPR2412S
    15 W
    Single output voltage
    24 V
    18 V - 36 V
    370 KHz

    12 V

    1250 mA

    		2 "* 1" * 0.4 "
    16CPR2415D 15 W
    Dual output voltage
    24 V
    18 V - 36 V
    370 KHz

    ± 15 V

    500 mA

    		2 "* 1" * 0.4 "
    16CPR2415S
    15 W
    Single output voltage
    24 V
    18 V - 36 V
    370 KHz

    15 V

    1000 mA

    		2 "* 1" * 0.4 "
    16CPR4803S 10 W
    Single output voltage
    48 V
    36 V - 72 V
    370 KHz

    3,3 V

    3000 mA

    		2 "* 1" * 0.4 "
    16CPR4805D
    15 W
    Dual output voltage
    48 V
    36 V -72 V
    370 KHz

    ± 5 V

    1500 mA

    		2 "* 1" * 0.4 "
    16CPR4805S 15 W
    Single output voltage
    48 V
    36 V - 72 V
    370 KHz

    5 V

    3000 mA

    		2 "* 1" * 0.4 "
