(156PCS) AT29LV040A-20TC Flash Memory Parallel 3.3V 4M-Bit 512Kx8 200ns 32P-TSOP
Tax included.

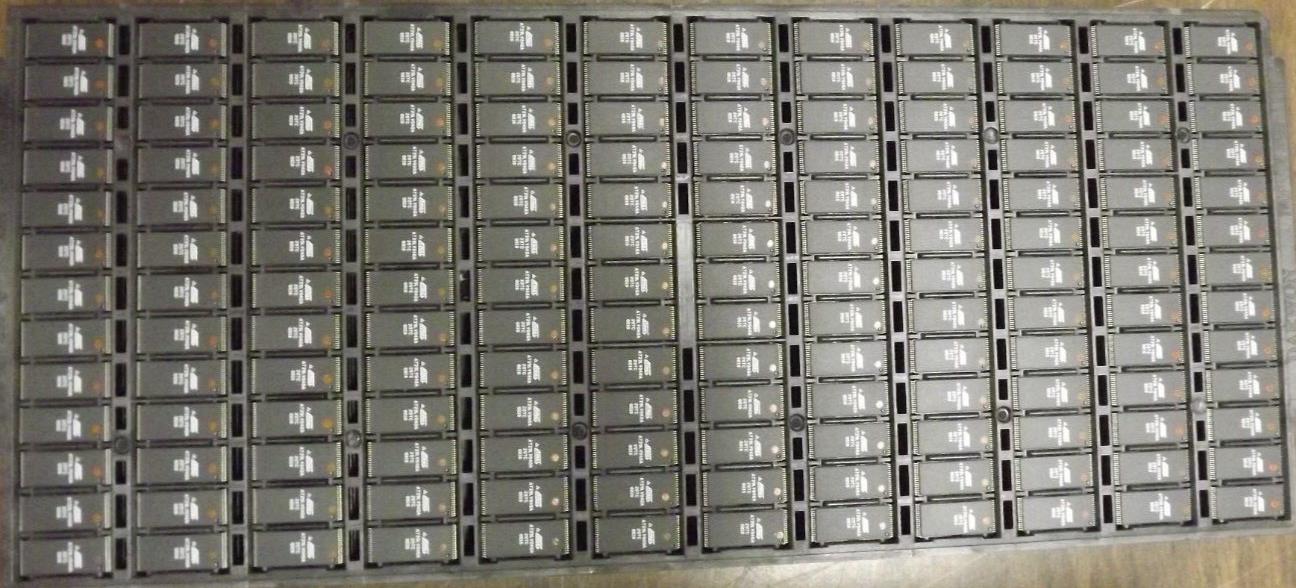

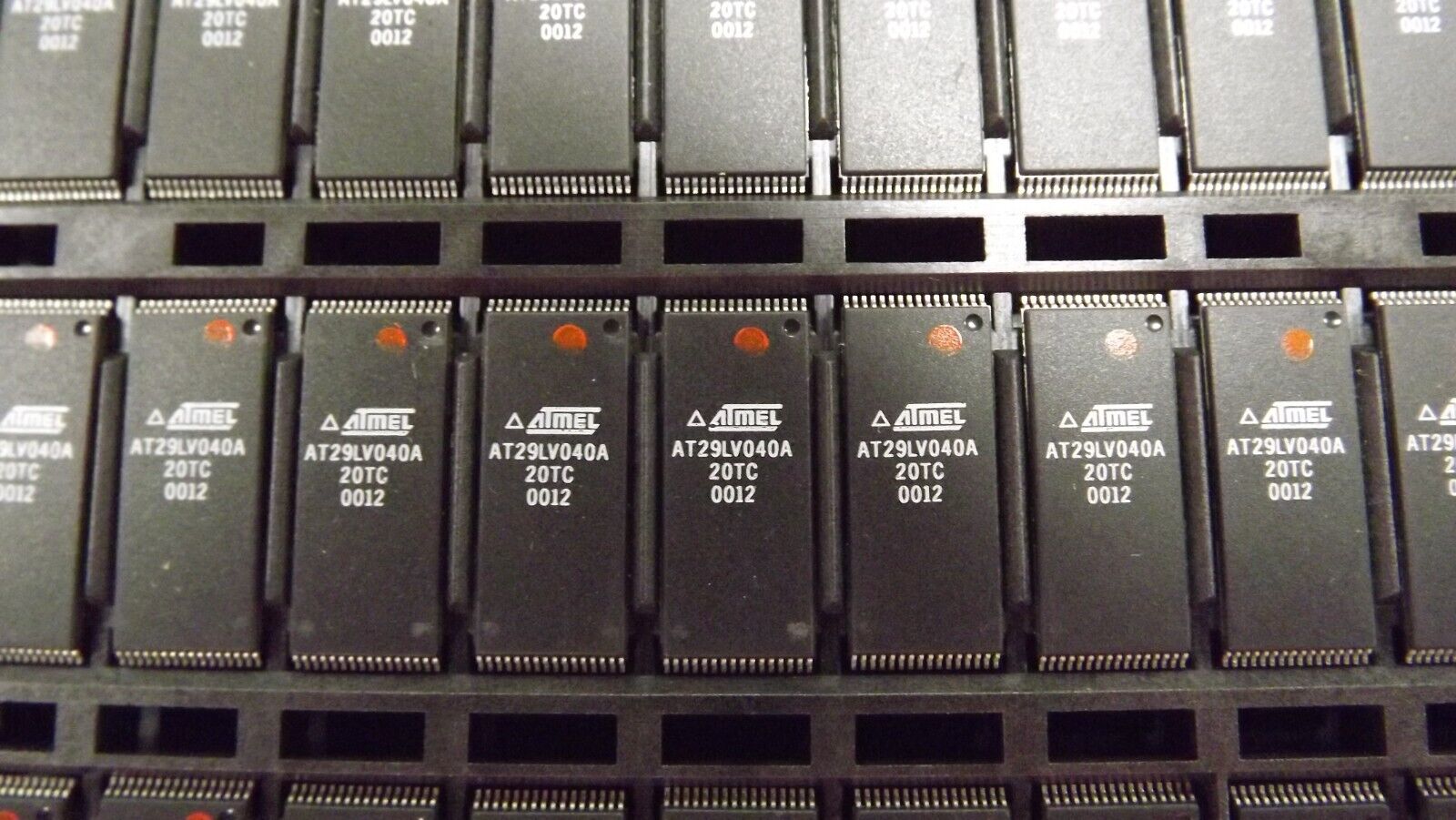

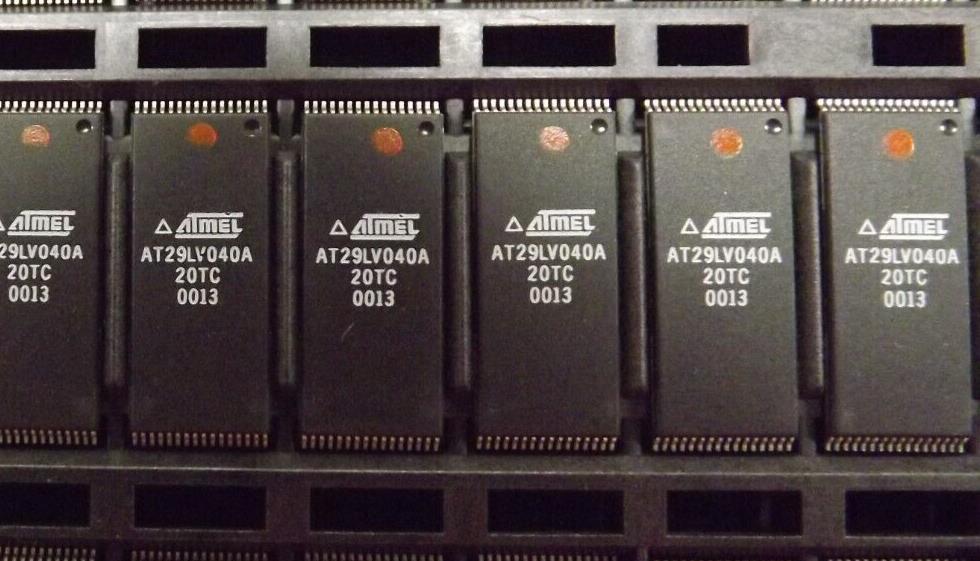

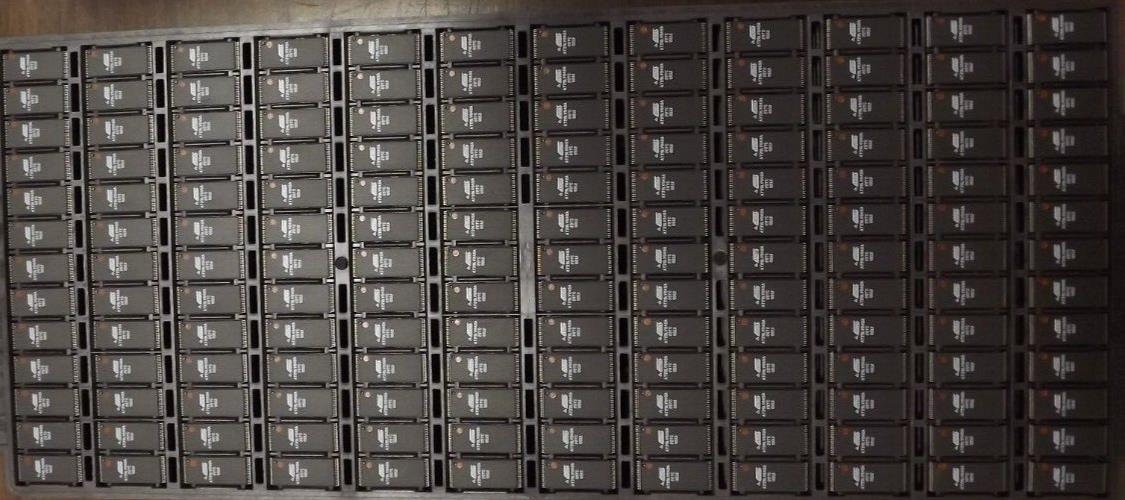

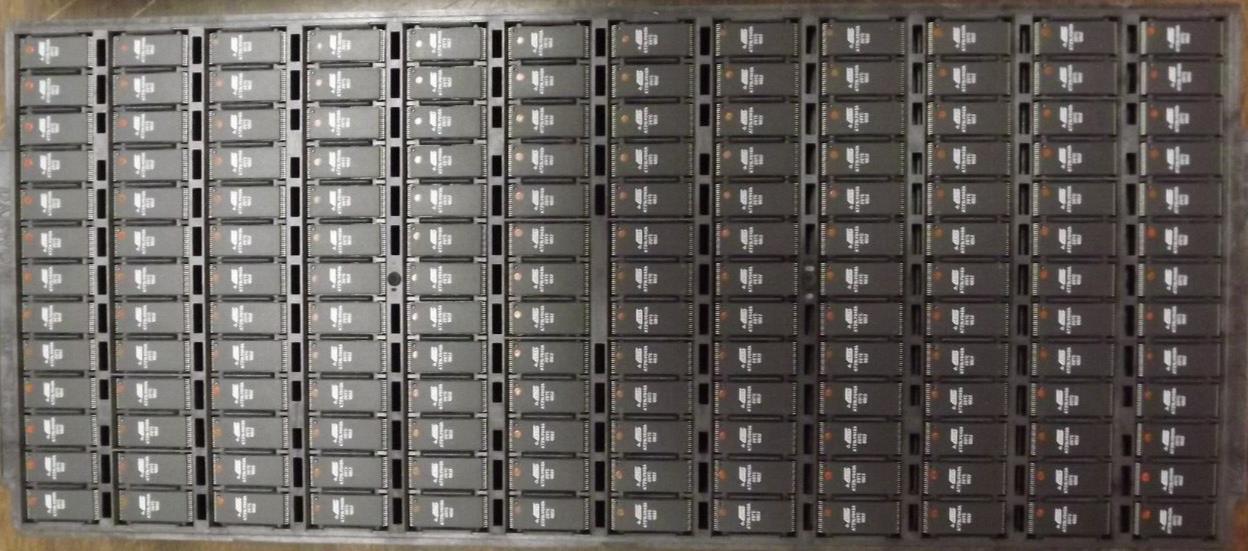

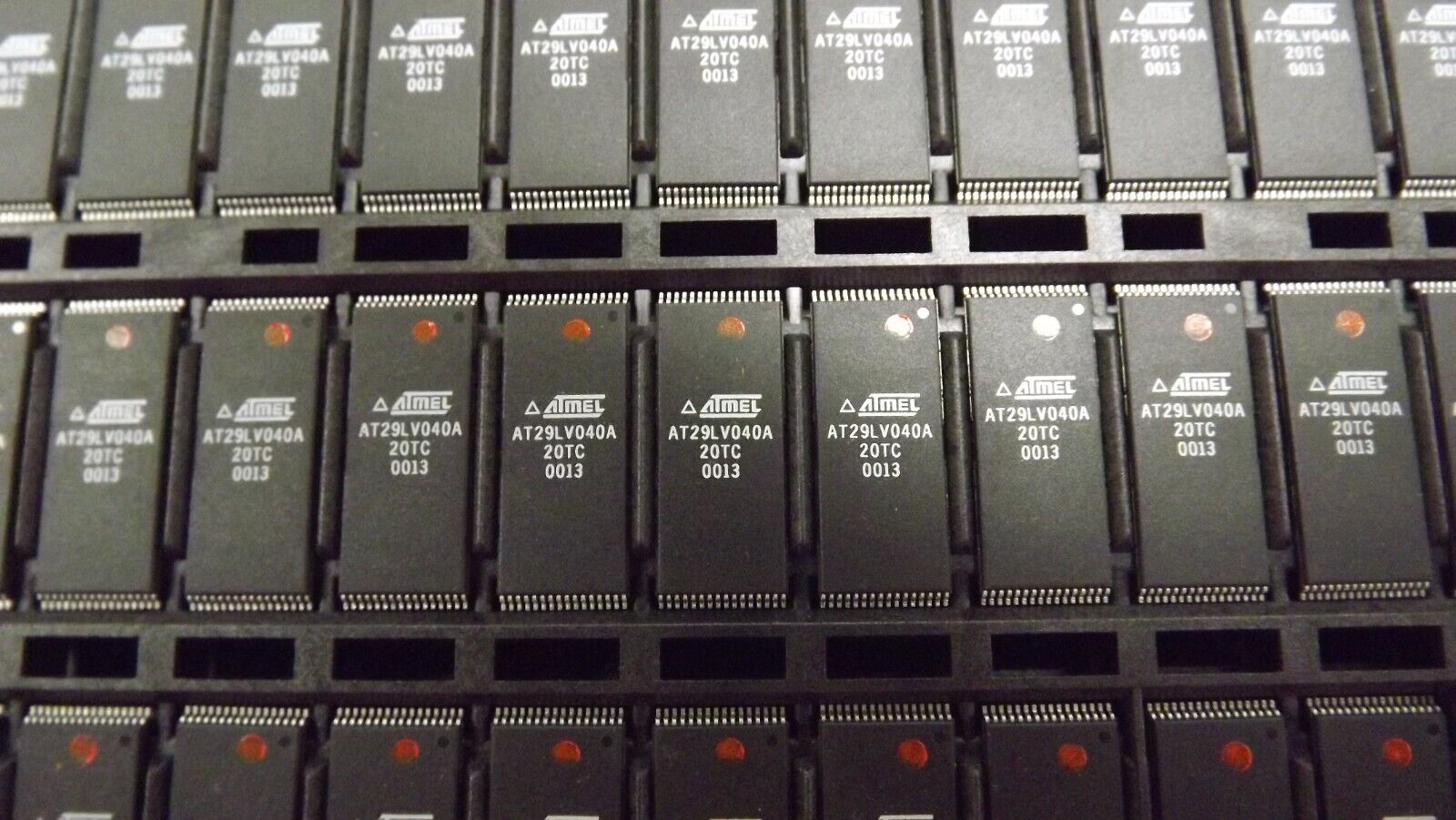

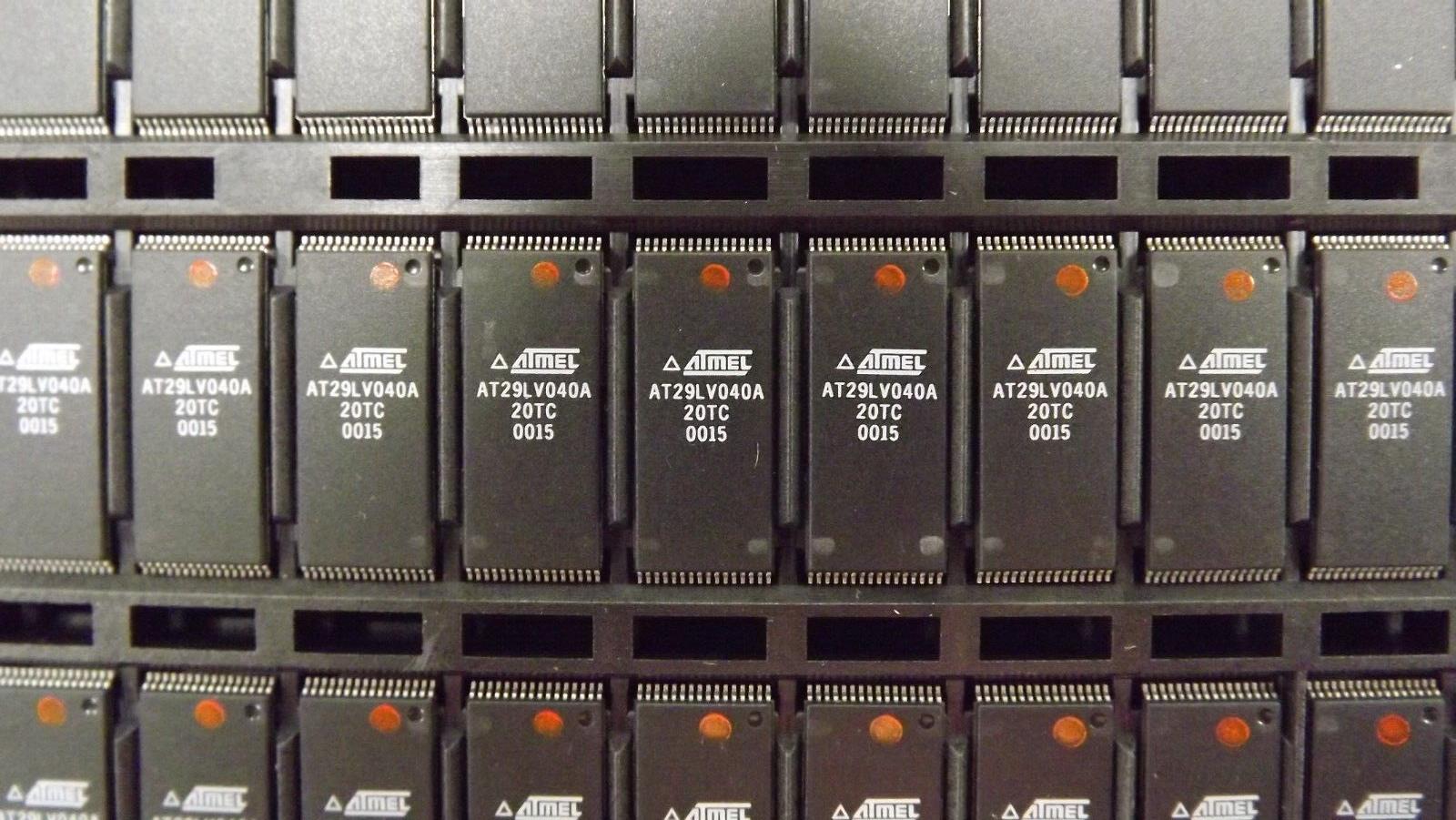

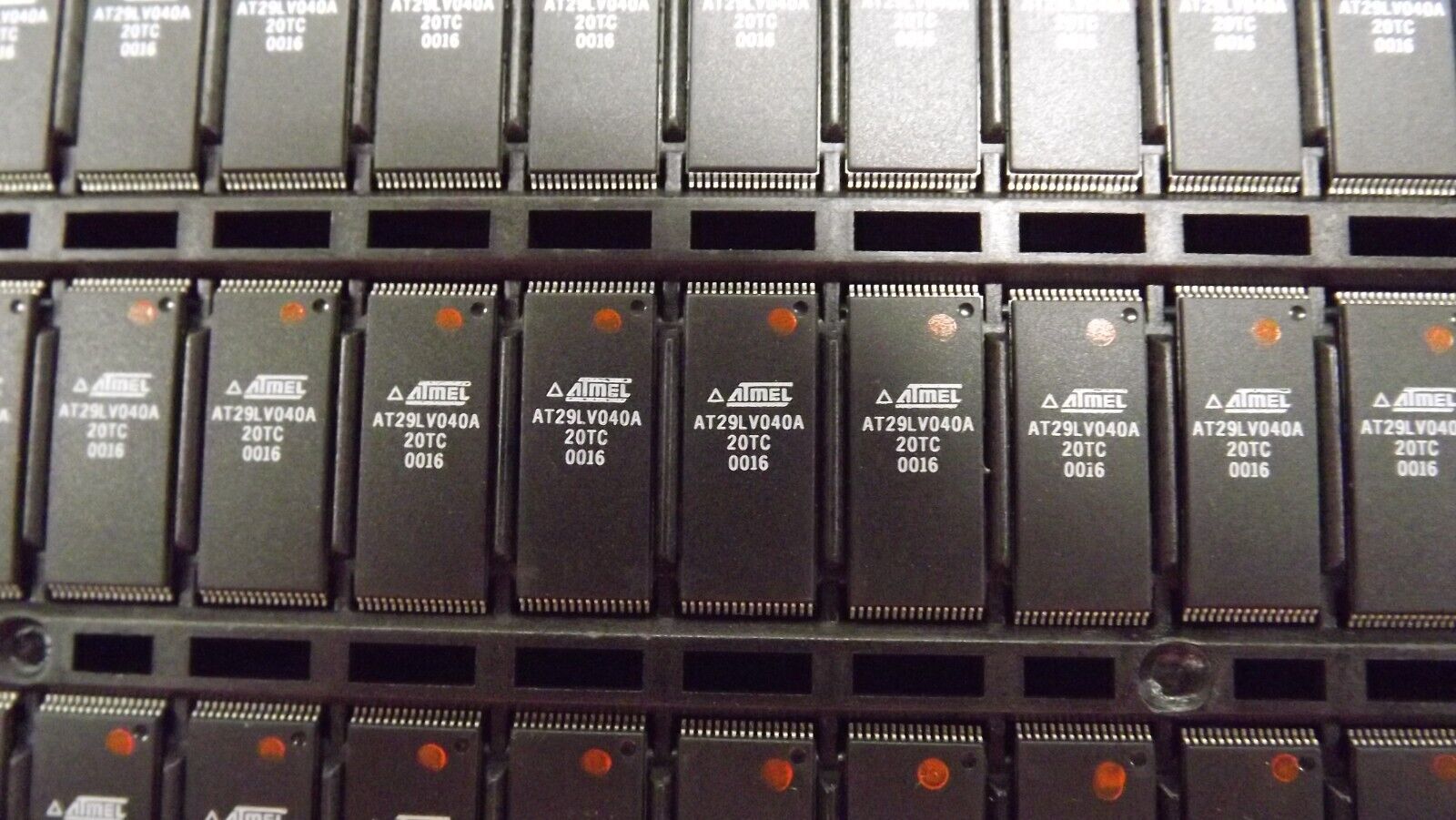

THIS LISTING IS FOR (156PCS) OF AT29LV040A-20TC BY ATMEL
Mfr Package Description 8 X 20 MM, PLASTIC, MO-142BD, TSOP1-32
REACH Compliant Yes
Status Discontinued
Type NOR TYPE
Sub Category Flash Memories
Access Time-Max 200.0 ns
Boot Block BOTTOM/TOP
Command User Interface NO
Data Polling YES
Endurance 10000.0 Write/Erase Cycles
JESD-30 Code R-PDSO-G32
JESD-609 Code e0
Memory Density 4194304.0 bit
Memory IC Type FLASH
Memory Width 8
Moisture Sensitivity Level 3
Number of Functions 1
Number of Sectors/Size 2K
Number of Terminals 32
Number of Words 524288.0 words
Number of Words Code 512K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 512KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code TSOP1
Package Equivalence Code TSSOP32,.8,20
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 240
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Standby Current-Max 4.0E-5 Amp
Supply Current-Max 0.015 Amp
Supply Voltage-Nom (Vsup) 3.3 V
Supply Voltage-Min (Vsup) 3.0 V
Supply Voltage-Max (Vsup) 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position DUAL
Toggle Bit YES
Write Cycle Time-Max (tWC) 20.0 ms
Length 18.4 mm
Width 8.0 mm
Additional Feature AUTOMATIC WRITE; HARDWARE & SOFTWARE DATA PROTECTION
