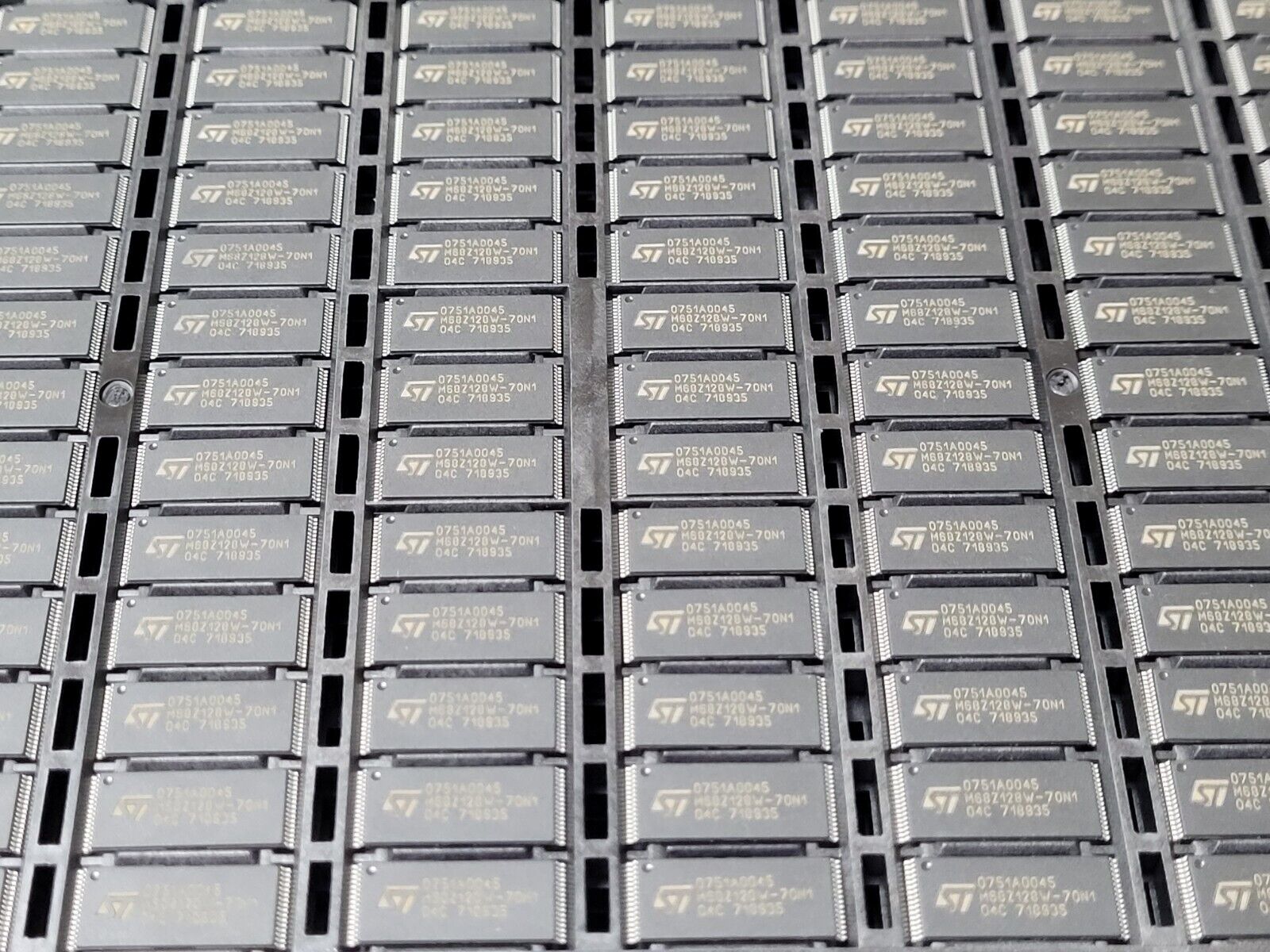

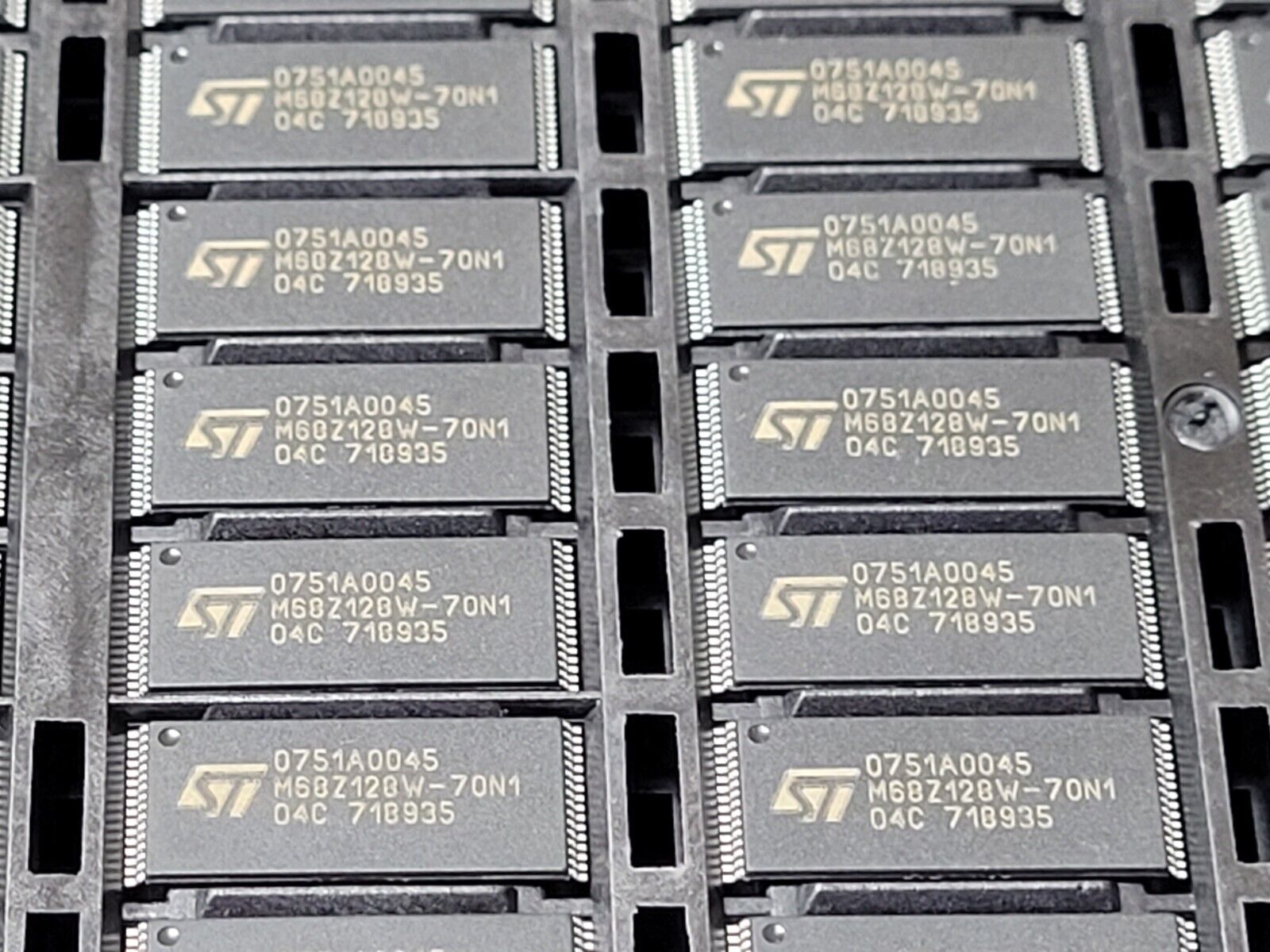

(1560 PCS) M68Z128W-70N1 STMICRO Standard SRAM, 128KX8, 70ns, CMOS, TSOP32
(1560 PCS) M68Z128W-70N1 STMICRO Standard SRAM, 128KX8, 70ns, CMOS, TSOP32
(1560 PCS) M68Z128W-70N1 STMICRO Standard SRAM, 128KX8, 70ns, CMOS, TSOP32

(1560 PCS) M68Z128W-70N1 STMICRO Standard SRAM, 128KX8, 70ns, CMOS, TSOP32

Tax included.
Only 50 left!
THIS IS FOR (1560 PCS) OF M68Z128-70N1 BY STMICRO
Standard SRAM, 128KX8, 70ns, CMOS, TSOP32

Part #: M68Z128-70N1
Part Category: Memory ICs
Manufacturer: STMicroelectronics, Inc.
Description: Standard SRAM, 128KX8, 70ns, CMOS, PDSO32

Mfr Package Description 8 X 20 MM, PLASTIC, TSOP-32
Status Discontinued
Sub Category SRAMs
Access Time-Max 70.0  ns
I/O Type COMMON
JESD-30 Code R-PDSO-G32
JESD-609 Code e0
Memory Density 1048576.0  bit
Memory IC Type STANDARD SRAM
Memory Width 8
Number of Functions 1
Number of Terminals 32
Number of Words 131072.0  words
Number of Words Code 128K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Organization 128KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code TSOP1
Package Equivalence Code TSSOP32,.8,20
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 1.2  mm
Standby Voltage-Min 2.0  V
Supply Current-Max 0.07  Amp
Supply Voltage-Nom (Vsup) 5.0  V
Supply Voltage-Min (Vsup) 4.5  V
Supply Voltage-Max (Vsup) 5.5  V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.5  mm
Terminal Position DUAL
Length 18.4  mm
Width 8.0  mm
