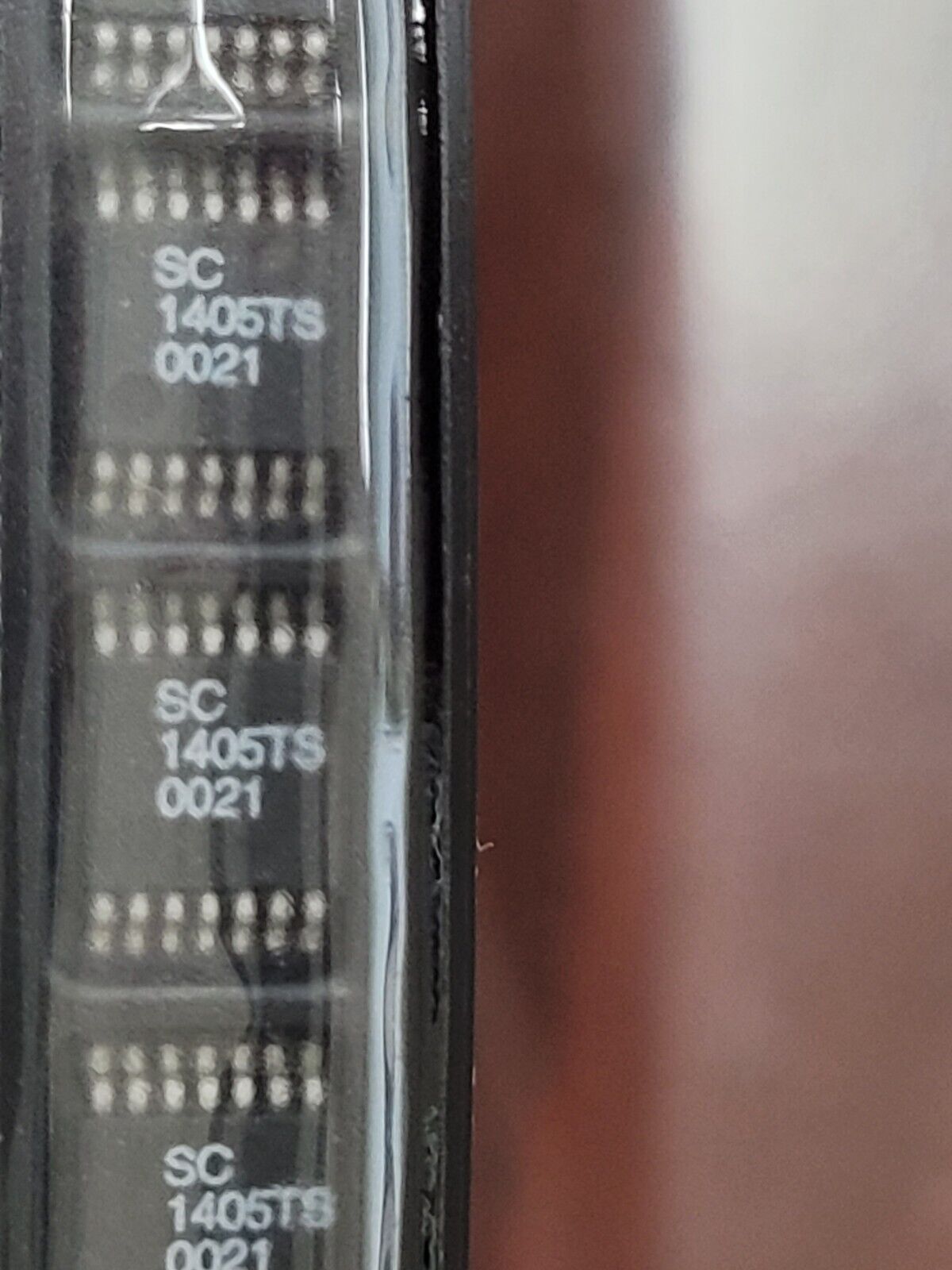

(1550 PCS) SC1405TS.TR SAMTECH Half Bridge Based MOSFET Driver, 2A, TSSOP-14

$2,300.00
Unit price per

Tax included.

THIS IS FOR (50 PCS) OF SC1405TS.TR BY SAMTECH

Half Bridge Based MOSFET Driver, 2A, TSSOP-14

Part #: SC1405TS.TR

Part Category: Interface ICs

Manufacturer: Semtech Corp.

Description: Half Bridge Based MOSFET Driver, 2A, PDSO14

Mfr Package Description 0.635 MM PITCH, MO-153AB1, TSSOP-14

Status Discontinued

Interface IC Type HALF BRIDGE BASED MOSFET DRIVER

High Side Driver YES

JESD-30 Code R-PDSO-G14

JESD-609 Code e0

Number of Functions 1

Number of Terminals 14

Output Peak Current Limit-Nom 2.0 A

Package Body Material PLASTIC/EPOXY

Package Code TSSOP

Package Equivalence Code TSSOP14,.25

Package Shape RECTANGULAR

Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

Qualification Status Not Qualified

Seated Height-Max 1.2 mm

Sub Category MOSFET Drivers

Supply Voltage-Nom 5.0 V

Supply Voltage-Min 4.15 V

Supply Voltage-Max 6.0 V

Surface Mount YES

Terminal Finish TIN LEAD

Terminal Form GULL WING

Terminal Pitch 0.65 mm

Terminal Position DUAL

Turn-off Time 0.024 µs

Turn-on Time 0.032 µs

Length 5.0 mm

Width 4.4 mm
