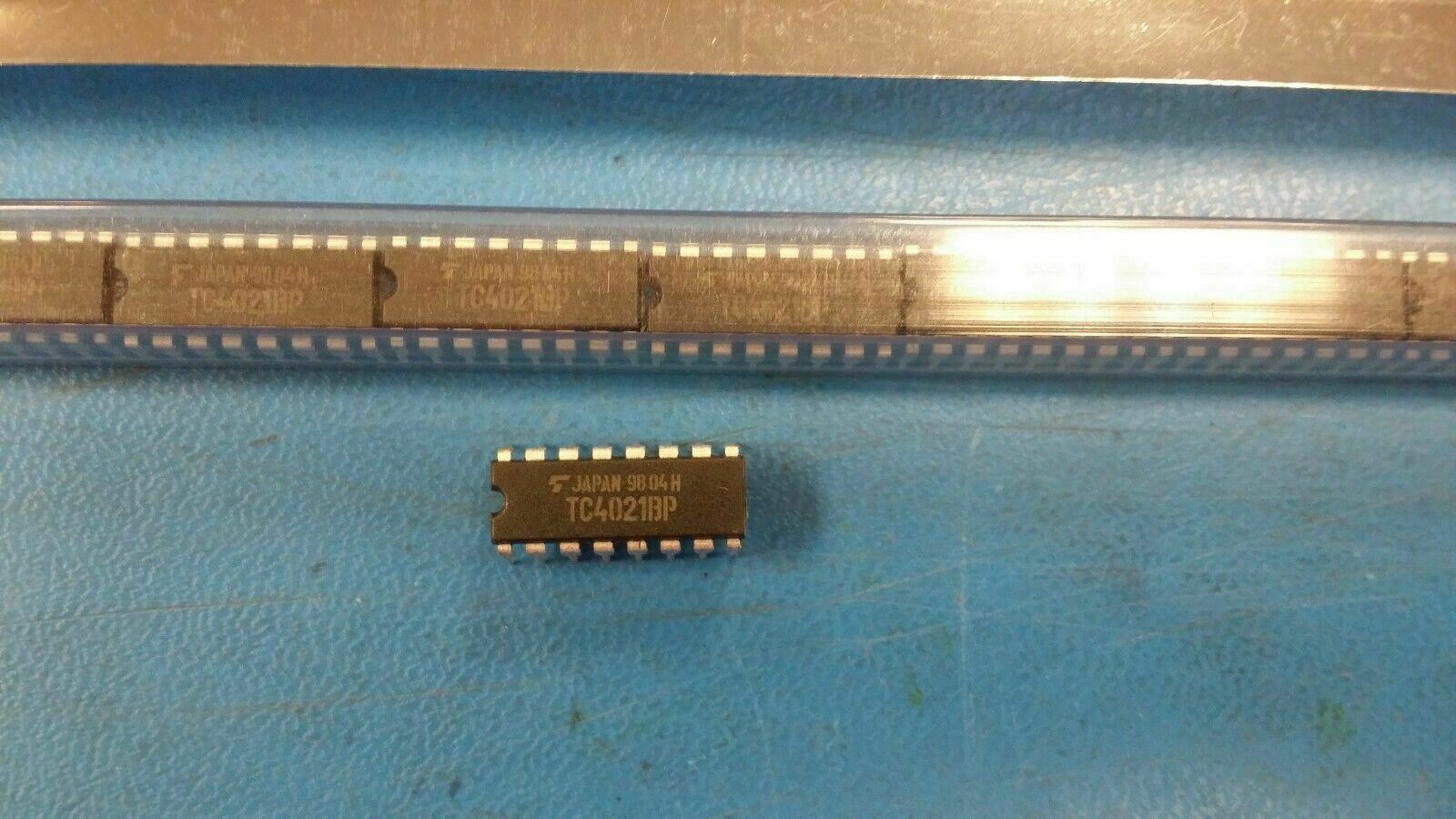

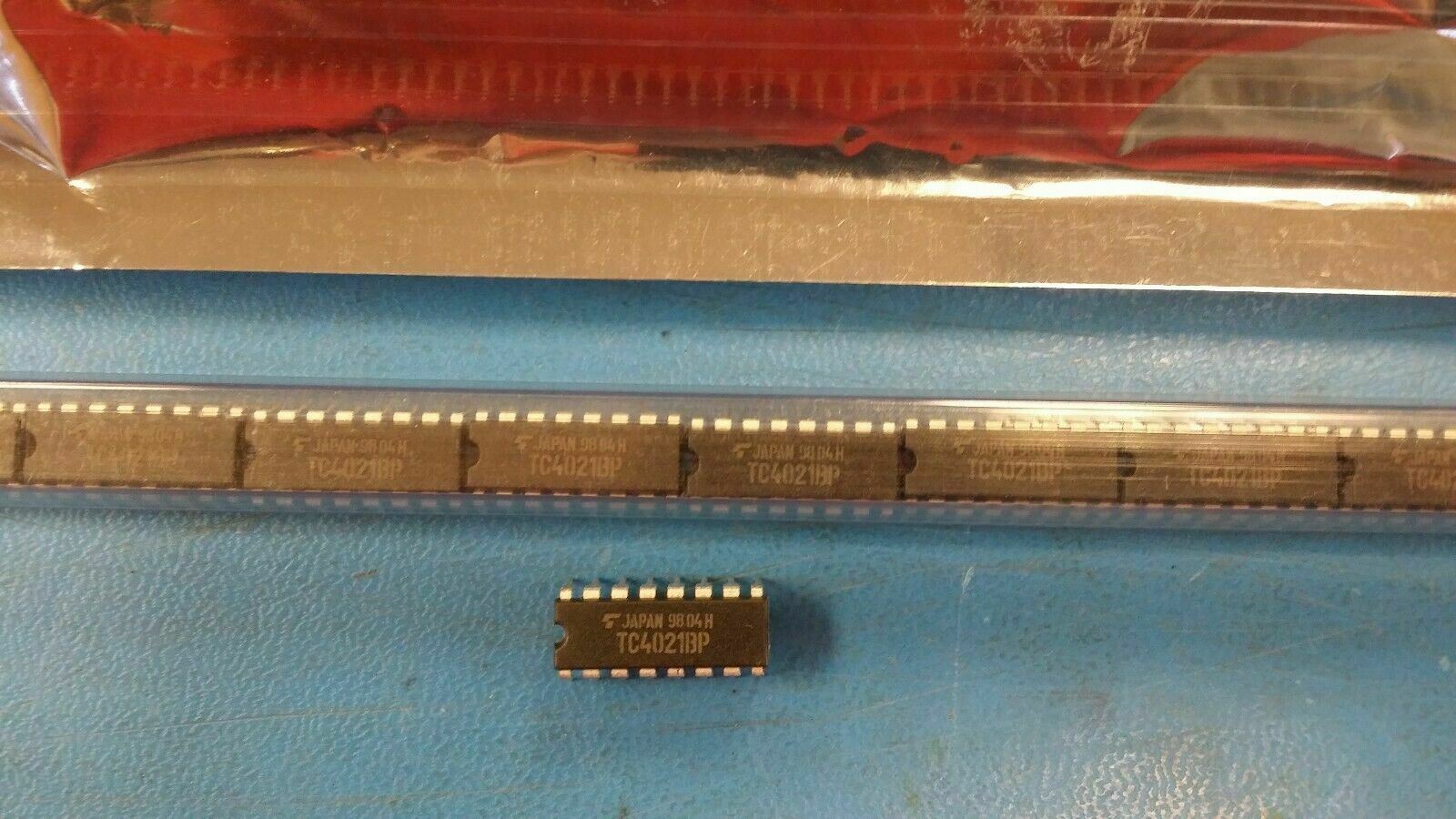

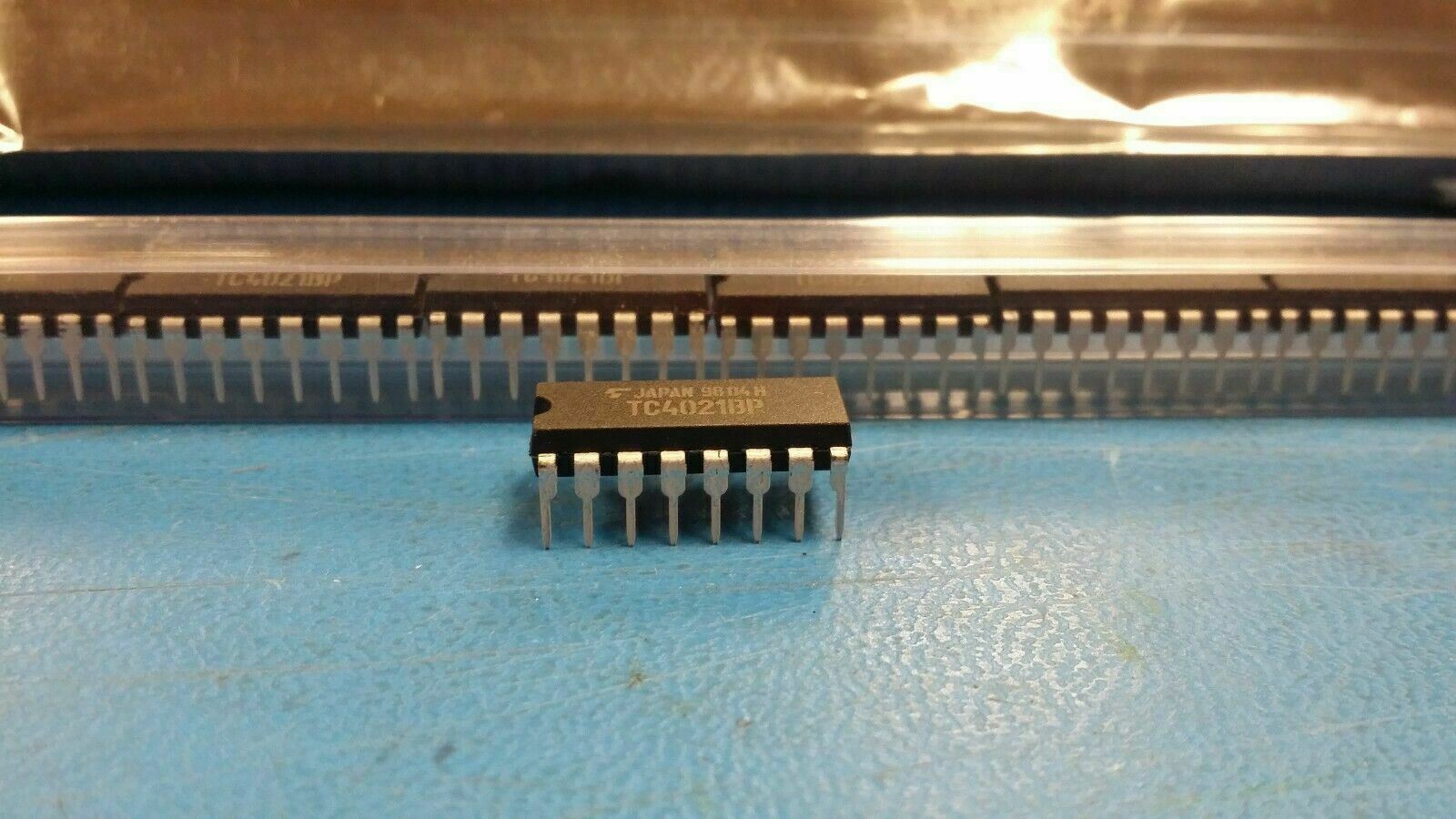

(15 PCS) TC4021BP Shift Register Single 8-Bit Serial/Parallel to Parallel PDIP16
Tax included.
THIS LISTING IS FOR (15 PCS) OF TC4021BP BY TOSHIBA
Shift Register Single 8-Bit Serial/Parallel to Parallel PDIP16
Part Category: Logic ICs
Manufacturer: Toshiba America, Inc.
Description: Parallel In Serial Out, 4000/14000/40000 Series, 8-Bit, Right Direction, True Output, CMOS, PDIP16
Manufacturer: Toshiba America, Inc.
Description: Parallel In Serial Out, 4000/14000/40000 Series, 8-Bit, Right Direction, True Output, CMOS, PDIP16
| Mfr Package Description | 0.300 INCH, 2.54 MM PITCH, PLASTIC, DIP-16 |
| Status | Transferred |
| Logic IC Type | PARALLEL IN SERIAL OUT |
| Count Direction | RIGHT |
| Family | 4000/14000/40000 |
| fmax-Min | 8.5 MHz |
| JESD-30 Code | R-PDIP-T16 |
| JESD-609 Code | e0 |
| Load Capacitance (CL) | 50.0 pF |
| Number of Bits | 8 |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Output Polarity | TRUE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | 240 |
| Propagation Delay (tpd) | 320.0 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.45 mm |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Min (Vsup) | 3.0 V |
| Supply Voltage-Max (Vsup) | 18.0 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Trigger Type | POSITIVE EDGE |
| Length | 19.25 mm |
| Width | 7.62 mm |
