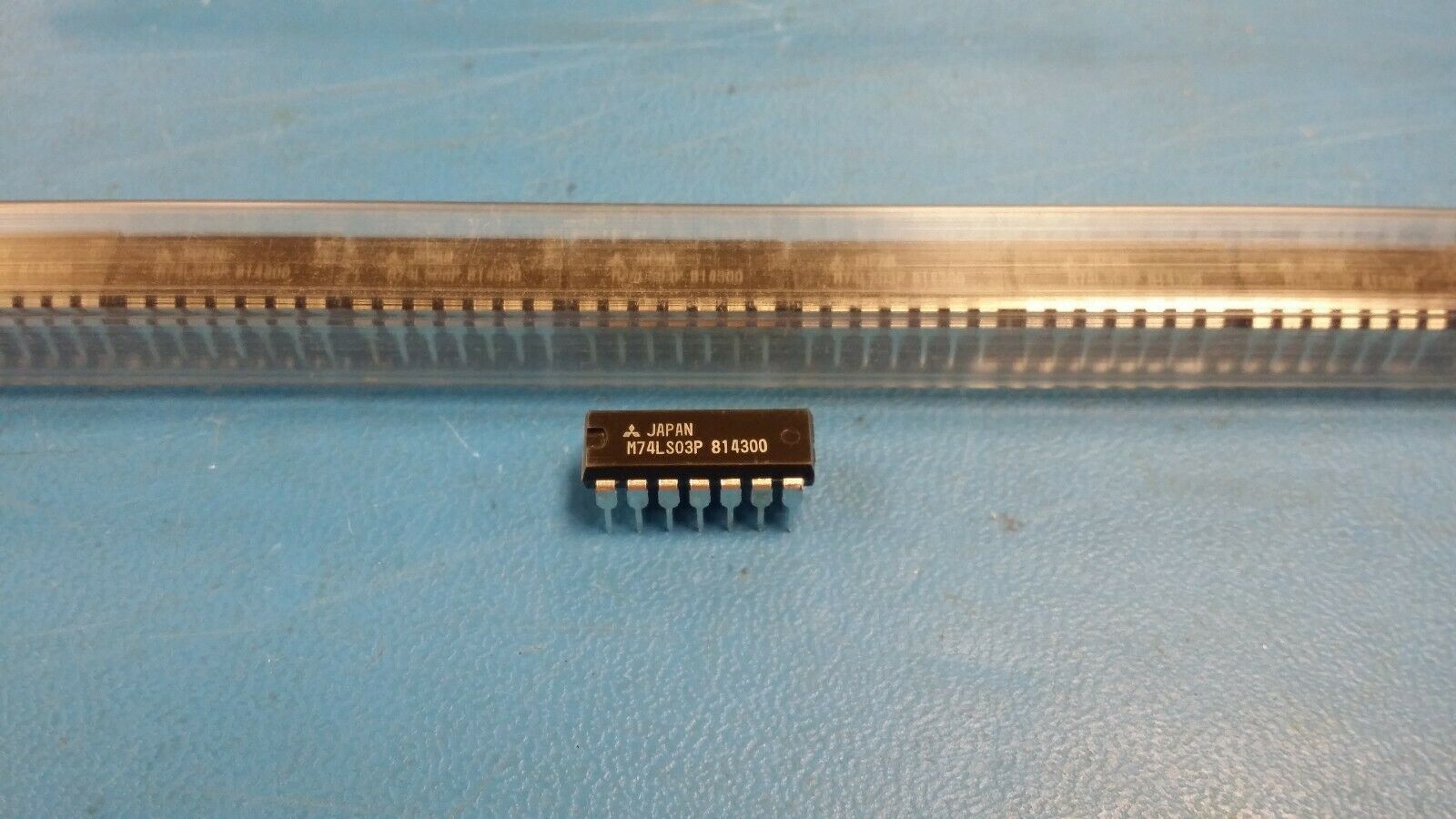

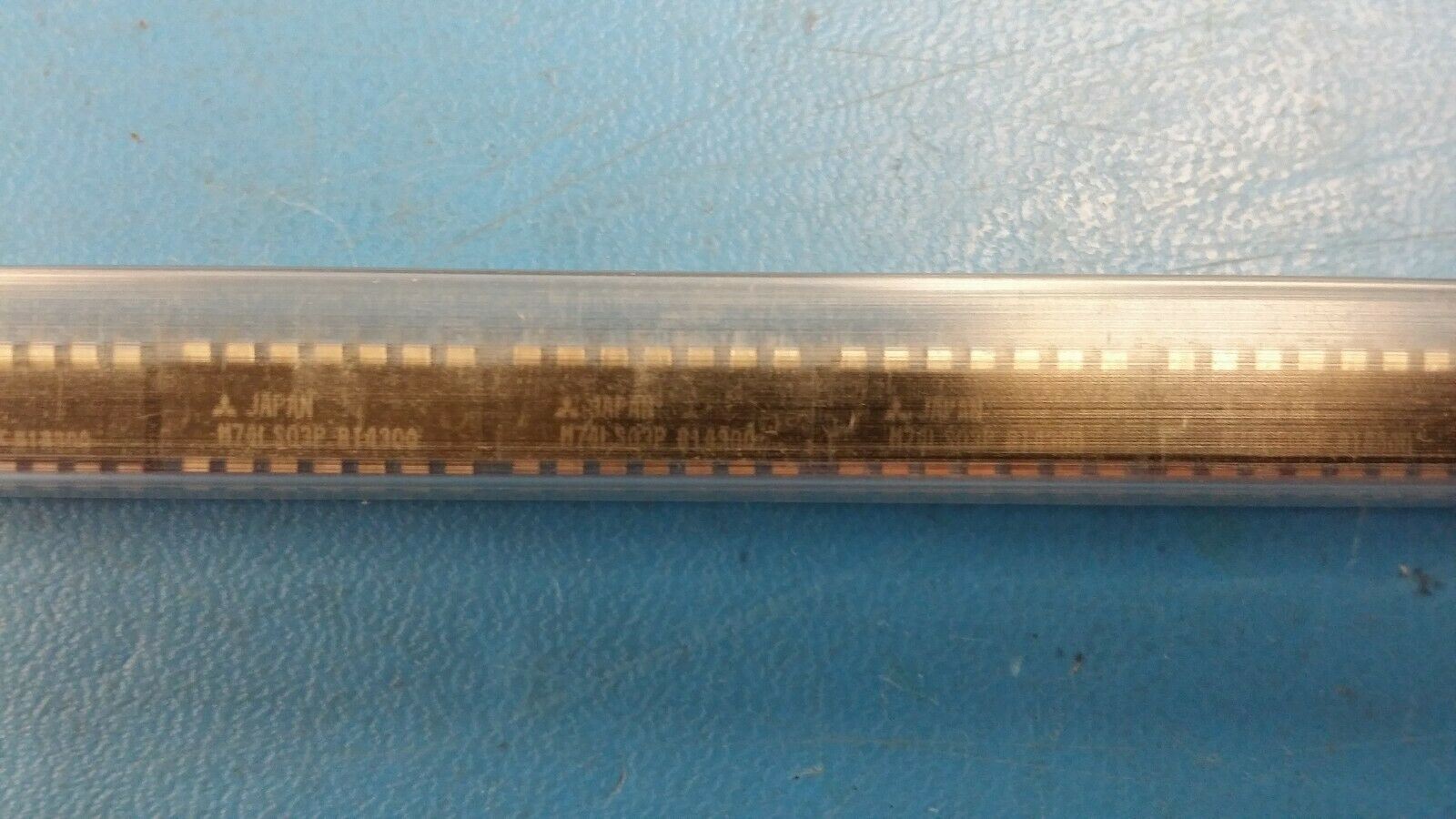

(15 PCS) M74LS03P MITSUBISHI IC GATE NAND 4CH 2-INP 14DIP
Tax included.

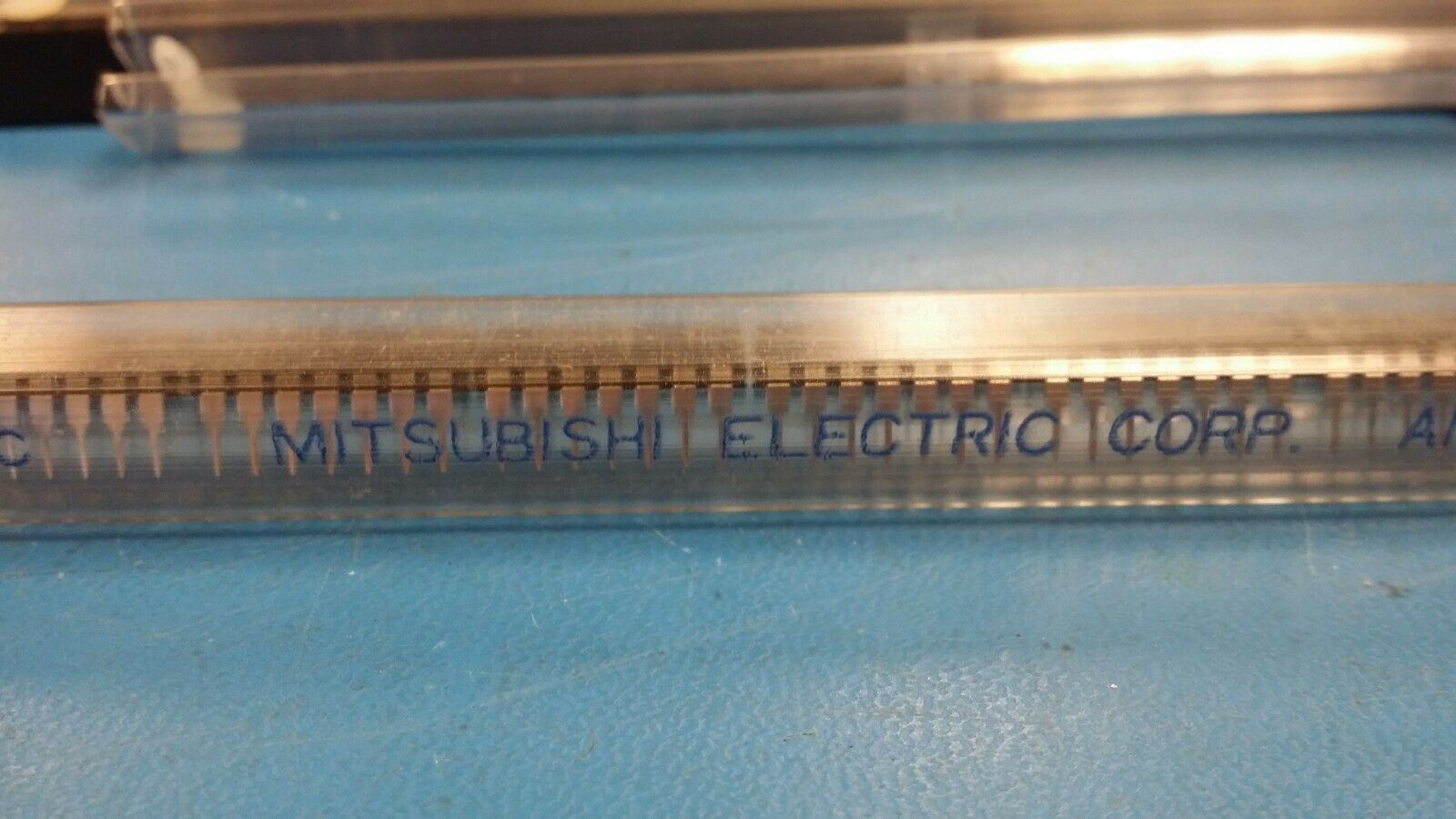

THIS LISTING IS FOR (15 PCS) OF M74LS03P BY Mitsubishi Electric Corp.
IC GATE NAND 4CH 2-INP 14DIP
Part #: M74LS03P
Part Category: Logic ICs
Manufacturer: Mitsubishi Electric & Electronics USA, Inc.
Description: NAND Gate, LS Series, 4-Func, 2-Input, TTL, PDIP14
Mfr Package Description PLASTIC, DIP-14
Status Active-Unconfirmed
Logic IC Type NAND GATE
Sub Category Gates
Family LS
JESD-30 Code R-PDIP-T14
JESD-609 Code e0
Max I(ol) 0.008 Amp
Number of Functions 4
Number of Inputs 2.0
Number of Terminals 14
Operating Temperature-Min -20.0 Cel
Operating Temperature-Max 75.0 Cel
Output Characteristics OPEN-COLLECTOR
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Prop. Delay@Nom-Sup 32.0 ns
Propagation Delay (tpd) 32.0 ns
Qualification Status Not Qualified
Schmitt Trigger NO
Seated Height-Max 4.5 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL EXTENDED
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 19.0 mm
Width 7.62 mm
