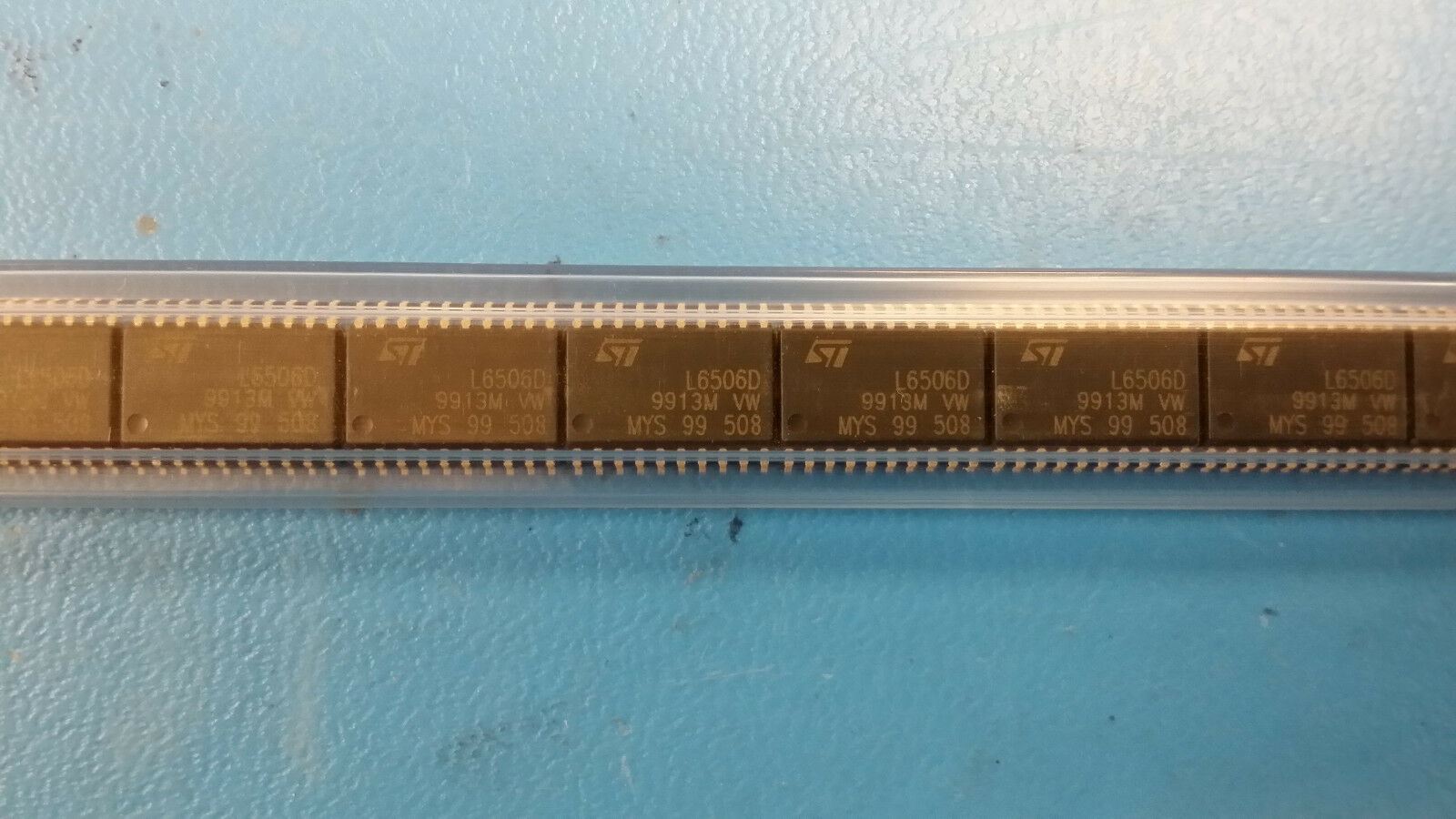

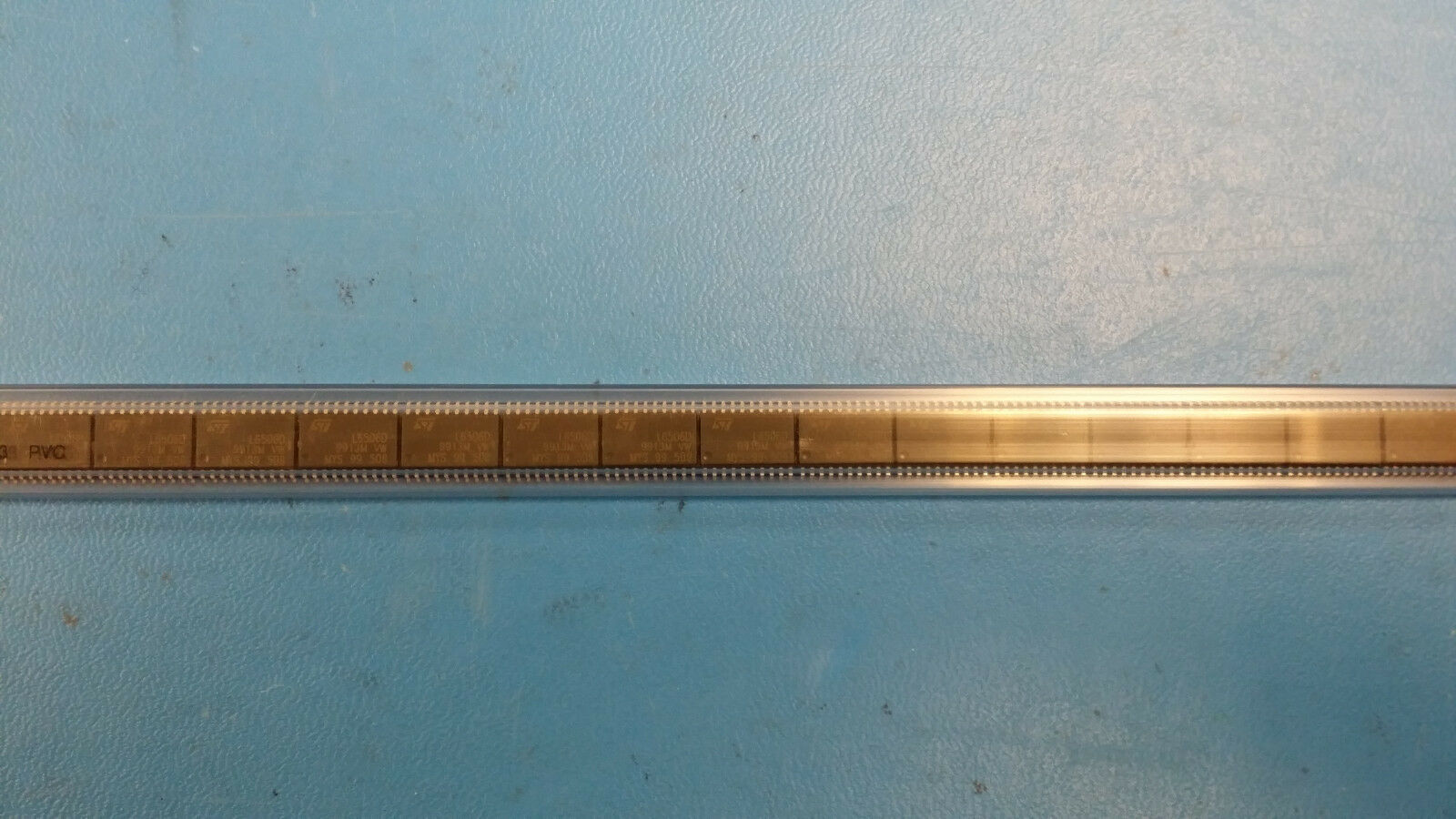

(15 PCS) L6506D ST MICRO Stepper Motor Controller 5V 20-Pin SOIC

  • $21.95
    Unit price per
Tax included.

Only 33 left!

THIS LISTING IS FOR (15 PCS) OF L6506D BY ST MICRO
Stepper Motor Controller 5V 20-Pin SOIC

Part #: L6506D

Part Category: Other Semiconductors
Manufacturer: STMicroelectronics, Inc.
Description: STEPPER MOTOR CONTROLLER, PDSO20
Mfr Package Description

SO-20
REACH Compliant Yes
Status Active
Analog IC - Other Type STEPPER MOTOR CONTROLLER
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 20
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP20,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Power Supplies (V) 5
Qualification Status Not Qualified
Seated Height-Max 2.65 mm
Sub Category Motion Control Electronics
Supply Current-Max (Isup) 25.0 mA
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 7.0 V
Surface Mount YES
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 12.8 mm
Width 7.5 mm
