(14PCS) 5.0SMDJ13CA TVS DIODE 13V 21.5V DO214AB

  • $17.50
    Unit price per
Tax included.

Only 1 left!

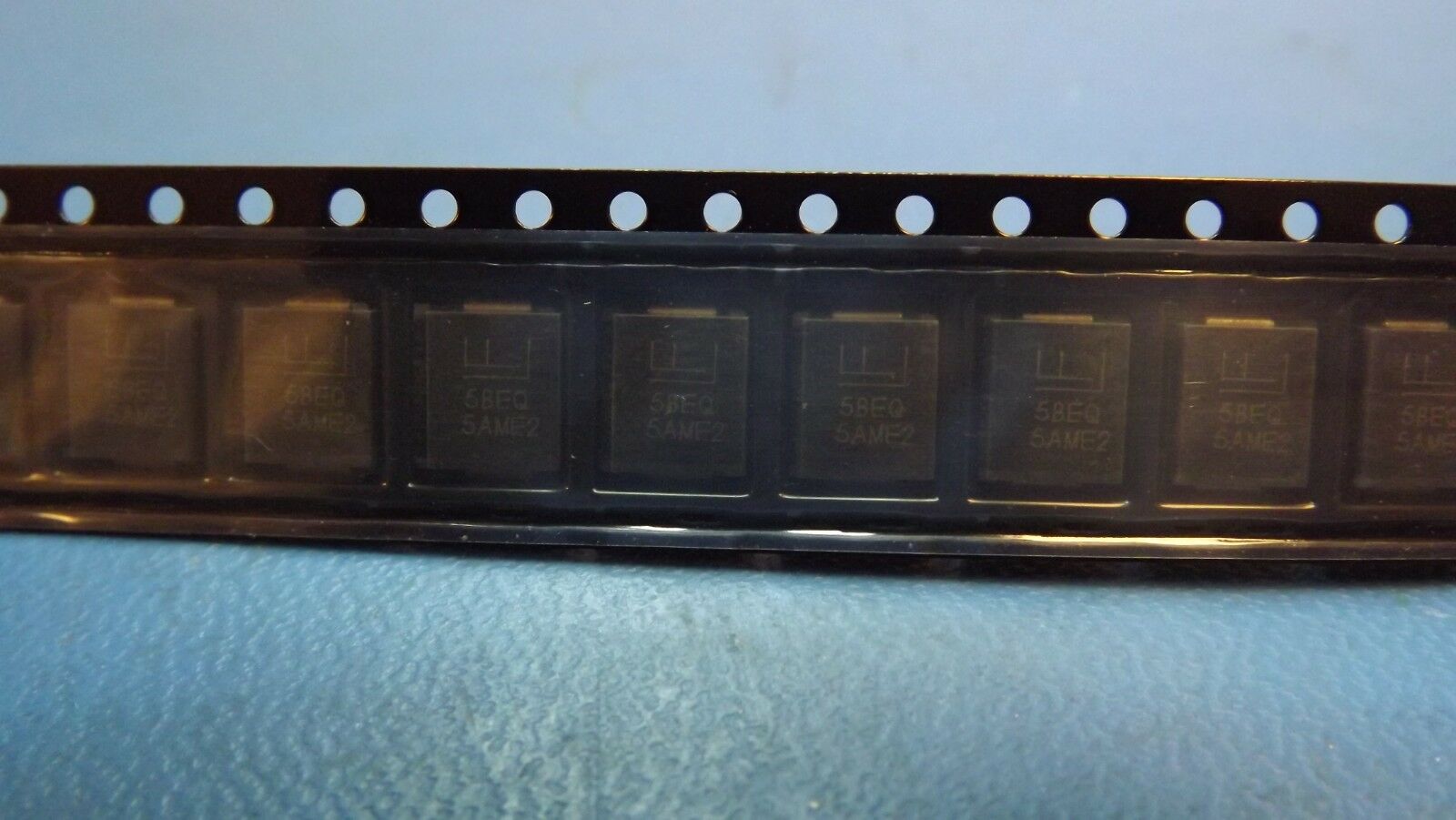

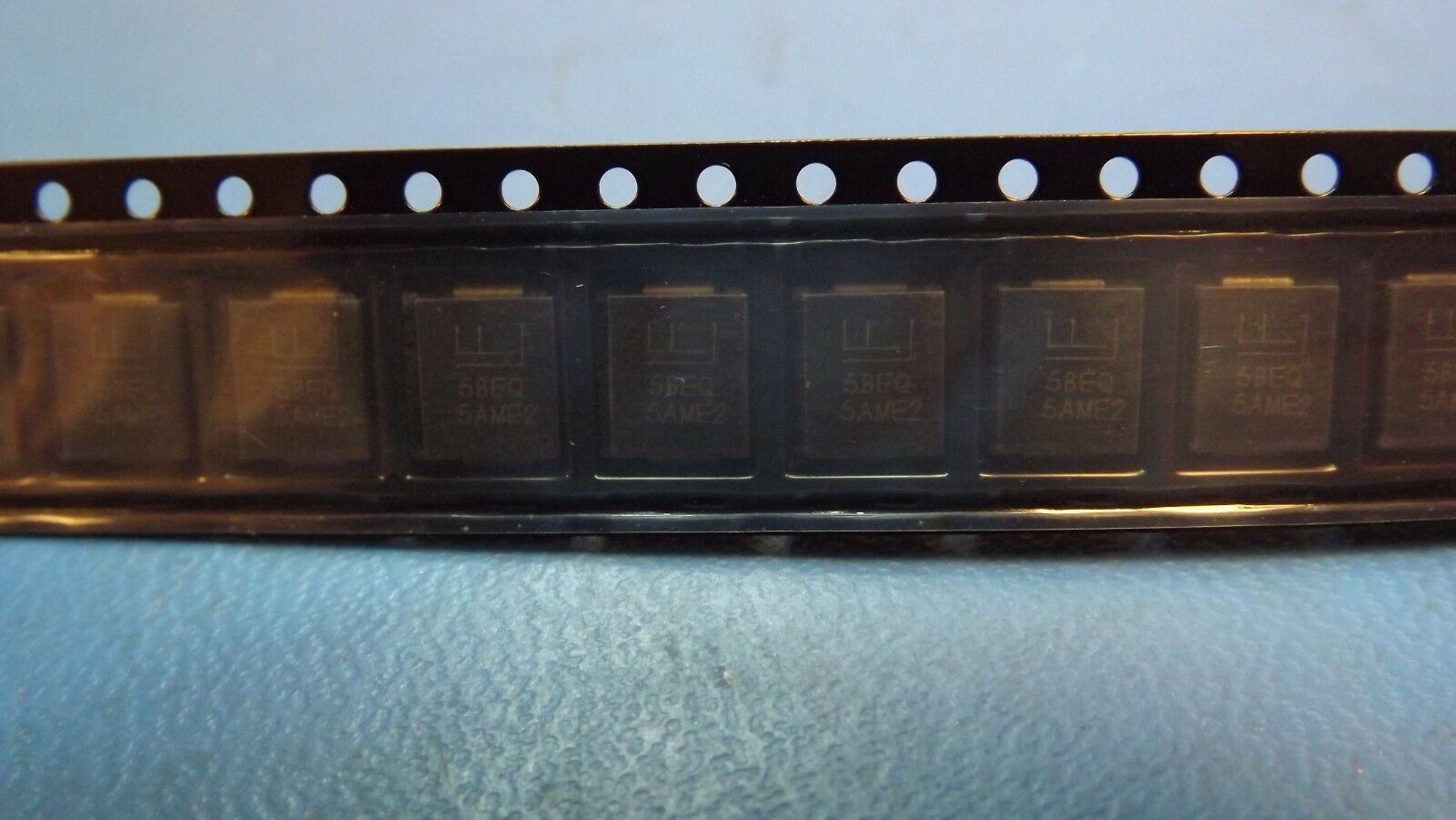

THIS LISTING IS FOR (14PCS) OF 5.0SMDJ13CA BY LITTELFUSE

SPECIFICATIONS

Mfr Package Description SMC, 2 PIN
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Breakdown Voltage-Nom 15.15  V
Breakdown Voltage-Min 14.4  V
Breakdown Voltage-Max 15.9  V
Clamping Voltage-Max 21.5  V
Configuration SINGLE
Diode Element Material SILICON
JEDEC-95 Code DO-214AB
JESD-30 Code R-PDSO-J2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 5000.0  W
Number of Elements 1.0
Number of Terminals 2
Operating Temperature-Min -65.0  Cel
Operating Temperature-Max 150.0  Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity BIDIRECTIONAL
Power Dissipation-Max 6.5  W
Qualification Status Not Qualified
Reference Standard IEC-61000-4-2; IEC-61000-4-4
Rep Pk Reverse Voltage-Max 13.0  V
Sub Category Transient Suppressors
Surface Mount YES
Technology AVALANCHE
Terminal Finish Matte Tin (Sn)
Terminal Form J BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Additional Feature EXCELLENT CLAMPING CAPABILITY, UL RECOGNIZED
