(13PCS) SA11A TVS DIODE 11VWM 18.2VC DO204AC
Tax included.

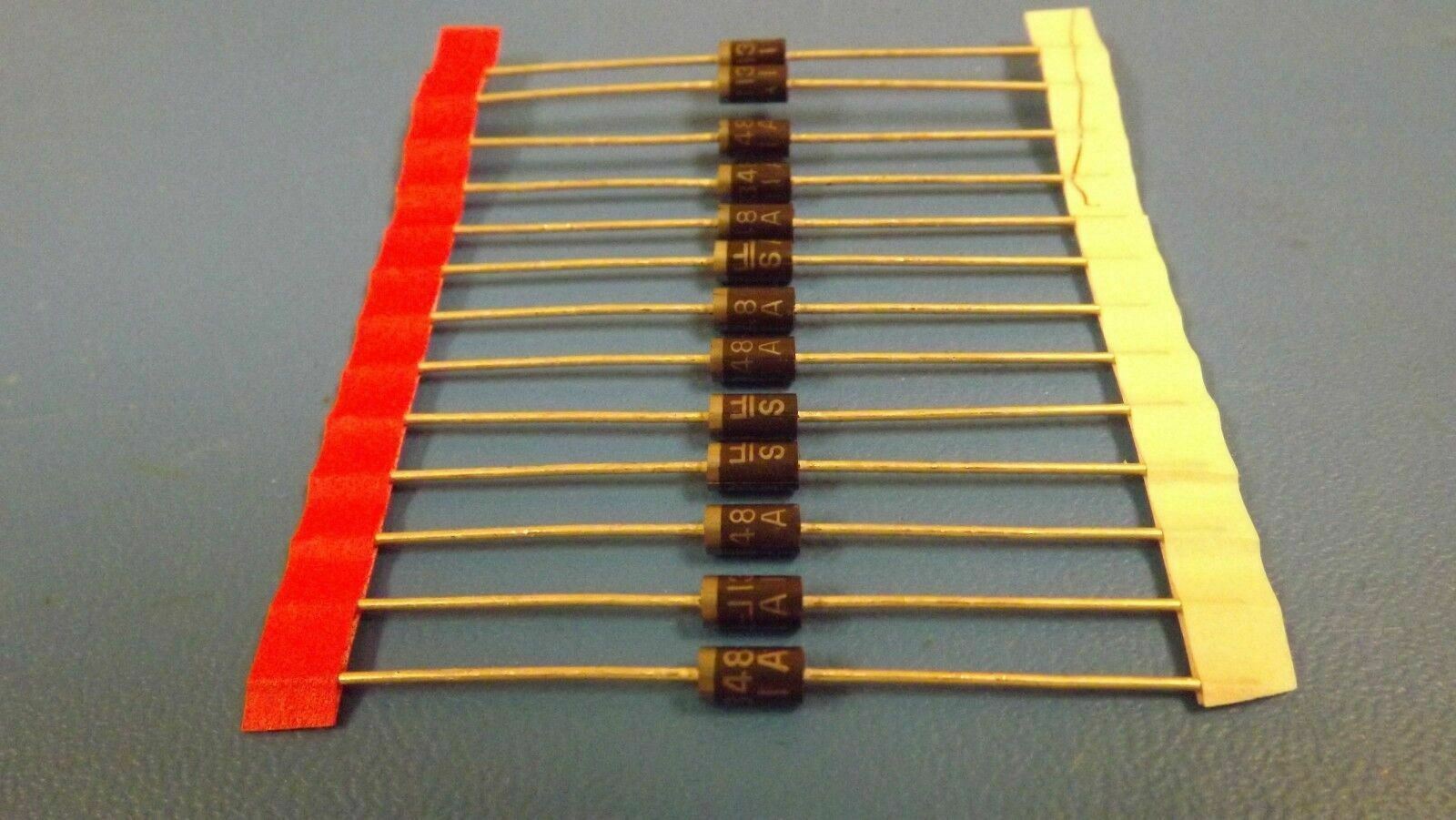

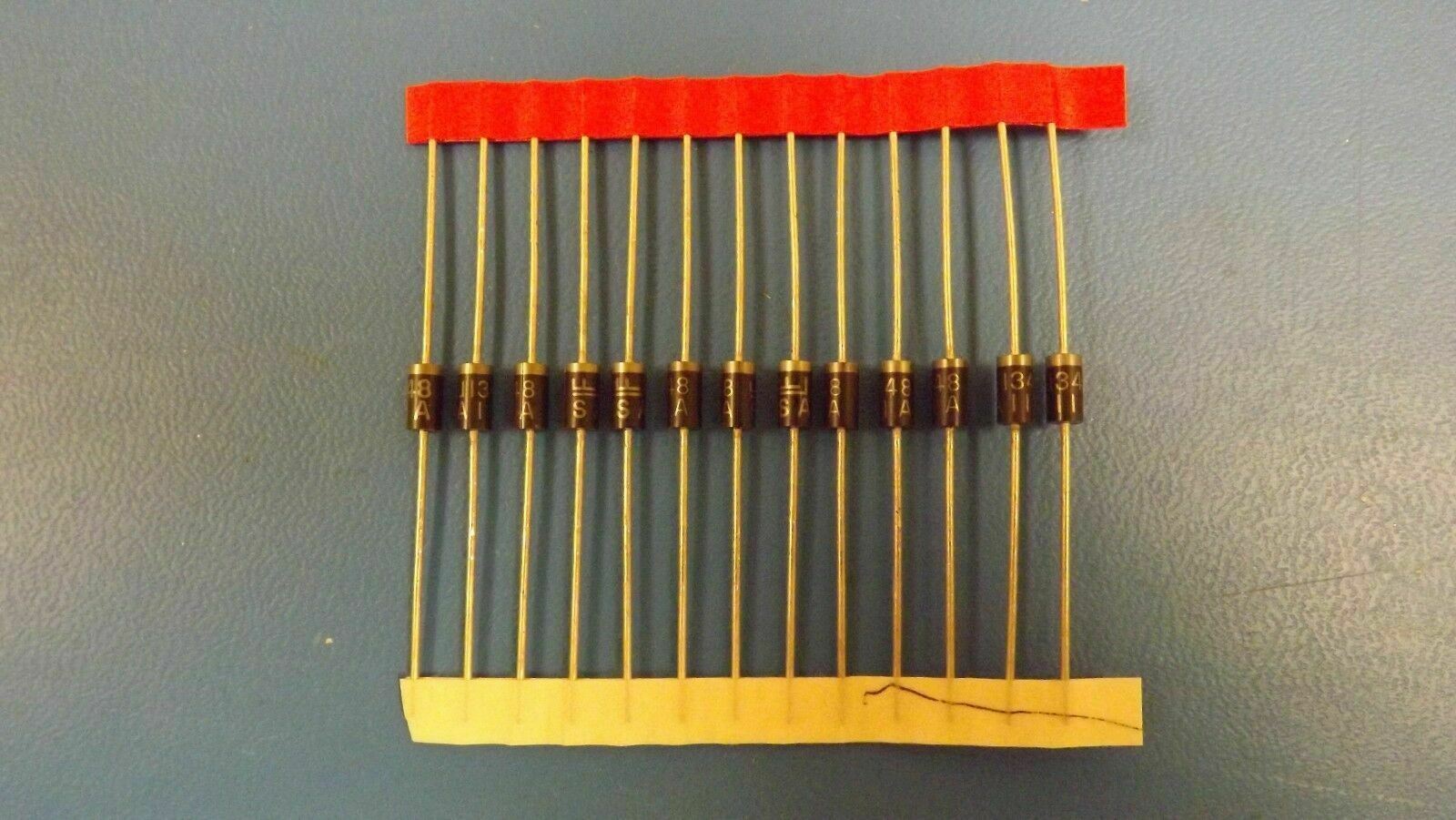

THIS LISTING IS FOR (13PCS) OF SA11A BY LITTELFUSE
SPECIFICATIONS
| Mfr Package Description | PLASTIC, DO-15, 2 PIN |
| Status | Transferred |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE |
| Breakdown Voltage-Min | 12.2 V |
| Breakdown Voltage-Max | 13.5 V |
| Case Connection | ISOLATED |
| Clamping Voltage-Max | 18.2 V |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| JEDEC-95 Code | DO-204AC |
| JESD-30 Code | O-PALF-W2 |
| Non-rep Peak Rev Power Dis-Max | 500 W |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Min | -55 Cel |
| Operating Temperature-Max | 175 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | ROUND |
| Package Style | LONG FORM |
| Polarity | UNIDIRECTIONAL |
| Power Dissipation-Max | 3 W |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 11 V |
| Reverse Current-Max | 3 µA |
| Surface Mount | NO |
| Technology | AVALANCHE |
| Terminal Form | WIRE |
| Terminal Position | AXIAL |
