(120 PC) 9091-05-10 COTO REED RELAY, SPST, 5V, MAG SHIELD ROHS
Tax included.

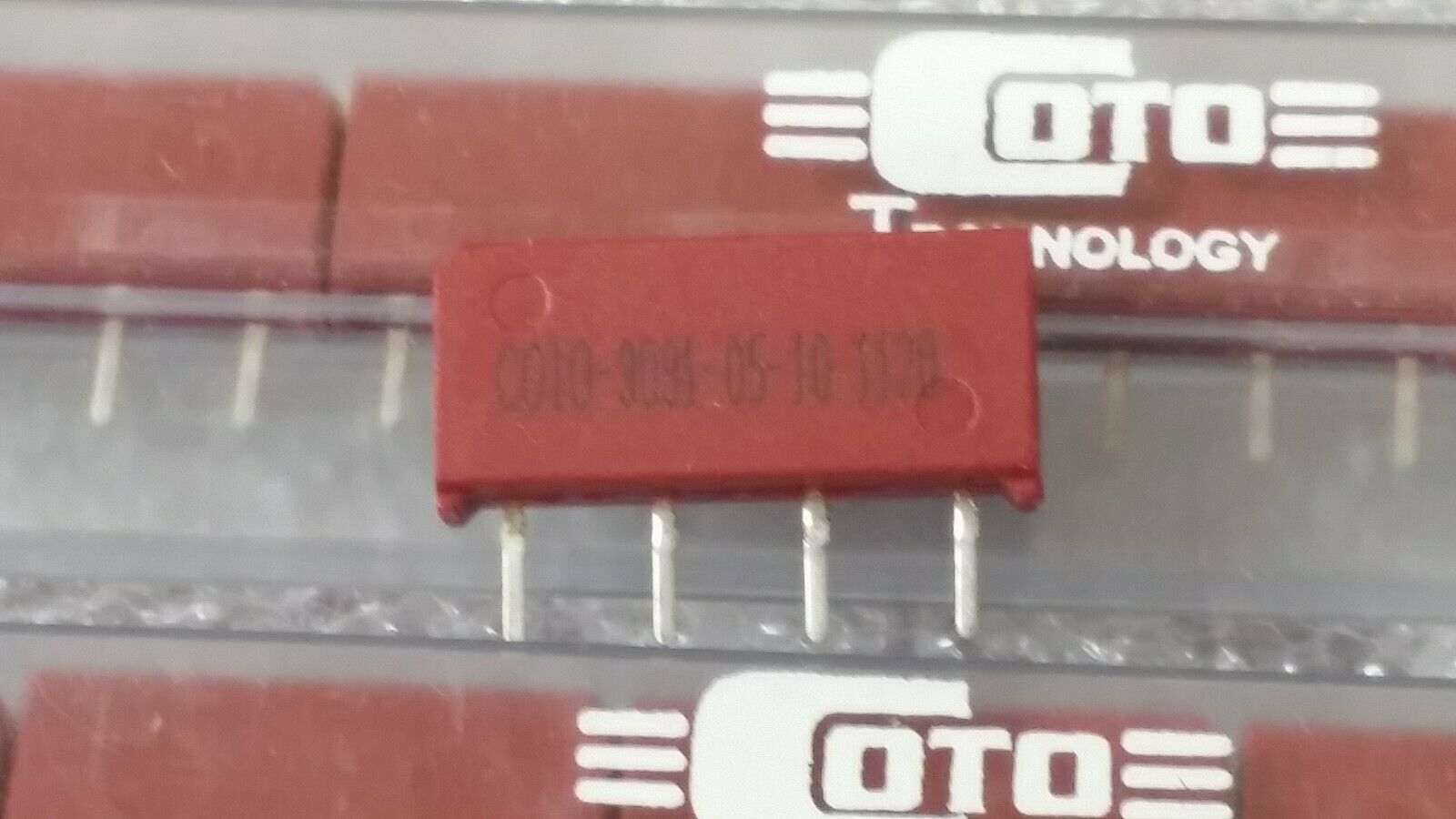

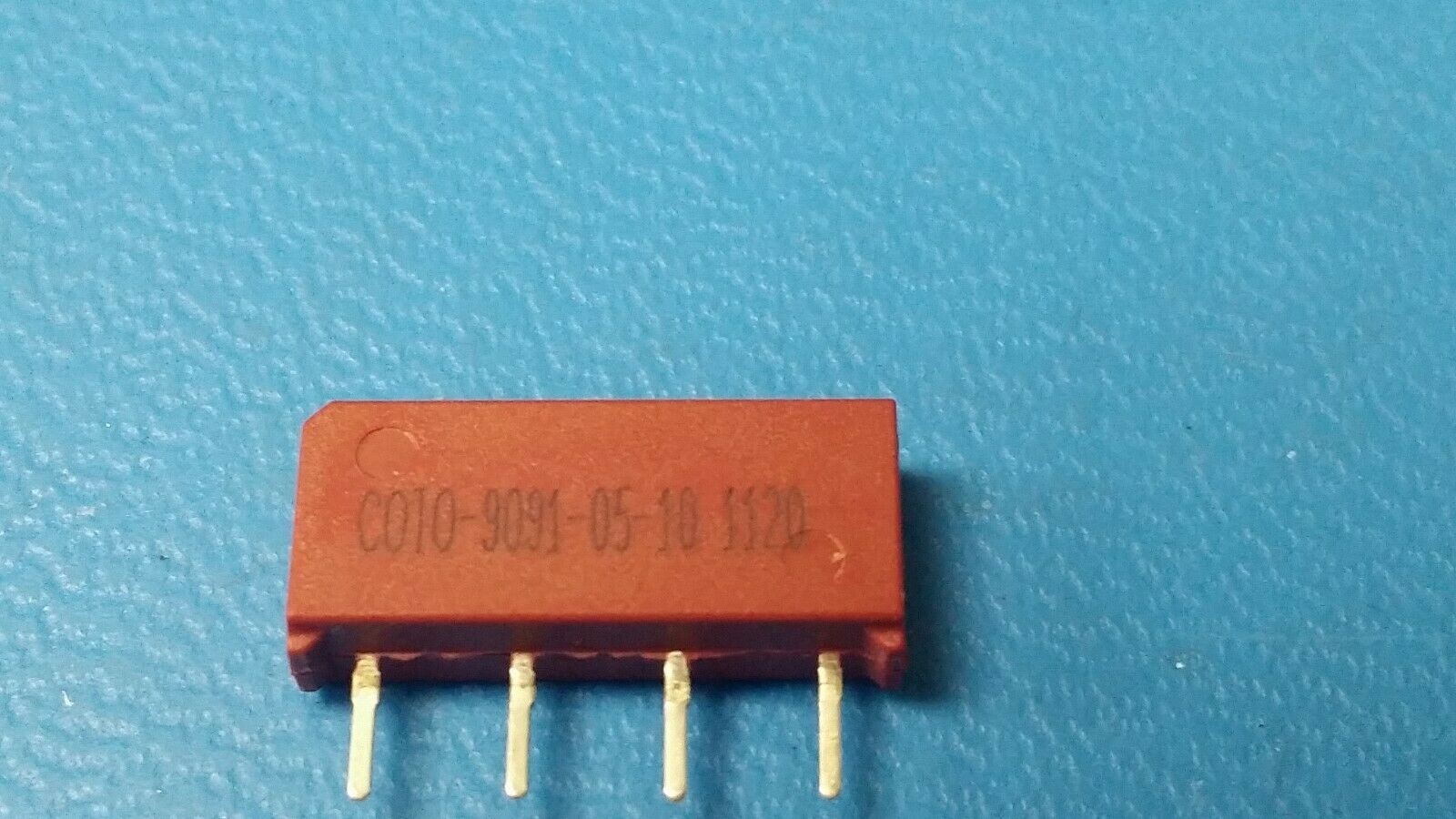

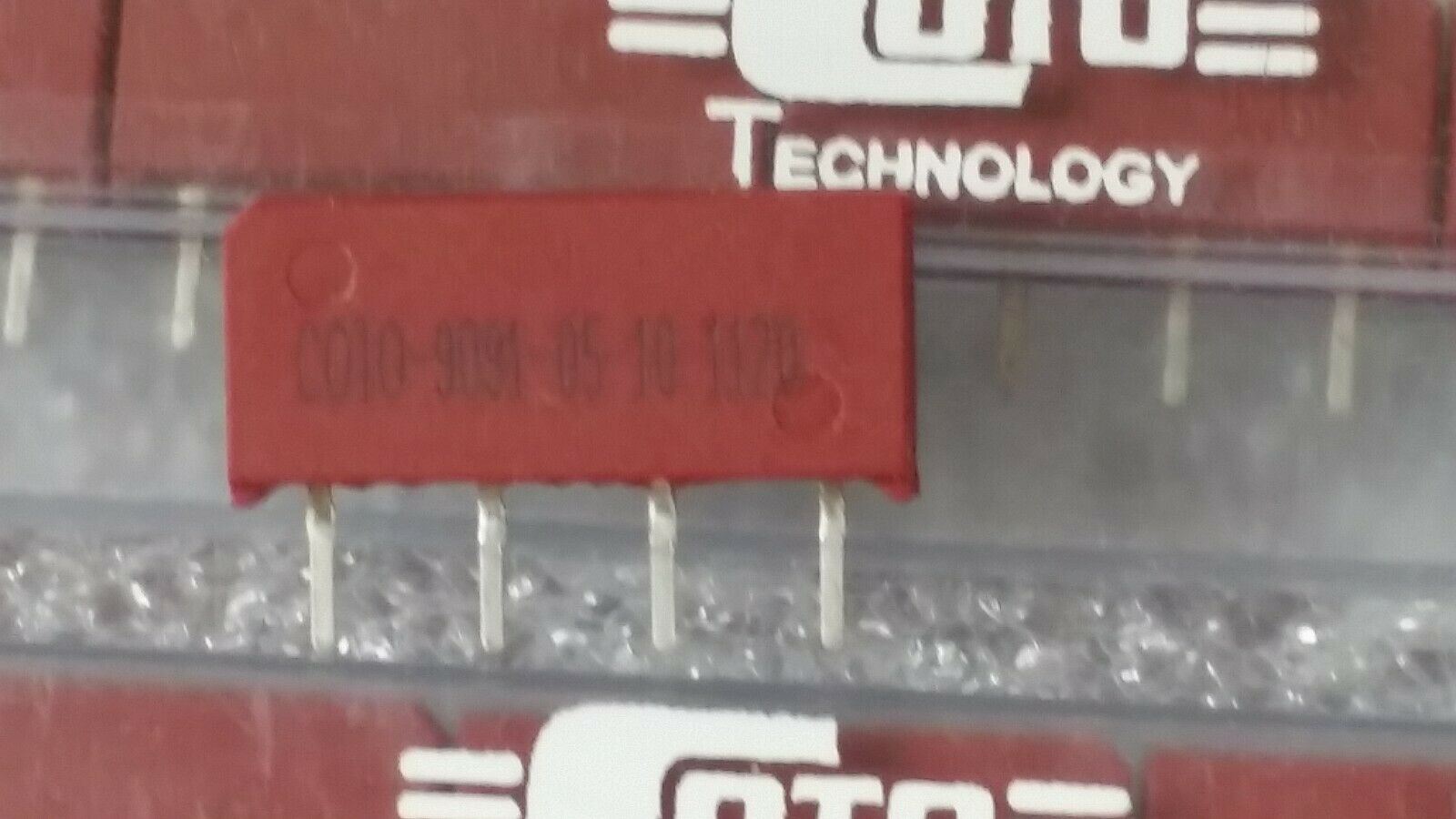

THIS IS FOR (120 PCS) OF 9091-05-10 BY COTO
REED RELAY, SPST, 5V, MAG SHIELD ROHS
Mfr Coto Technology
Series 9091
Package Tube
Part Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 500 mA
Switching Voltage 200VAC, 200VDC - Max
Coil Current 10 mA
Coil Type Non Latching
Features EMI Shielded
Termination Style PC Pin
Seal Rating -
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.4 VDC
Operate Time 0.5 ms
Release Time 0.3 ms
Operating Temperature -20°C ~ 85°C
Contact Material -
Coil Resistance 500 Ohms
Base Product Number 9091
