(11PCS) QS3251S IDT 1 Bus Switch 1-Element CMOS 8-IN 16-Pin SOIC
Tax included.

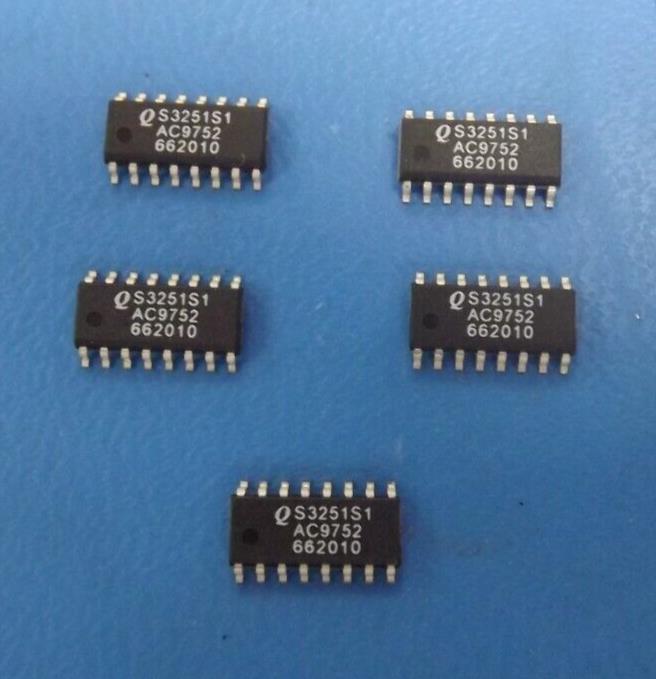

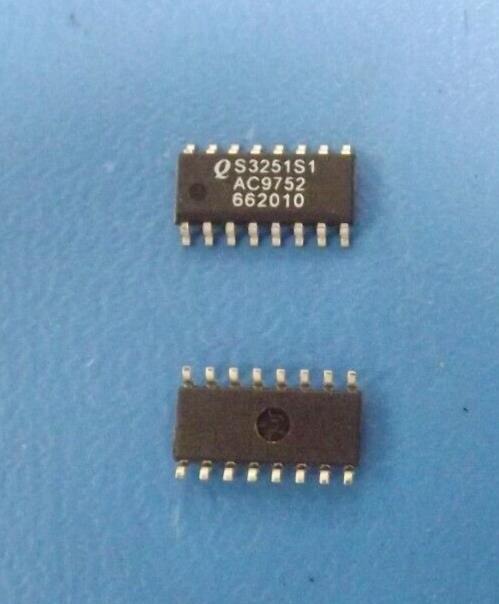

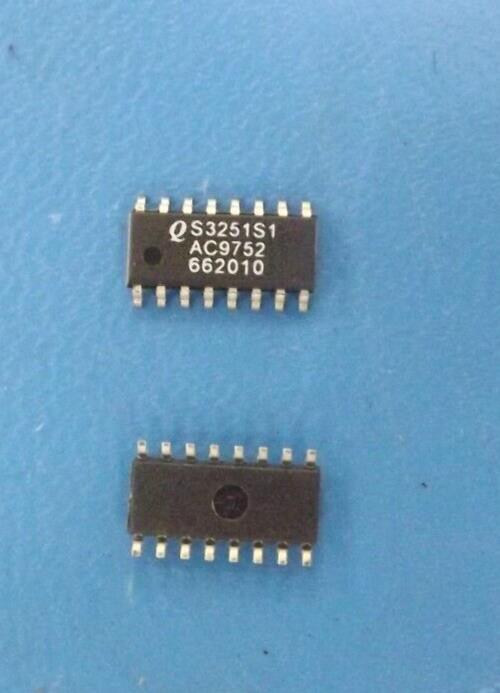

THIS LISTING IS FOR (11PCS) OF QS3251S1 BY IDT
Mfr Package Description SOIC-16
Status Discontinued
Logic IC Type BUS EXCHANGER
Sub Category Other Logic ICs
Control Type ENABLE LOW
Count Direction BIDIRECTIONAL
Family CBT/FST/QS/5C/B
JESD-30 Code R-PDSO-G16
JESD-609 Code e0
Load Capacitance (CL) 50.0 pF
Moisture Sensitivity Level 1
Number of Bits 8
Number of Functions 1
Number of Inputs 1.0
Number of Outputs 8.0
Number of Ports 2
Number of Terminals 16
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Packing Method TR
Peak Reflow Temperature (Cel) 240
Prop. Delay@Nom-Sup 0.25 ns
Propagation Delay (tpd) 0.25 ns
Qualification Status Not Qualified
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
