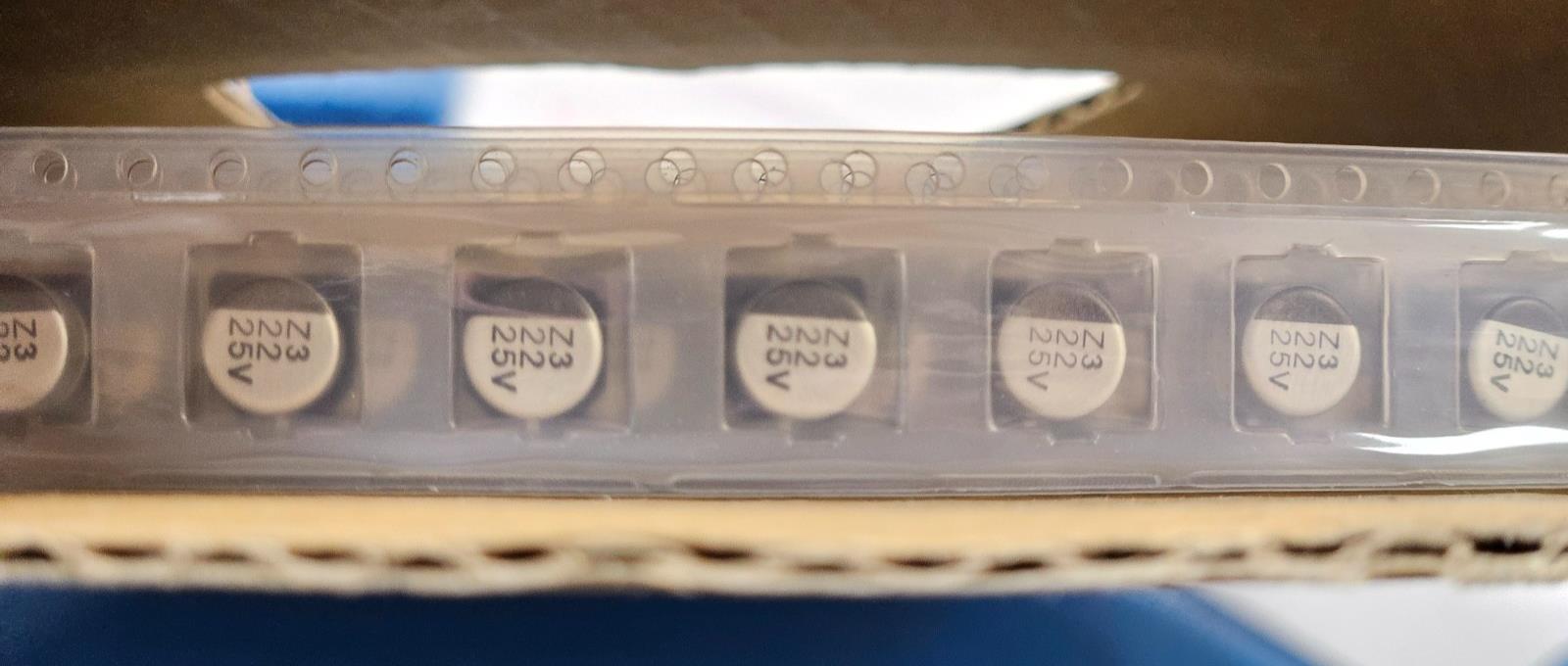

(10PCS) UWX1E220MCL1GB Nichicon Aluminum Electrolytic Capacitor 25V, 22uF 20%
Tax included.

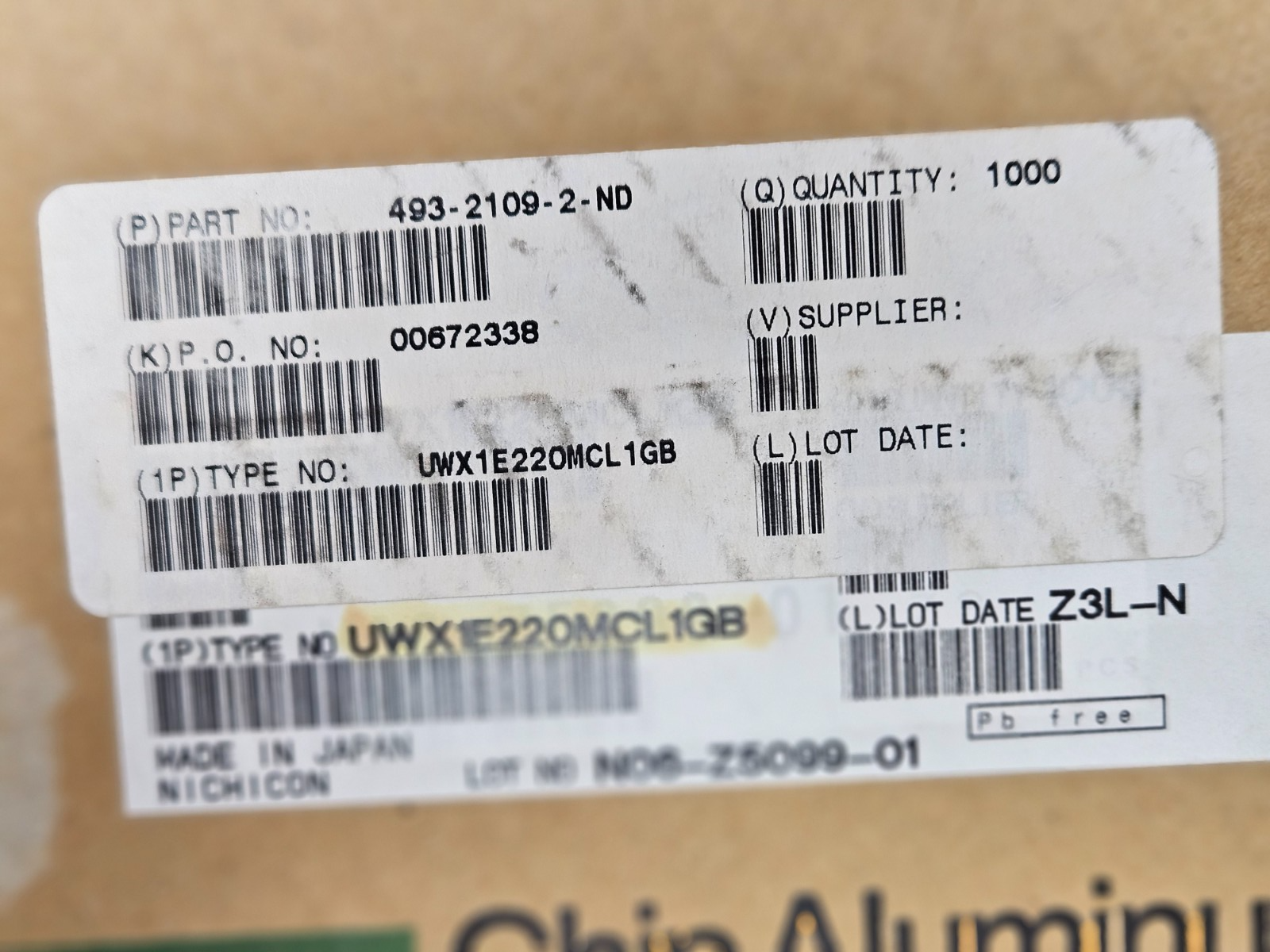

This listing is for (10PCS) of UWX1E220MCL1GB by Nichicon
Status Discontinued
Capacitance (uF) 22.0000000000000000
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Dielectric Material ALUMINUM (WET)
Height (mm) 5.400000
J-STD-609 Code e6
Leakage Current (mA) .0055
Length (mm) 6.6000
Mounting Feature SURFACE MOUNT
Negative Tolerance (%) 20.0000
Number of Terminals 2
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -40
Package Shape CYLINDRICAL PACKAGE
Package Style SMT
Packing Method TAPE
Polarity POLARIZED
Positive Tolerance (%) 20.0000
Rated DC Voltage (URdc) (V) 25.0000
Screening Level / Reference Standard AEC-Q200
Ripple Current (mA) 42
Size Code 2626
Tan Delta 0.14
Terminal Finish Tin/Bismuth (Sn/Bi)
Terminal Shape FLAT
Width (mm) 6.6000
