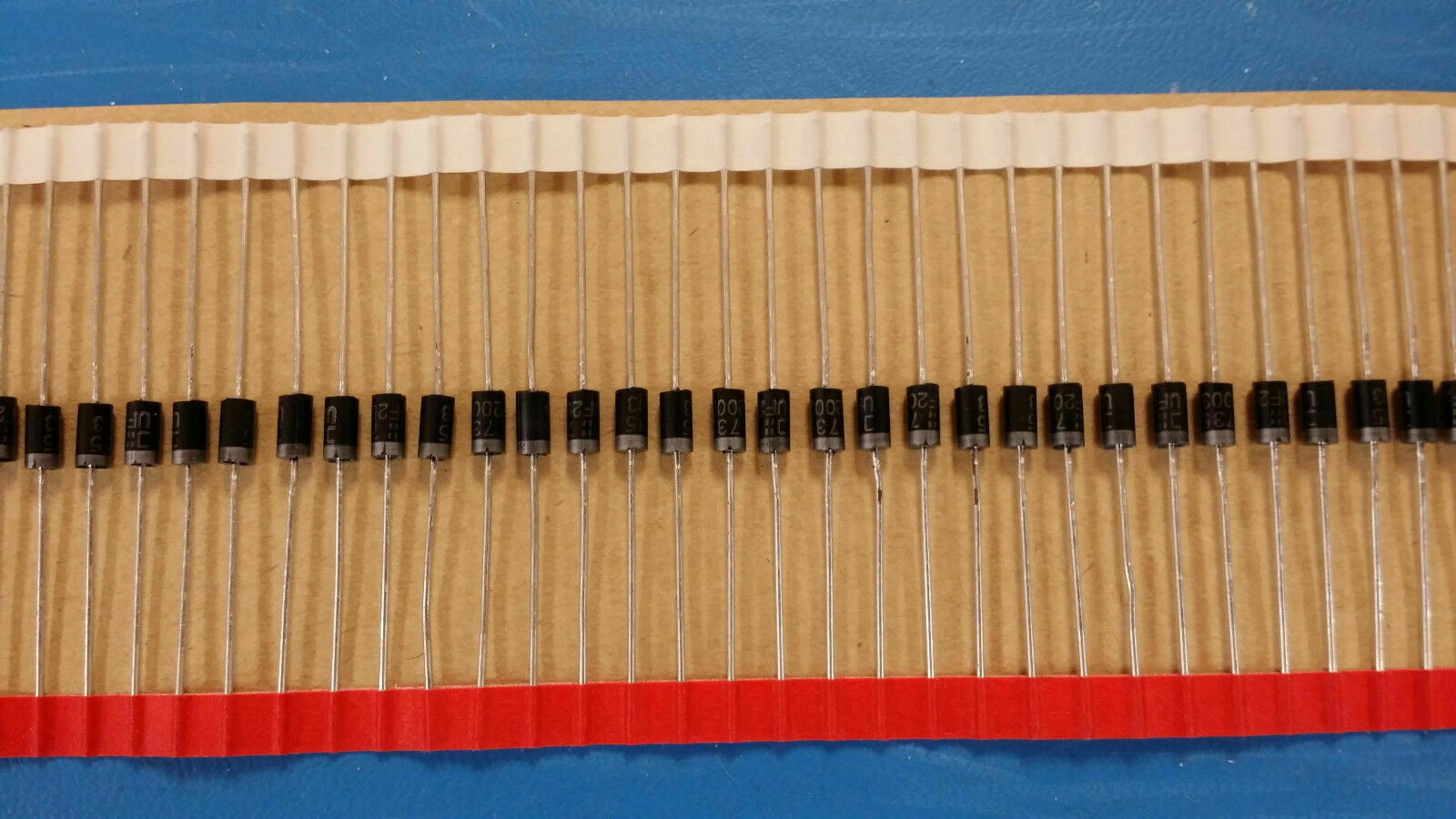

(10PCS) UF2003 Diode Switching 200V 2A 2-Pin DO-15
Tax included.

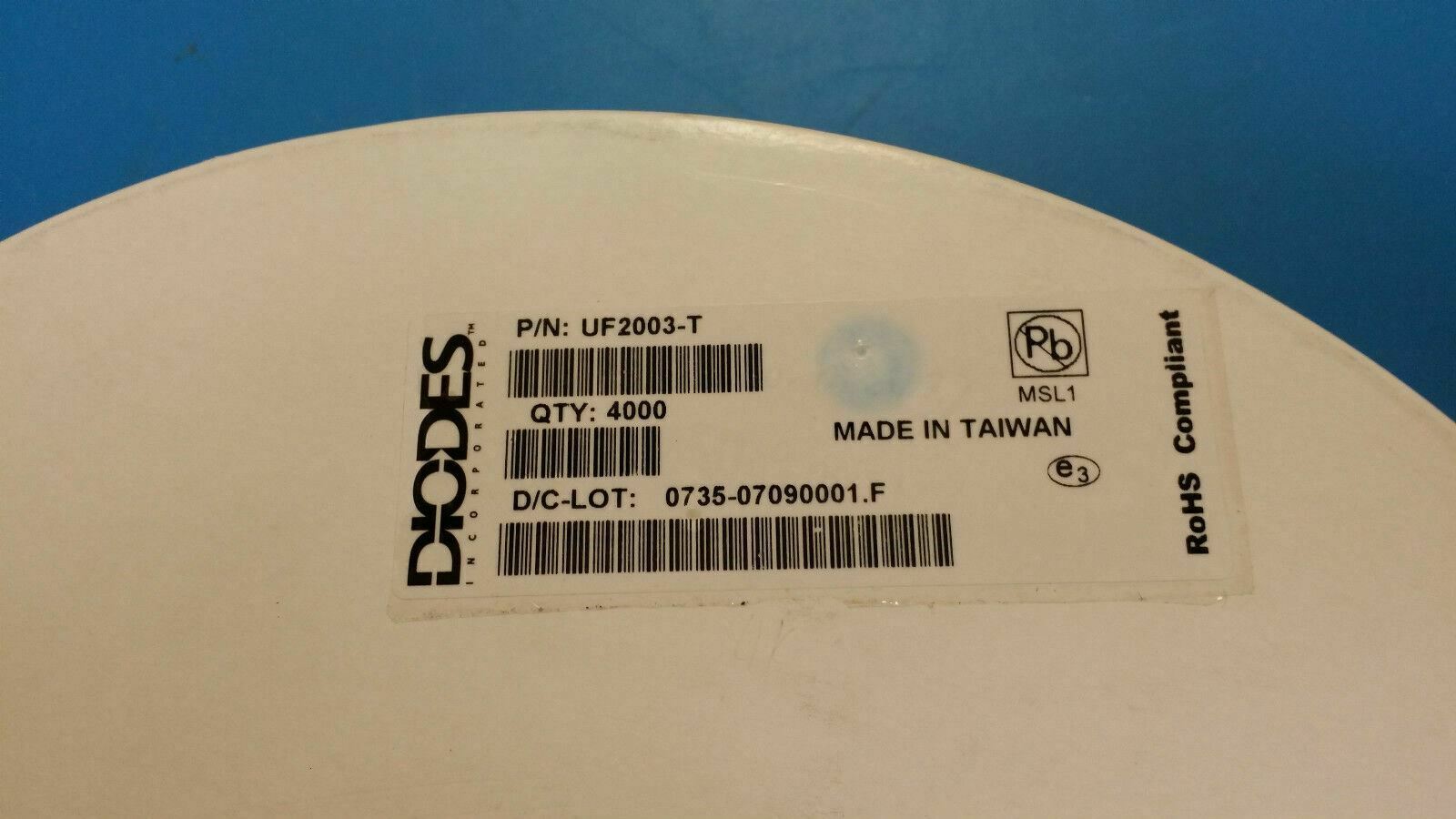

THIS LISTING IS FOR (10PCS) OF UF2003 BY DIODES INC.
Diode Switching 200V 2A 2-Pin DO-15
***WE CURRENTLY HAVE 32000PCS IN STOCK AND WILL GLADLY MAKE DEALS ON LARGER QUANTITES. PLEASE SEND OFFERS OR INQUIRIES.***
UF2003 Part Details & Parametric
| EU RoHS |
Compliant
|
| Minimum Operating Temperature (°C) | -65 |
| Maximum Operating Temperature (°C) | 150 |
| Type | Switching Diode |
| Peak Reverse Current (uA) | 5 |
| Configuration | Single |
| Packaging | Tape and Reel |
| Peak Reverse Repetitive Voltage (V) | 200 |
| Maximum Continuous Forward Current (A) | 2@Ta=50C |
| Peak Reverse Recovery Time (ns) | 50 |
| Peak Forward Voltage (V) | 1 |
| Peak Non-Repetitive Surge Current (A) | 60 |
| Operating Junction Temperature (°C) | -65 to 150 |
| Package Diameter (mm) | 3.6(Max) |
| Mounting | Through Hole |
| Package Length (mm) | 7.6(Max) |
| PCB | 2 |
| Standard Package Name | DO-204-AC |
| Supplier Package | DO-15 |
| Pin Count | 2 |
| Lead Shape | Through Hole |
