(10PCS) TPSMA6L75A LITTELFUSE Diode TVS Single Uni-Dir 75V 600W Automotive
Tax included.

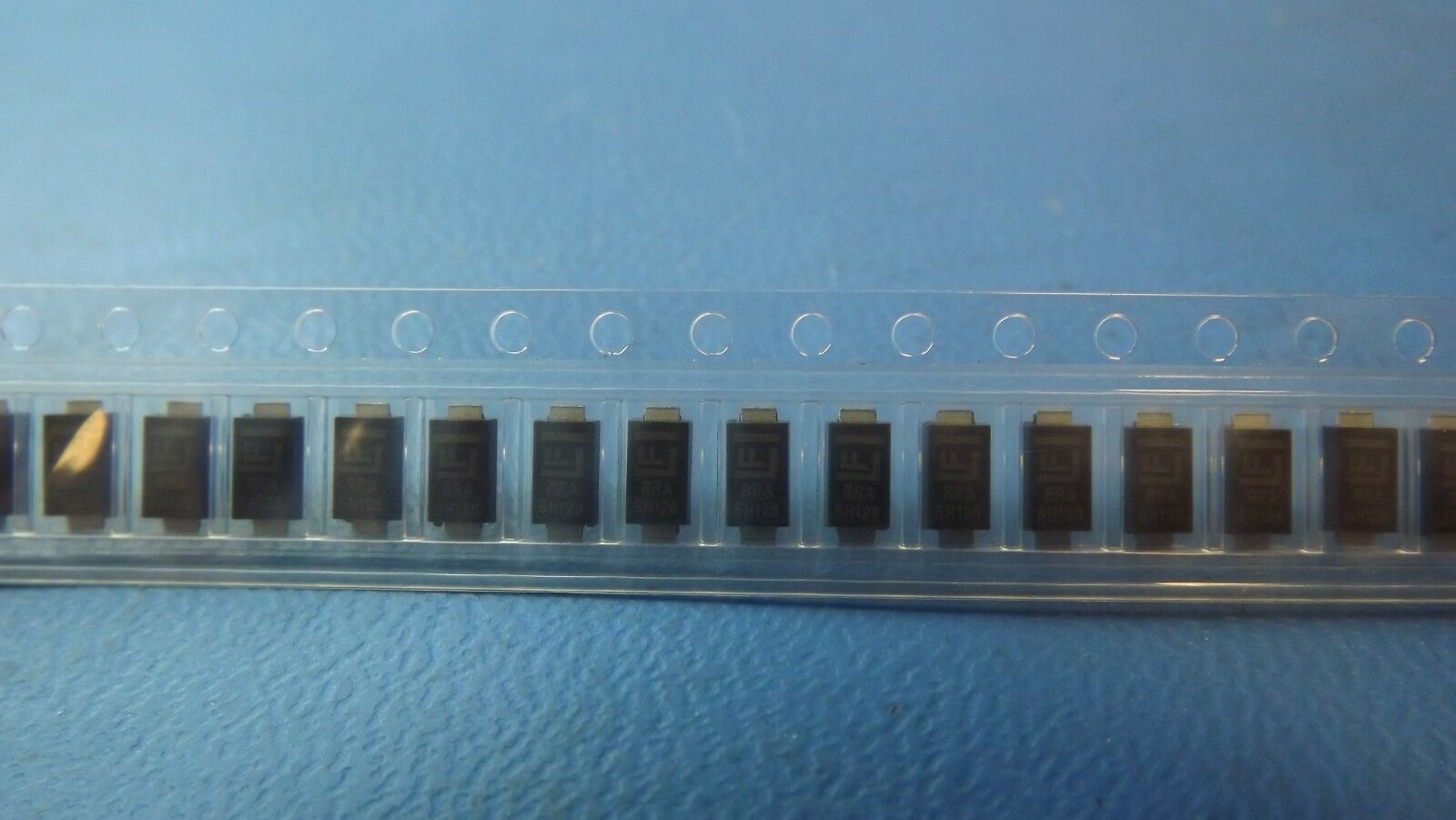

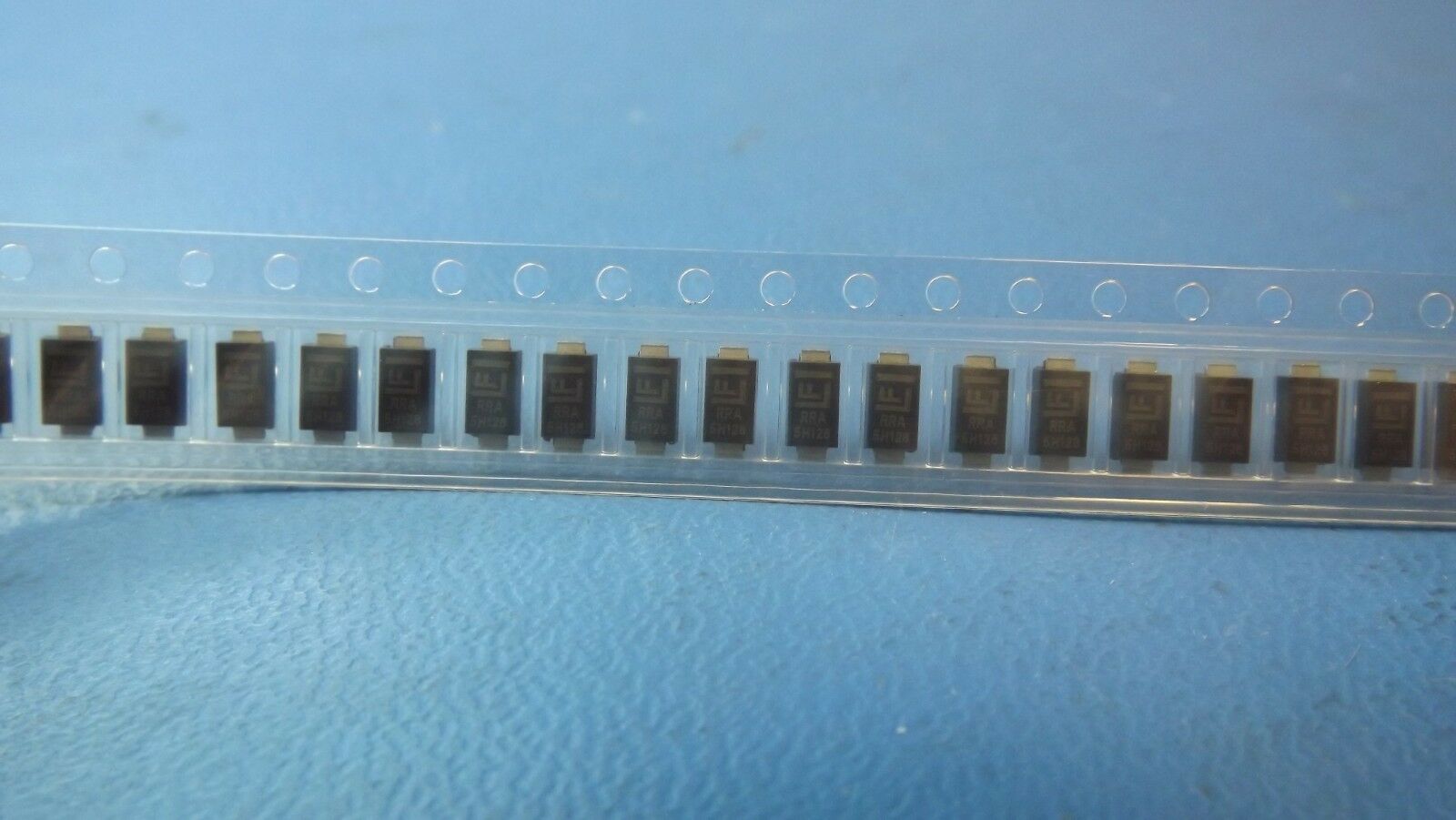

THIS LISTING IS FOR (10PCS) OF TPSMA6L75A BY LITTELFUSE
SPECIFICATIONS
| Mfr Package Description | SMA, 2 PIN |
| EU RoHS Compliant | Yes |
| Status | Active |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE |
| Breakdown Voltage-Nom | 87.7 V |
| Breakdown Voltage-Min | 83.3 V |
| Breakdown Voltage-Max | 92.1 V |
| Clamping Voltage-Max | 121.0 V |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| JEDEC-95 Code | DO-221AC |
| JESD-30 Code | R-PDSO-F2 |
| Non-rep Peak Rev Power Dis-Max | 600.0 W |
| Number of Elements | 1.0 |
| Number of Terminals | 2 |
| Operating Temperature-Min | -65.0 Cel |
| Operating Temperature-Max | 150.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Polarity | UNIDIRECTIONAL |
| Power Dissipation-Max | 3.0 W |
| Reference Standard | AEC-Q101; IEC-61000-4-2; IEC-61000-4-4 |
| Rep Pk Reverse Voltage-Max | 75.0 V |
| Sub Category | Transient Suppressors |
| Surface Mount | YES |
| Technology | AVALANCHE |
| Terminal Form | FLAT |
| Terminal Position | DUAL |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY, HIGH RELIABILITY, UL RECOGNIZED |
