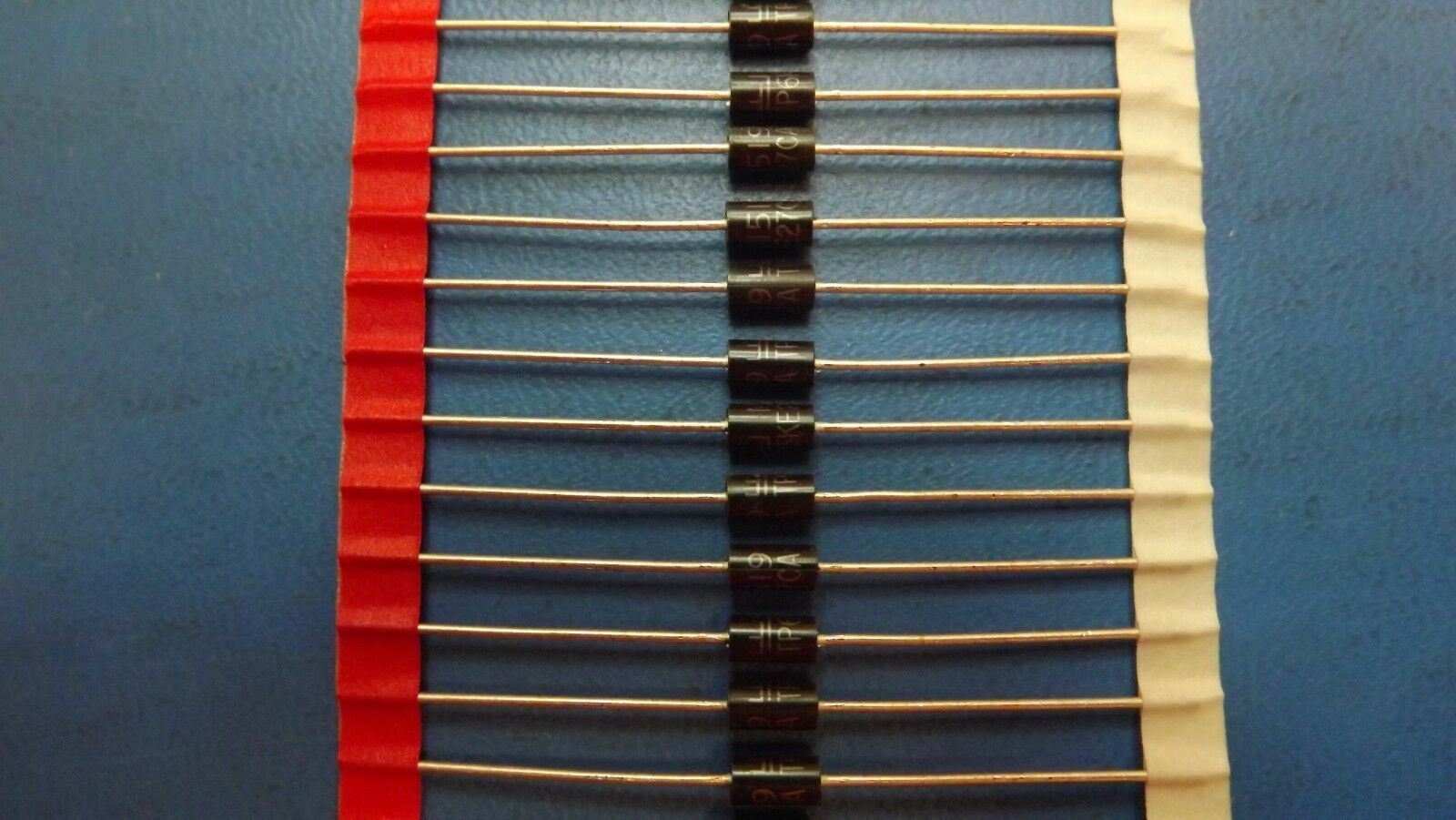

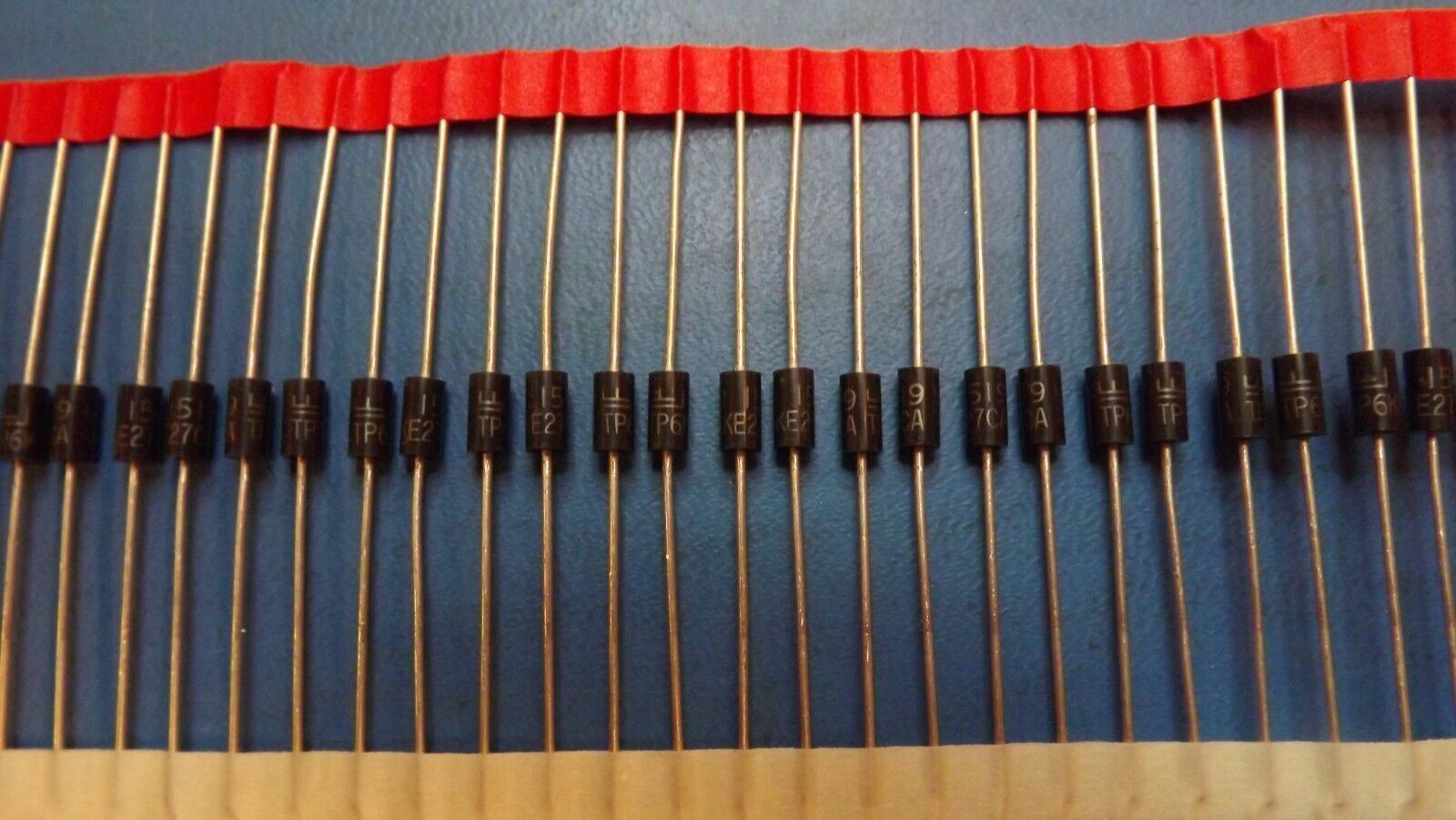

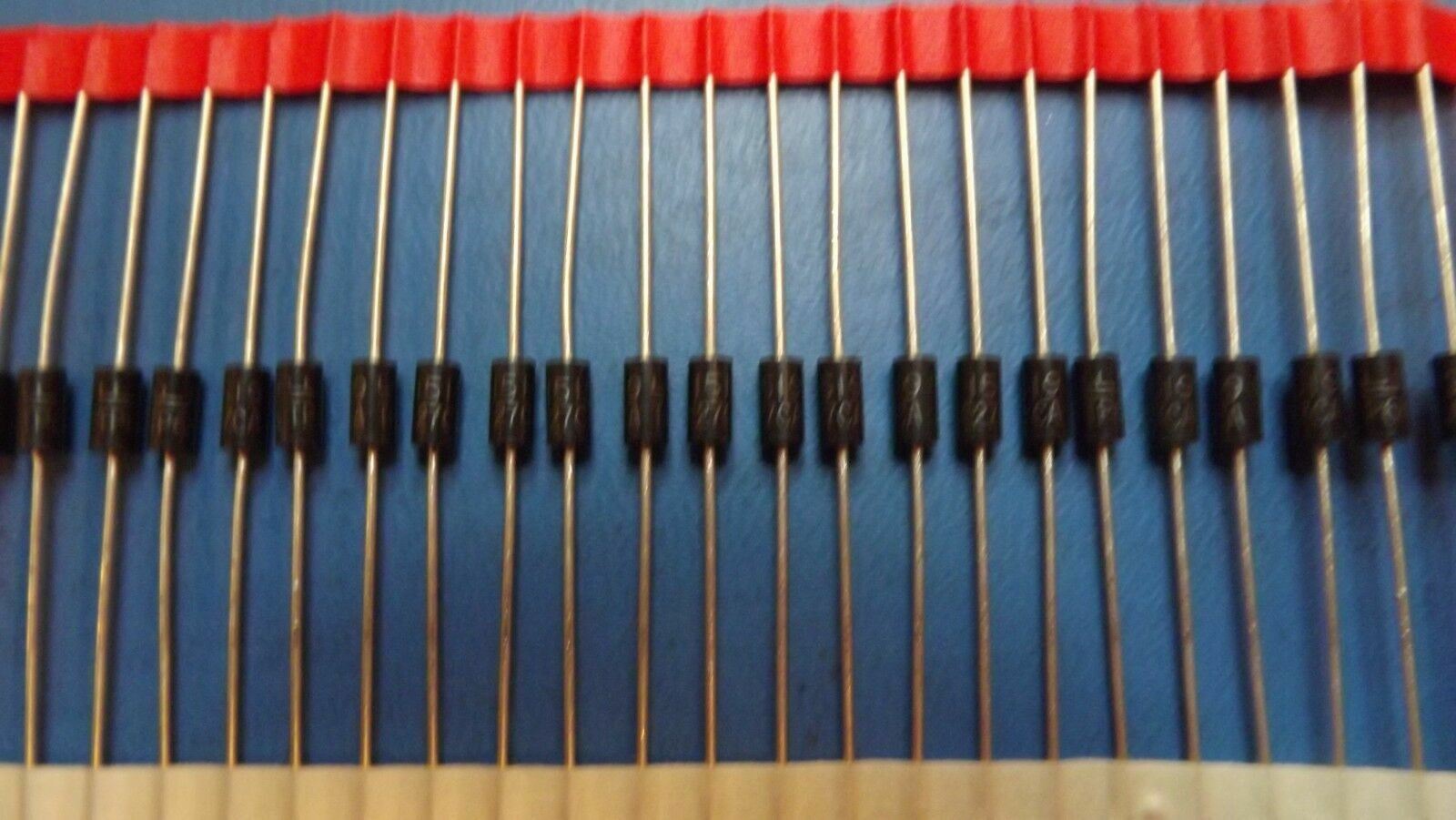

(10PCS) TP6KE27CA LITTELFUSE TVS DIODE 23.1V 37.5V DO204AC
Tax included.
THIS LISTING IS FOR (10PCS) OF TP6KE27CA BY LITTELFUSE
SPECIFICATIONS
| Mfr Package Description | DO-15, 2 PIN |
| Status | Active |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE |
| Breakdown Voltage-Min | 25.7 V |
| Breakdown Voltage-Max | 28.4 V |
| Case Connection | ISOLATED |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| JEDEC-95 Code | DO-204AC |
| JESD-30 Code | O-PALF-W2 |
| Non-rep Peak Rev Power Dis-Max | 600.0 W |
| Number of Elements | 1.0 |
| Number of Terminals | 2 |
| Operating Temperature-Min | -55.0 Cel |
| Operating Temperature-Max | 175.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | ROUND |
| Package Style | LONG FORM |
| Polarity | BIDIRECTIONAL |
| Power Dissipation-Max | 5.0 W |
| Reference Standard | AEC-Q101; IEC-61000-4-2; IEC-61000-4-4 |
| Rep Pk Reverse Voltage-Max | 23.1 V |
| Surface Mount | NO |
| Technology | AVALANCHE |
| Terminal Form | WIRE |
| Terminal Position | AXIAL |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY, HIGH RELIABILITY, UL RECOGNIZED |
