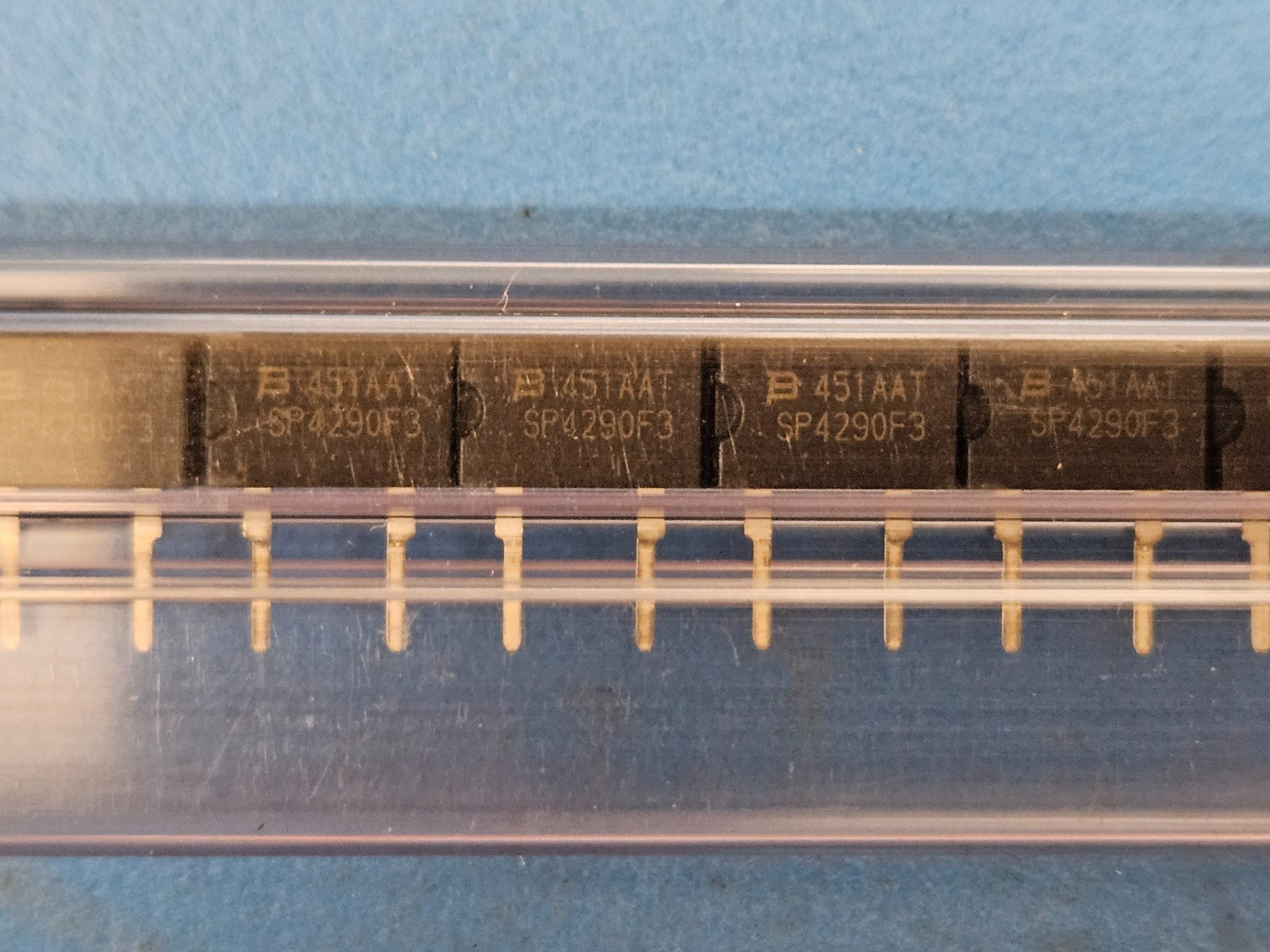

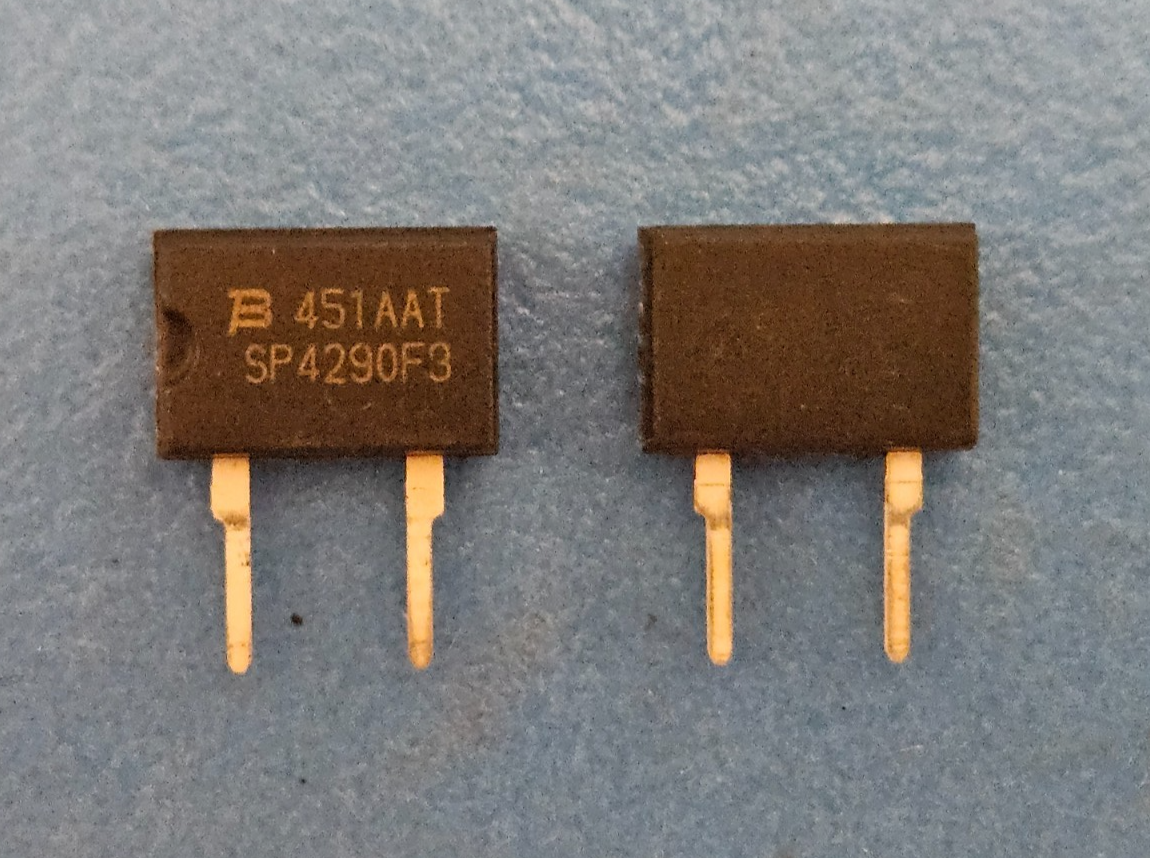

(10PCS) TISP4290F3SL Silicon Surge Protector, 290V 6A SIP-2 SP4290F3
Tax included.
This listing is for (10PCS) of TISP4290F3SL by Bourns
Status Discontinued
Breakover Voltage-Max (V) 290.0000000000000000
Configuration SINGLE
DC Off-state Voltage-Max (V) 220.0000000000000000
JESD-30 Code R-PSIP-T2
Non-Repetitive Pk On-state Cur (A) 6.0000000000000000
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max (Cel) 150
Operating Temperature-Min (Cel) -40
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style IN-LINE
DLA Qualification Not Qualified
Screening Level / Reference Standard UL RECOGNIZED
Surface Mount NO
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Trigger Device Type SILICON SURGE PROTECTOR
